(5PCS) ADA4091-2ACPZ ANALOG DEVICES OP Amp Dual GP R-R I/O ±15V/30V 8-Pin LFCSP
Tax included.

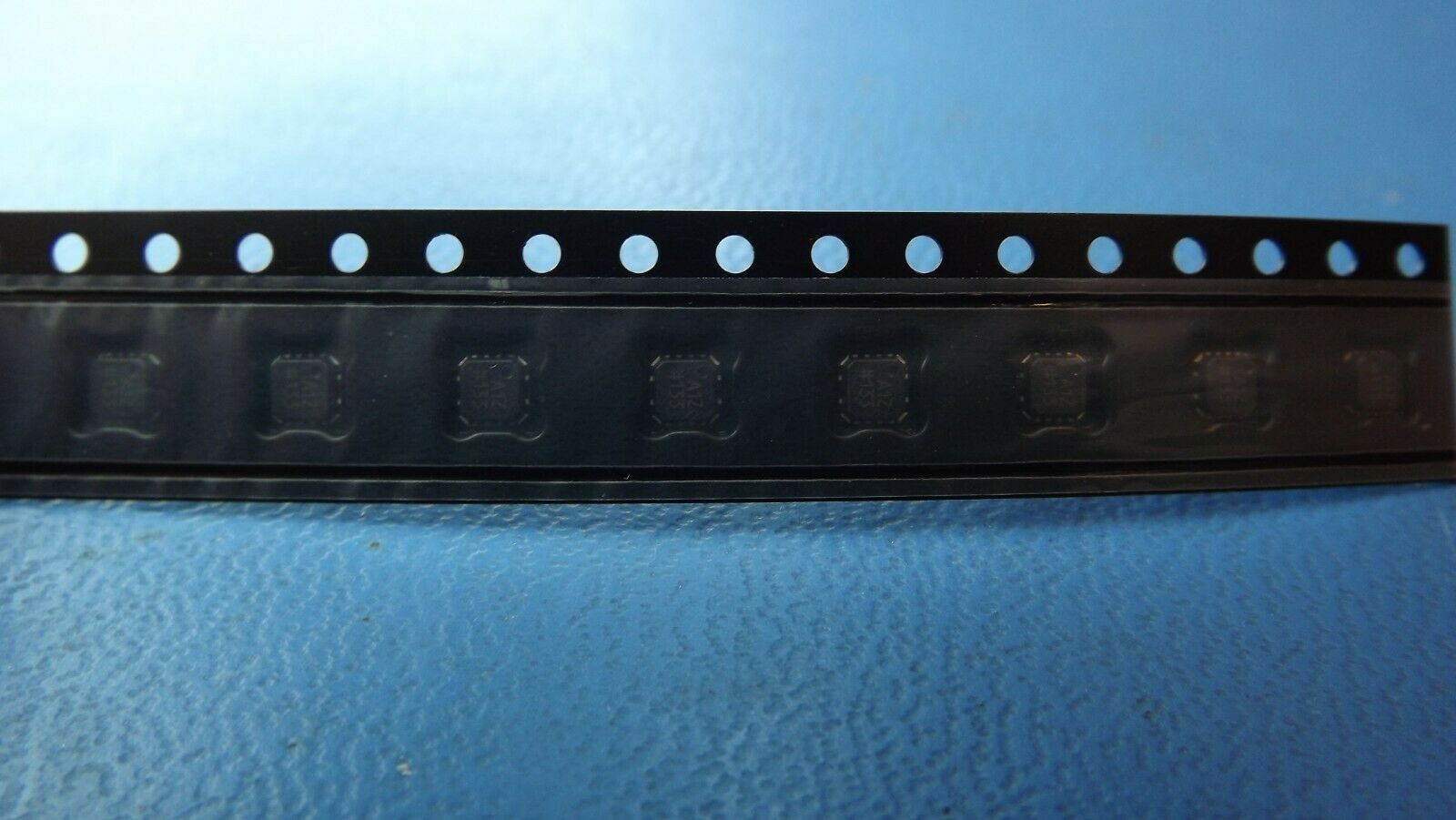

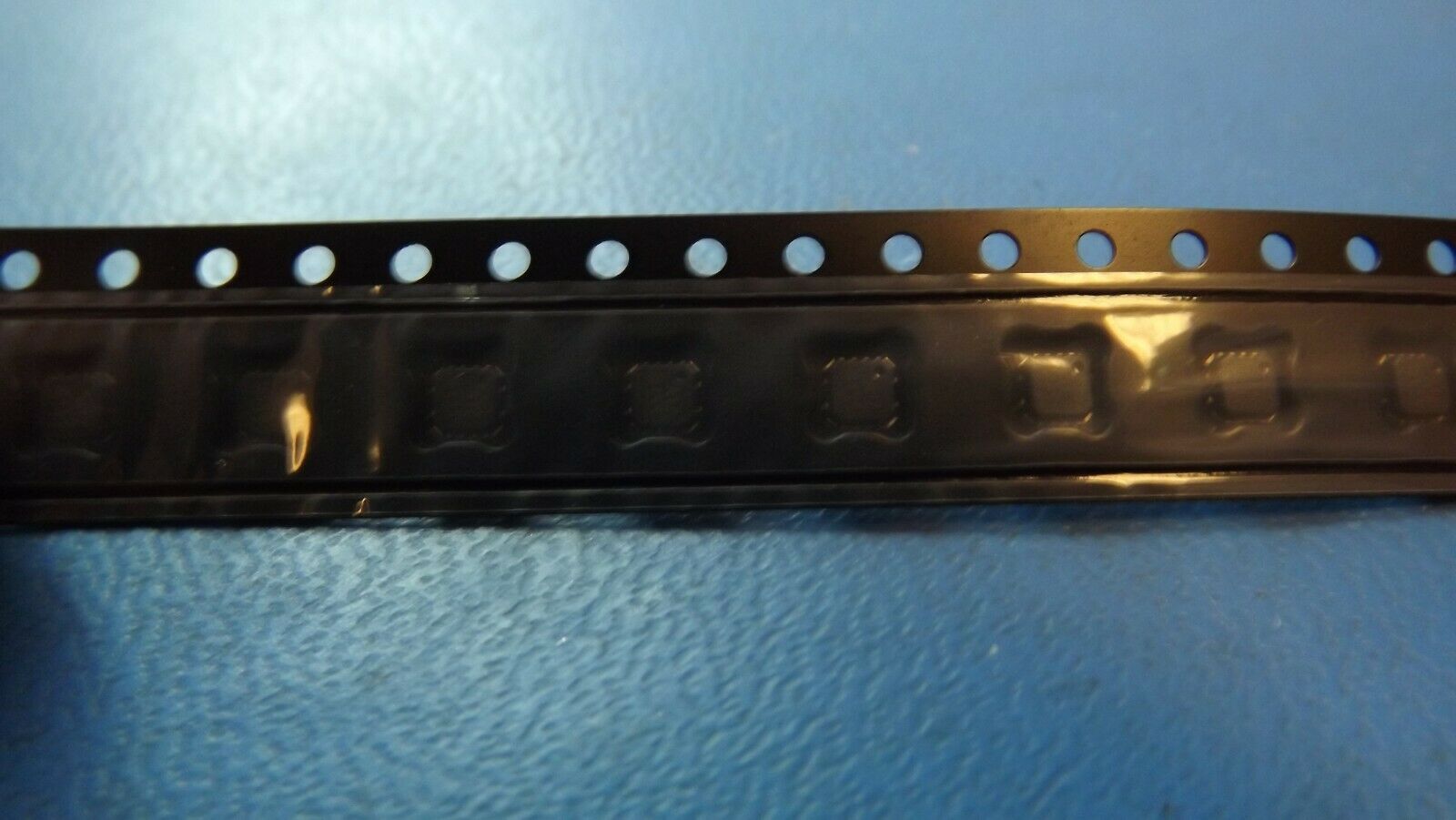

THIS LISTING IS FOR (5PCS) OF ADA4091-2ACPZ BY ANALOG DEVICES
SPECIFICATIONS
| Mfr Package Description | 3 X 3 MM, ROHS COMPLIANT, LFCSP-8 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | EOL |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Average Bias Current-Max (IIB) | 0.35 µA |
| Common-mode Reject Ratio-Nom | 113.0 dB |
| Frequency Compensation | YES |
| Input Offset Voltage-Max | 600.0 µV |
| JESD-30 Code | S-PDSO-N8 |
| JESD-609 Code | e3 |
| Low-Offset | YES |
| Micropower | YES |
| Moisture Sensitivity Level | 1 |
| Neg Supply Voltage Limit-Max | -18.0 V |
| Neg Supply Voltage-Nom (Vsup) | -5.0 V |
| Number of Functions | 2 |
| Number of Terminals | 8 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | HVSON |
| Package Equivalence Code | SOLCC8,.11,20 |
| Package Shape | SQUARE |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE |
| Packing Method | TAPE AND REEL |
| Peak Reflow Temperature (Cel) | 225 |
| Power Supplies (V) | +-1.5/+-15/3/30 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 0.9 mm |
| Slew Rate-Nom | 0.46 V/us |
| Sub Category | Operational Amplifier |
| Supply Current-Max | 0.7 mA |
| Supply Voltage Limit-Max | 18.0 V |
| Supply Voltage-Nom (Vsup) | 5.0 V |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | MATTE TIN |
| Terminal Form | NO LEAD |
| Terminal Pitch | 0.5 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Unity Gain BW-Nom | 1220.0 kHz |
| Voltage Gain-Min | 31620.0 |
| Length | 3.0 mm |
| Width | 3.0 mm |
