(5PCS) AD8542ARU OP Amp Dual GP R-R I/O 5.5V 8-Pin TSSOP

  • $4.95
    Unit price per
Tax included.

Only 90 left!

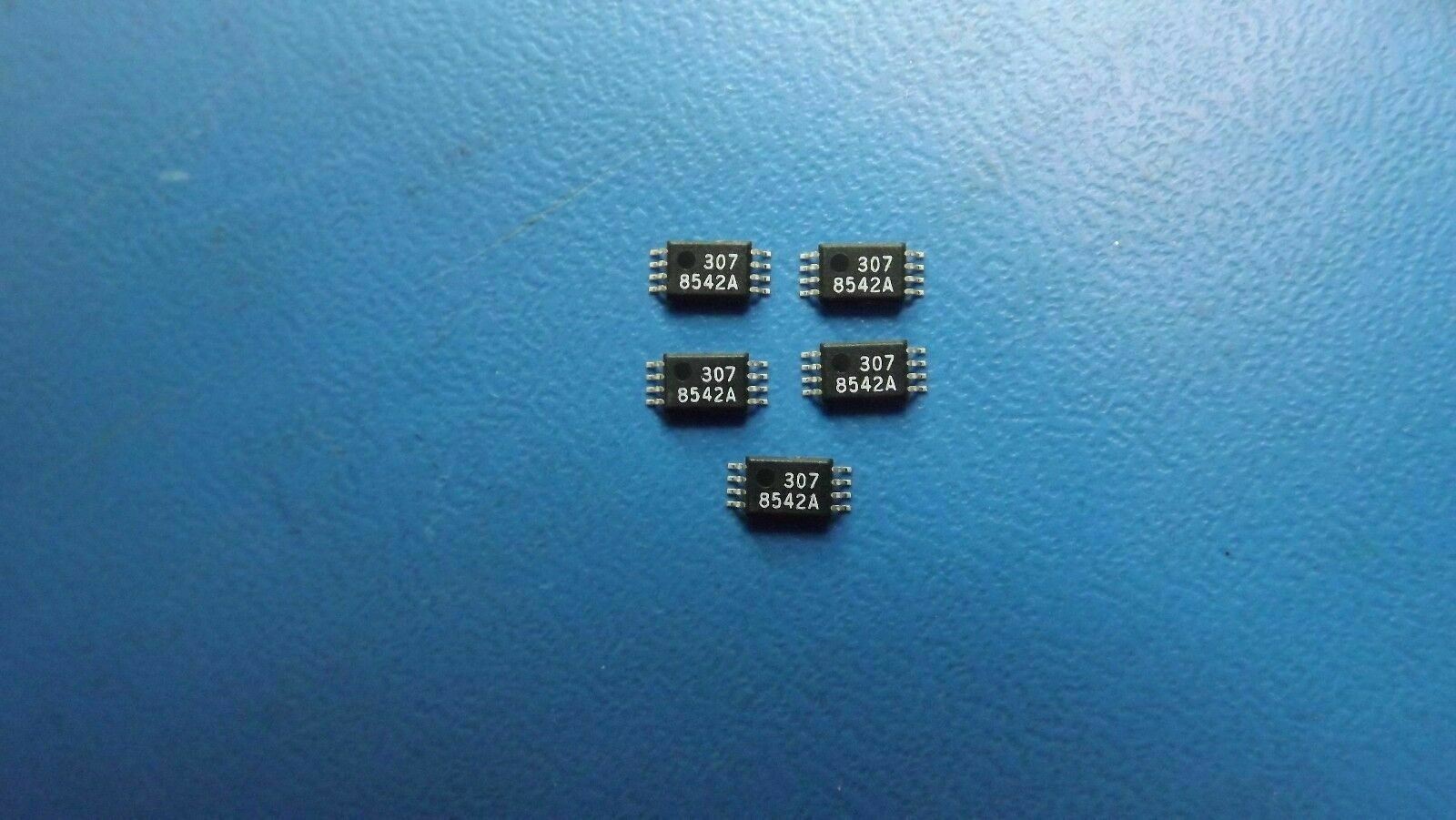

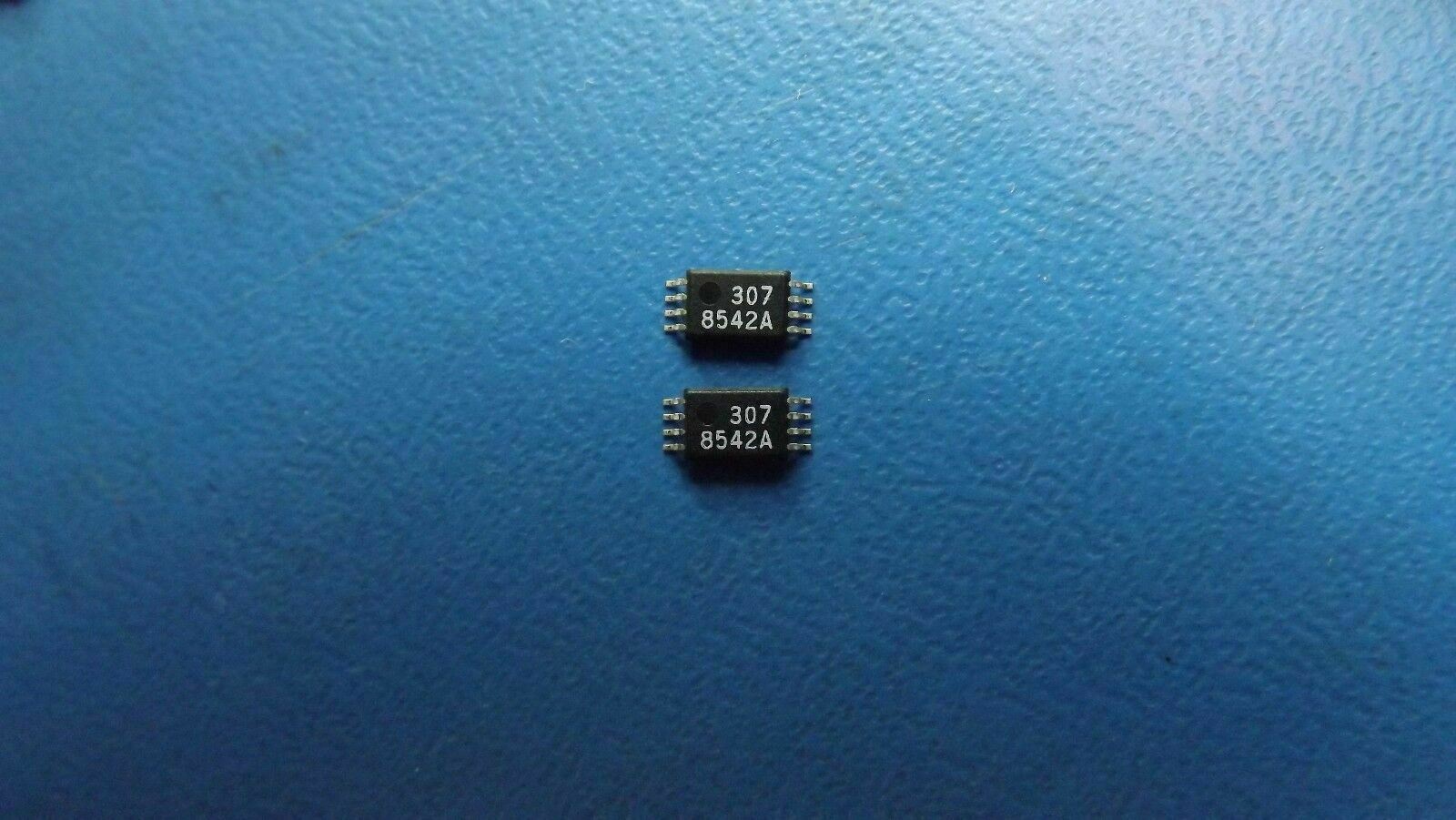

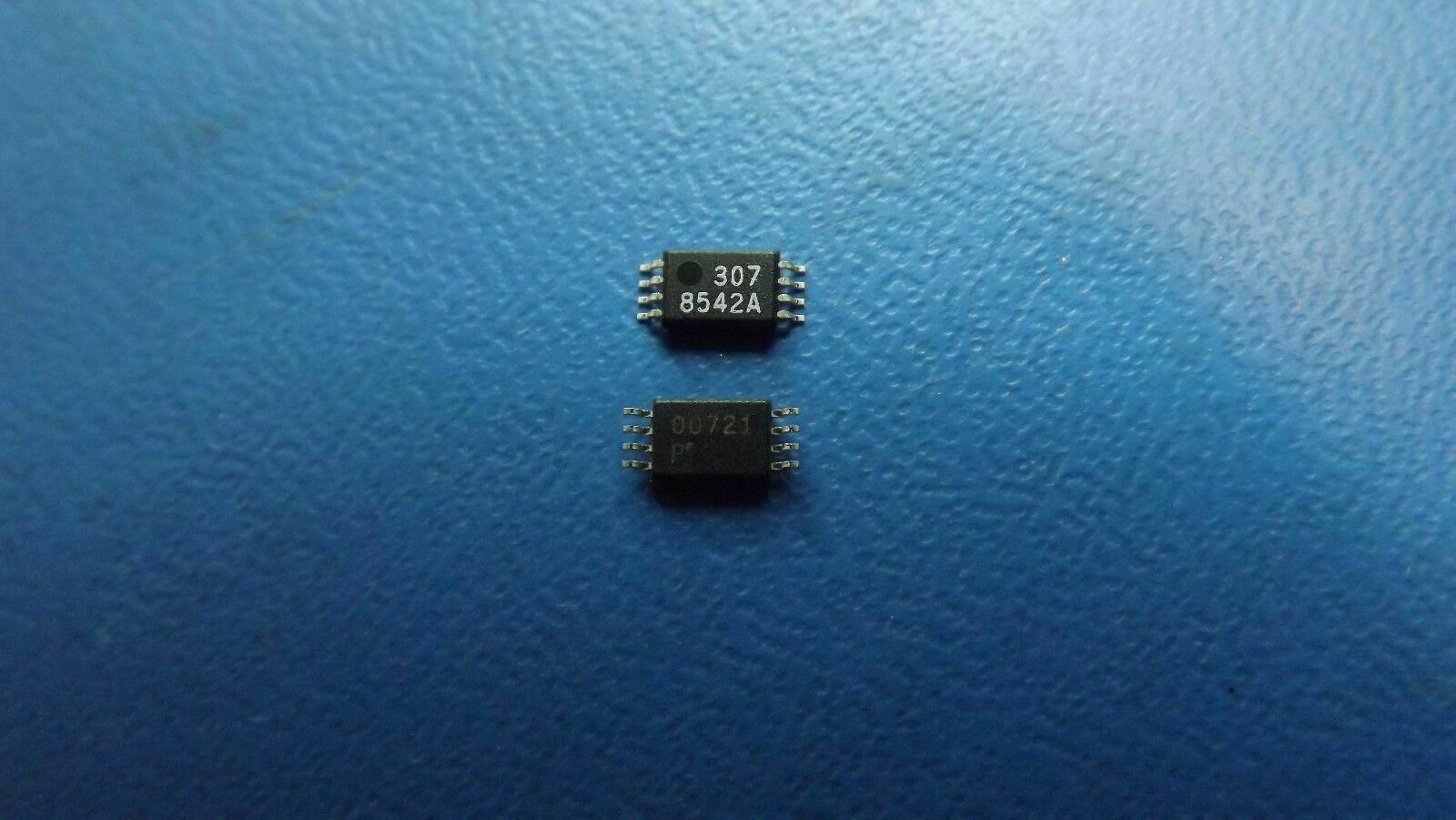

THIS LISTING IS FOR (5PCS) OF AD8542ARU BY ANALOG DEVICES

SPECIFICATIONS

Mfr Package Description MO-153AA, TSSOP-8
REACH Compliant Yes
Status Discontinued
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.001 µA
Bias Current-Max (IIB) @25C 6.0E-5 µA
Common-mode Reject Ratio-Nom 45.0 dB
Frequency Compensation YES
Input Offset Voltage-Max 7000.0 µV
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Low-Bias YES
Low-Offset NO
Micropower YES
Moisture Sensitivity Level 1
Number of Functions 2
Number of Terminals 8
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 240
Power Supplies (V) 2.7/5
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Slew Rate-Nom 0.8 V/us
Slew Rate-Min 0.4 V/us
Sub Category Operational Amplifiers
Supply Current-Max 0.17 mA
Supply Voltage Limit-Max 6.0 V
Supply Voltage-Nom (Vsup) 3.0 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Unity Gain BW-Nom 980.0 kHz
Voltage Gain-Min 2000.0
Length 4.4 mm
Width 3.0 mm
