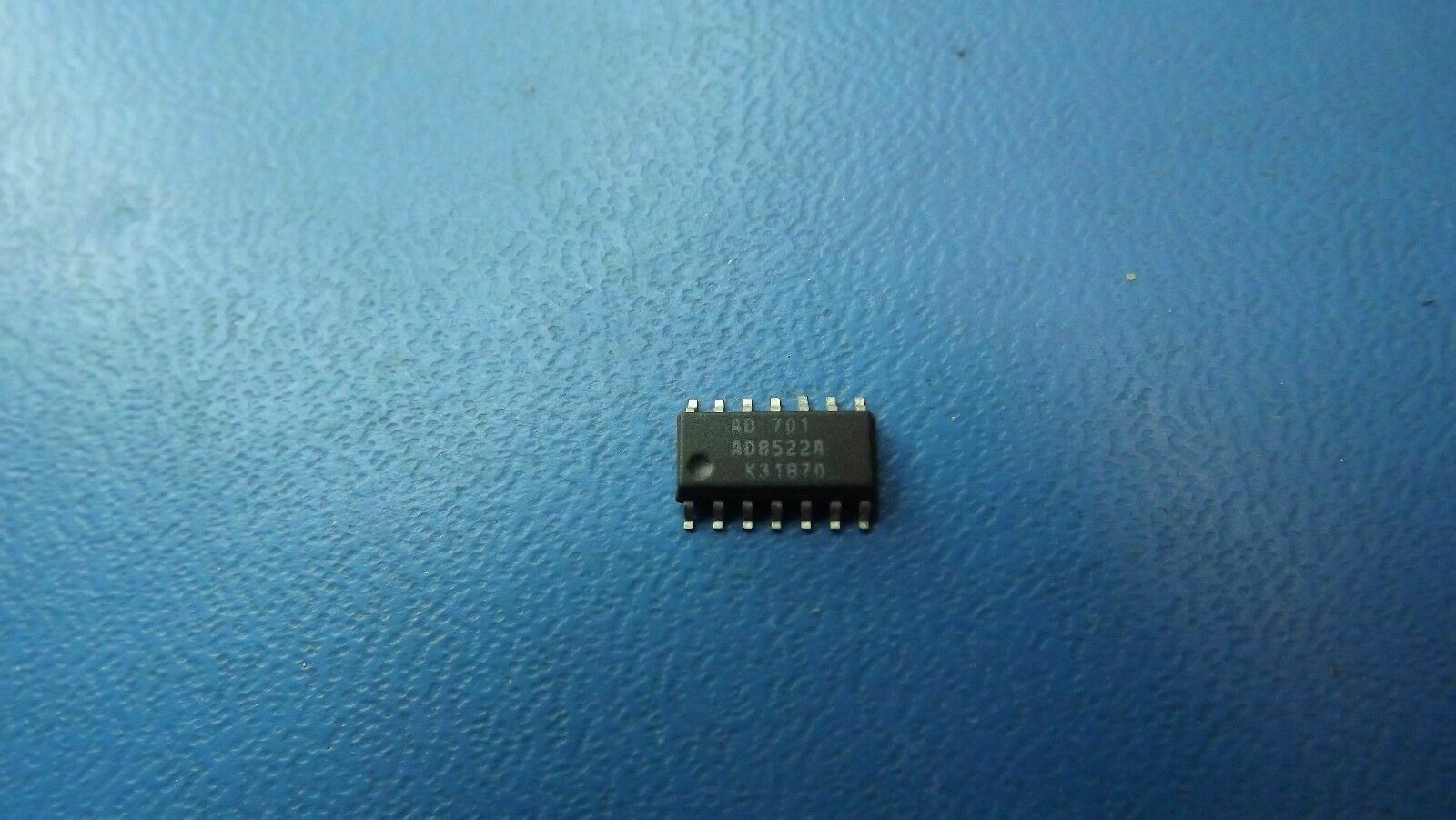

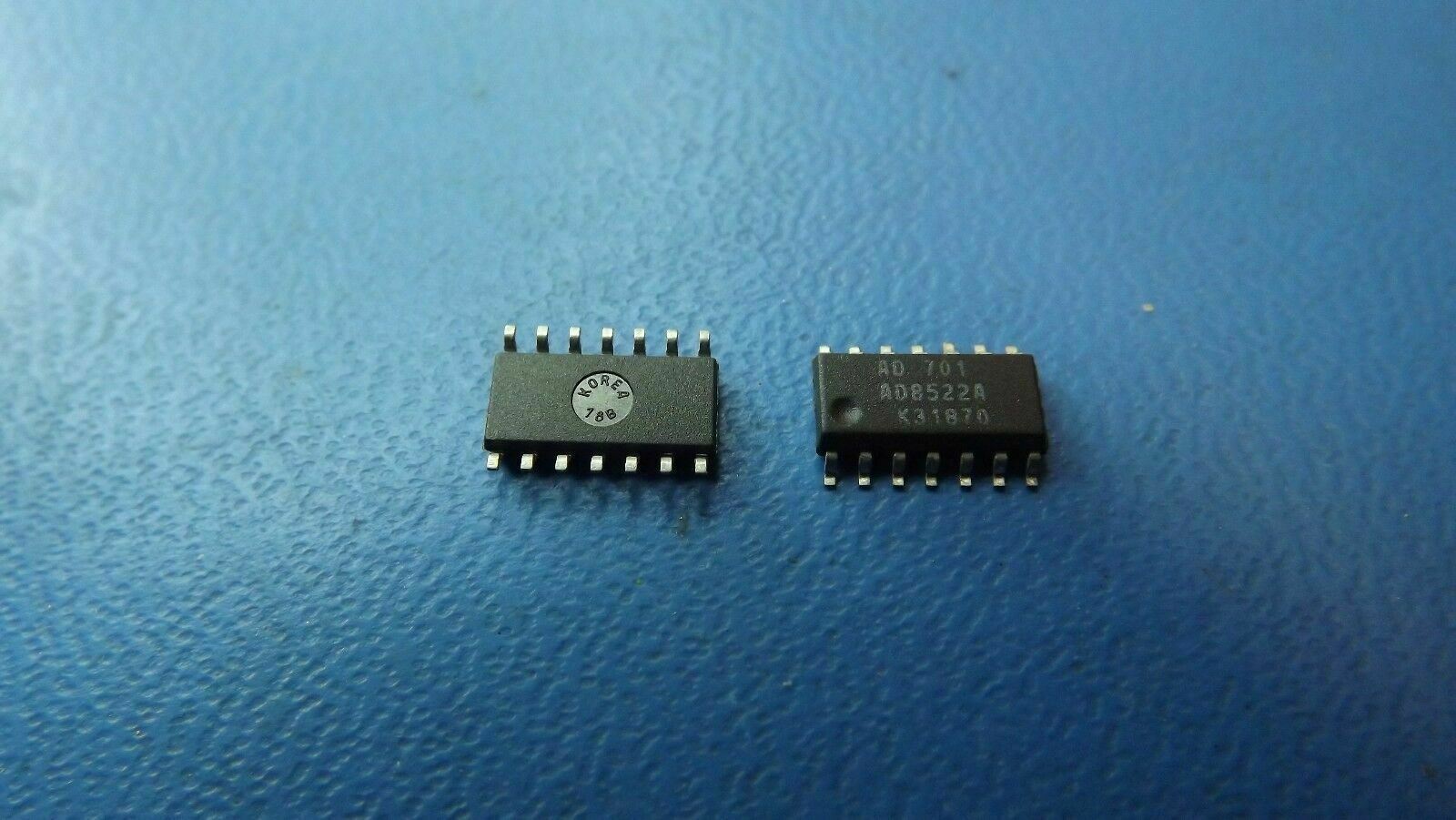

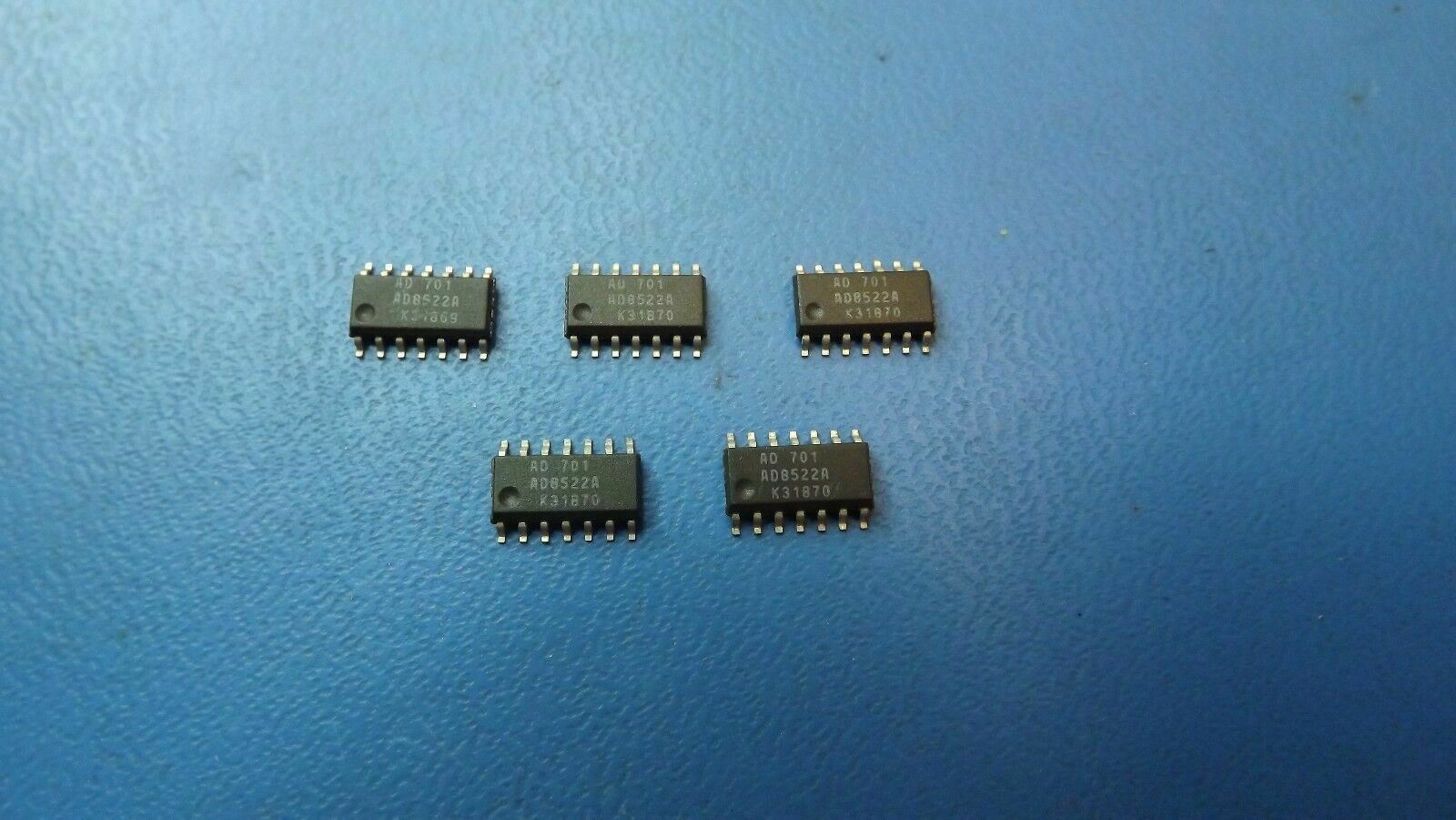

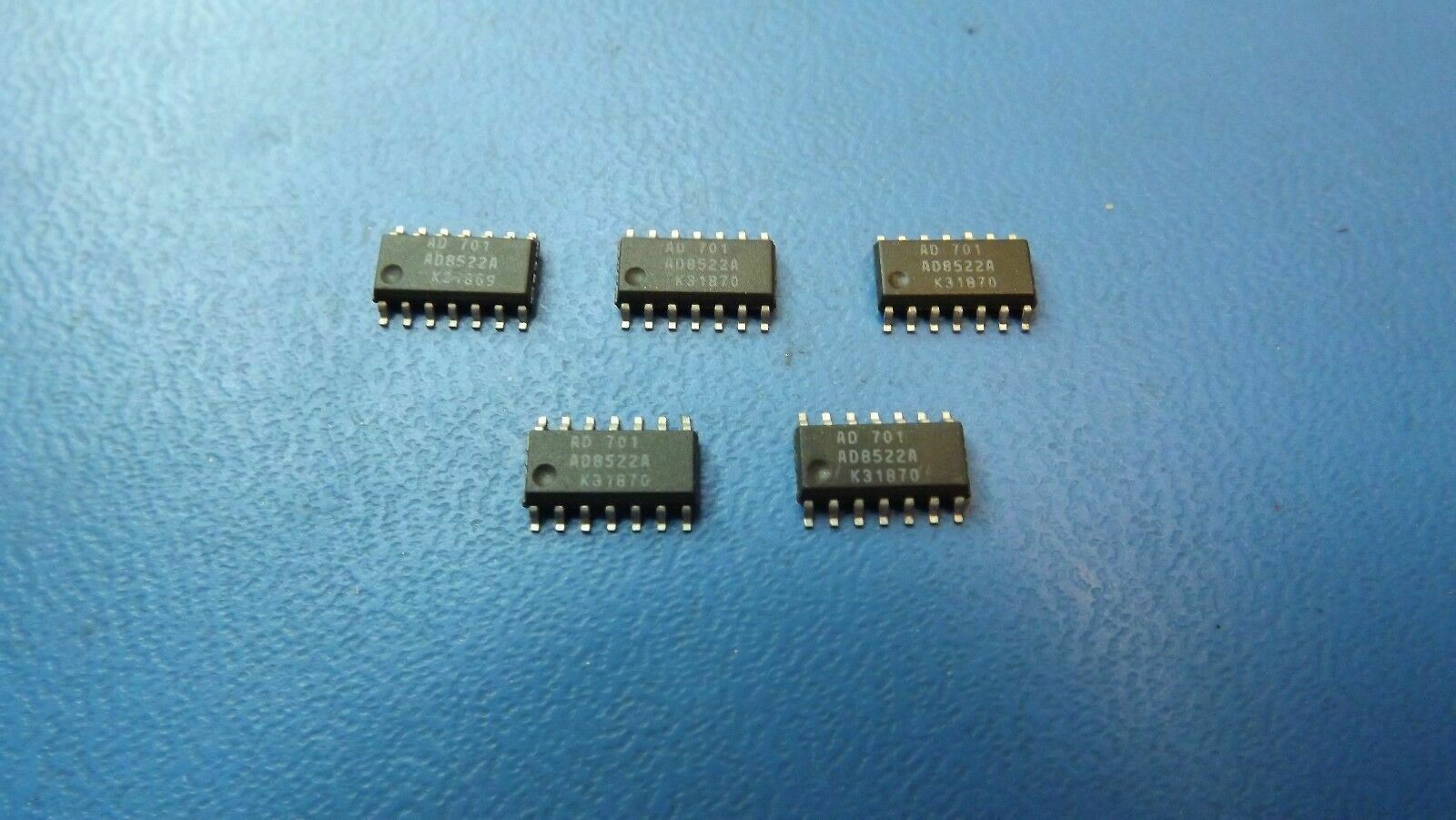

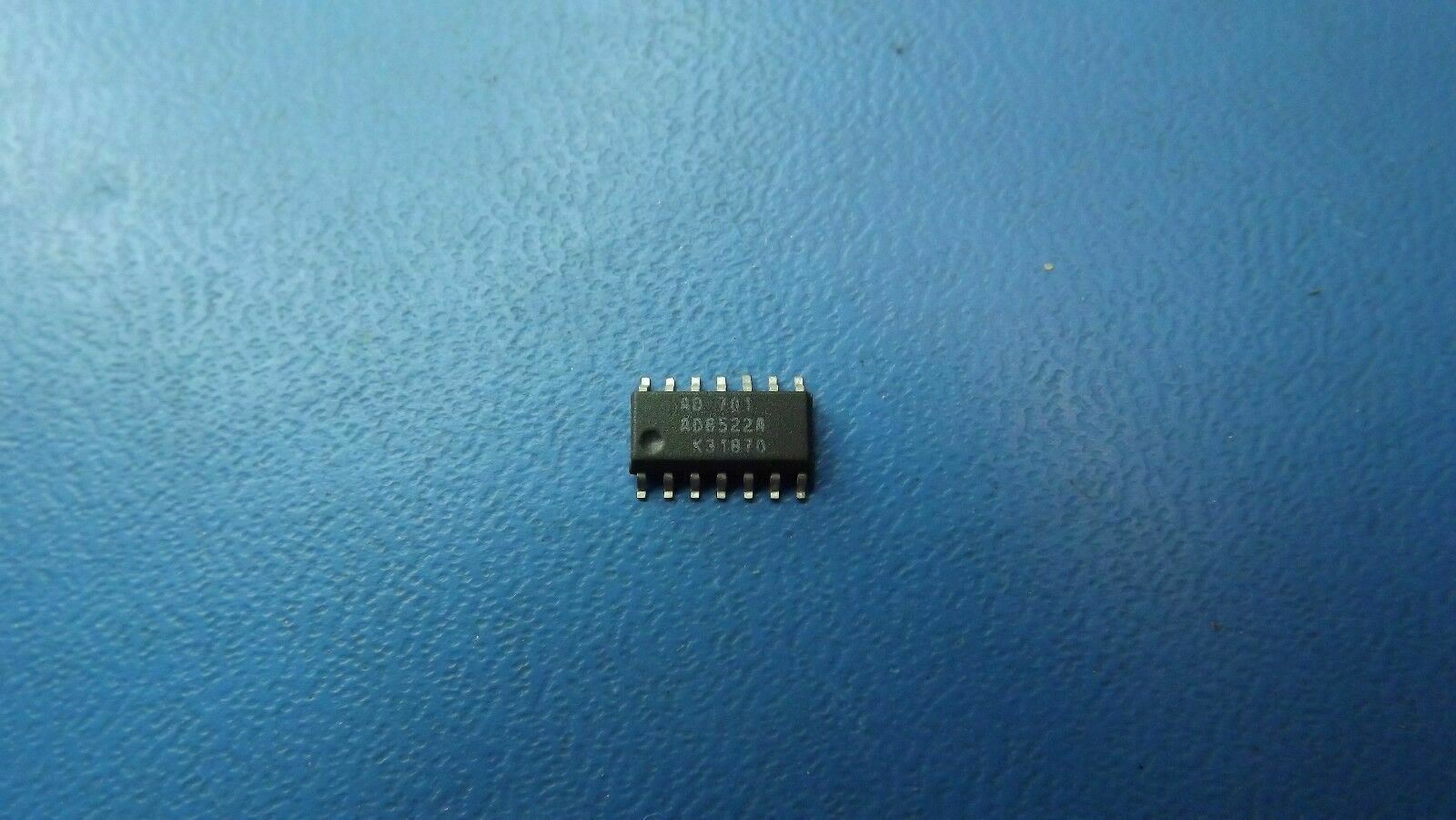

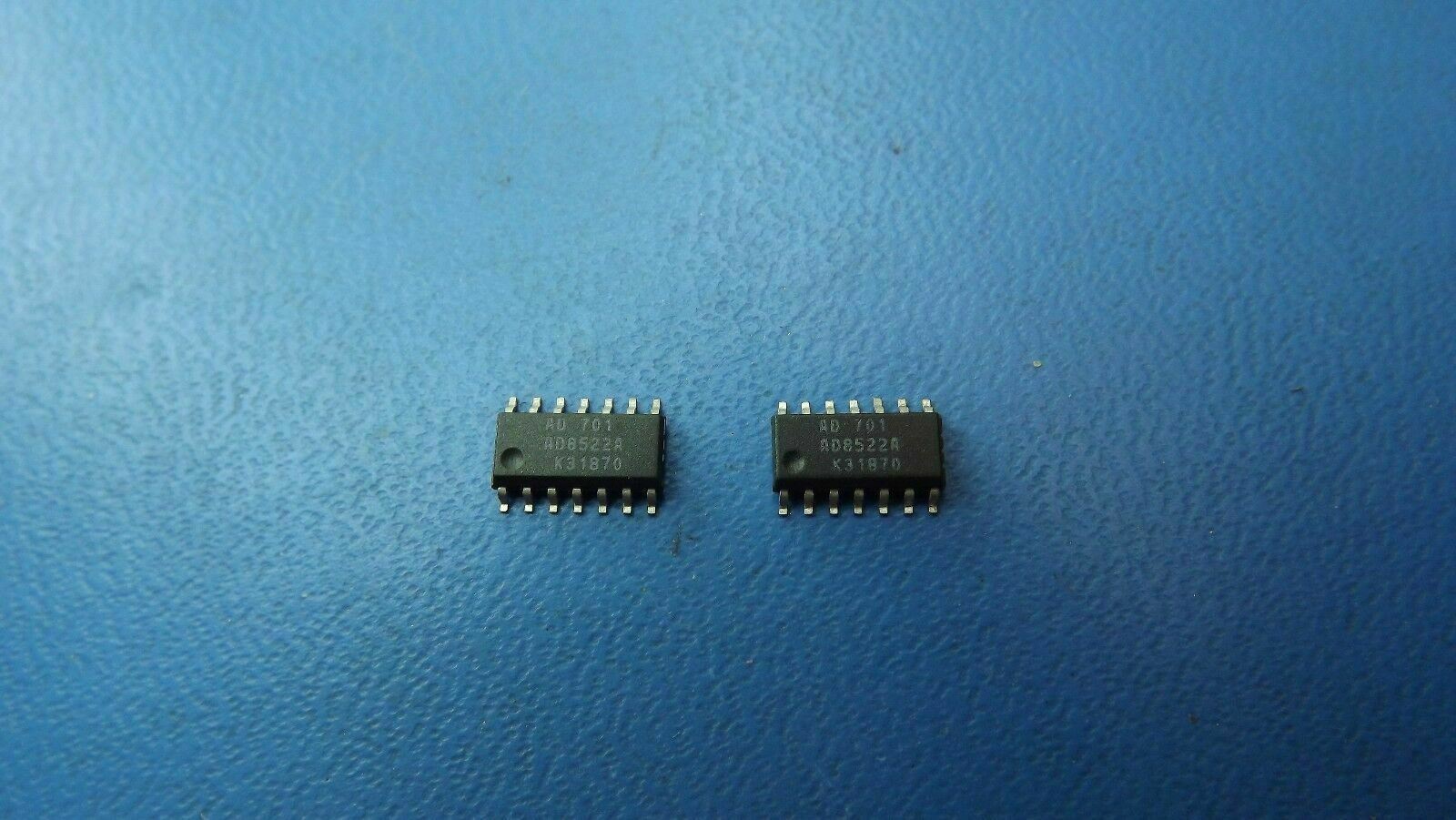

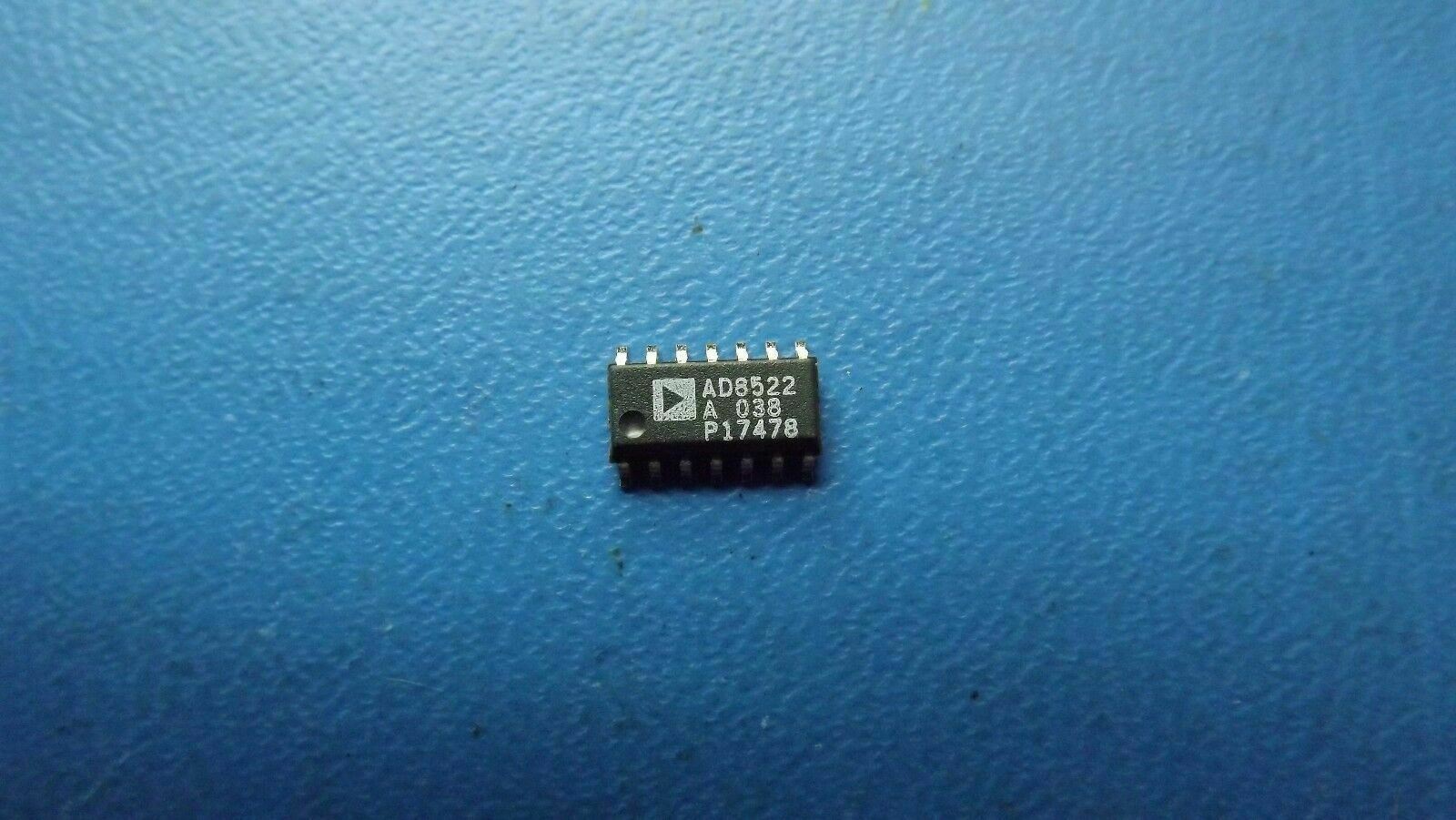

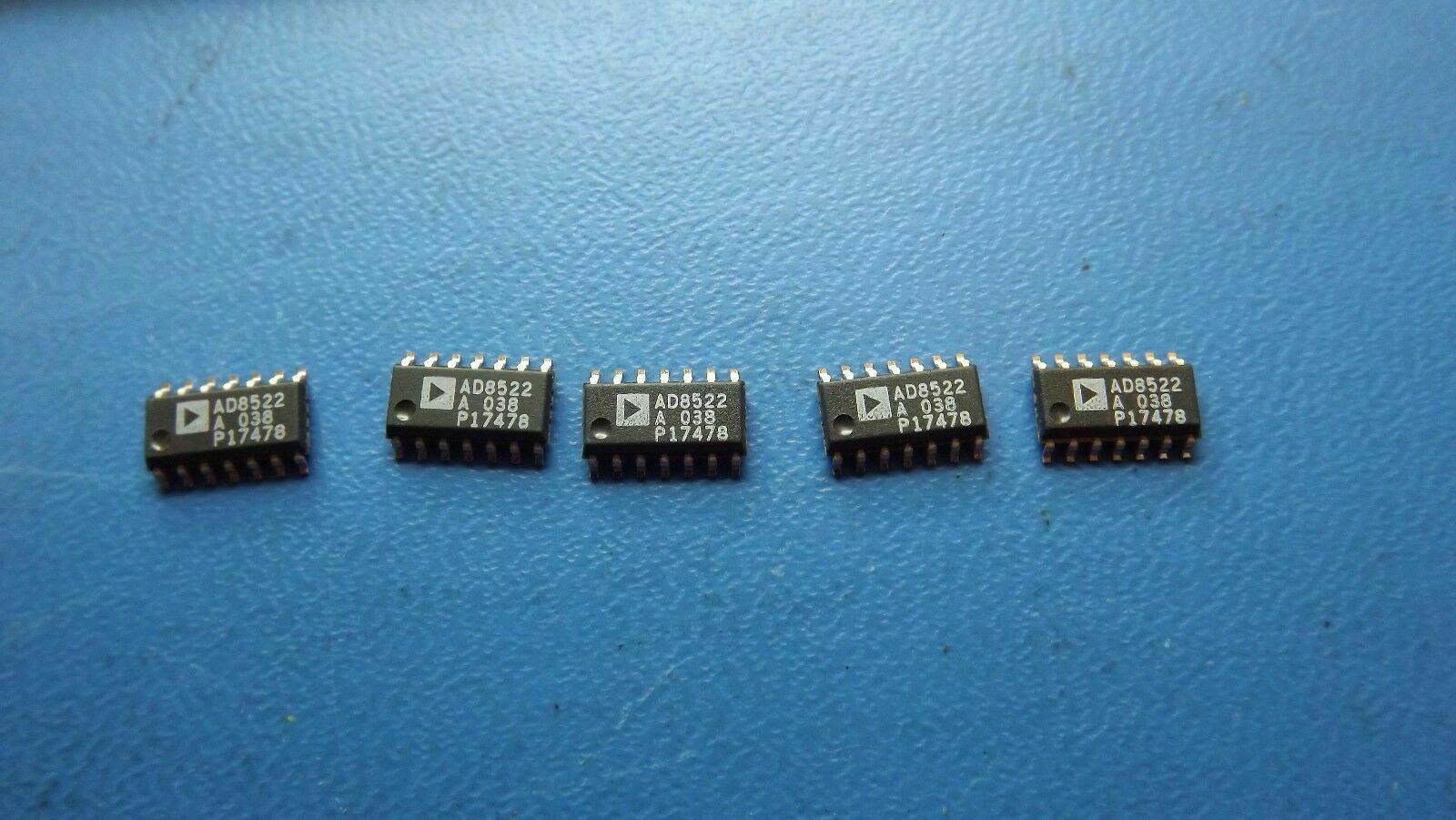

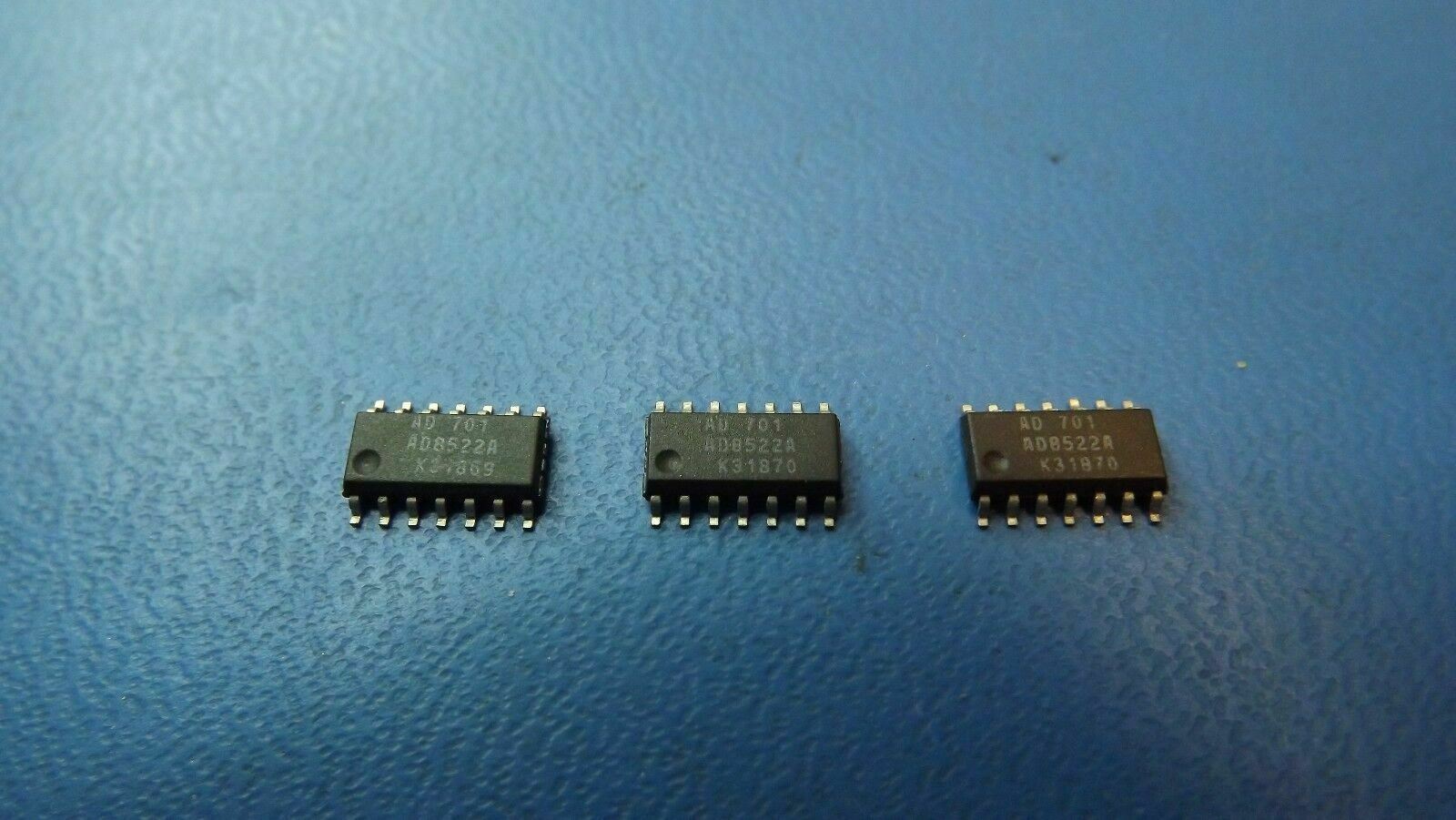

(5PCS) AD8522AR ANALOG DEVICES DAC 2-CH R-2R 12-bit 14-Pin SOIC
Tax included.
THIS LISTING IS FOR (5PC) OF AD8522AR BY ANALOG DEVICES.
PART INFORMATION
AD8522AR PART DETAILS & PARAMETRIC
| EU RoHS | Not Compliant |
| Maximum Operating Temperature (°C) | 85 |
| Output Type | Voltage |
| Number of DAC Channels | 2 |
| Converter Type | General Purpose |
| Architecture | R-2R |
| Resolution | 12bit |
| Maximum Settling Time (us) | 16(Typ) |
| Conversion Rate | 62.5ksps |
| Integral Nonlinearity Error | ±1.5LSB |
| Digital Interface Type | Serial (3-Wire) |
| Minimum Operating Temperature (°C) | -40 |
| Power Supply Type | Single |
| Minimum Single Supply Voltage (V) | 4.5 |
| Typical Single Supply Voltage (V) | 5 |
| Maximum Single Supply Voltage (V) | 5.5 |
| Packaging | Tube |
| Mounting | Surface Mount |
| Package Height (mm) | 1.5(Max) |
| Package Length (mm) | 8.75(Max) |
| Package Width (mm) | 4(Max) |
| PCB | 14 |
| Standard Package Name | SOIC |
| Supplier Package | SOIC N |
| Pin Count | 14 |
| Lead Shape | Gull-wing |
