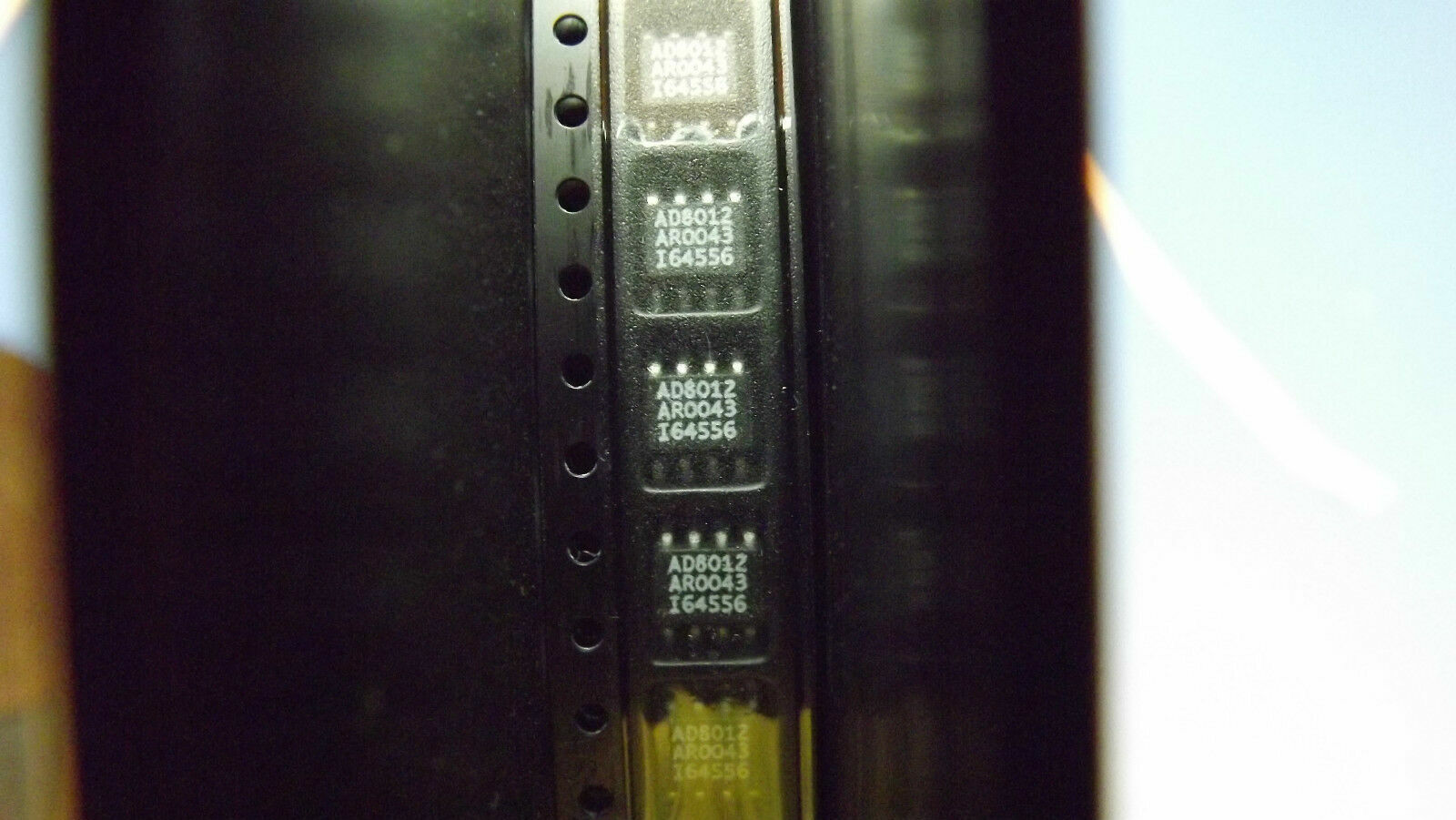

(5PCS) AD8012AR ADSL Driver Dual Low Power Amplifier 350MHZ 8-Pin SOIC
Tax included.
THIS LISTING IS FOR (5PCS) OF AD8012AR BY ANALOG DEVICES.
ADSL Driver Dual Low Power Amplifier 350MHZ 8-Pin SOIC
*WE CURRENTLY HAVE 5000PCS IN OUR STOCK AND WILL GLADLY MAKE DEALS ON LARGER QUANTITIES. PLEASE SEND OFFERS OR INQUIRIES.*
AD8012AR Part Details & Parametric
| EU RoHS | Not Compliant |
| Amplifier Topology | Current Feedback Amplifier |
| Type | Driver |
| JTAG Support | No |
| Number of Drivers/Receivers | 2 |
| Power Supply Type | Single|Dual |
| Minimum Single Supply Voltage (V) | 3 |
| Typical Single Supply Voltage (V) | 5|9 |
| Maximum Single Supply Voltage (V) | 12 |
| Minimum Dual Supply Voltage (V) | ±1.5 |
| Typical Dual Supply Voltage (V) | ±3|±5 |
| Maximum Dual Supply Voltage (V) | ±6 |
| Maximum Supply Current (A) | 3.5@5V |
| Minimum CMRR (dB) | 56 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Power Dissipation (mW) | 800 |
| Typical 3dB Bandwidth (MHz) | 350 |
| Typical Slew Rate (V/us) | 2250@±5V |
| Packaging | Tube |
| Screening Level | Industrial |
| Mounting | Surface Mount |
| Package Height (mm) | 1.5(Max) |
| Package Length (mm) | 5(Max) |
| Package Width (mm) | 4(Max) |
| PCB | 8 |
| Standard Package Name | SOIC |
| Supplier Package | SOIC N |
| Pin Count | 8 |
| Lead Shape | Gull-wing |
