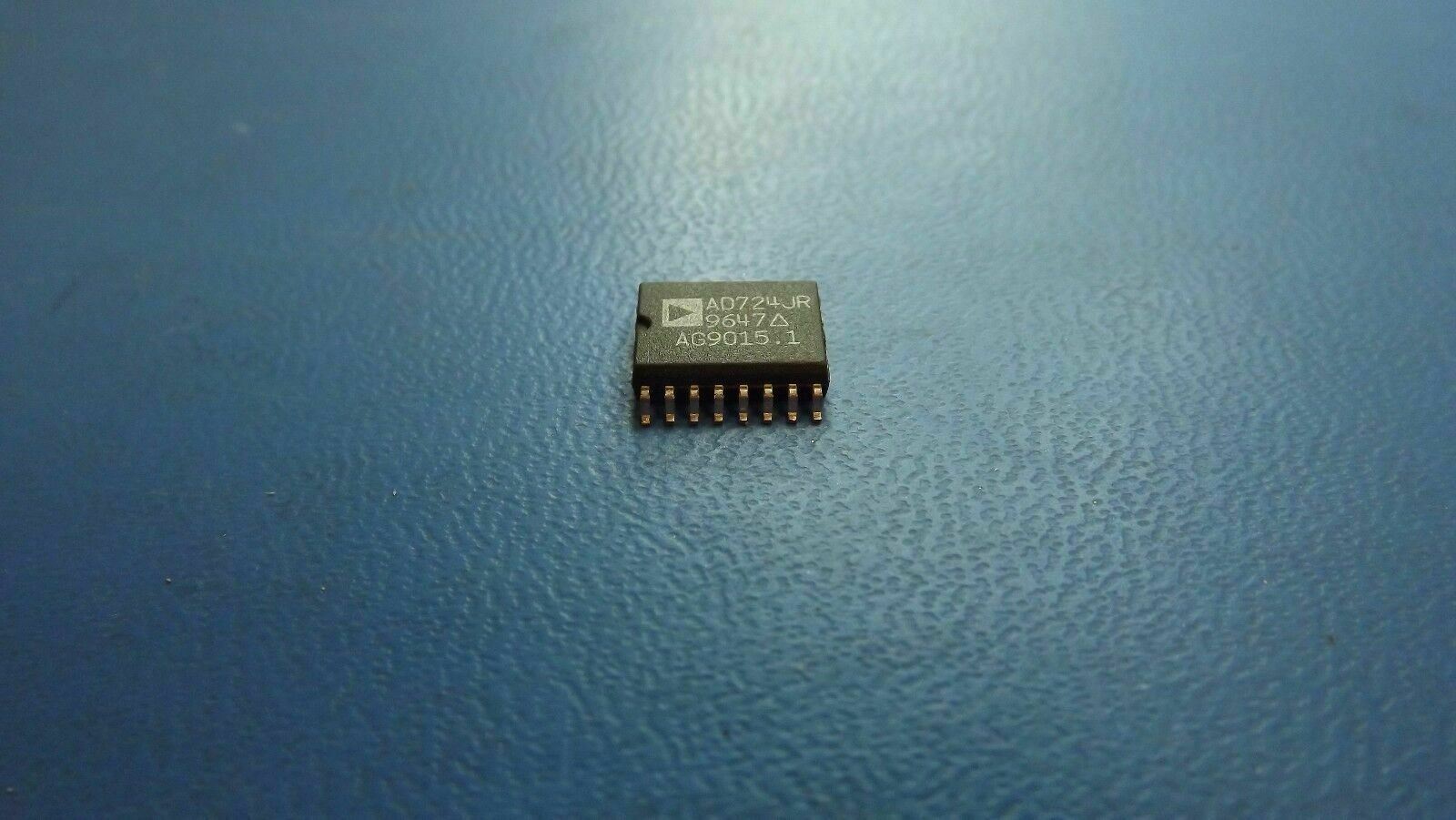

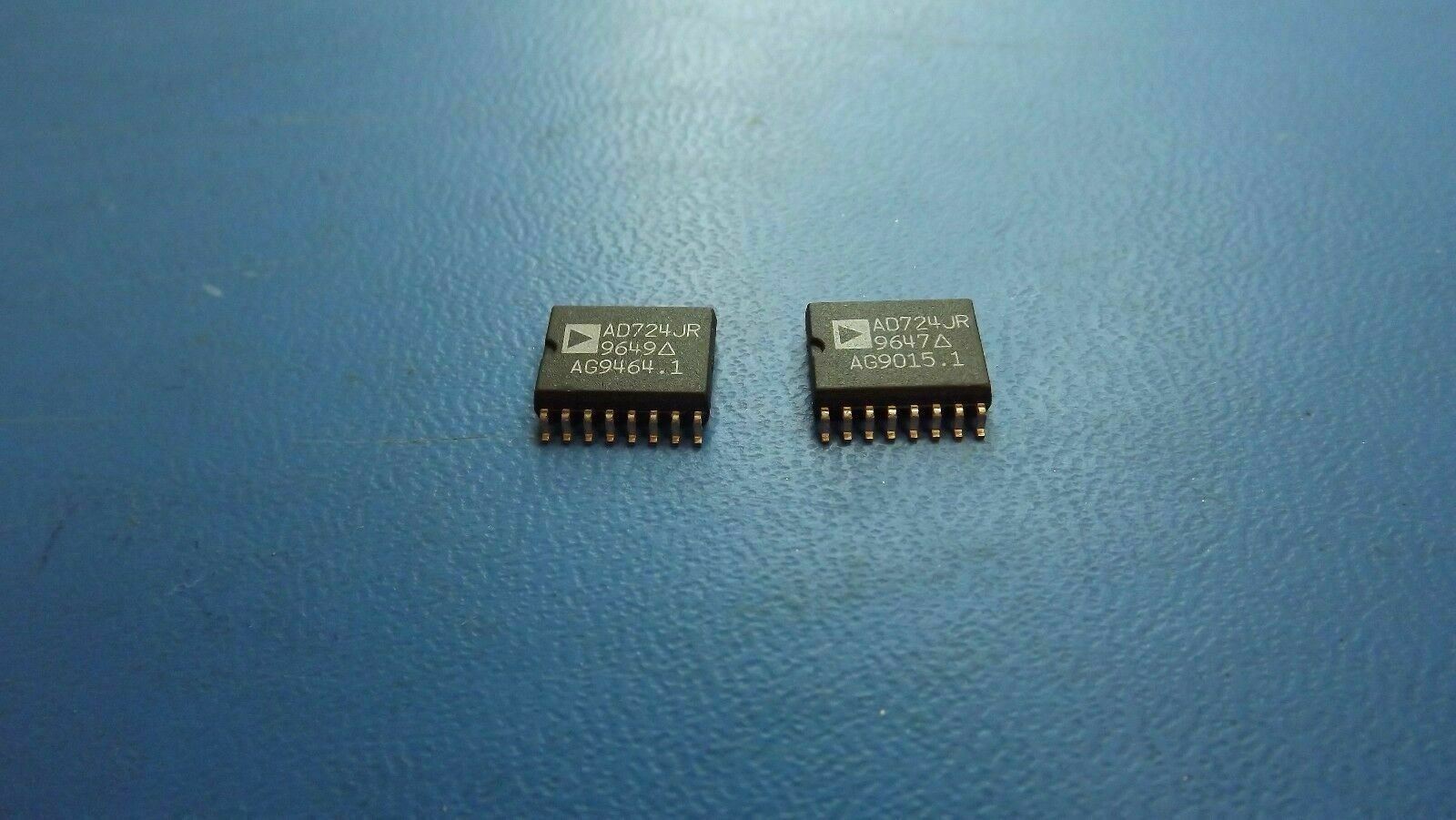

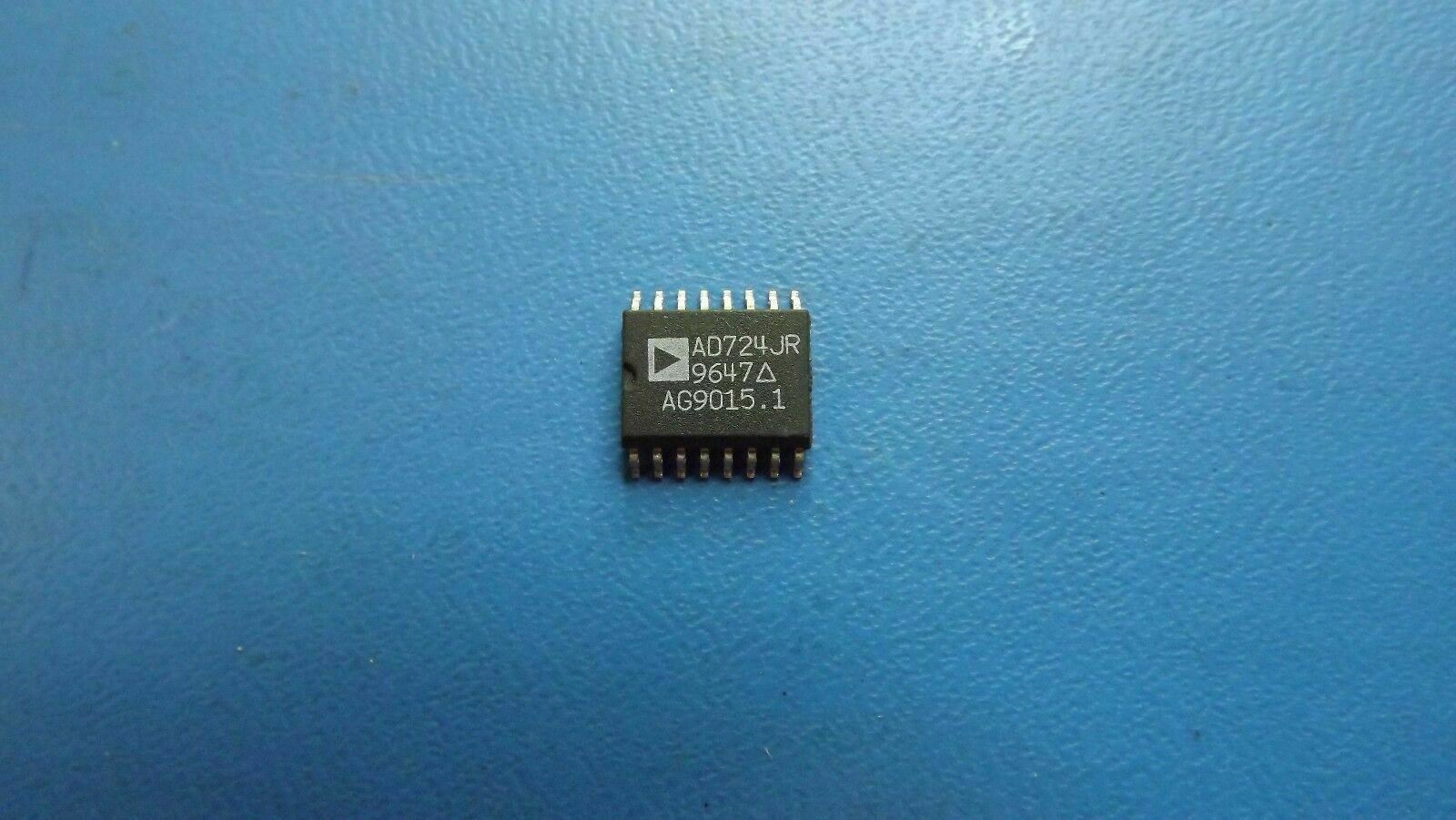

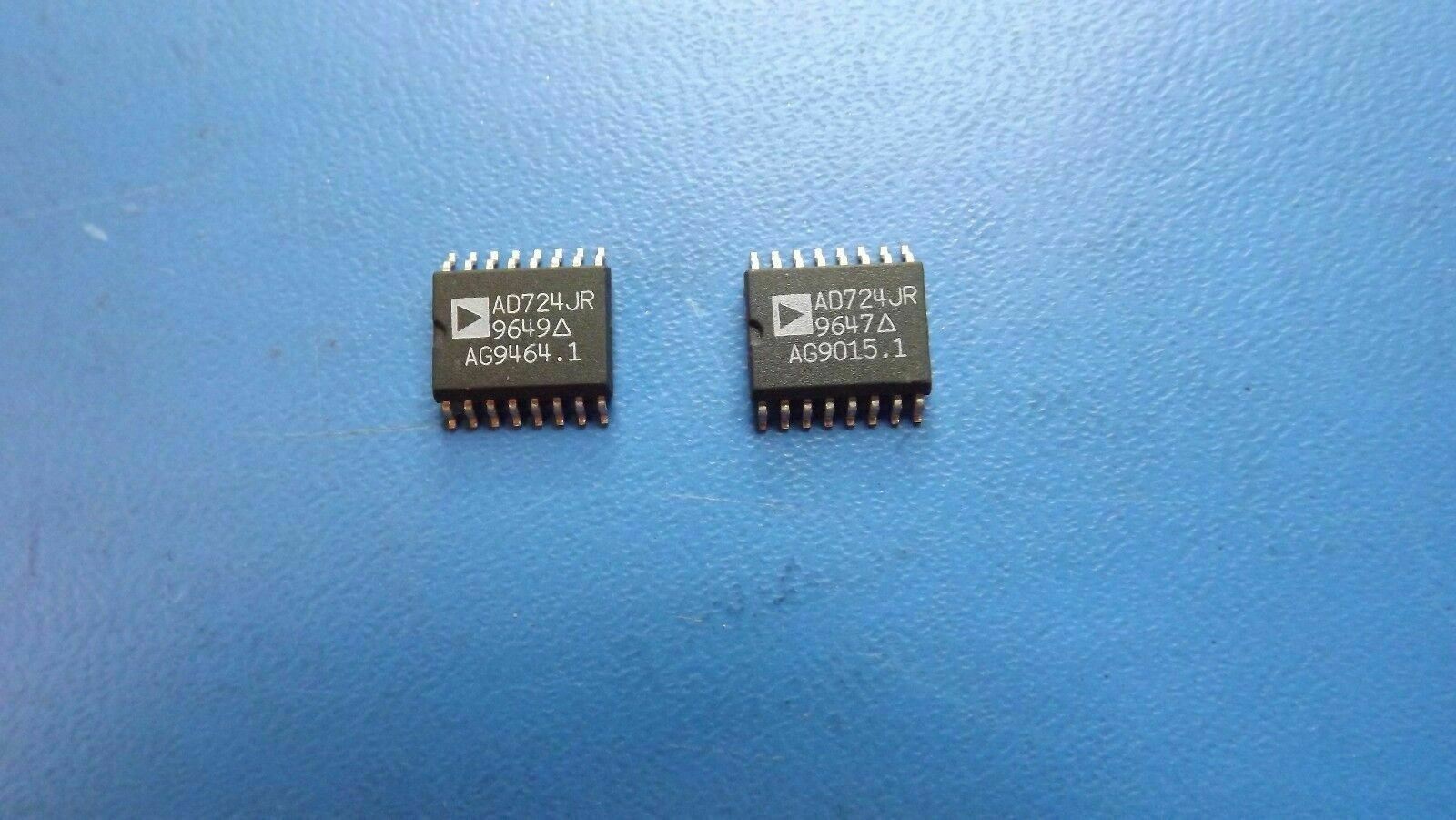

(5PCS) AD724JR ANALOG DEVICES RGB to NTSC and PAL Encoder 16-Pin SOIC
Tax included.

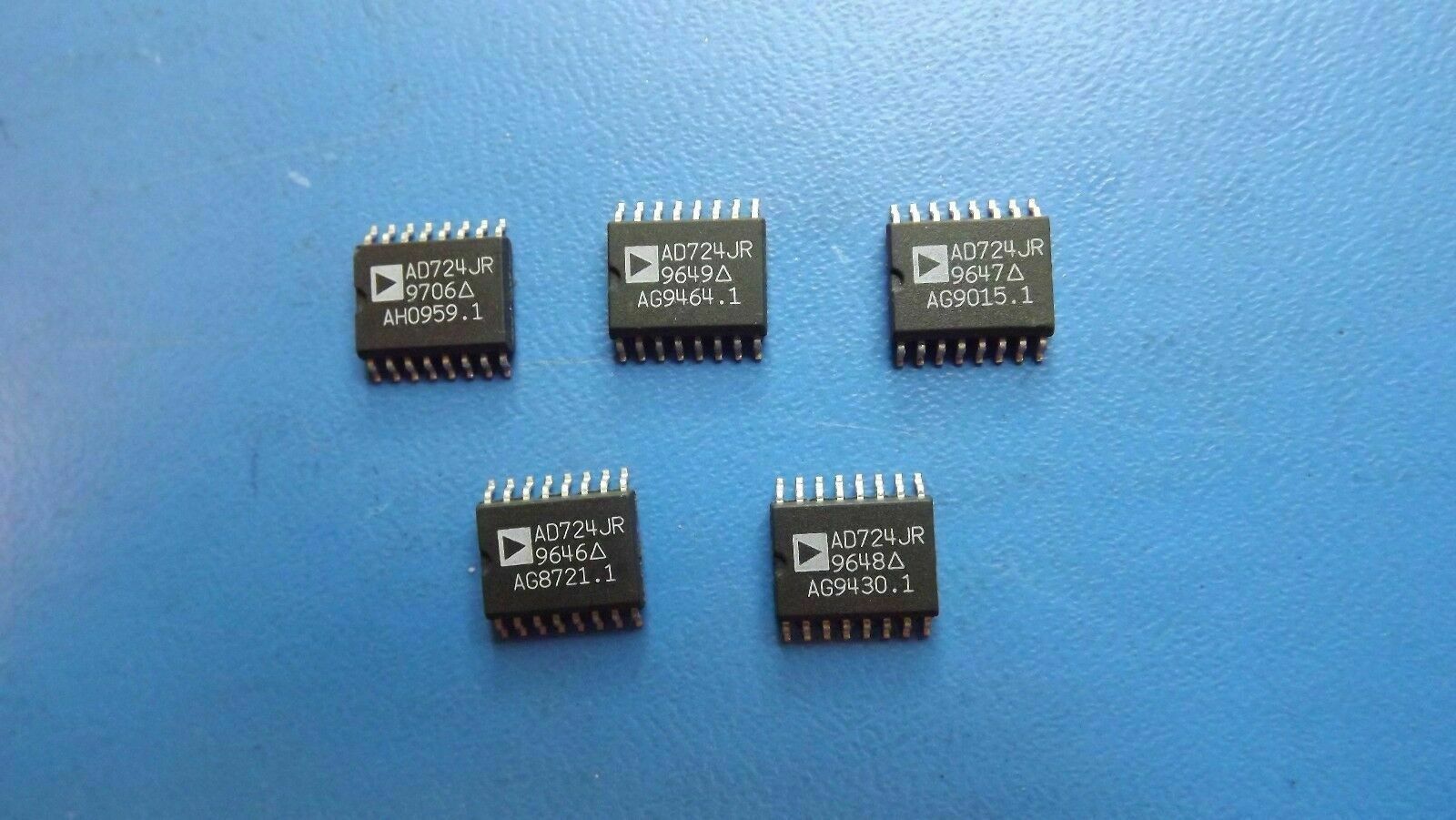

THIS LISTING IS FOR (5PCS) OF AD724JR BY ANALOG DEVICES
SPECIFICATIONS
| Mfr Package Description | SOIC-16 |
| REACH Compliant | Yes |
| Status | EOL |
| Consumer IC Type | COLOR SIGNAL ENCODER |
| Input Type | RGB |
| JESD-30 Code | R-PDSO-G16 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP16,.4 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 240 |
| Power Supplies (V) | 5 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 2.65 mm |
| Sub Category | Color Signal Converters |
| Supply Current-Max | 42.0 mA |
| Supply Voltage-Min (Vsup) | 4.75 V |
| Supply Voltage-Max (Vsup) | 5.25 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn85Pb15) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Video Standard | PAL; NTSC |
| Length | 10.3 mm |
| Width | 7.5 mm |
