(5PCS) A3R12E30CBF-8E Zentel DDR2 DRAM, 64MX8, 0.4ns, CMOS, PBGA60
(5PCS) A3R12E30CBF-8E Zentel DDR2 DRAM, 64MX8, 0.4ns, CMOS, PBGA60

(5PCS) A3R12E30CBF-8E Zentel DDR2 DRAM, 64MX8, 0.4ns, CMOS, PBGA60

Tax included.
Only 98 left!

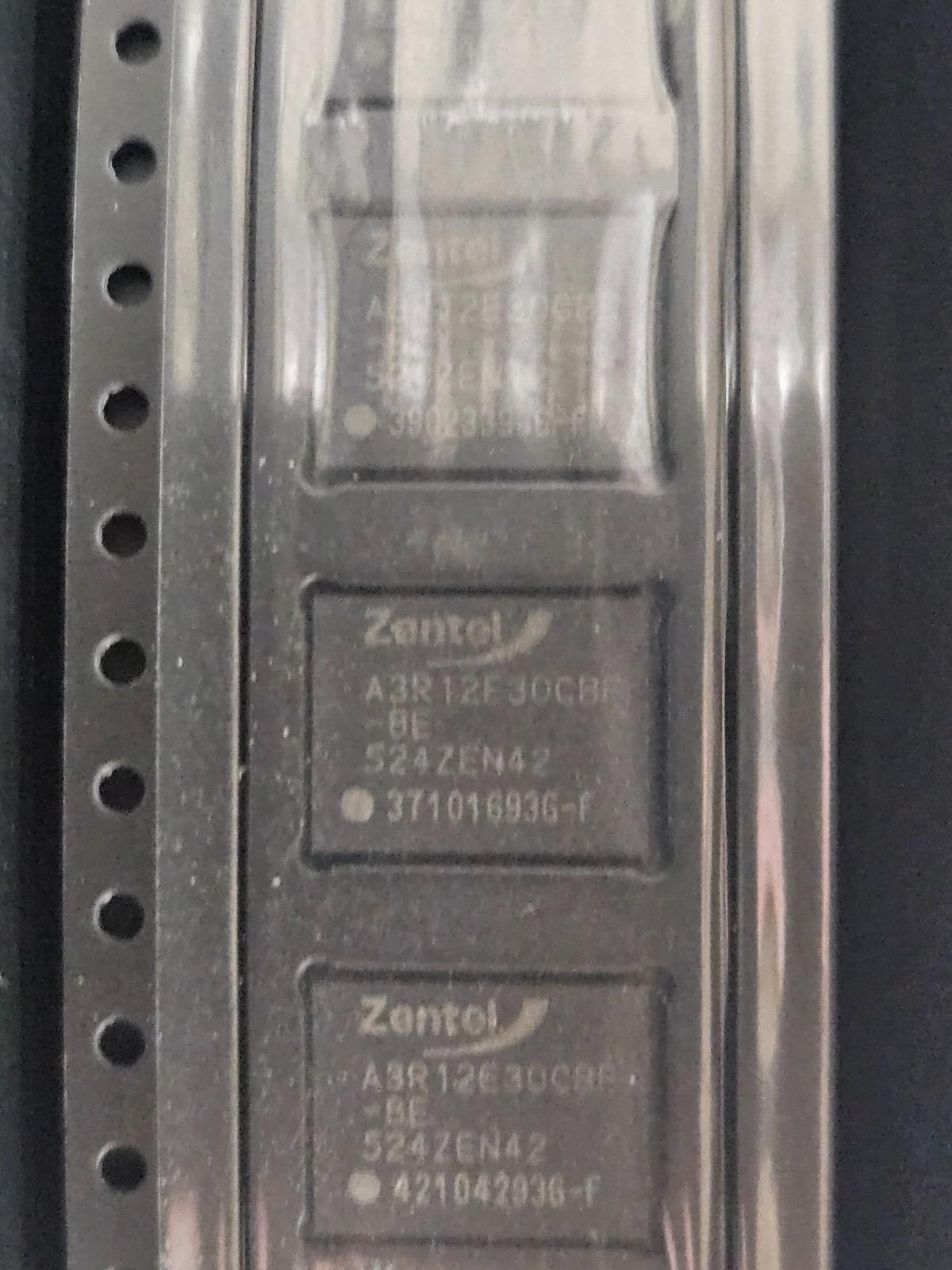

This listing is for (5PCS) of A3R12E30CBF-8E by Zentel

Access Mode FOUR BANK PAGE BURST
Access Time-Max (ns) 0.4000000000000000
Additional Feature AUTO/SELF REFRESH
JESD-30 Code R-PBGA-B60
Length (mm) 10.5000
Memory Density (bits) 536870912.0000000000000000
Memory IC Type DDR2 DRAM
Memory Width 8
Number of Functions 1
Number of Ports 1
Number of Terminals 60
Number of Words (words) 67108864.0000000000000000
Number of Words Code 64M
Operating Mode SYNCHRONOUS
Memory Organization 64MX8
Package Body Material PLASTIC/EPOXY
Package Code TFBGA
Package Shape RECTANGULAR
Package Style GRID ARRAY, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) NOT SPECIFIED
Screening Level / Reference Standard AEC-Q100
Seated Height-Max (mm) 1.2000
Self Refresh YES
Supply Voltage-Max (V) 1.90000
Supply Voltage-Min (V) 1.70000
Supply Voltage-Nom (V) 1.8
Surface Mount YES
Technology CMOS
Terminal Form BALL
Terminal Pitch (mm) 0.800
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width (mm) 8.0000
