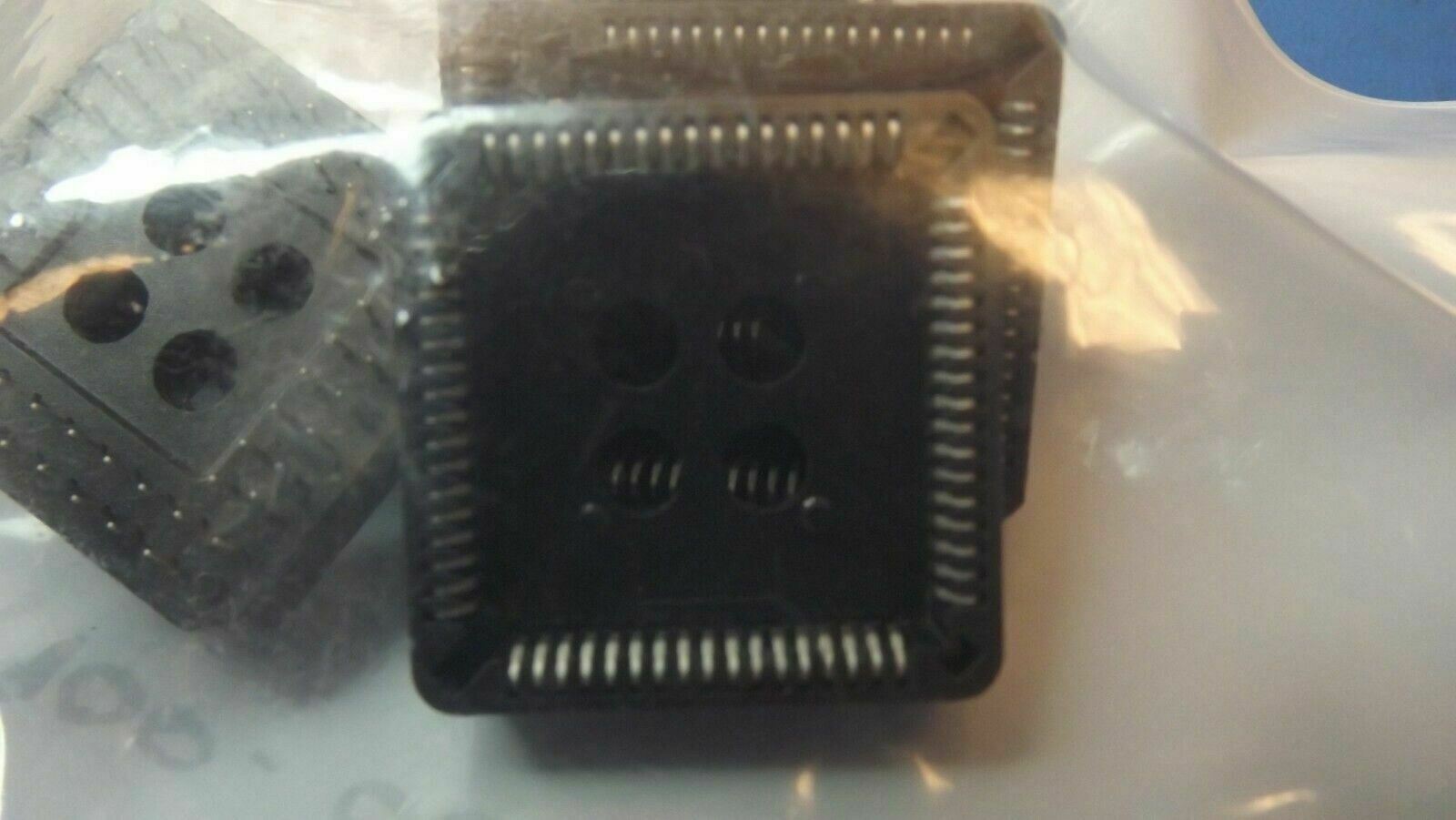

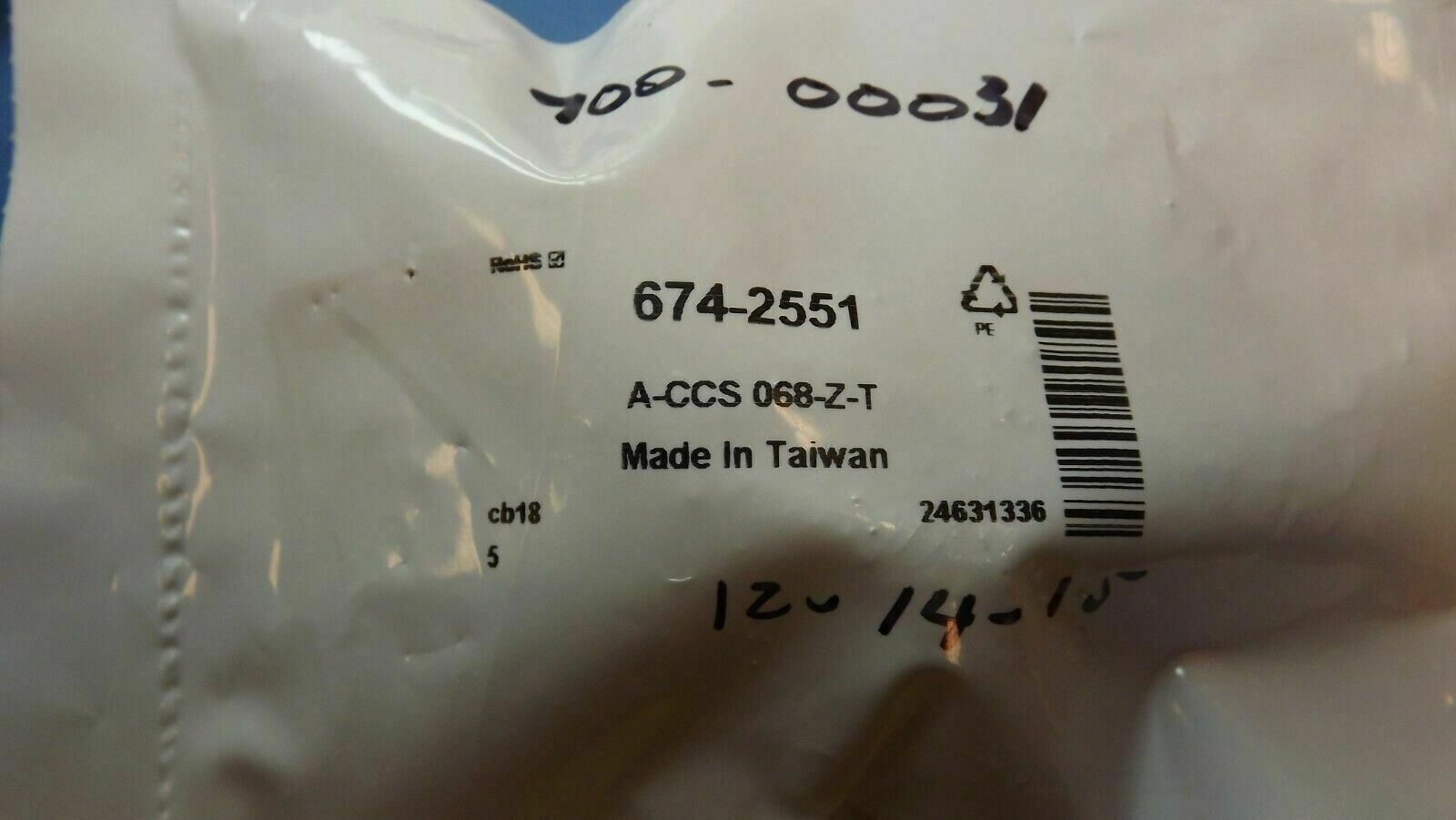

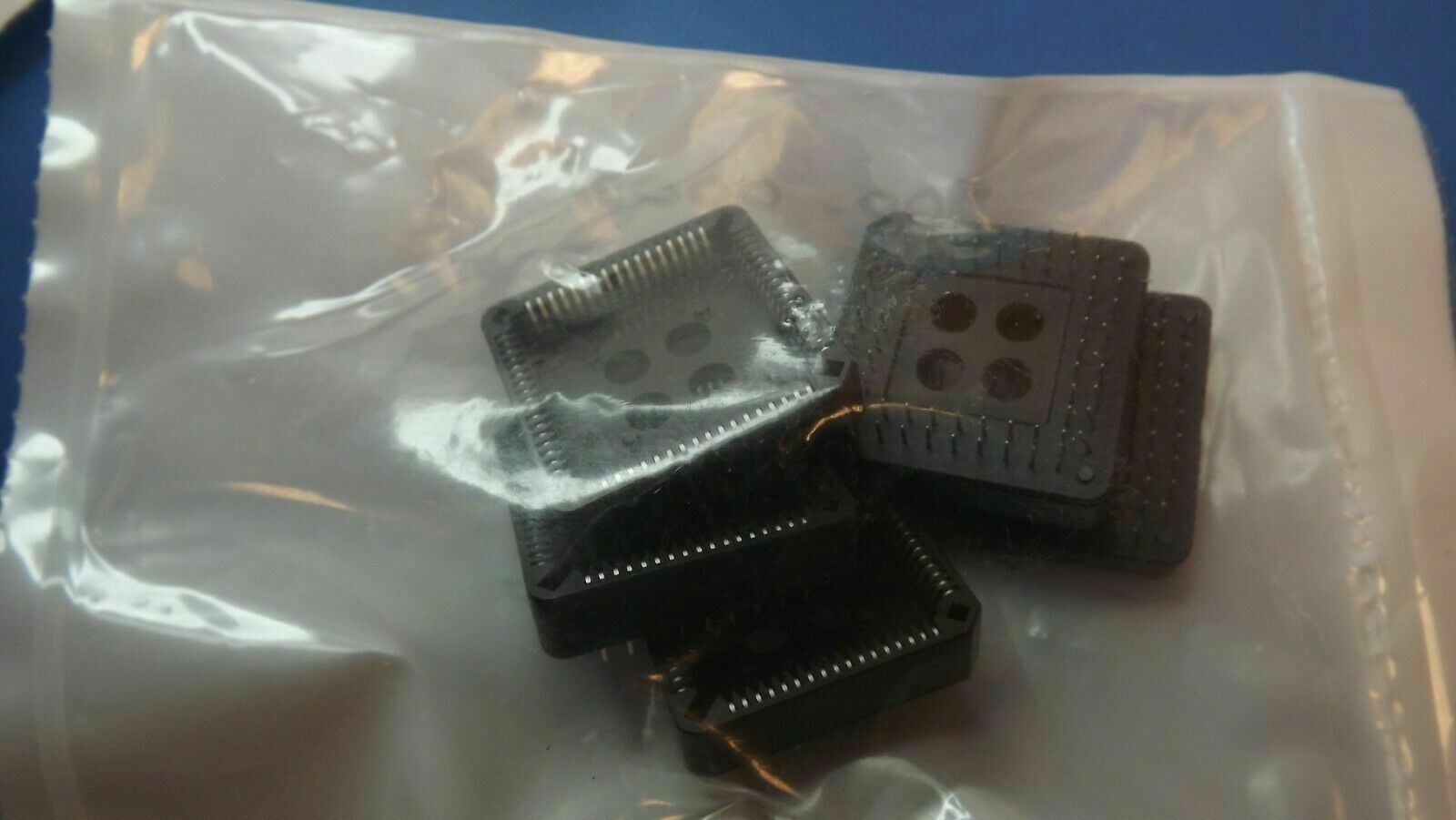

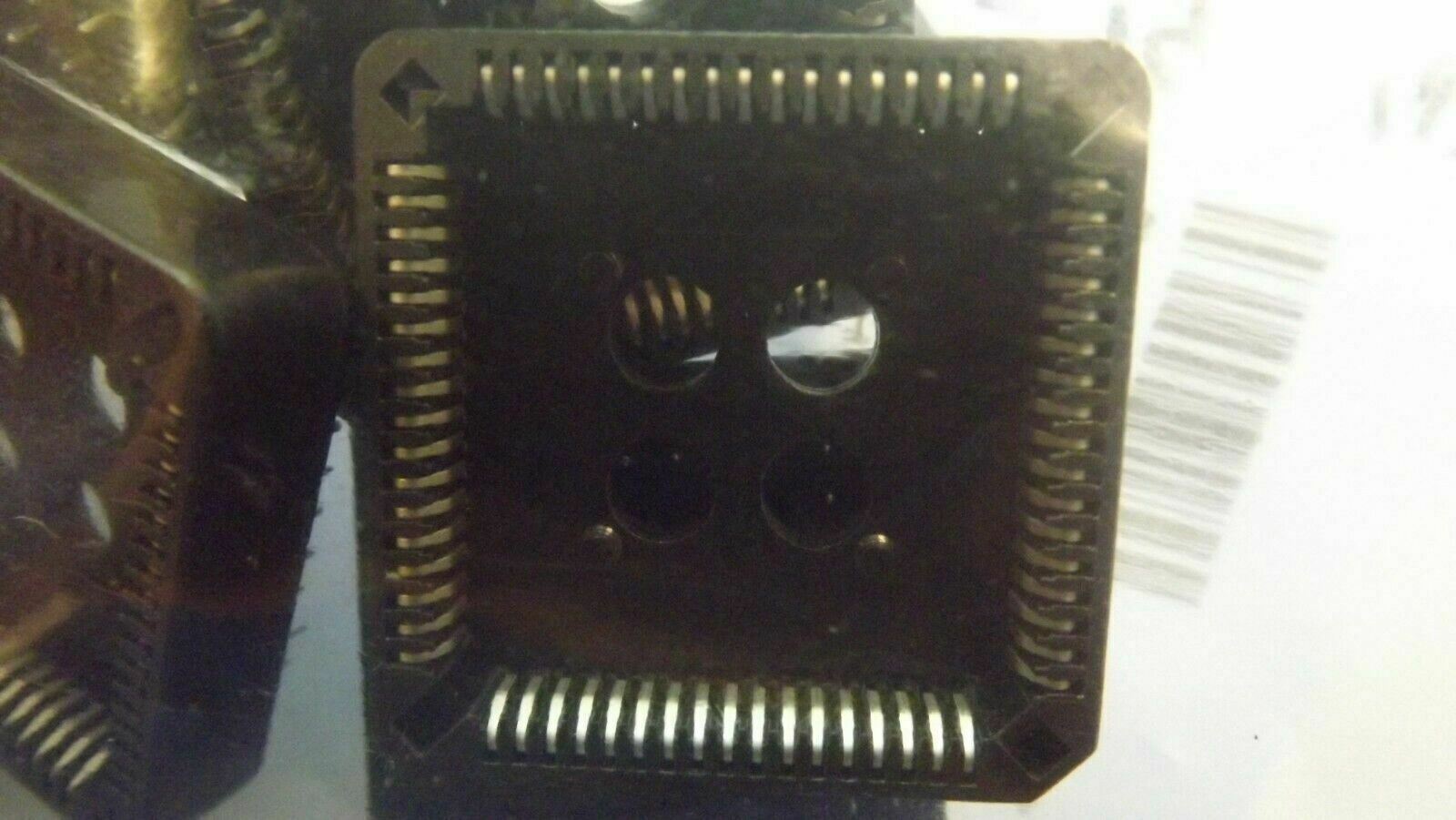

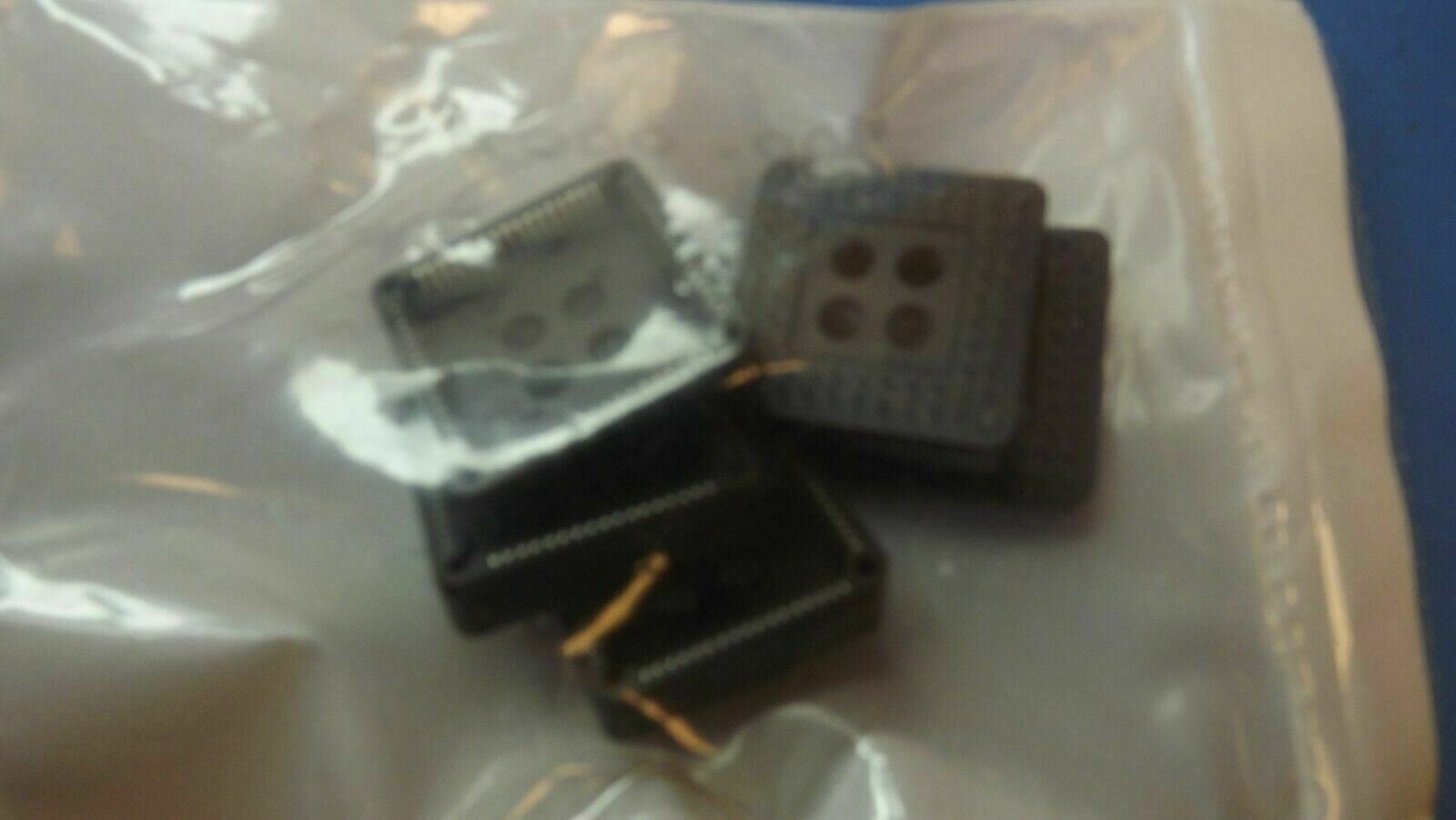

(5PCS) A-CCS-068-Z-T ASSMANN CONN SOCKET PLCC 68POS TIN
Tax included.
THIS LISTING IS FOR (5PCS) OF A-CCS-068-Z-T BY ASSMAN
SPECIFICATIONS
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Contact Mfr |
| Body Breadth | 1.222 inch |
| Body Depth | 0.315 inch |
| Body Length | 1.222 inch |
| Contact Configuration | 17X17 |
| Contact Finish - Mating | TIN (160) OVER NICKEL (40) |
| Contact Finish - Termination | Tin (Sn) - with Nickel (Ni) barrier |
| Contact Material | PHOSPHOR BRONZE |
| Contact Style | BELLOWED TYPE |
| Device Socket Type | IC SOCKET |
| Device Type Used On | PLCC68 |
| Dielectric Withstanding Voltage | 1000VAC |
| Housing Material | GLASS FILLED POLYPHENYLENE SULPHIDE |
| Insulation Resistance | 1.0E10 ohm |
| JESD-609 Code | e3 |
| Mounting Style | STRAIGHT |
| Number of Contacts | 68 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 105.0 Cel |
| Termination Type | SOLDER |
