(10PCS) 74HC373D PHILIPS 6 V SMT 3-State Octal D-Type Transparent Latch-SOIC-20
Tax included.

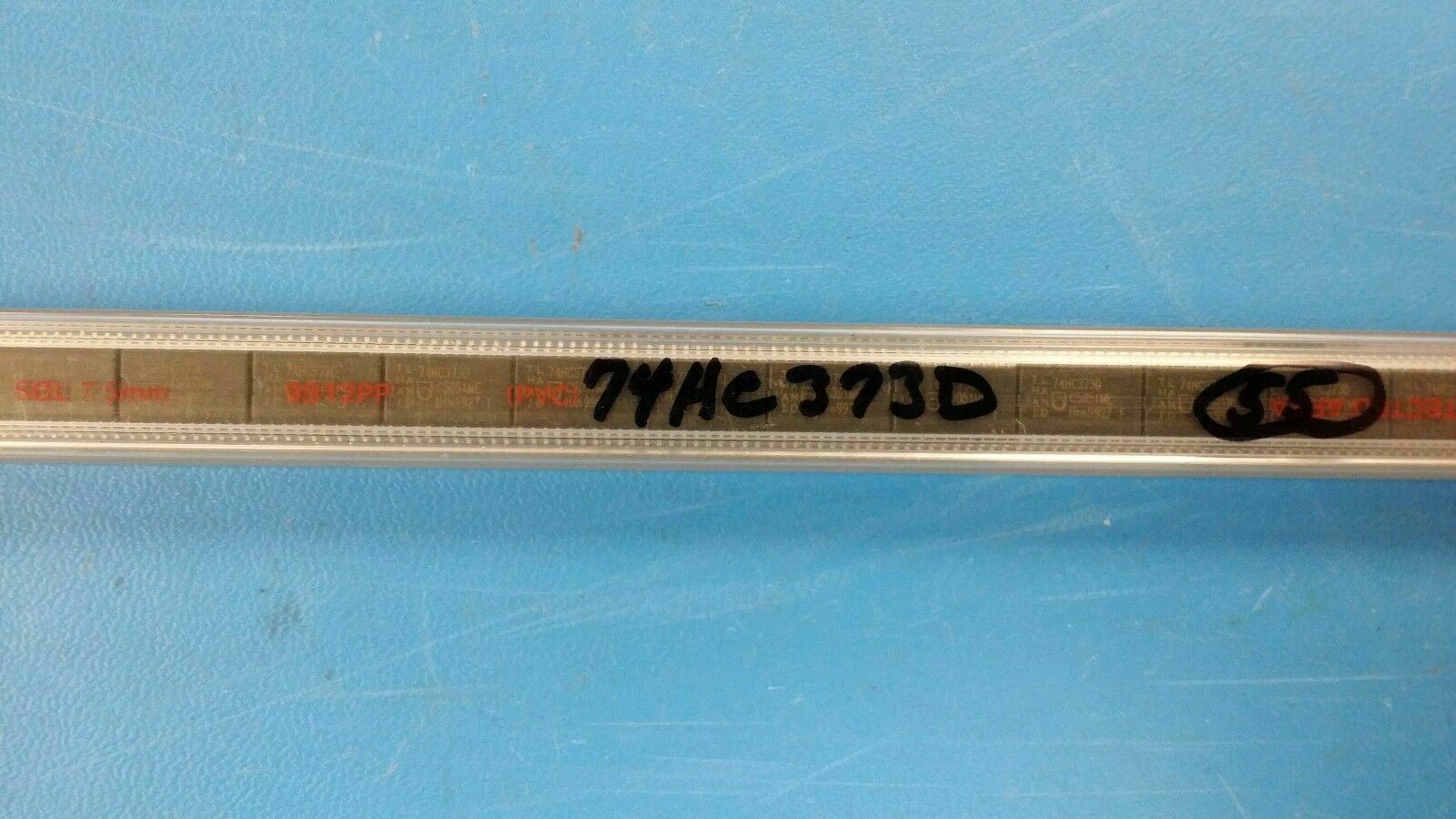

THIS LISTING IS FOR (5PCS) OF 74HC373D BY PHILIPS
SPECIFICATIONS
| Mfr Package Description | 7.50 MM, PLASTIC, MS-013, SOT-163-1, SOP-20 |
| REACH Compliant | No |
| EU RoHS Compliant | No |
| China RoHS Compliant | No |
| Status | Active |
| Logic IC Type | BUS DRIVER |
| Sub Category | FF/Latches |
| Family | HC/UH |
| JESD-30 Code | R-PDSO-G20 |
| JESD-609 Code | e4 |
| Load Capacitance (CL) | 50 pF |
| Max I(ol) | 0.0060 Amp |
| Moisture Sensitivity Level | 1 |
| Number of Bits | 8 |
| Number of Functions | 1 |
| Number of Ports | 2 |
| Number of Terminals | 20 |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 125 Cel |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP20,.4 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Packing Method | BULK PACK |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies (V) | 2/6 |
| Prop. Delay@Nom-Sup | 45 ns |
| Propagation Delay (tpd) | 265 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 2.65 mm |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 2 V |
| Supply Voltage-Max (Vsup) | 6 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Length | 12.8 mm |
| Width | 7.5 mm |
