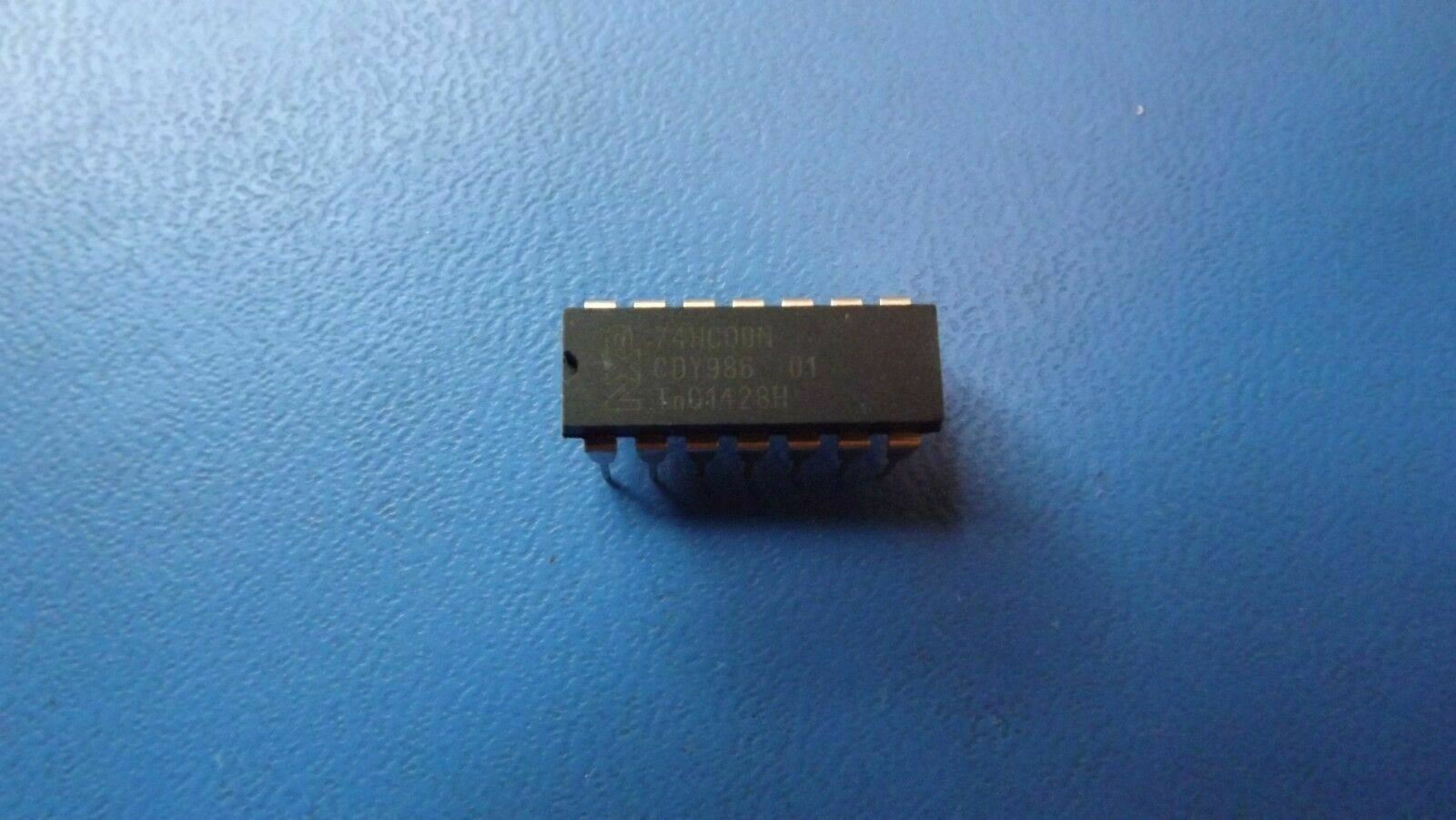

(10PCS) 74HC00N NXP NAND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDIP14
Tax included.

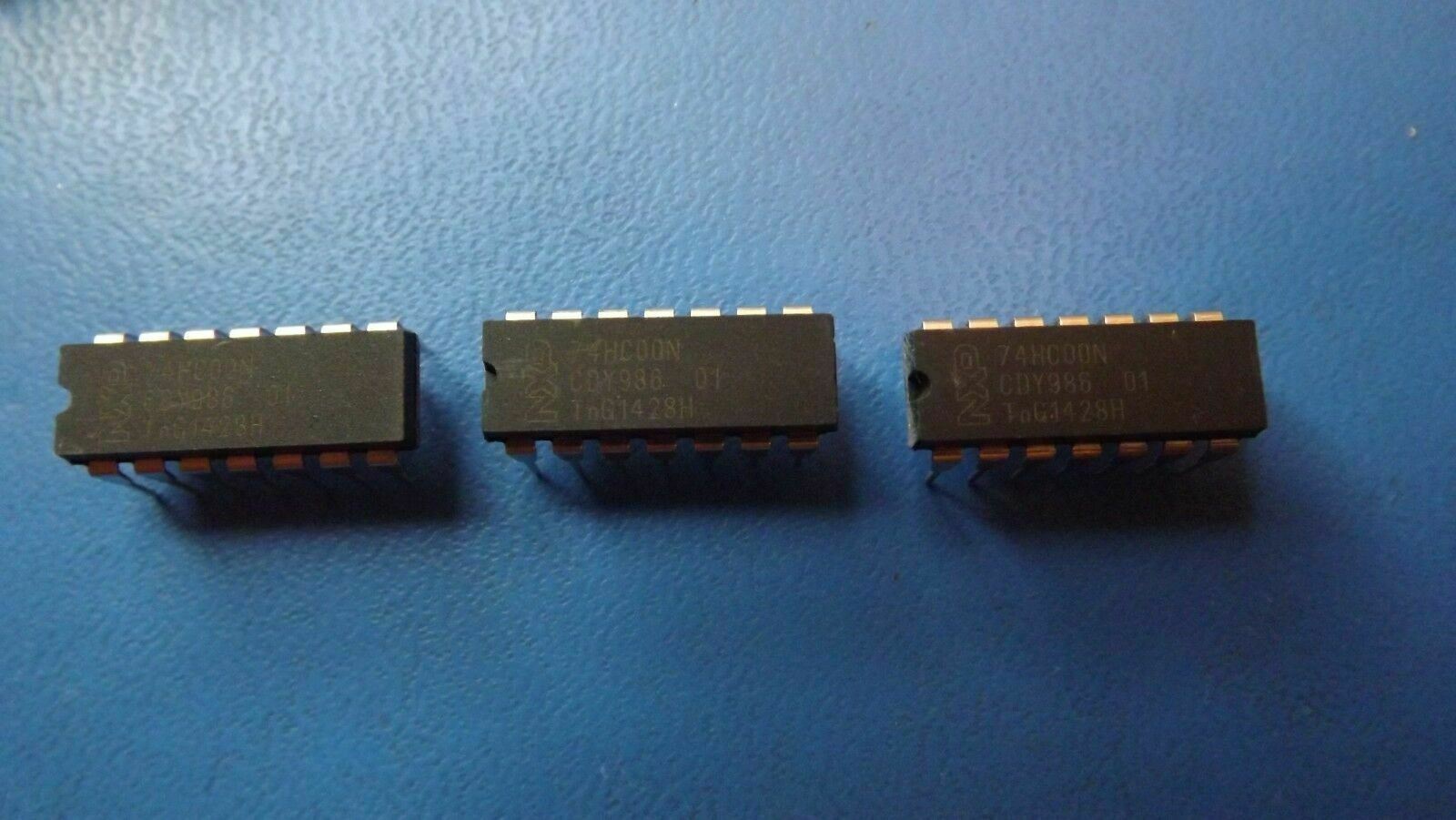

THIS LISTING IS FOR (5PCS) OF 74HC00N BY NXP
SPECIFICATIONS
| Mfr Package Description | 0.300 INCH, PLASTIC, MO-001, SC501-14, SOT27-1, DIP-14 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Discontinued |
| Logic IC Type | NAND GATE |
| Sub Category | Gates |
| Family | HC/UH |
| JESD-30 Code | R-PDIP-T14 |
| Load Capacitance (CL) | 50.0 pF |
| Max I(ol) | 0.004 Amp |
| Moisture Sensitivity Level | NOT APPLICABLE |
| Number of Functions | 4 |
| Number of Inputs | 2.0 |
| Number of Terminals | 14 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Packing Method | TUBE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies (V) | 2/6 |
| Prop. Delay@Nom-Sup | 27.0 ns |
| Propagation Delay (tpd) | 135.0 ns |
| Qualification Status | Not Qualified |
| Schmitt Trigger | NO |
| Seated Height-Max | 4.2 mm |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 2.0 V |
| Supply Voltage-Max (Vsup) | 6.0 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | NICKEL/PALLADIUM/GOLD (NI/PD/AU) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 19.025 mm |
| Width | 7.62 mm |
