(5PCS) 74F543SCX Bus XCVR Single 8-CH 3-ST 24-Pin SOIC
Tax included.

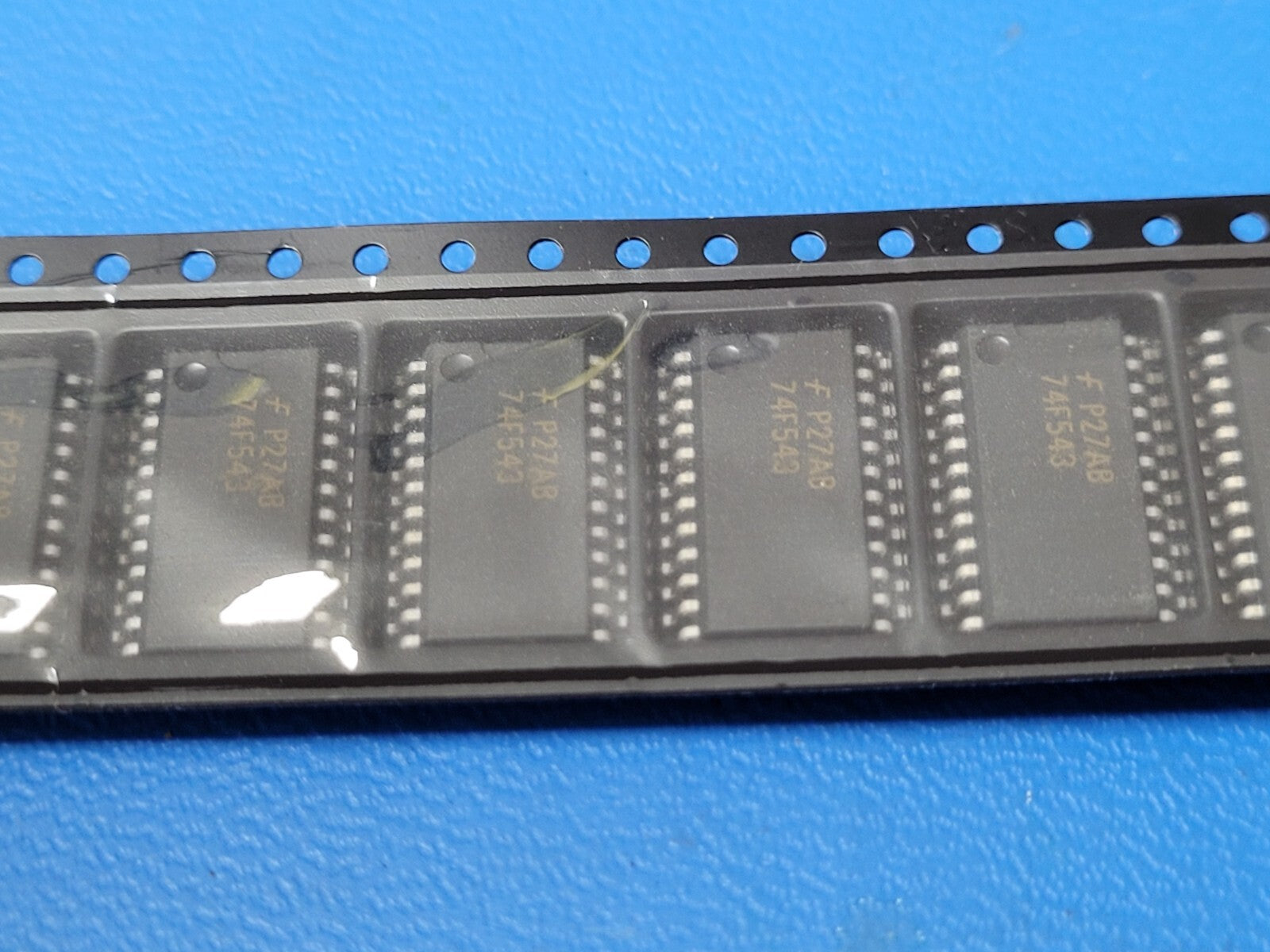

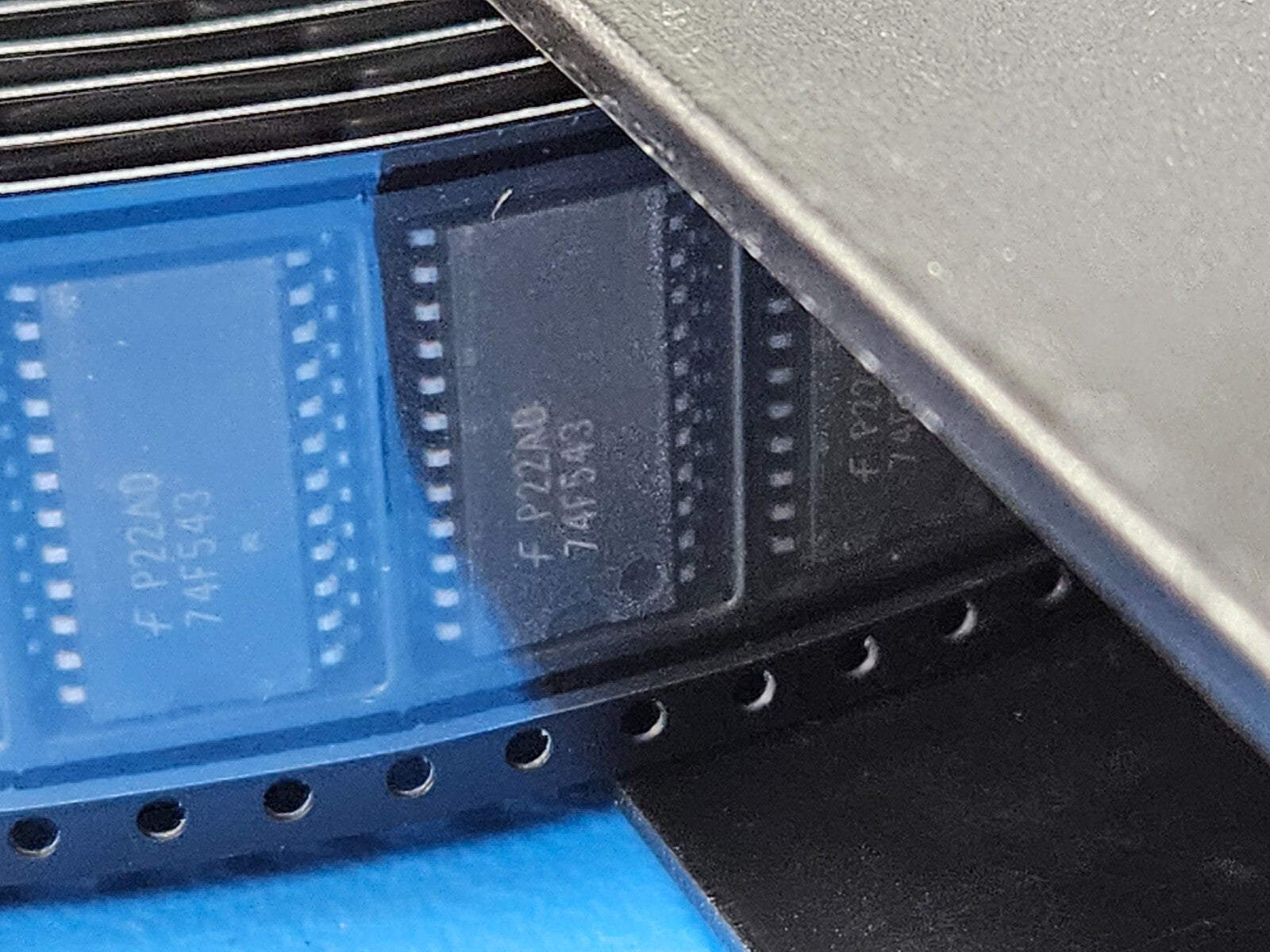

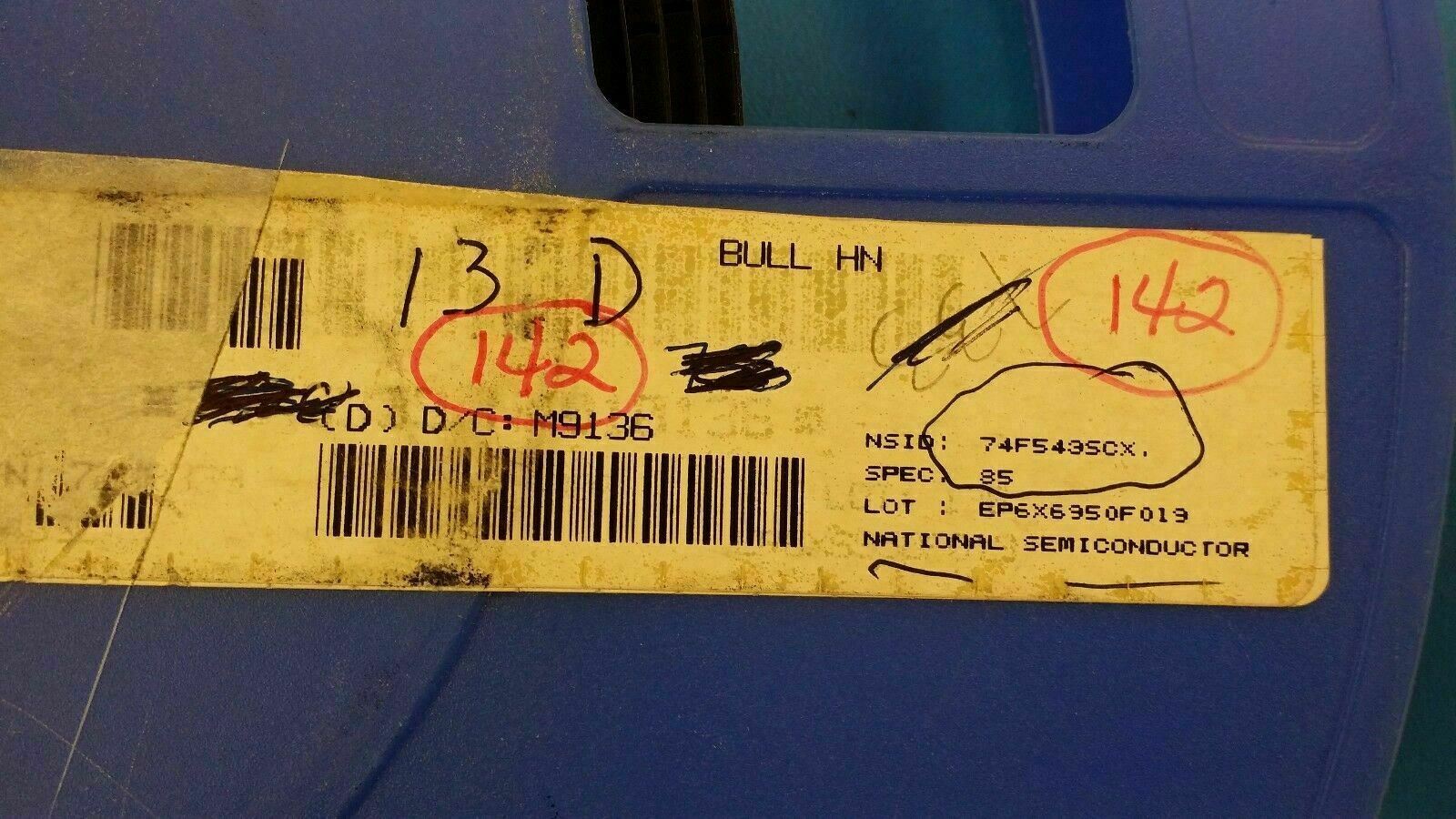

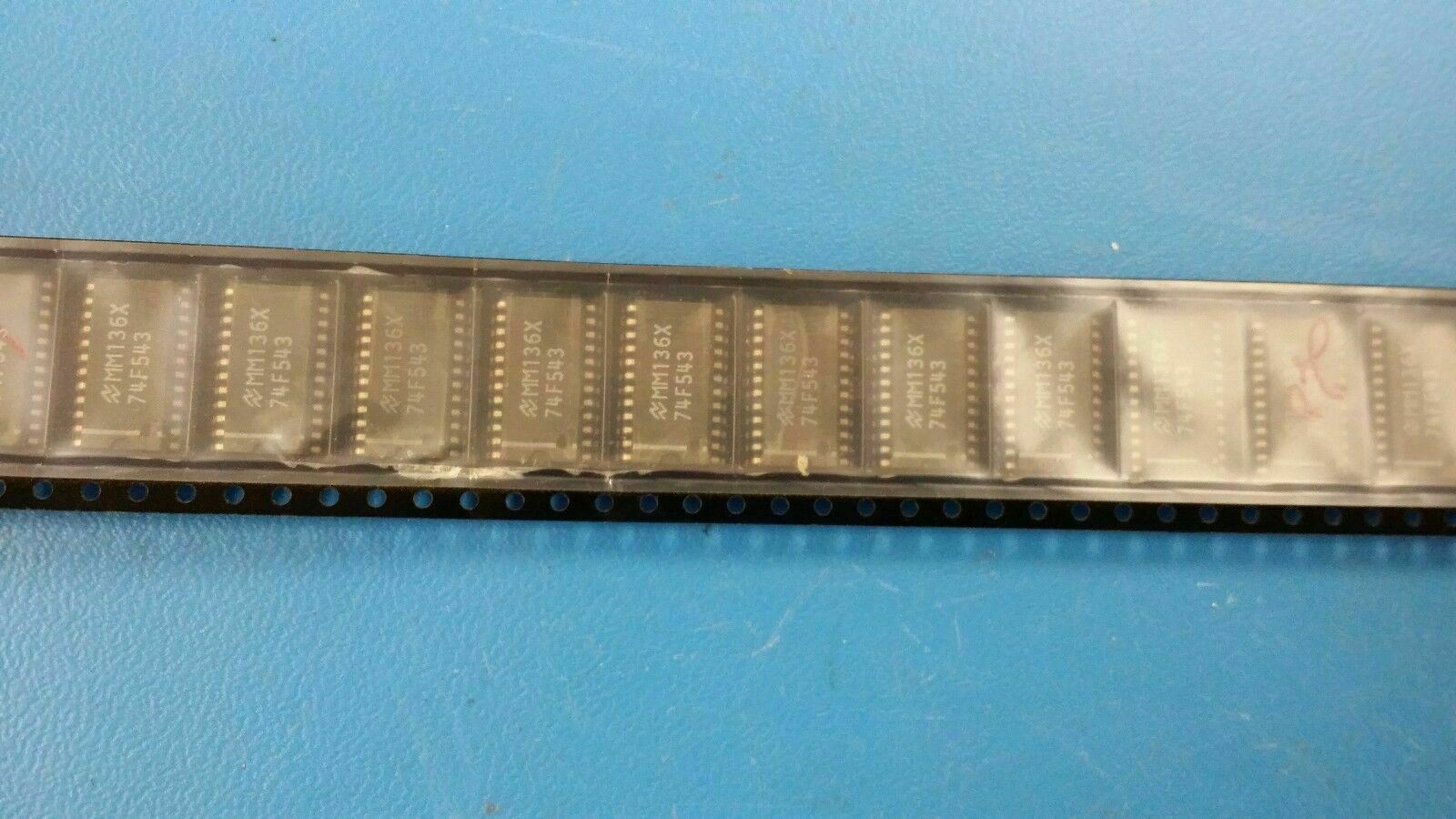

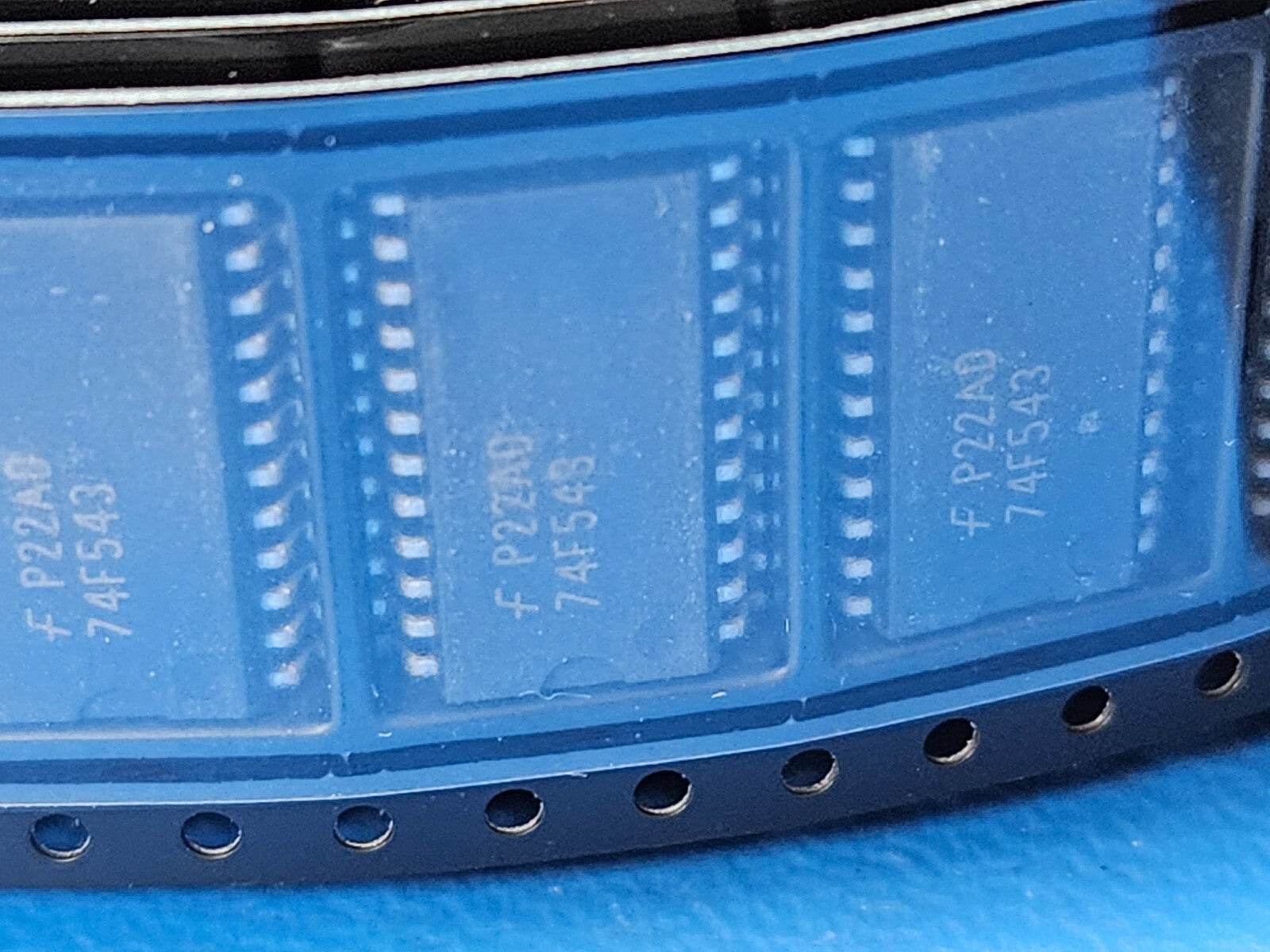

THIS LISTING IS FOR (5PCS) OF 74F543SCX BY NATIONAL/FAIRCHILD
Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State Output 24-SOIC
Manufacturer: onsemi / Fairchild
Product Category: Bus Transceivers
RoHS: N
Logic Family: 74F
Input Level: TTL
Output Level: TTL
Output Type: 3-State
High Level Output Current: - 15 mA
Low Level Output Current: 64 mA
Propagation Delay Time: 7.5 ns
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.5 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Package / Case: SOIC-24
Packaging: Reel
Packaging: Cut Tape
Brand: onsemi / Fairchild
Function: Wide Octal Registered Transceiver
Height: 2.35 mm
Length: 15.4 mm
Mounting Style: SMD/SMT
Number of Channels: 8
Number of Circuits: 8
Operating Supply Voltage: 4.5 V to 5.5 V
Polarity: Non-Inverting
Product: Bipolar
Product Type: Bus Transceivers
1000
Subcategory: Logic ICs
Technology: Bipolar
Width: 7.5 mm
Part # Aliases: 74F543SCX_NL
Unit Weight: 0.038731 oz
