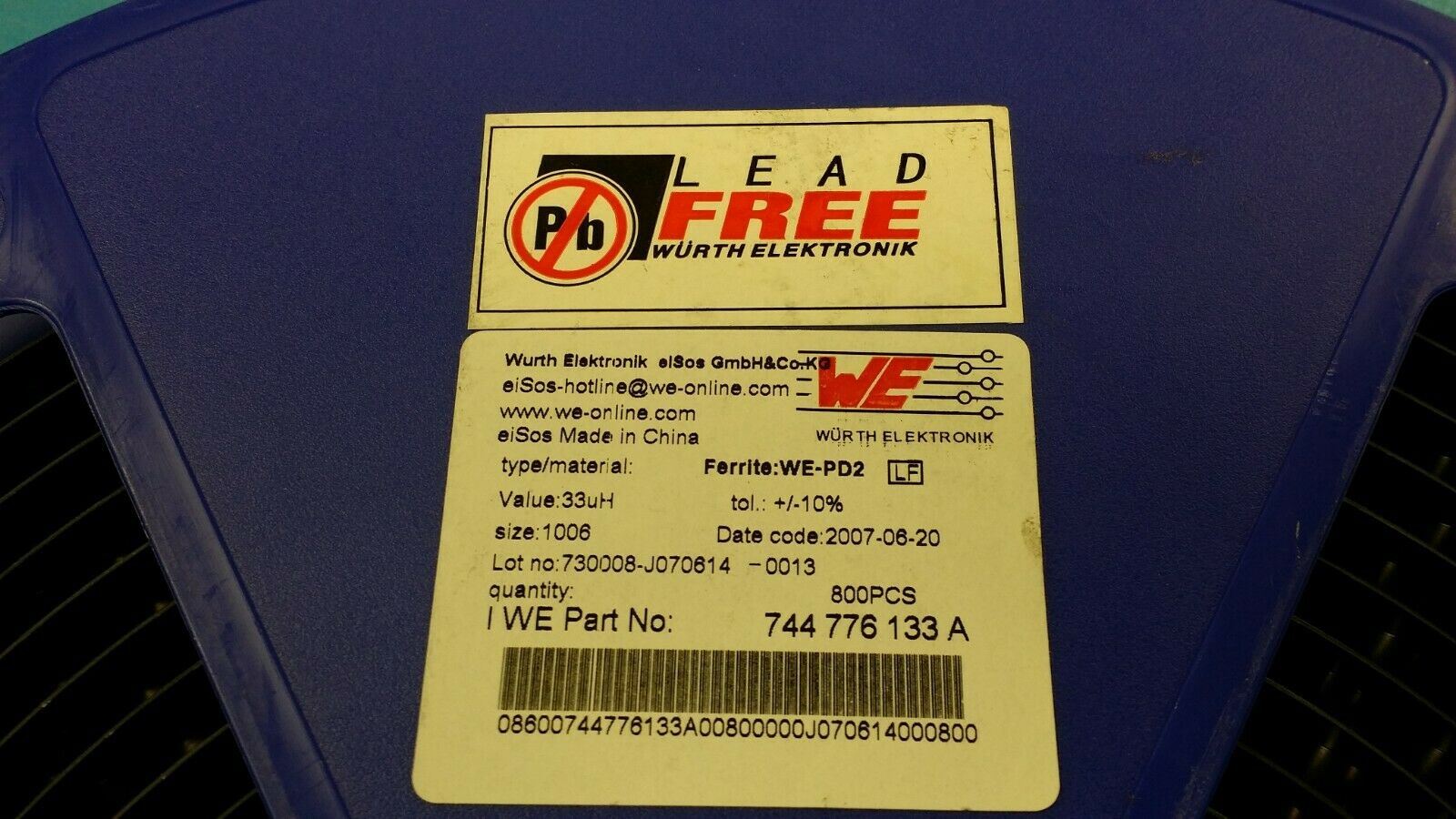

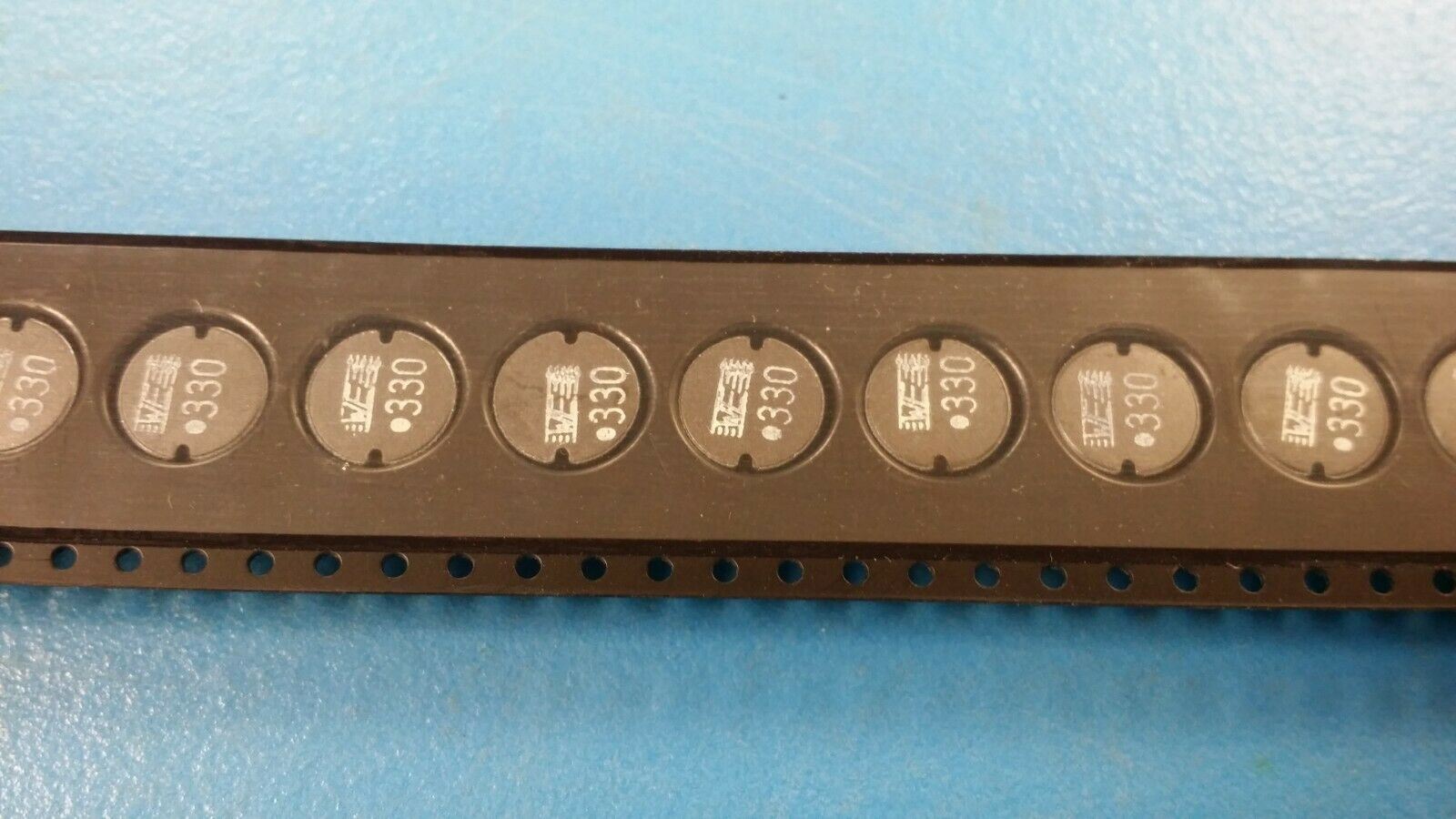

(5pcs) 744776133A FIXED IND 33UH 1.78A 120MOHM SMD
Tax included.
Each order is for 5pcs.
Manufacturer: Wurth Elektronik
Product Category: Power Inductors - SMD
RoHS: Details
Type: Power Choke
Termination Style: SMD/SMT
Shielding: Unshielded
Inductance: 33 uH
Tolerance: 20 %
Maximum DC Current: 1.78 A
Maximum DC Resistance: 120 mOhms
Saturation Current: 1.89 A
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Q Minimum: -
Mounting Style: PCB Mount
Length: 10 mm
Width: 9 mm
Height: 5.4 mm
Diameter: -
Core Material: Ferrite
Series: WE-PD2
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Application: Power
Brand: Wurth Elektronik
Core Type: Wirewound
Product: Power Inductors
Product Type: Power Inductors - SMD
Self Resonant Frequency: 12 MHz
