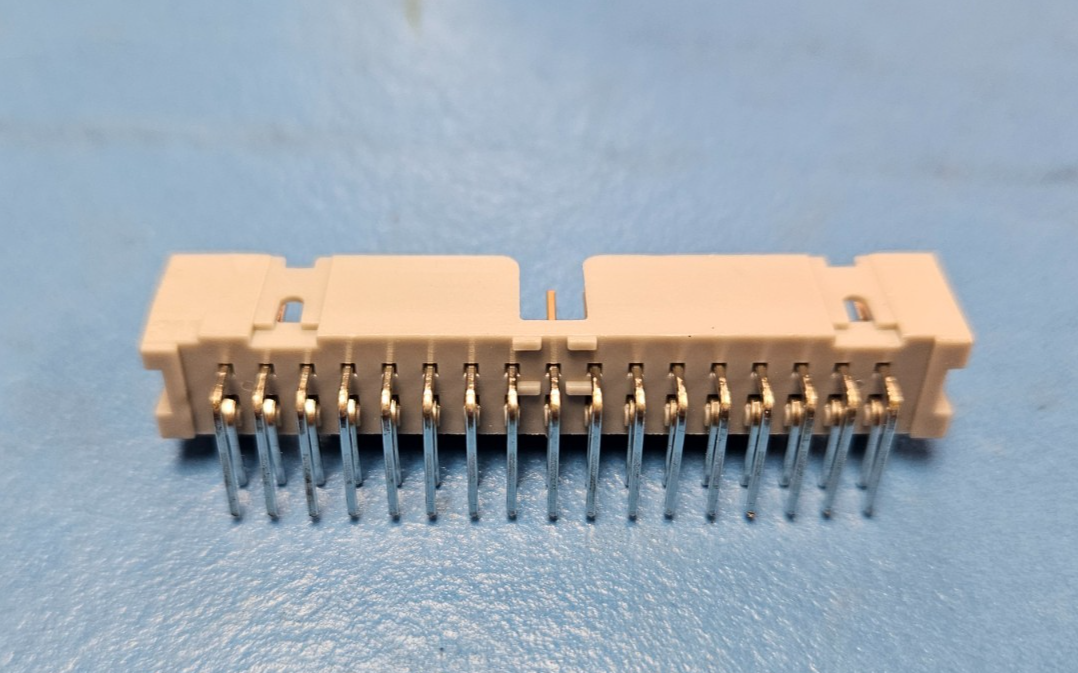

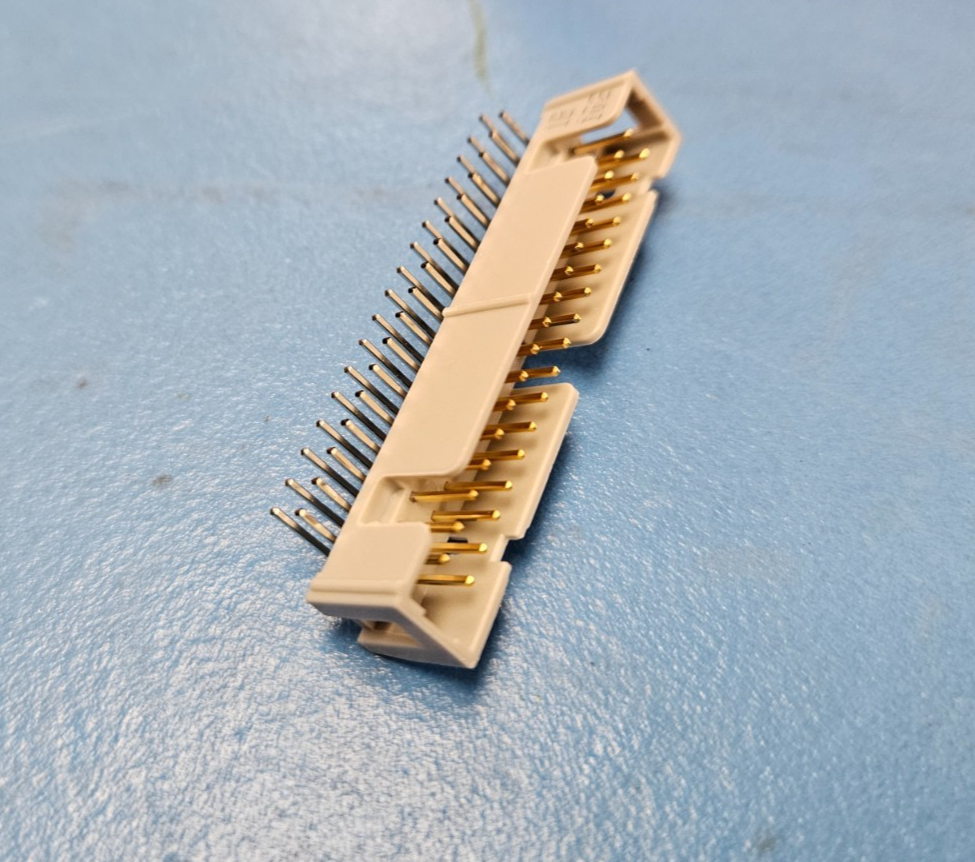

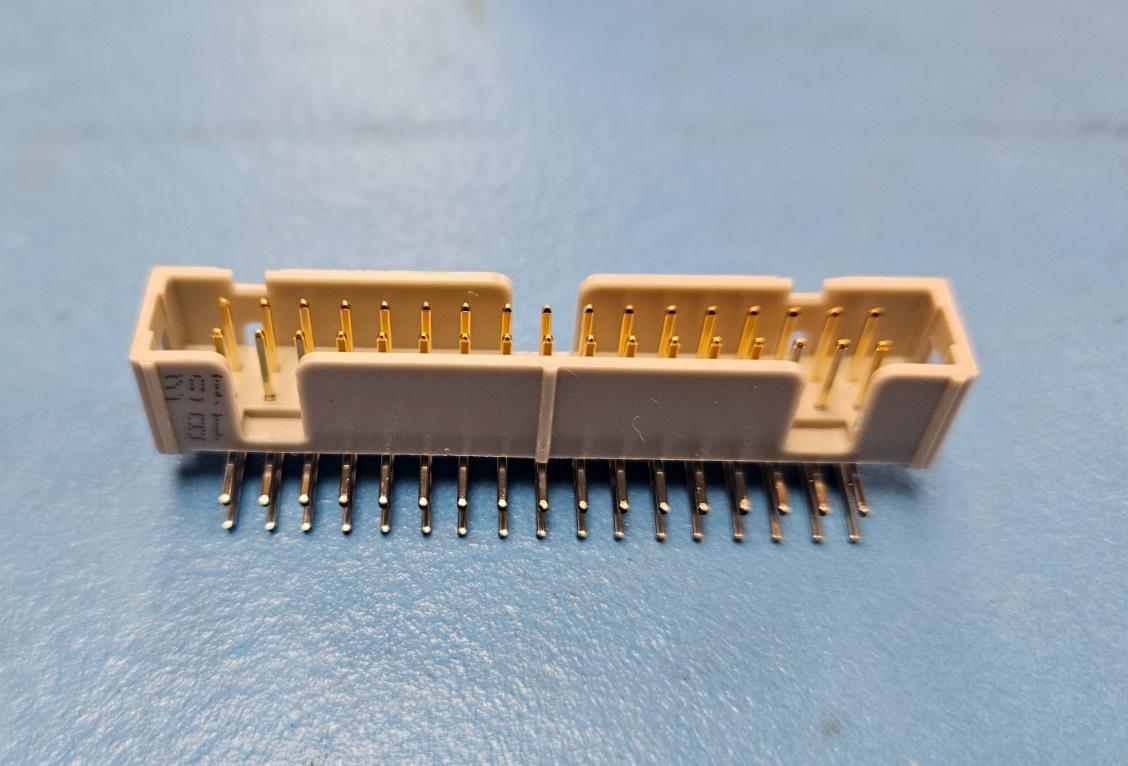

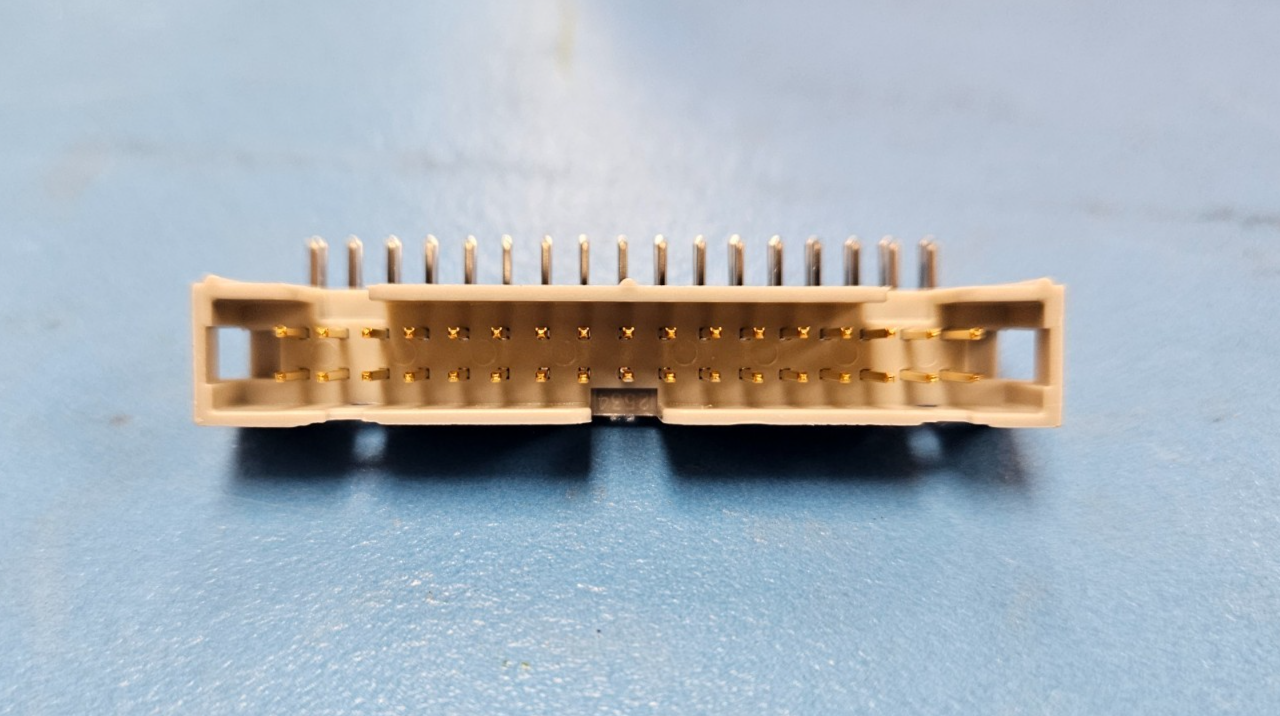

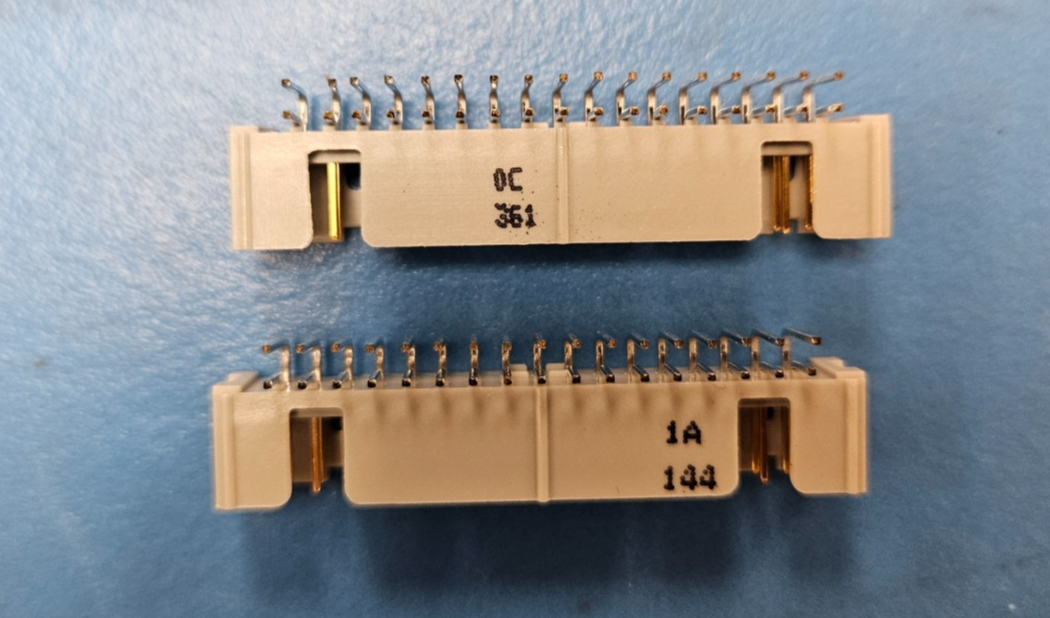

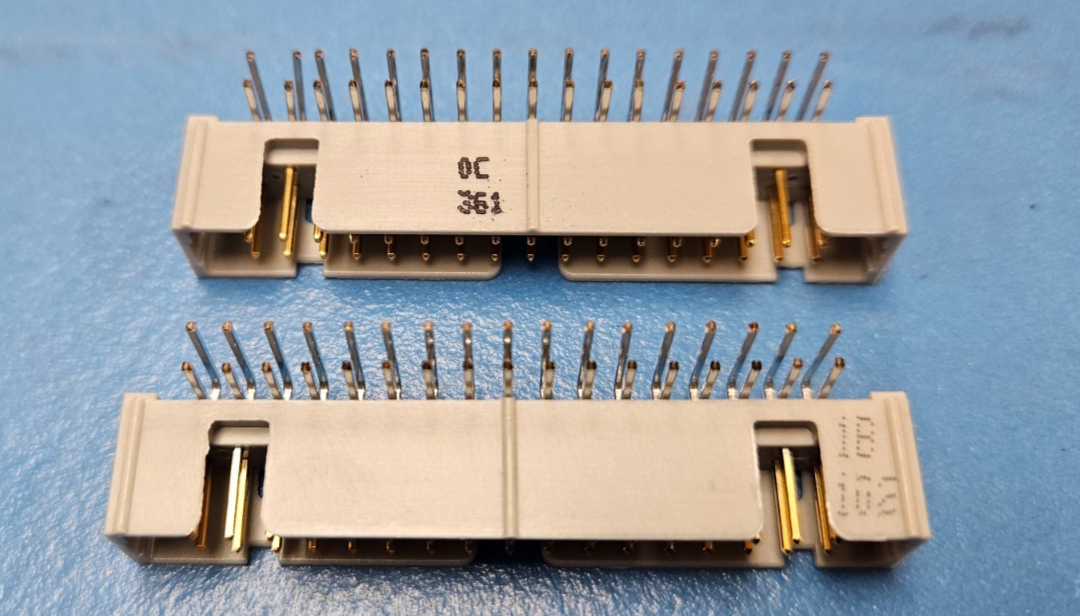

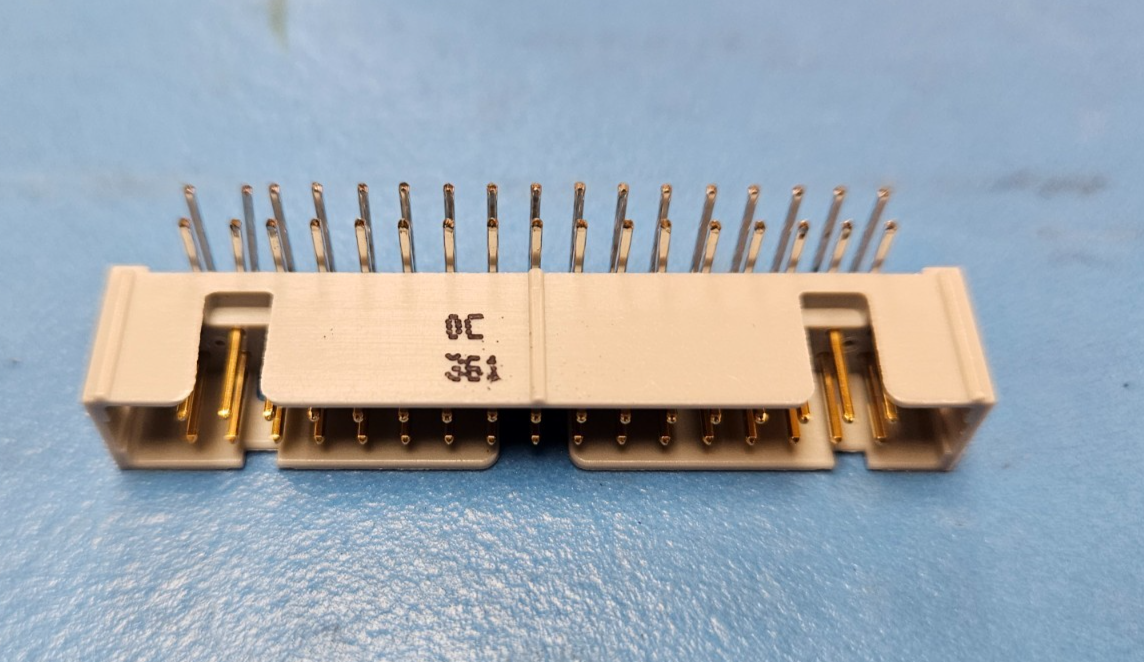

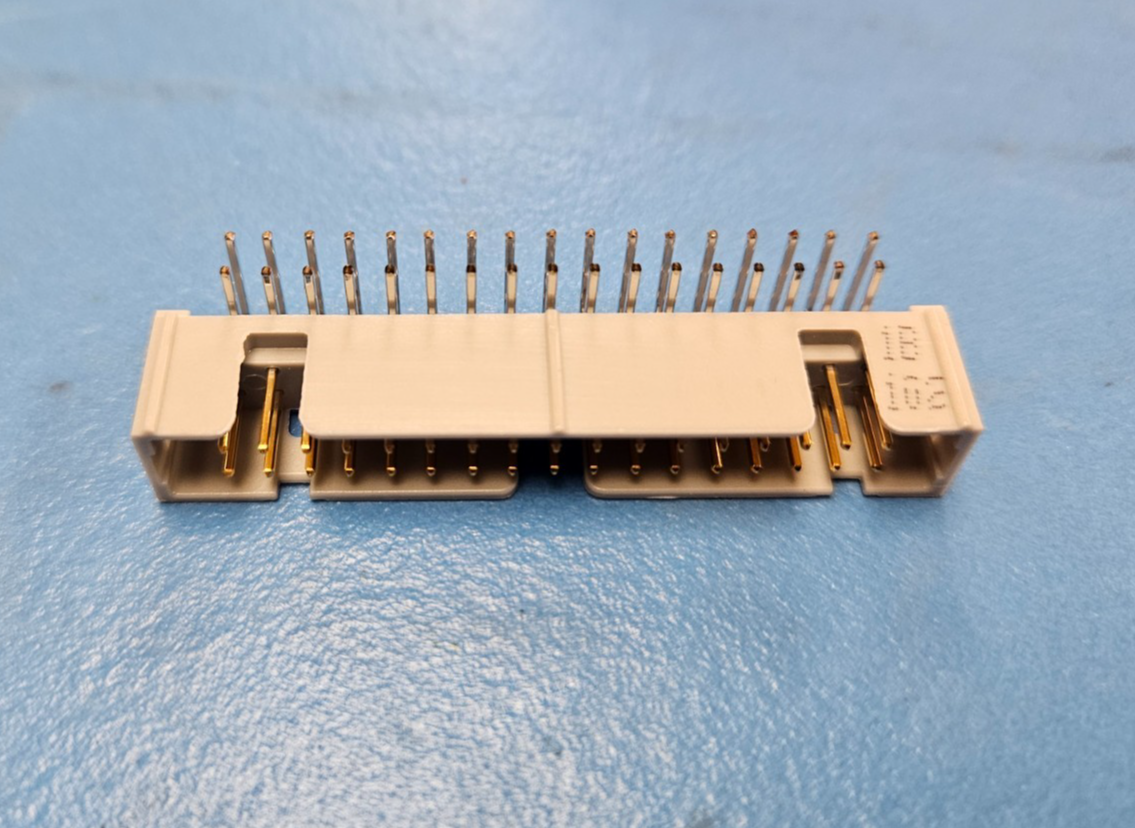

(5PCS) 2534-5002UB 3M Wire-Board Connector, Header, 34 Position
Tax included.
This listing is for (5PCS) of 2534-5002UB by 3M
Manufacturer: 3M
Product Category: Headers & Wire Housings
RoHS: No - RoHS Version Available
Product: Headers
Type: Four Wall Header
Number of Positions: 34 Position
Pitch: 2.54 mm (0.1 in)
Number of Rows: 2 Row
Row Spacing: 2.54 mm (0.1 in)
Mounting Style: PCB Mount
Termination Style: Solder Pin
Mounting Angle: Right Angle
Contact Gender: Pin (Male)
Contact Plating: Gold
Mating Post Length: 6.17 mm (0.243 in)
Termination Post Length: 2.84 mm (0.112 in)
Series: 2500
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 105 C
Brand: 3M Electronic Solutions Division
Compliance: UL
Contact Material: Copper Alloy
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: US
Current Rating: 1.75 A
Flammability Rating: UL 94 V-0
Housing Color: Black
Housing Material: Polyester
Insulation Resistance: 1 GOhms
Latching Type: Unlatched
Product Type: Headers & Wire Housings
