(2pcs) 1210R-471K 470 nH Unshielded - Inductor 644 mA 500mOhm Max 1210 ROHS
Tax included.

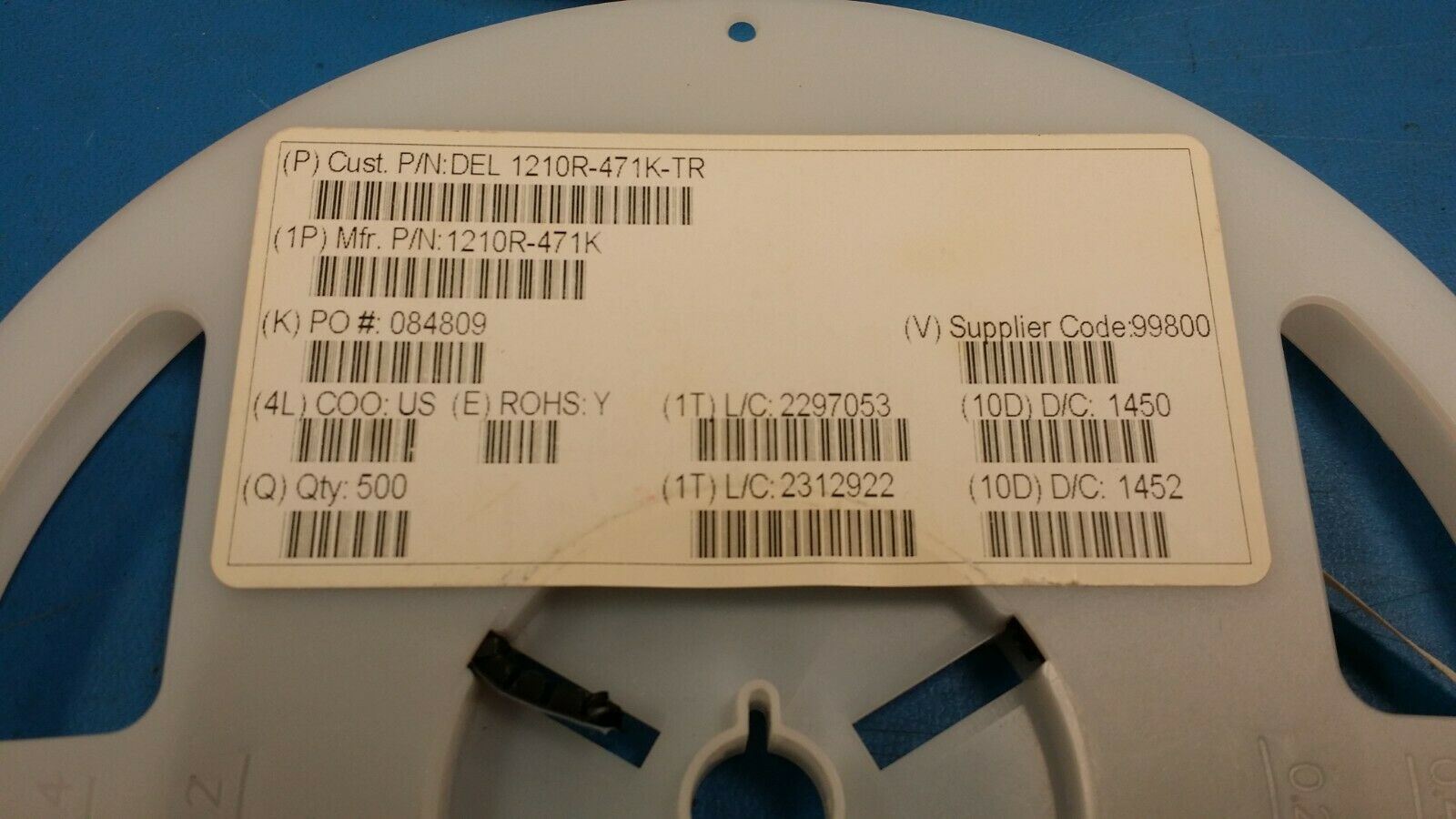

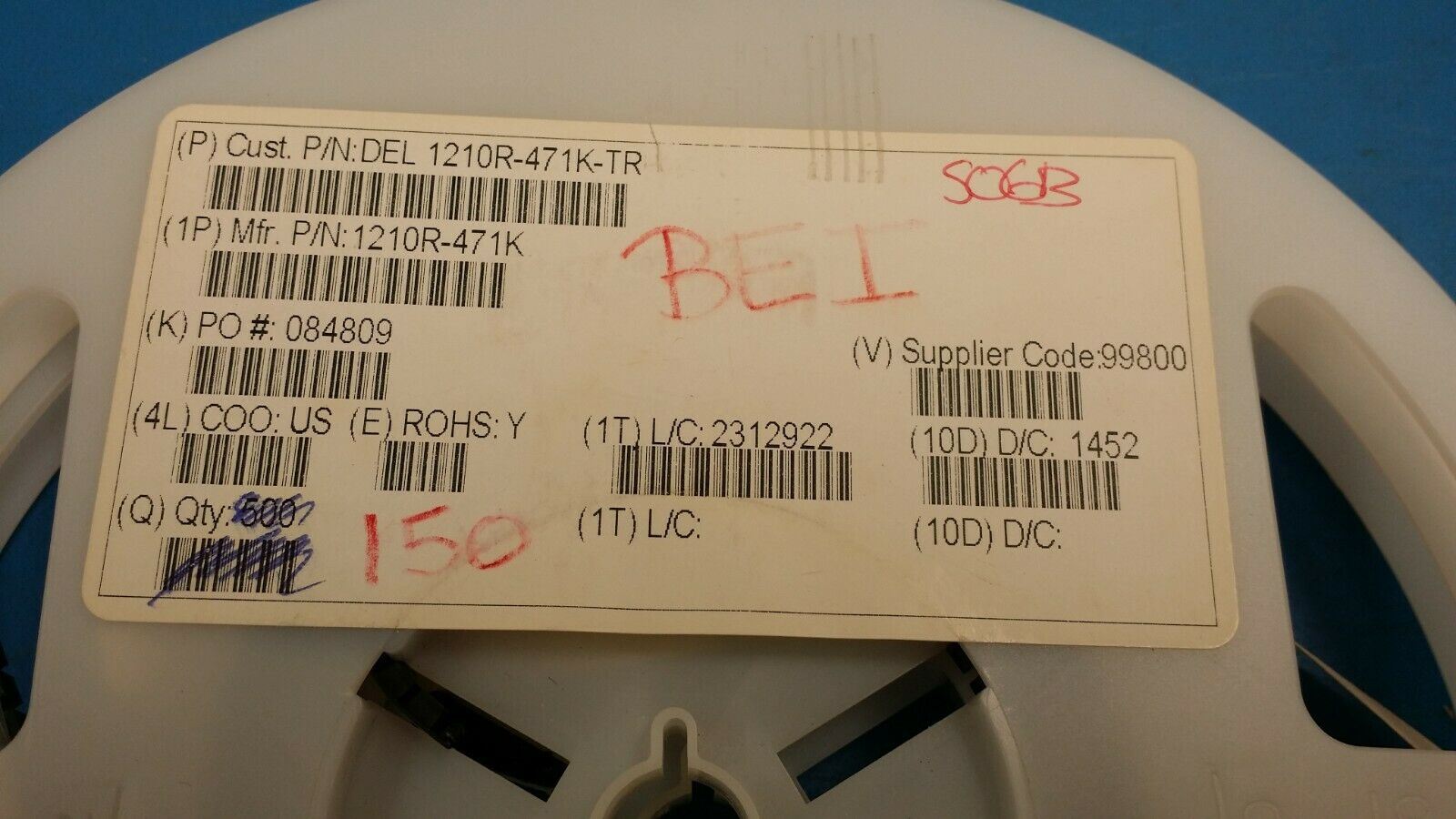

THIS IS FOR (2 PCS) OF 1210R-471K BY API
470 nH Unshielded Inductor 644 mA 500mOhm Max 1210 (3225 Metric) ROHS
Manufacturer: API Delevan
Product Category: RF Inductors - SMD
RoHS: YES
Termination Style: SMD/SMT
Package / Case: 1210 (3225 metric)
Shielding: Unshielded
Inductance: 470 nH
Tolerance: 10 %
Maximum DC Current: 644 mA
Maximum DC Resistance: 500 mOhms
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Q Minimum: 30
Mounting Style: PCB Mount
Length: 3.51 mm
Width: 2.67 mm
Height: 2.57 mm
Core Material: Iron
Series: 1210/R

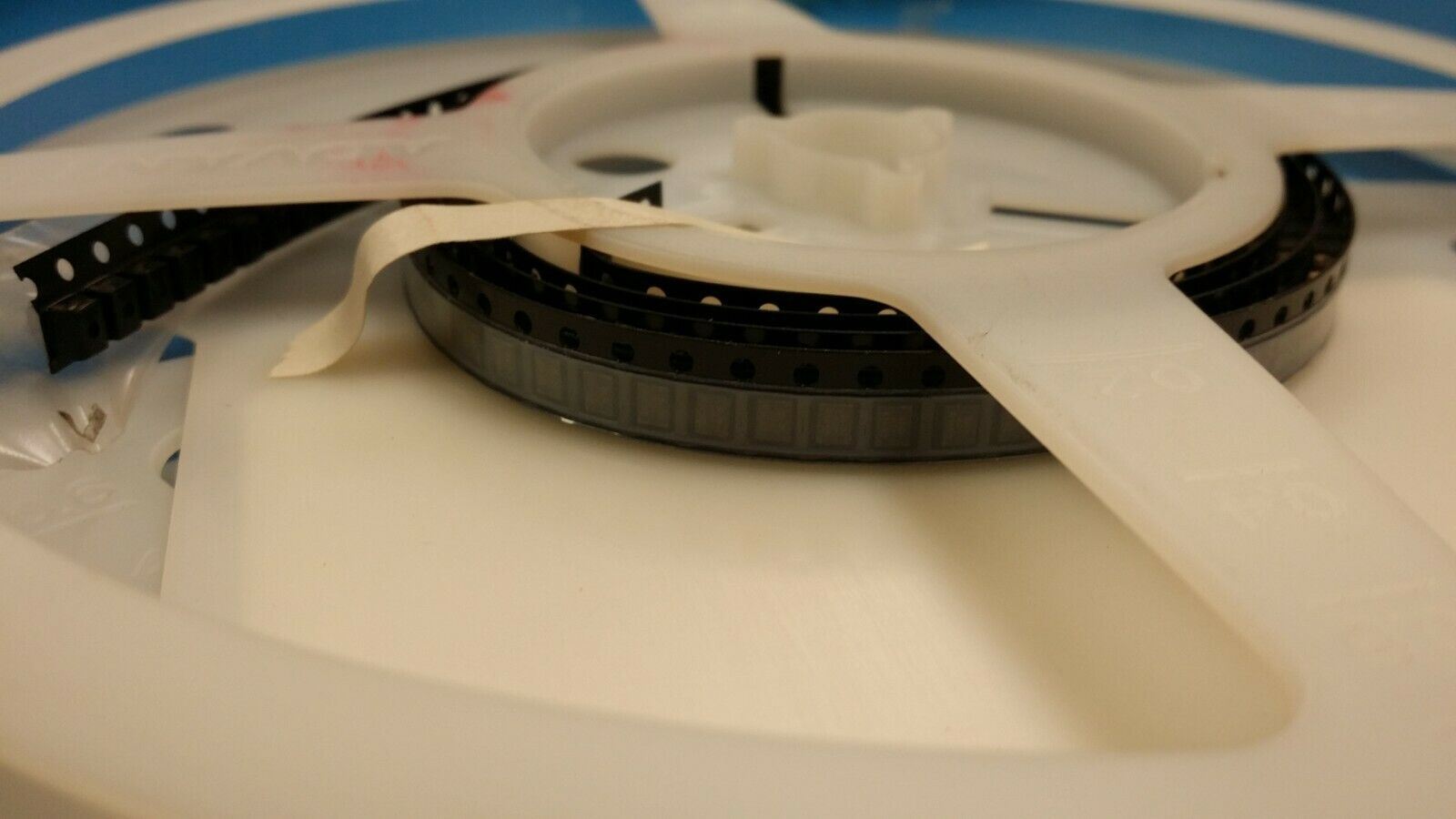

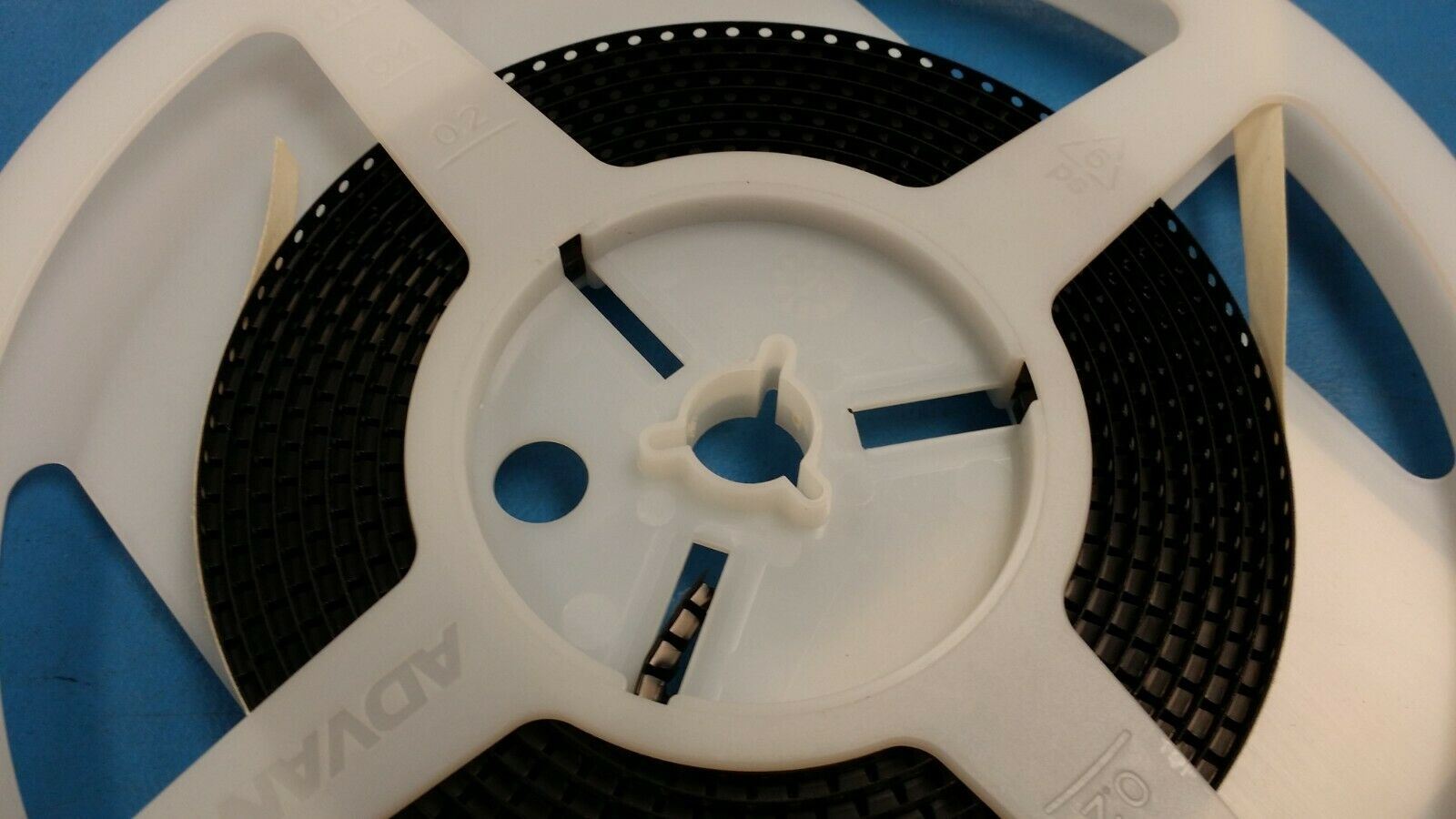

Packaging: Reel
Packaging: Cut Tape
Application: RF
Brand: API Delevan
Case Code - in: 1210
Case Code - mm: 3225
Product: RF Inductors
Product Type: RF Inductors - Leaded
Self Resonant Frequency: 220 MHz
