(5PCS) 103670-3 Connector Header HDR 4 POS 2.54mm Solder ST Thru-Hole
Tax included.

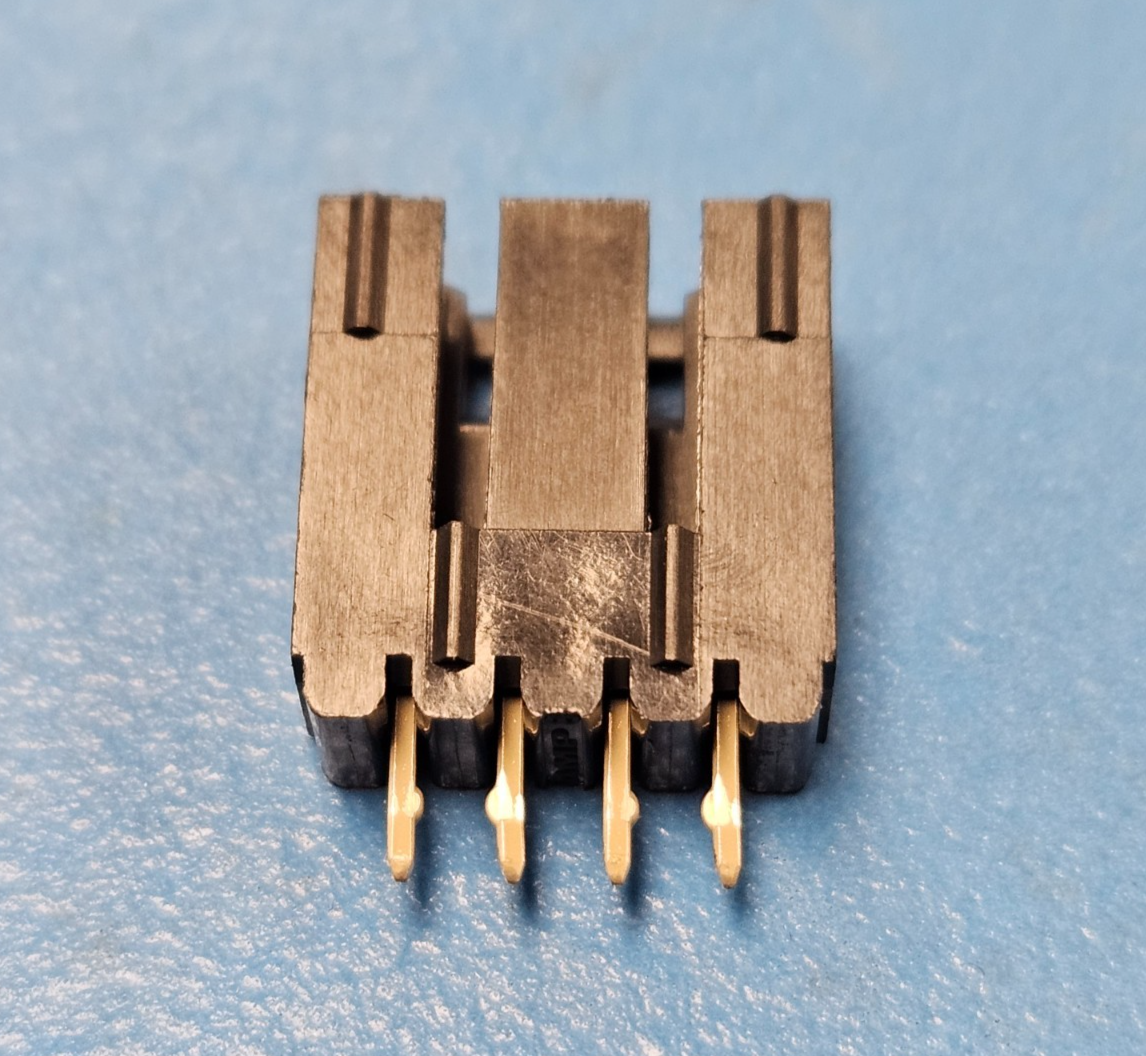

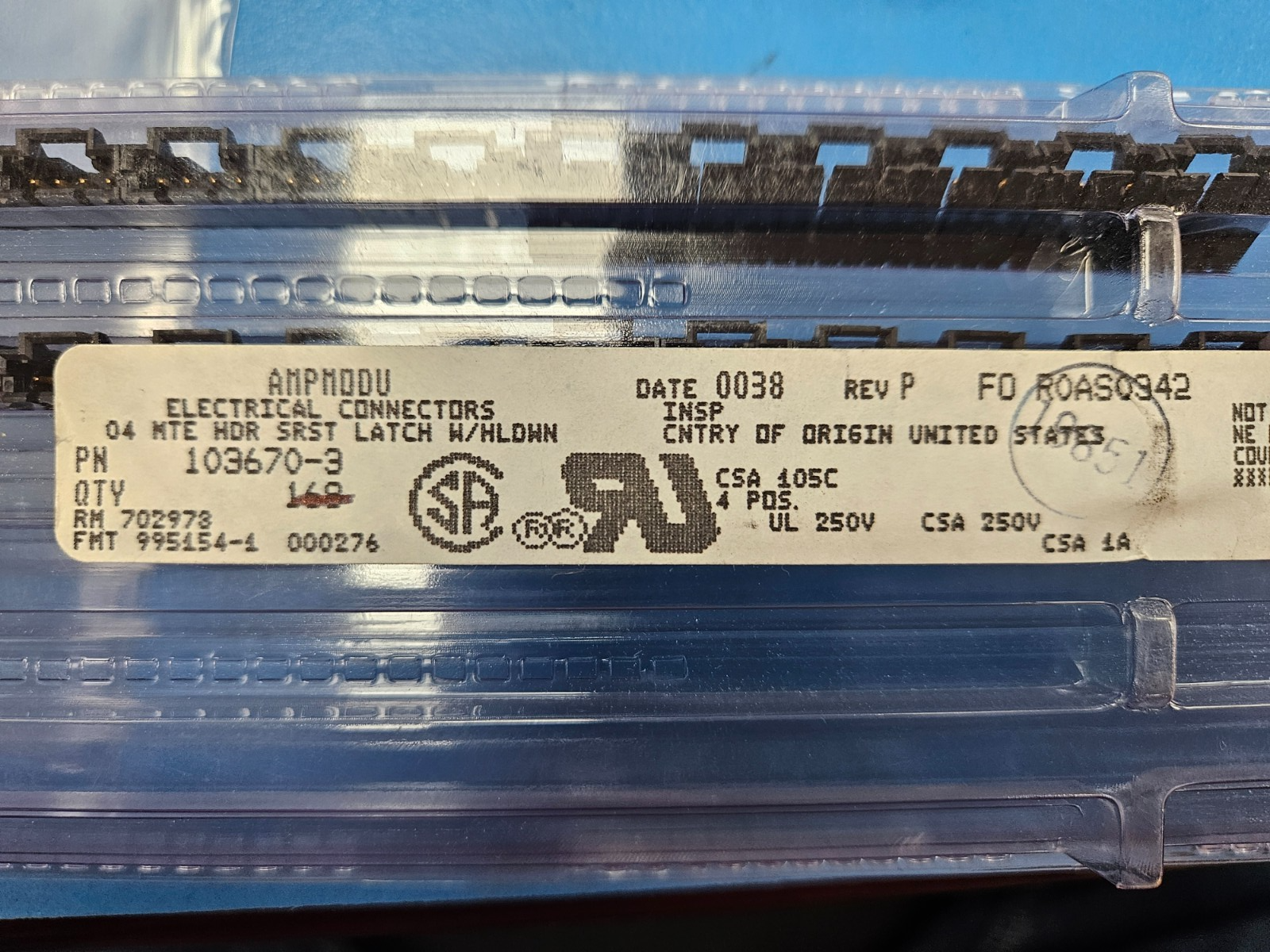

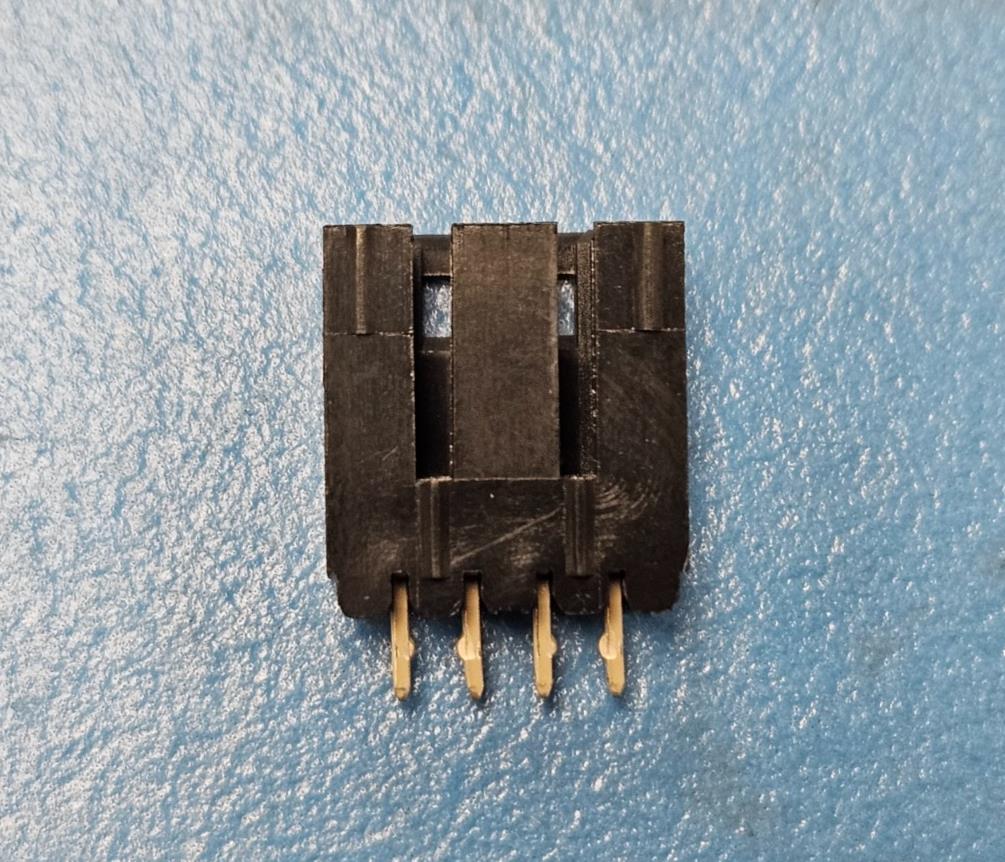

This listing is for (5PCS) of 103670-3 by AMP
Status Active
Additional Feature AMPMODU
Board Mounting Option SOLDERABLE RETENTION CLIPS
Body Breadth (inch) 0.200000
Body Depth (inch) 0.535000
Body Length (inch) 0.500000
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish - Mating NOT APPLICABLE
Contact Finish - Termination Tin/Lead (Sn/Pb)
Contact Gender MALE
Contact Material NOT APPLICABLE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insulation Resistance (ohm) 5000000000.000000000000000
Insulator Color BLACK
Insulator Material POLYETHYLENE
J-STD-609 Code e0
MIL Conformance NO
Mains Connector Rating 3A
Mating Contact Pitch (inch) 0.1
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LATCH
Mounting Style STRAIGHT
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 1
Number of Ports 1
Number of Rows Loaded 1
Operating Temperature-Max (Cel) 105
Operating Temperature-Min (Cel) -65
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Panel Mount NO
Plating Thickness (inch) 15u
Polarization Key DUAL POLARIZED
Rated Current (Signal) (A) 3.0000000000000000
Screening Level / Reference Standard CSA, LR, U
Terminal Length (inch) 0.130000
Terminal Pitch (mm) 2.54
Termination Type SOLDER
Number of Contacts 4
UL Flammability Code 94V-0
