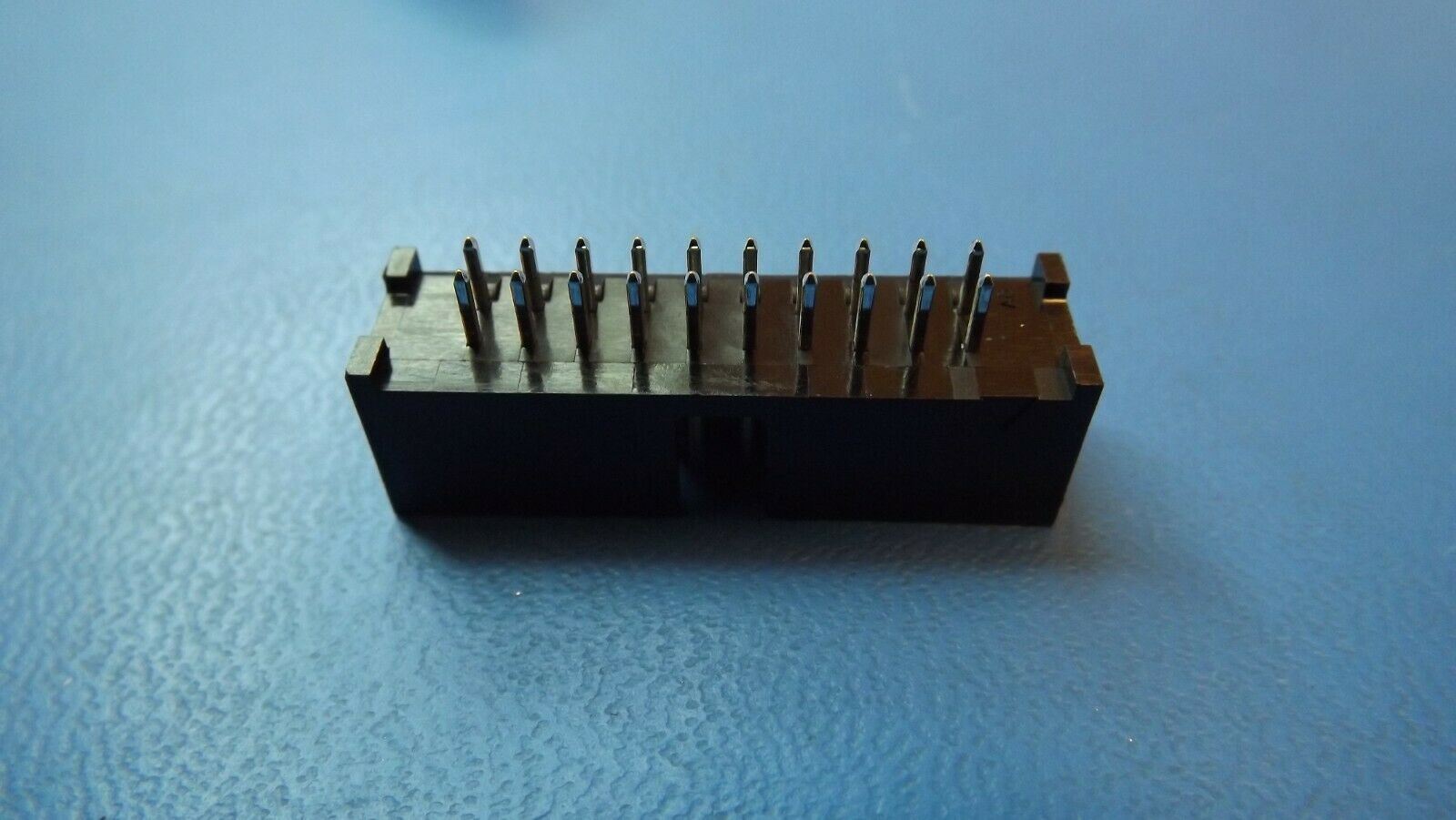

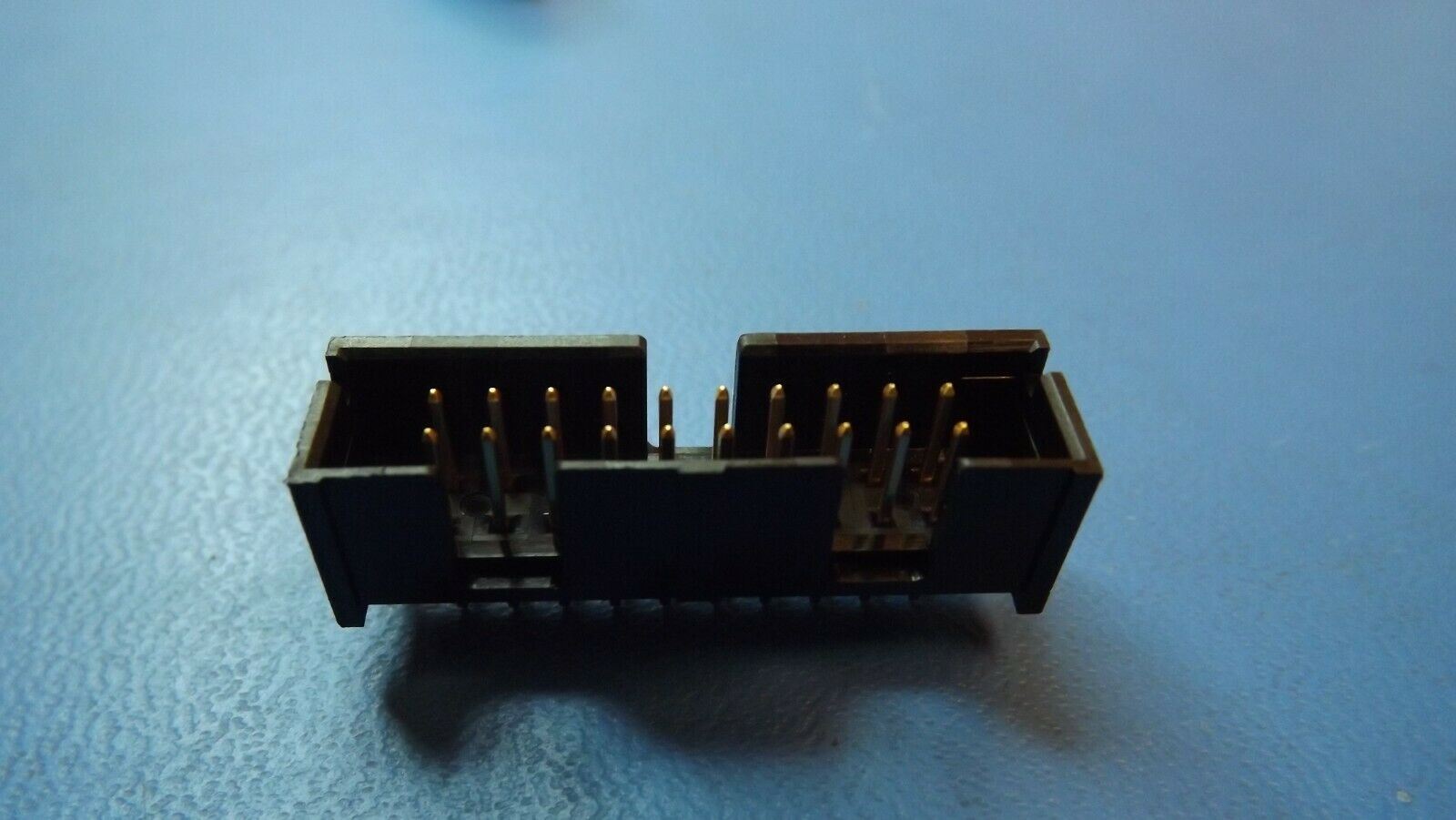

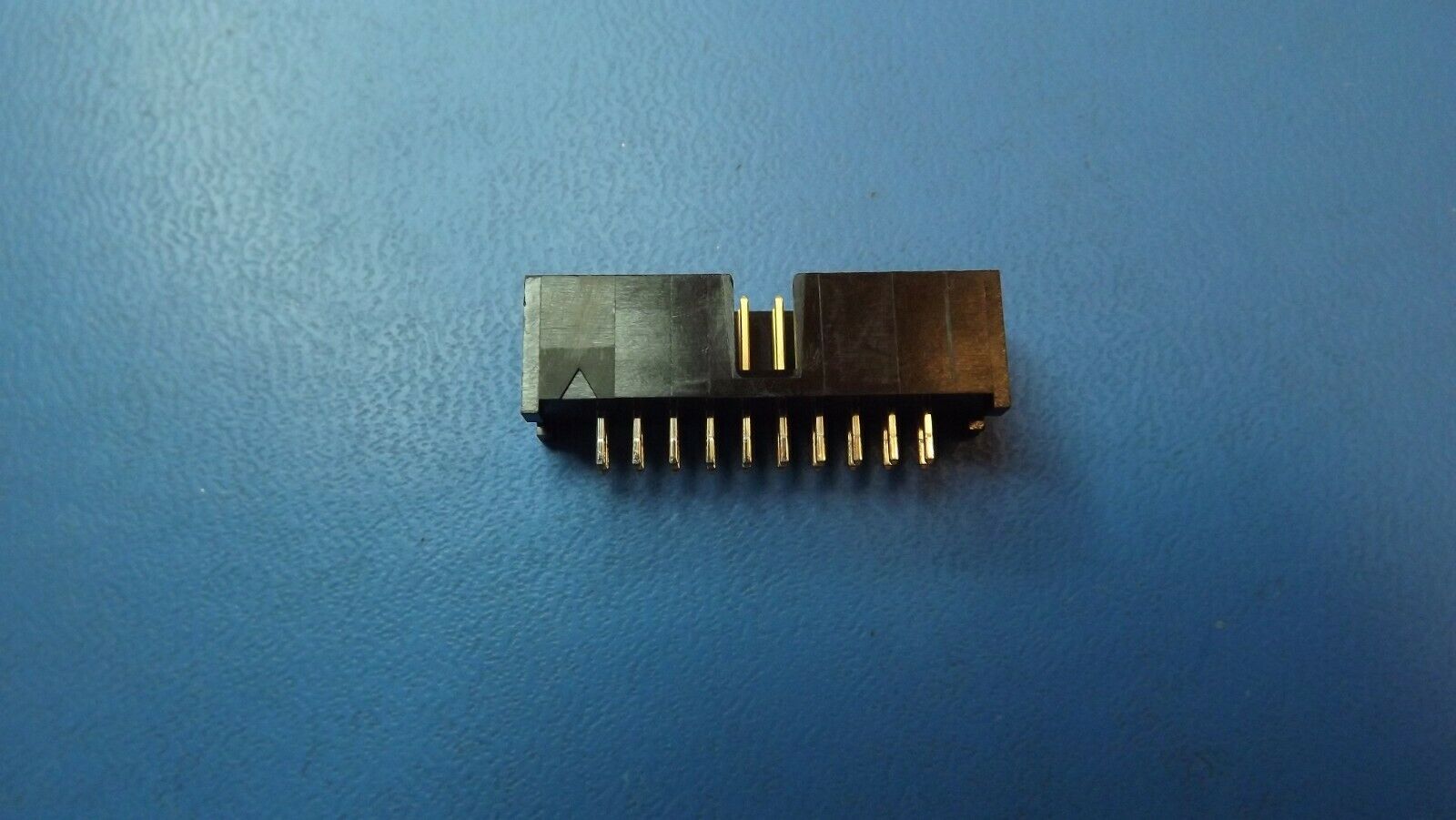

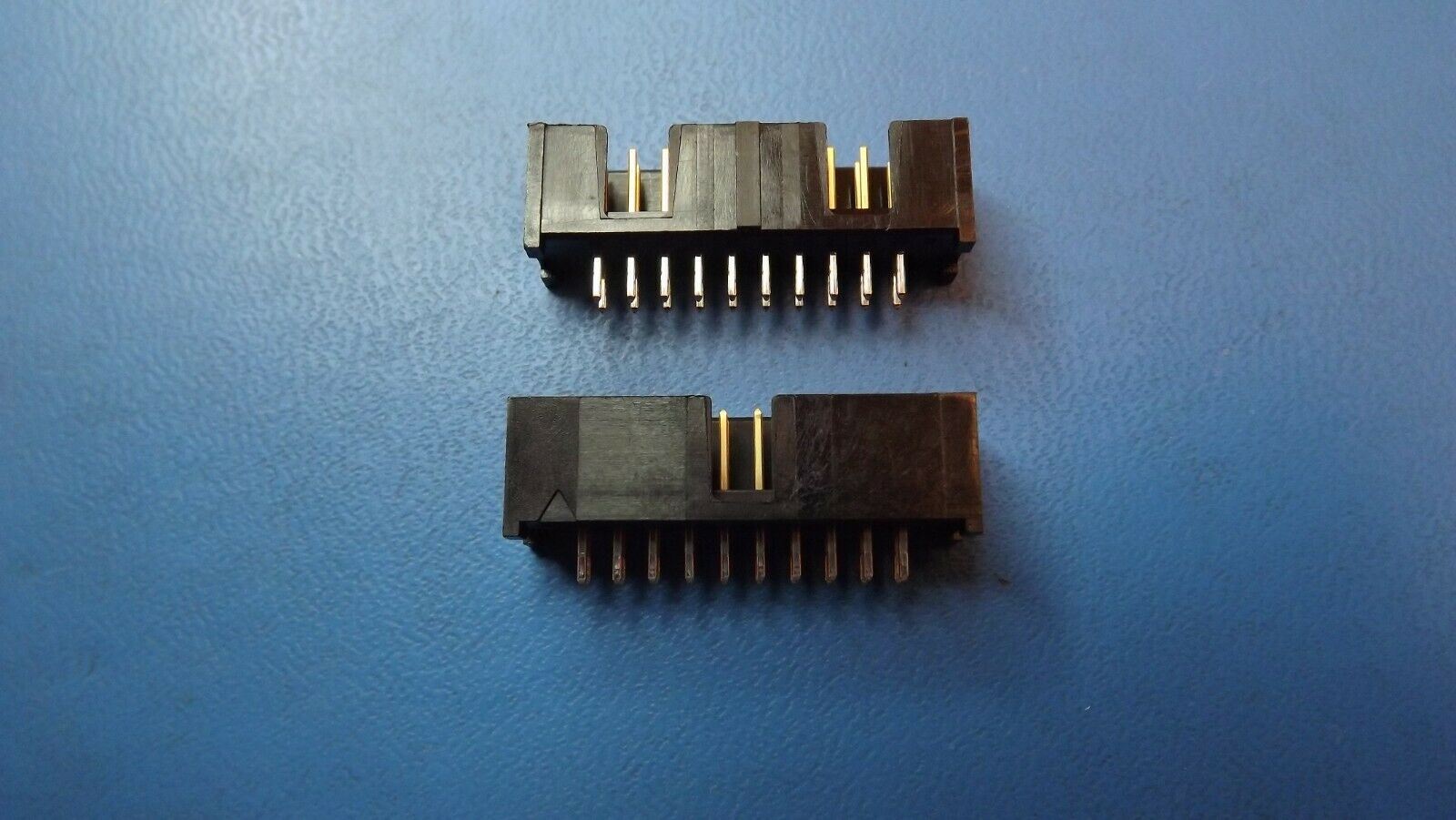

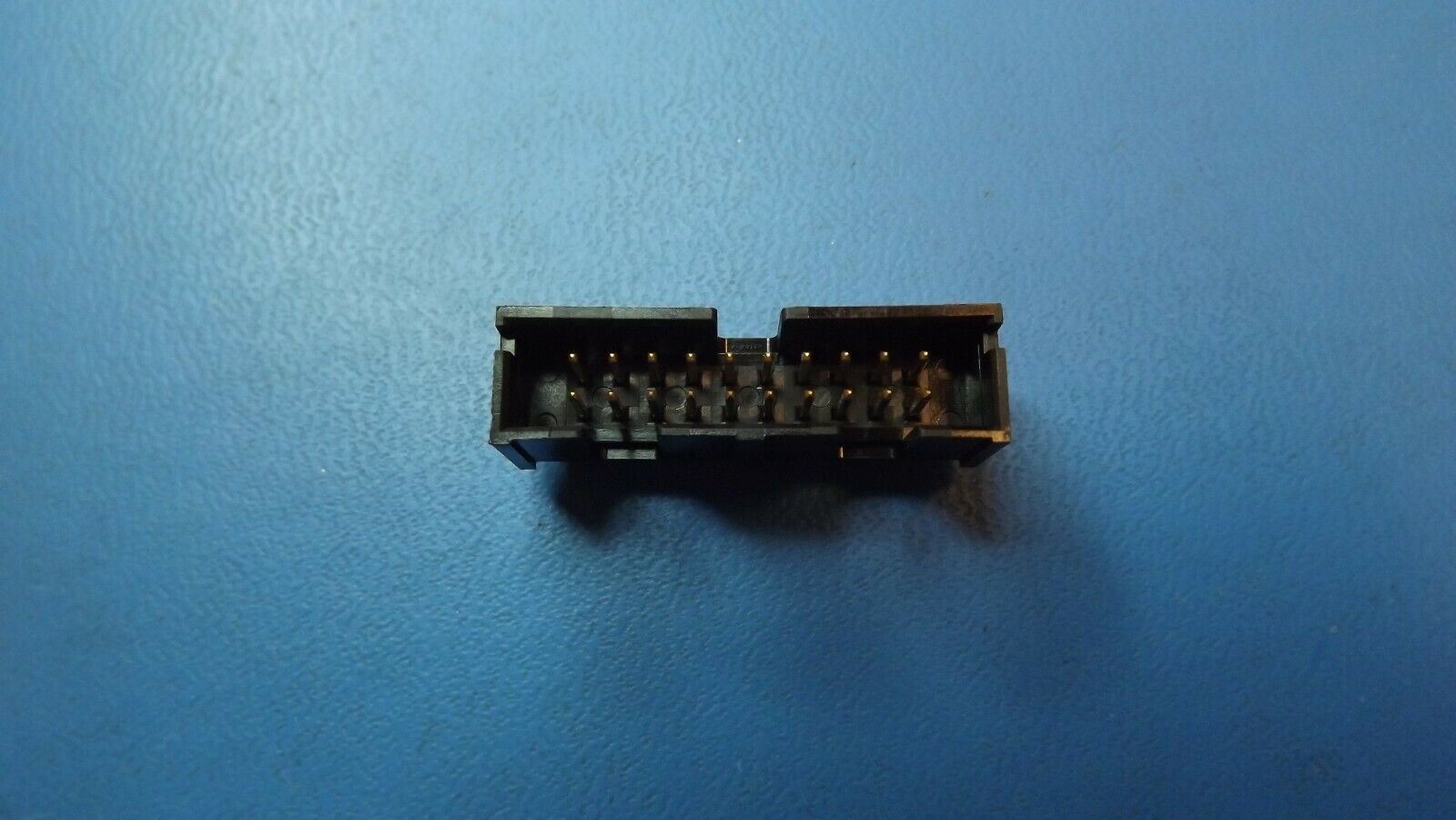

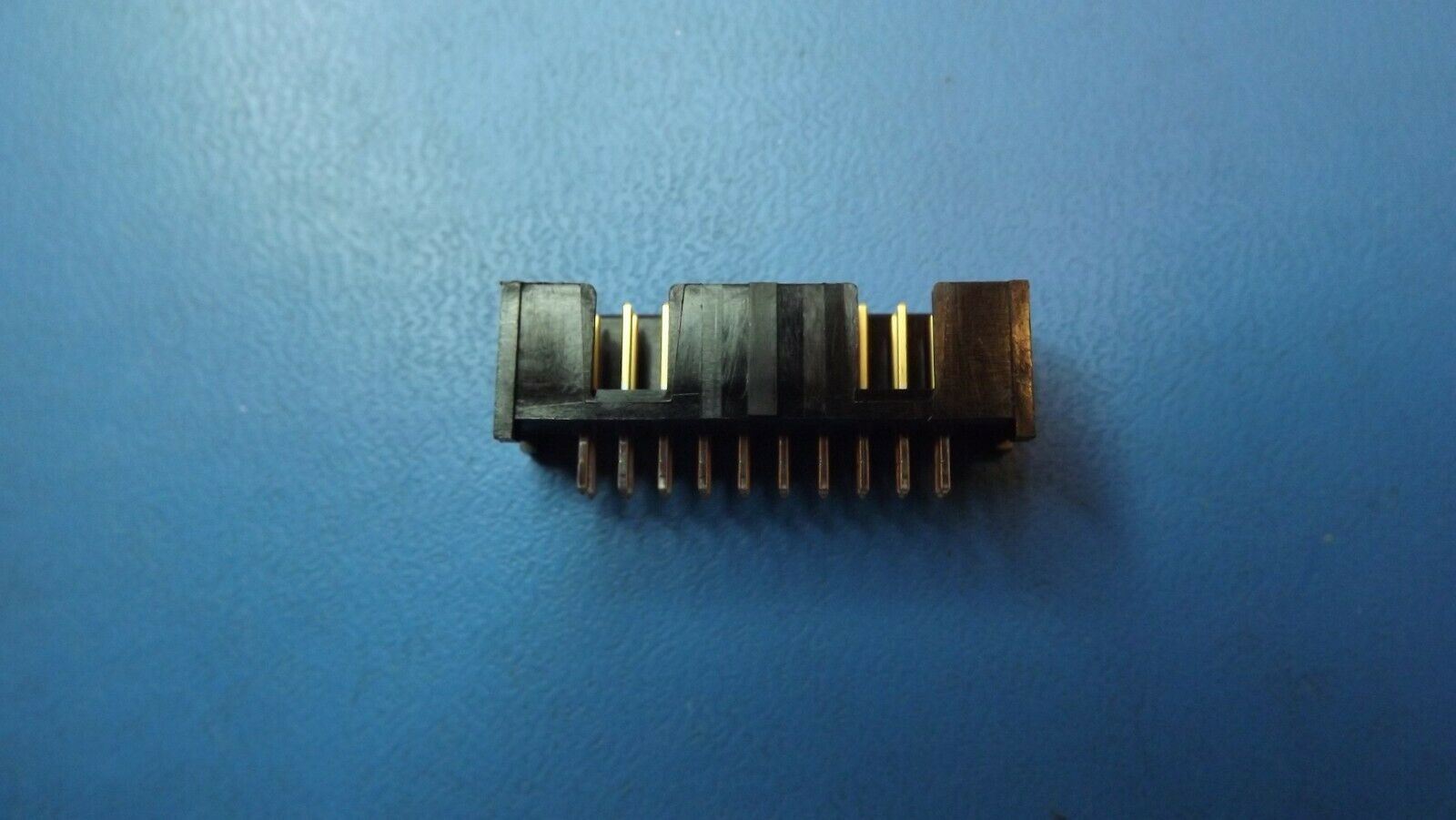

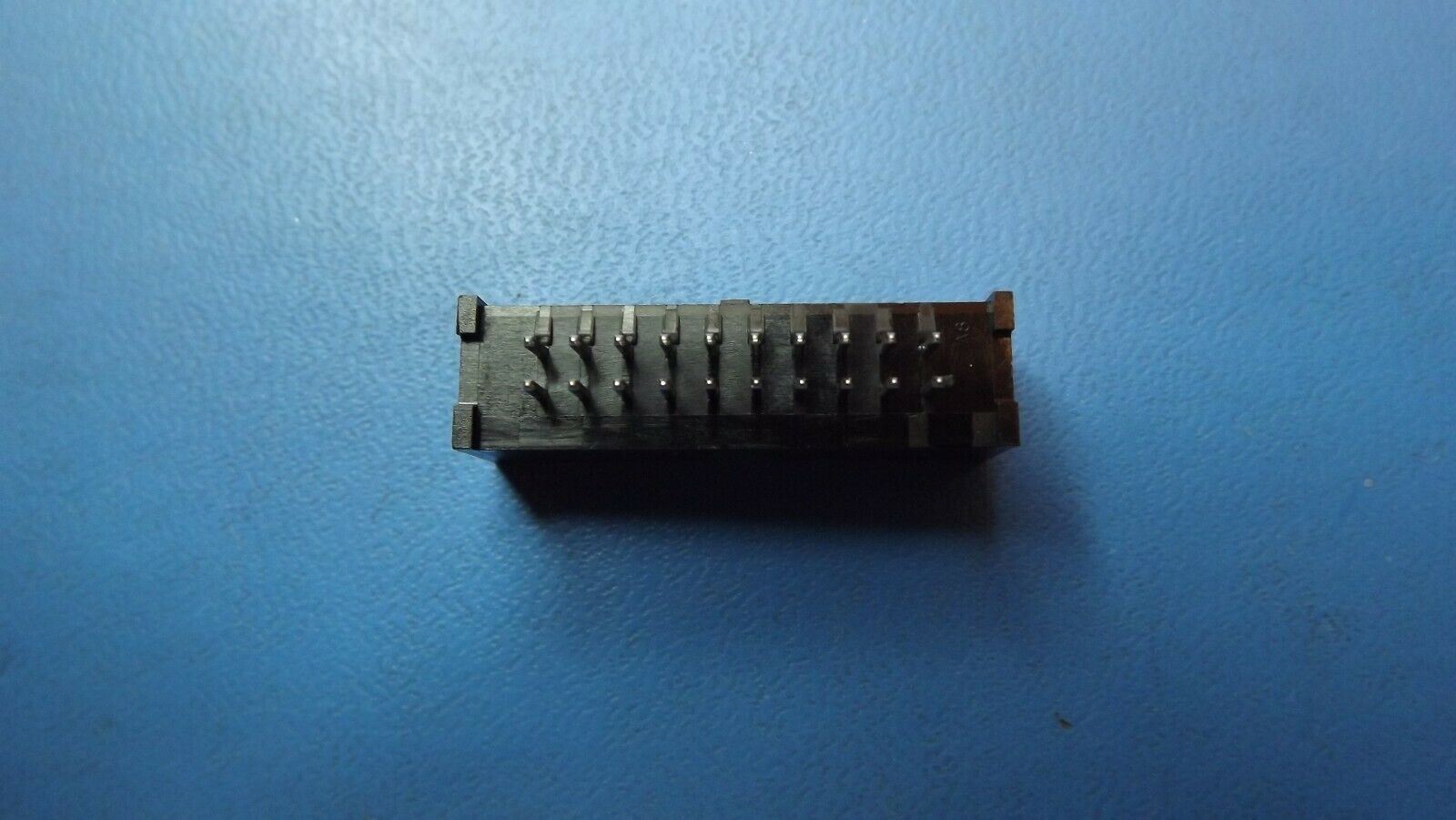

(5PCS) 103308-5 TE CONNECTIVITY CONN HEADER LOPRO STR 20POS GOLD
Tax included.
THIS LISTING IS FOR (2PCS) OF 103308-5 BY TE CONNECTIVITY
Manufacturer:TE Connectivity
Product Category:Headers & Wire Housings
Product:Headers
Type:Pin Strip
Number of Positions:20 Position
Pitch:2.54 mm
Number of Rows:2 Row
Mounting Style:Panel
Termination Style:Through Hole
Mounting Angle:Straight
Contact Gender:Pin (Male)
Contact Plating:Gold
Termination Post Length:3.05 mm
Series:AMP-LATCH
Tradename:AMP-LATCH
Minimum Operating Temperature:- 65 C
Maximum Operating Temperature:+ 105 C
Packaging:Tube
Current Rating:1 A
Housing Material:Thermoplastic (TP)
Brand:TE Connectivity / AMP
Contact Material:Copper Alloy
Flammability Rating:UL 94 V-0
Row Spacing:2.54 mm
Compliance:UL, CSA
Insulation Resistance:5000 MOhms
Product Type:Headers & Wire Housings
