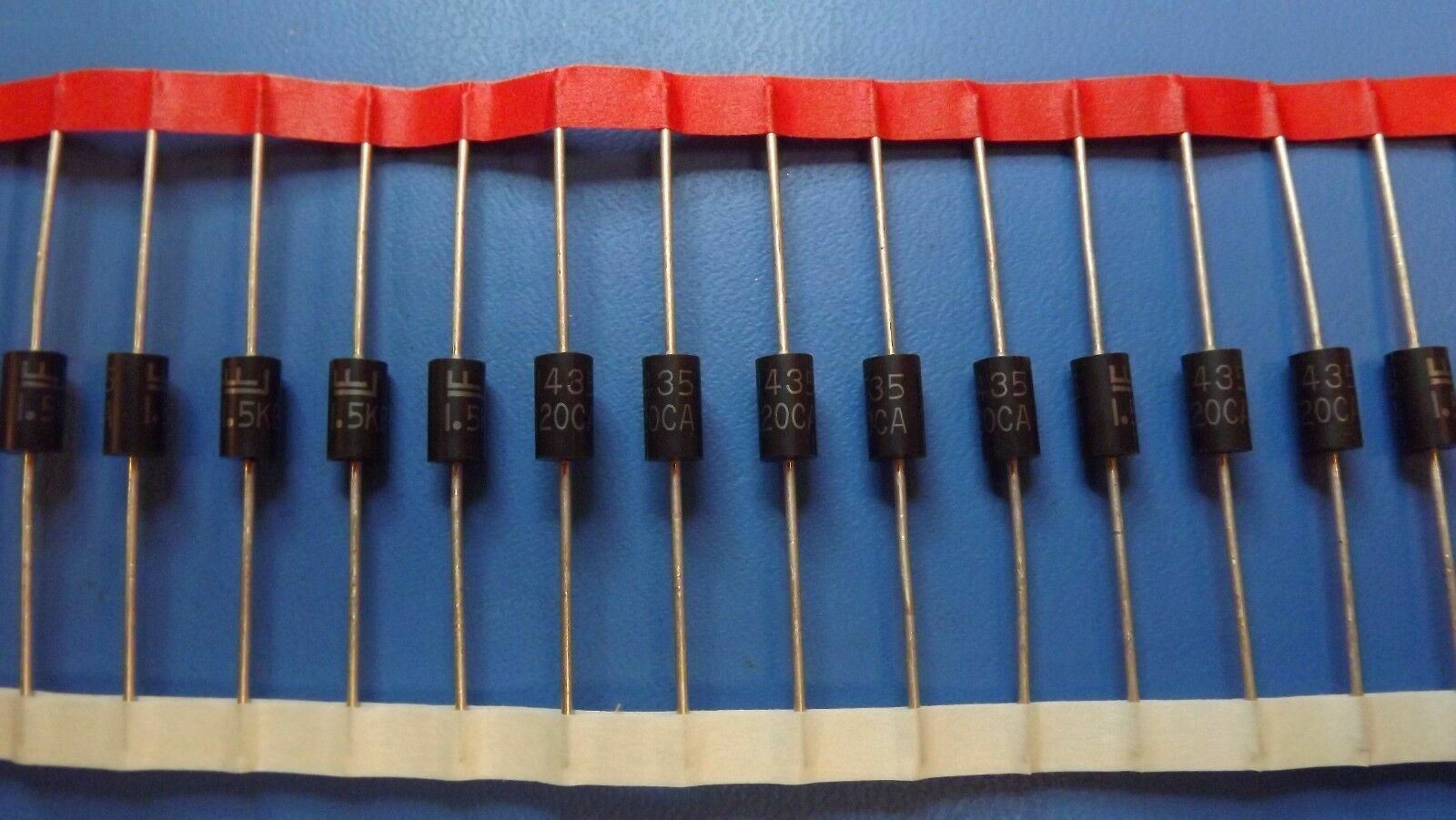

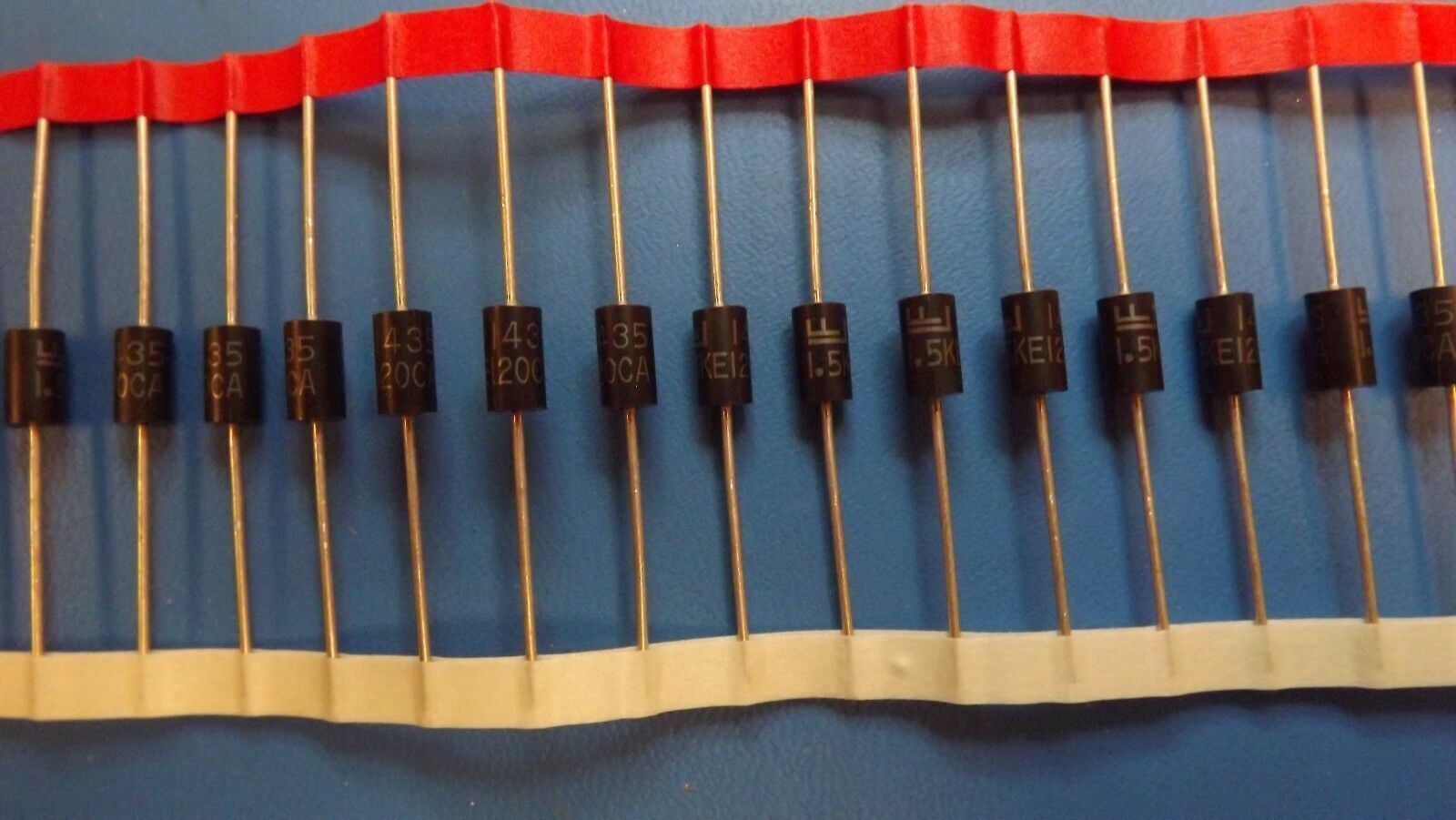

(5PCS) 1.5KE120CA LITTELFUSE Diode TVS Single Bi-Dir 102V 1.5KW 2-Pin DO-201

  • $5.00
    Unit price per
Tax included.

Only 2 left!

THIS LISTING IS FOR (5PCS) OF 1.5KE120CA BY LITTELFUSE


SPECIFICATIONS

Mfr Package Description HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Breakdown Voltage-Nom 120.0 V
Breakdown Voltage-Min 114.0 V
Breakdown Voltage-Max 126.0 V
Case Connection ISOLATED
Clamping Voltage-Max 165.0 V
Configuration SINGLE
Diode Element Material SILICON
JEDEC-95 Code DO-201
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Moisture Sensitivity Level 2
Non-rep Peak Rev Power Dis-Max 1500.0 W
Number of Elements 1.0
Number of Terminals 2
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 175.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 260
Polarity BIDIRECTIONAL
Power Dissipation-Max 6.5 W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 102.0 V
Sub Category Transient Suppressors
Surface Mount NO
Technology AVALANCHE
Terminal Finish Matte Tin (Sn)
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) 30
Additional Feature UL RECOGNIZED, EXCELLENT CLAMPING CAPABILITY
