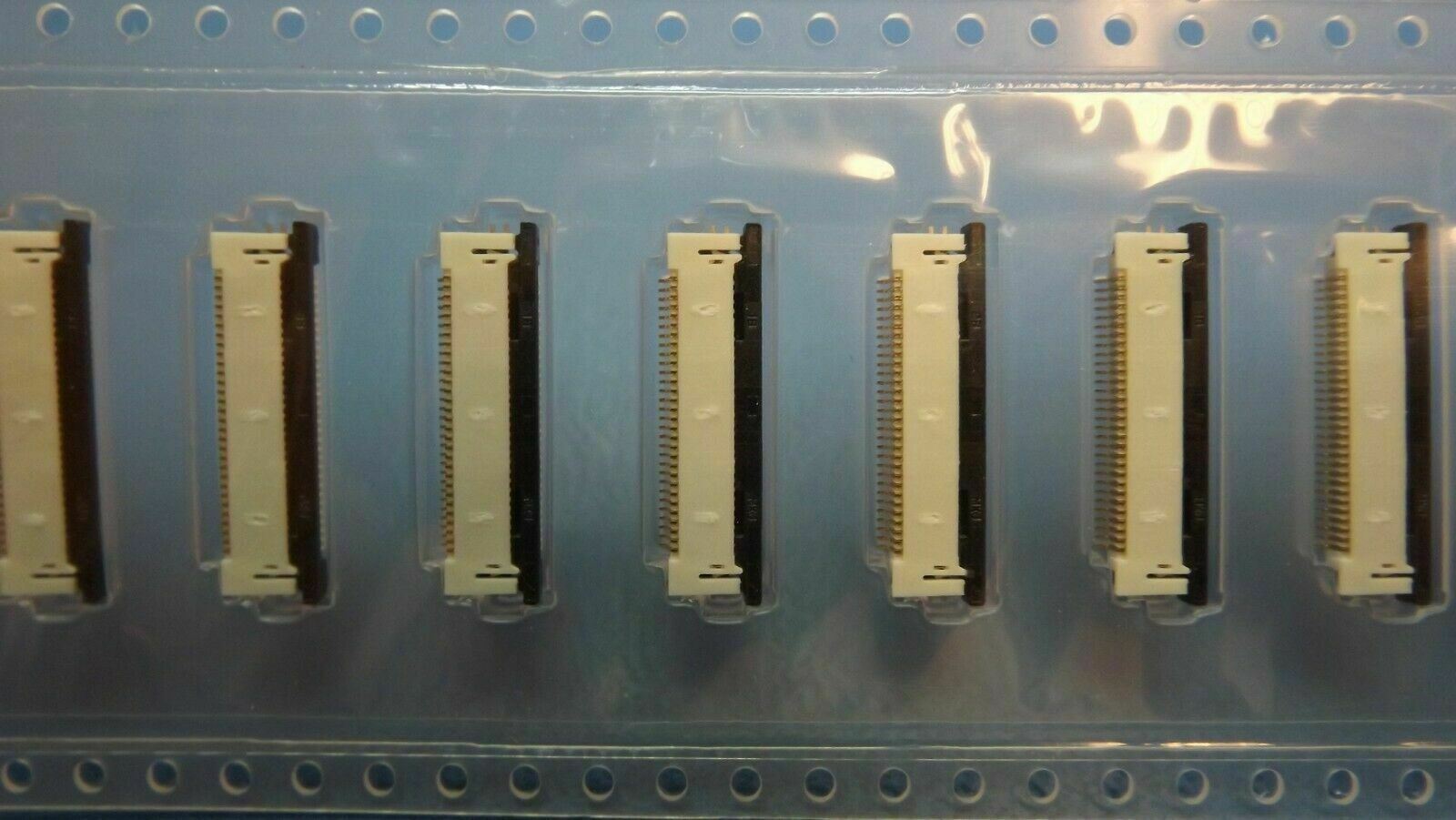

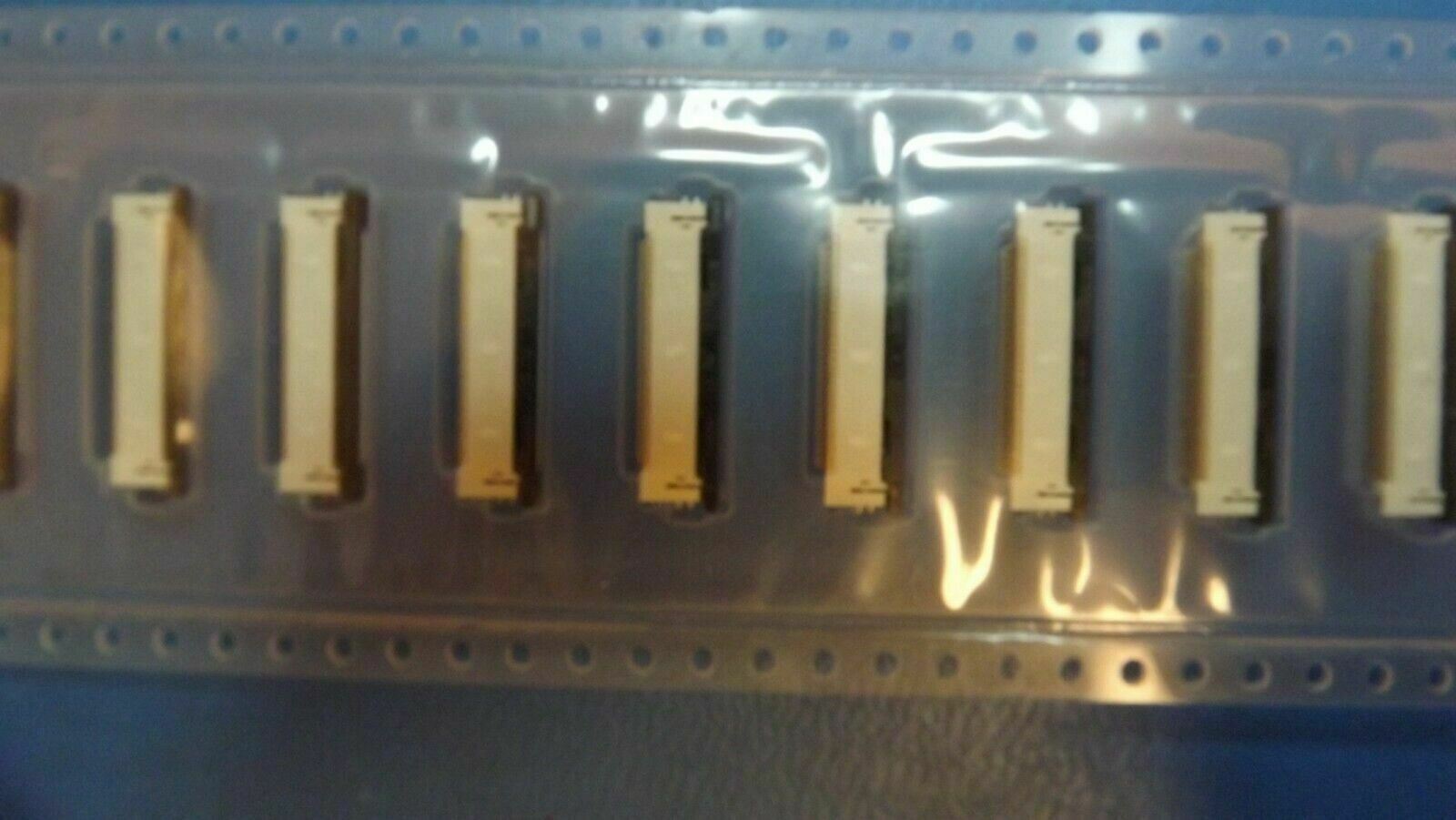

(5PCS) 0541323062 CONN FFC BOTTOM 30POS 0.50MM R/A 54132-3062
Tax included.

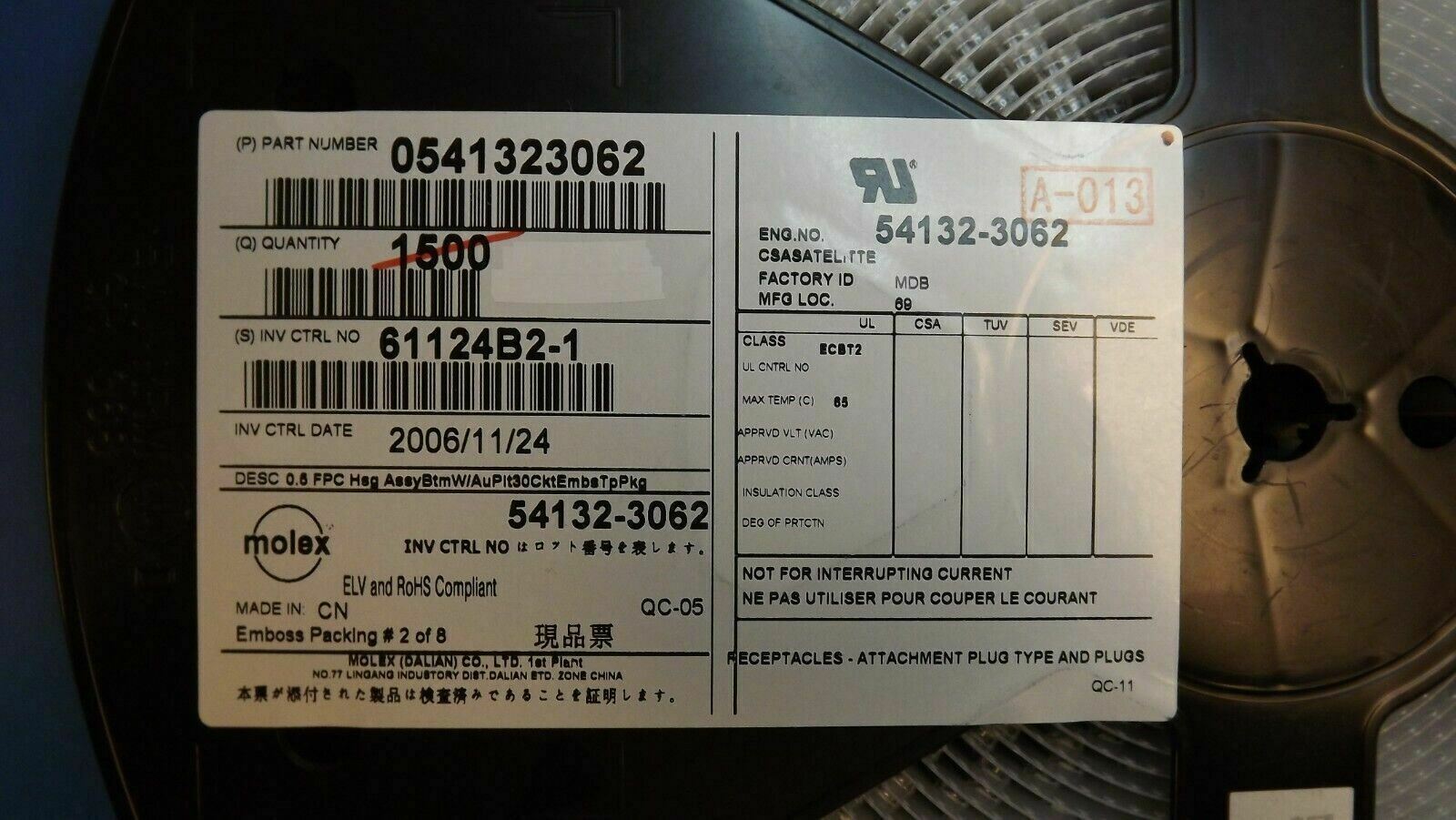

THIS LISTING IS FOR (5PCS) OF 0541323062 BY MOLEX
SPECIFICATIONS
| Mfr Package Description | ROHS AND REACH COMPLIANT |
| EU RoHS Compliant | Yes |
| Status | Active |
| Connector Type | CARD EDGE CONNECTOR |
| Board Mounting Option | FITTING NAIL |
| Body Breadth | 0.079 inch |
| Body Depth | 0.197 inch |
| Body Diameter | 0.807 inch |
| Contact Finish - Mating | GOLD |
| Contact Finish - Termination | Gold (Au) |
| Contact Gender | FEMALE |
| Contact Material | PHOSPHOR BRONZE |
| Contact Pattern | RECTANGULAR |
| Contact Resistance | 20.0 mohm |
| Contact Style | SINGLE PRONG |
| Dielectric Withstanding Voltage (V) | 250VAC |
| DIN Conformance | NO |
| Durability | 20.0 Cycles |
| Filter Feature | NO |
| IEC Conformance | NO |
| Insertion Force-Max (N) | ZIF |
| Insulation Resistance | 5.0E7 ohm |
| Insulator Color | WHITE |
| Insulator Material | GLASS FILLED POLYAMIDE |
| JESD-609 Code | e4 |
| Manufacturer Series | 54132 |
| Mating Contact Pitch (inch) | 0.02 |
| MIL Conformance | NO |
| Mixed Contacts | NO |
| Mounting Option 1 | LOCKING |
| Mounting Style | RIGHT ANGLE |
| Mounting Type | BOARD |
| Number Of PCB Rows | 1 |
| Number of Rows Loaded | 1 |
| Operating Temperature-Min | -20.0 Cel |
| Operating Temperature-Max (Cel) | 85 |
| Option | GENERAL PURPOSE |
| PCB Contact Pattern | RECTANGULAR |
| Plating Thickness (inch) | 4u |
| Rated Current (Signal) | 0.5 A |
| Reference Standard | UL |
| Reliability | COMMERCIAL |
| Sub Category | Headers and Edge Type Connectors |
| Terminal Pitch | 0.5 mm |
| Terminal Type | SURFACE MOUNT |
| Total Number of Contacts | 30 |
| UL Flammability Code | 94V-0 |
| Withdrawl Force-Min (N) | ZIF |
| Additional Feature | EASY-ON, POLARIZED |
