(5PCS) 052207-1585 MOLEX CONNECTOR FFC FPC TOP 15POS 1MM
Tax included.

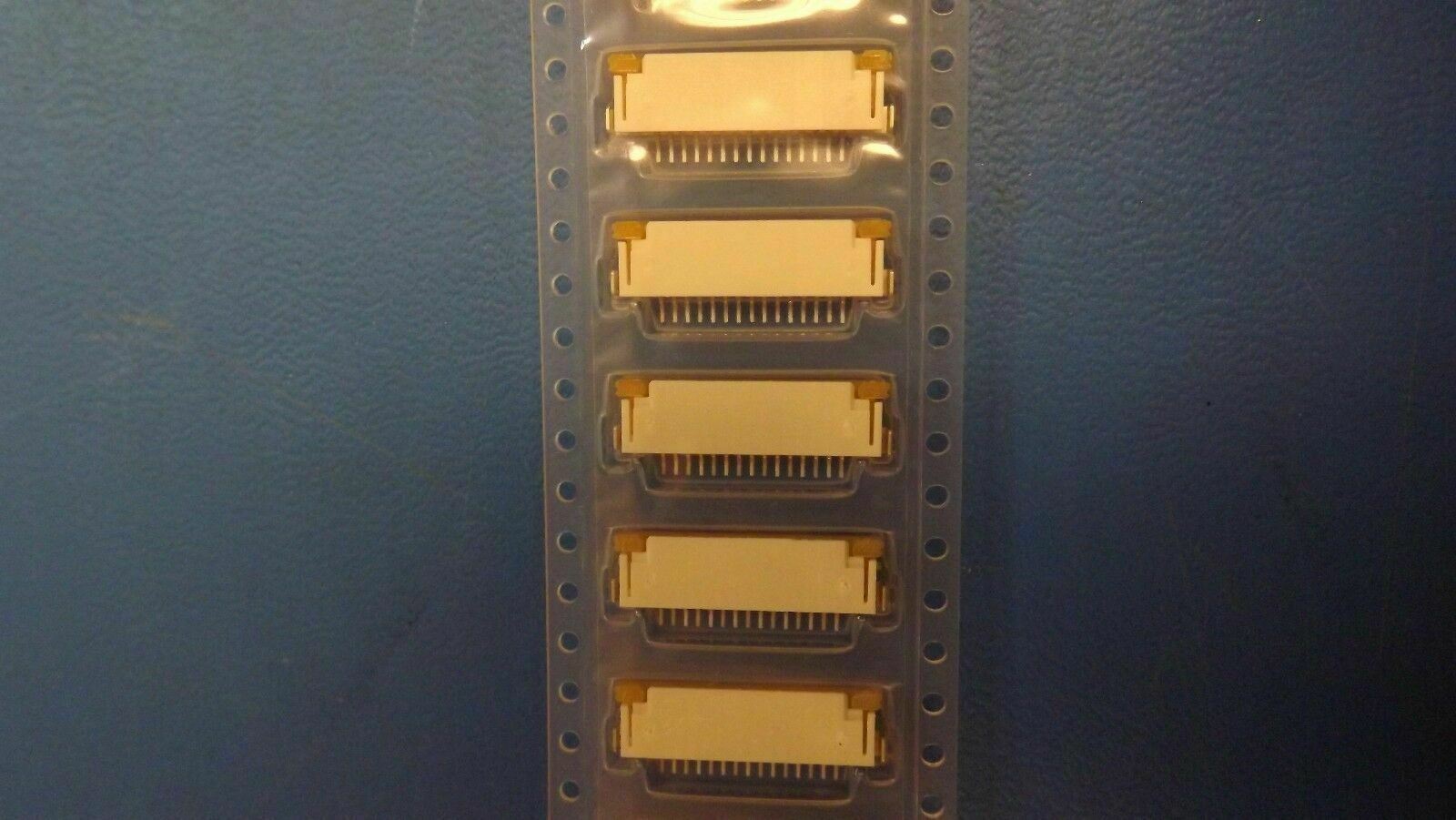

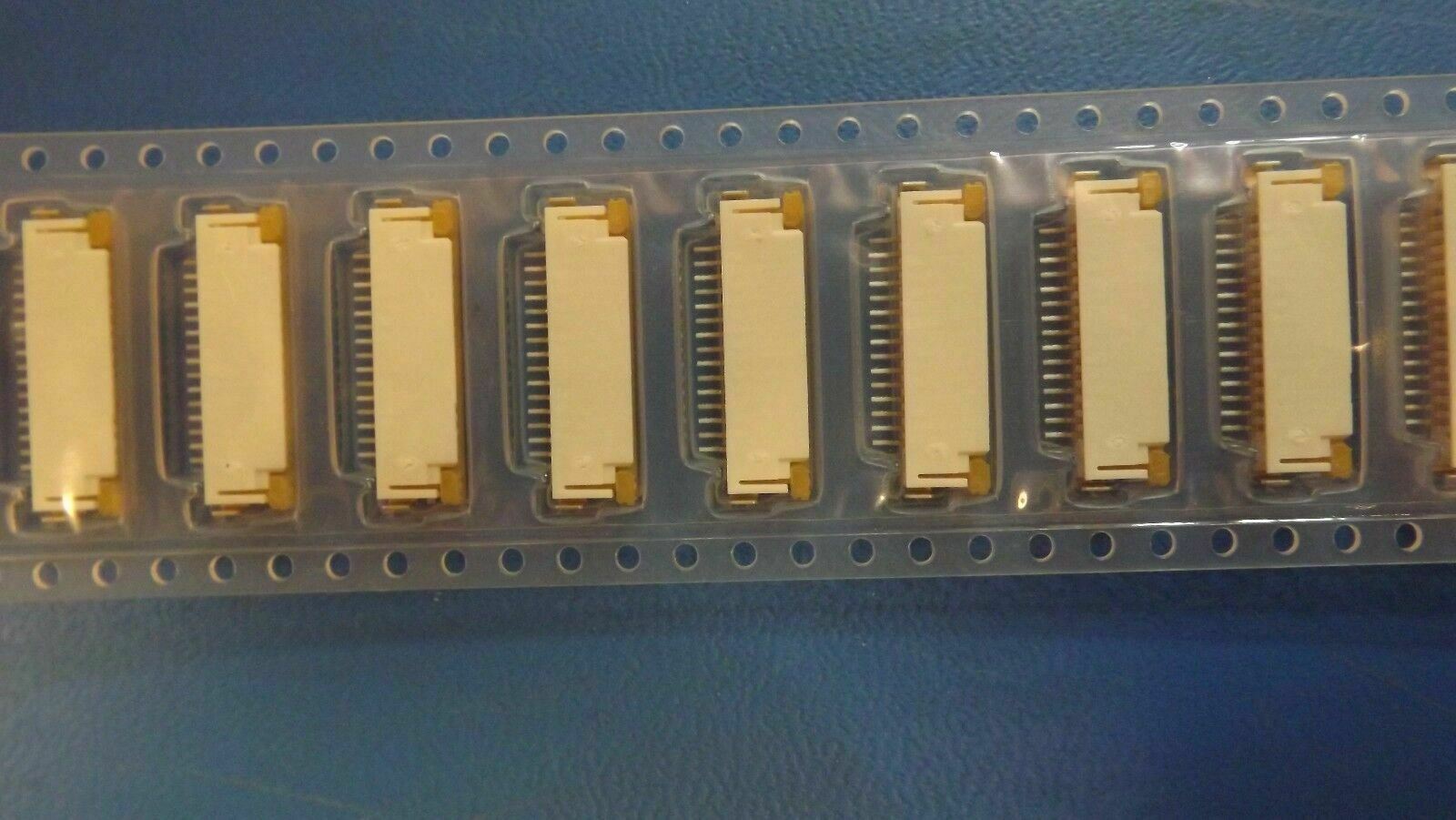

THIS LISTING IS FOR (5PCS) OF 052207-1585 BY MOLEX
| Flat Flex Type | FFC, FPC | |
|---|---|---|
| Mounting Type | Surface Mount, Right Angle | |
| Connector/Contact Type | Contacts, Top | |
| Number of Positions | 15 | |
| Pitch | 0.039" (1.00mm) | |
| Termination | Solder | |
| FFC, FCB Thickness | 0.30mm | |
| Height Above Board | 0.106" (2.70mm) | |
| Locking Feature | Slide Lock | |
| Cable End Type | Tapered | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Tin Bismuth | |
| Housing Material | Polyamide (PA46), Nylon 4/6 | |
| Actuator Material | Polyphenylene Sulfide (PPS) | |
| Features | Solder Retention, Zero Insertion Force (ZIF) | |
| Voltage Rating | 125V | |
| Operating Temperature | -30°C ~ 85°C | |
| Material Flammability Rating | UL94 V-0 | |
| Current Rating | 1A |
