(5PCS) 0314001.HXP Cartridge Fuses 250V 1A Fast Acting
Tax included.

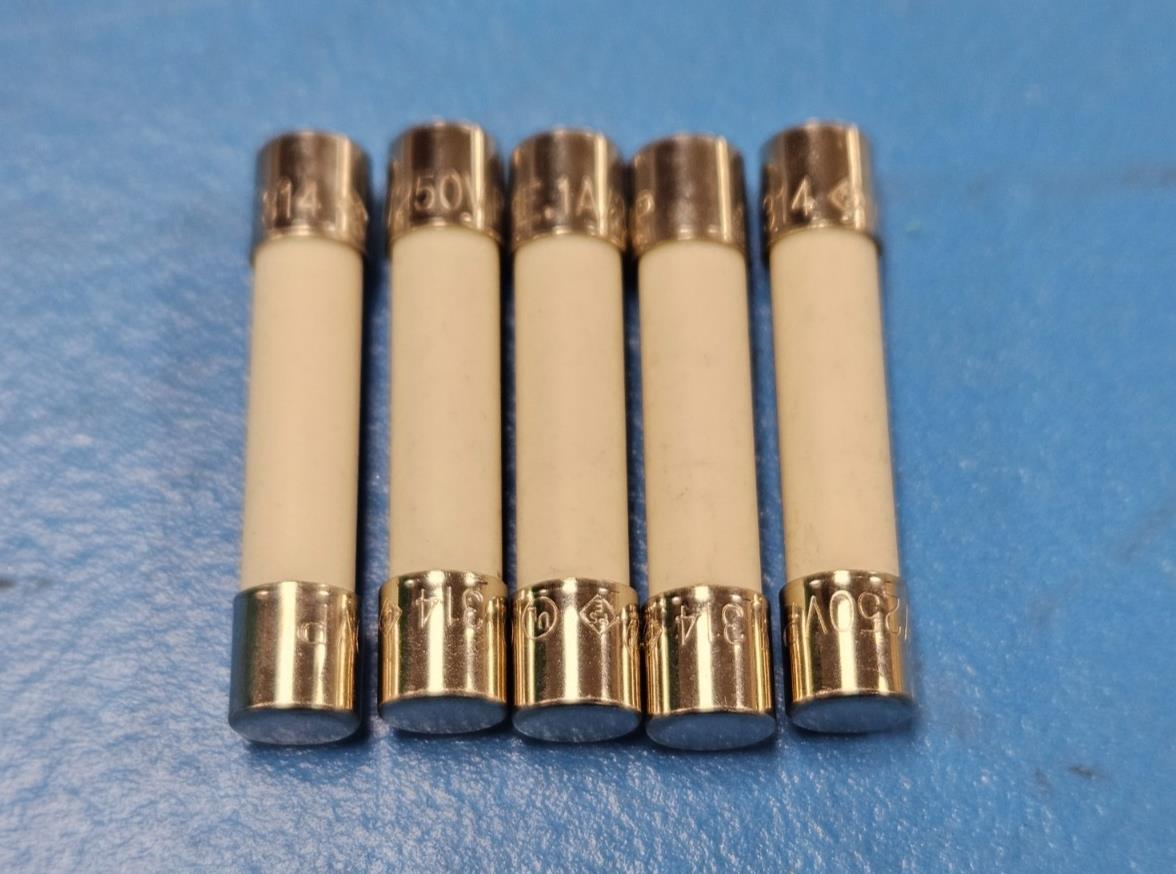

This listing is for (5PCS) of 0314001.HXP by Littelfuse
Status Active
Additional Feature RATED BREAKING CAPACITY AT 125 VDC: 10000 A
Blow Characteristic FAST
Body Height (mm) 31.7500
Body Length or Diameter (mm) 6.3500
Circuit Protection Type ELECTRIC FUSE
Fuse Size 3AB
Joule-integral-Nom (J) 0.69000000
Mounting Feature INLINE/HOLDER
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -55
Packing Method BULK
Rated Breaking Capacity (A) 100.00000000
Rated Current (A) 1.00000000
Rated Voltage (AC) (V) 250.00000000
Rated Voltage (DC) (V) 125.00000000
Screening Level / Reference Standard CE; CSA; PSE; UL
Terminal Finish NICKEL
Terminal Shape END CAP
Trip Time or Delay (Seconds) 15.000000000000000
