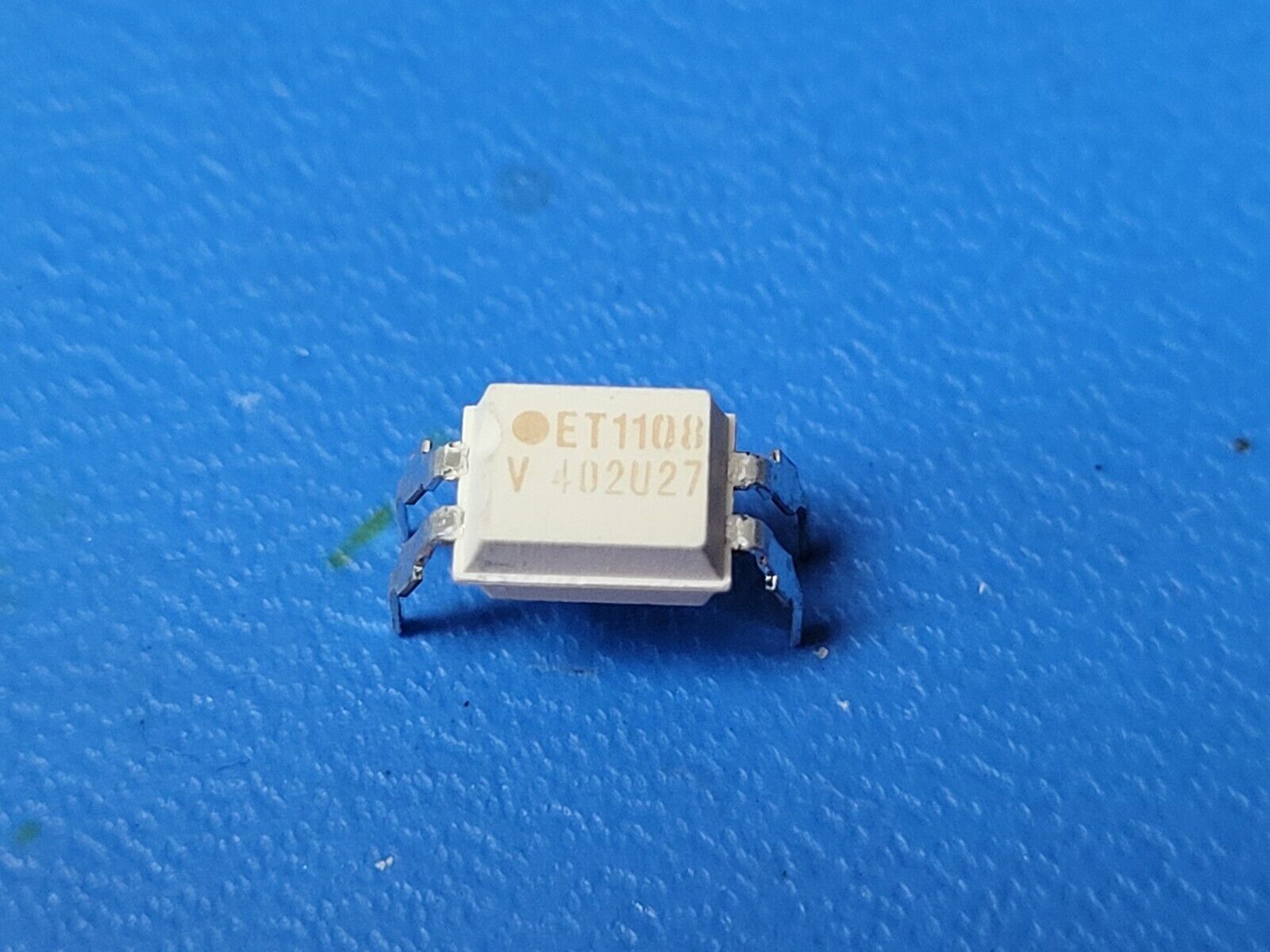

(5PC) TCET1108G Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP ROHS
Tax included.

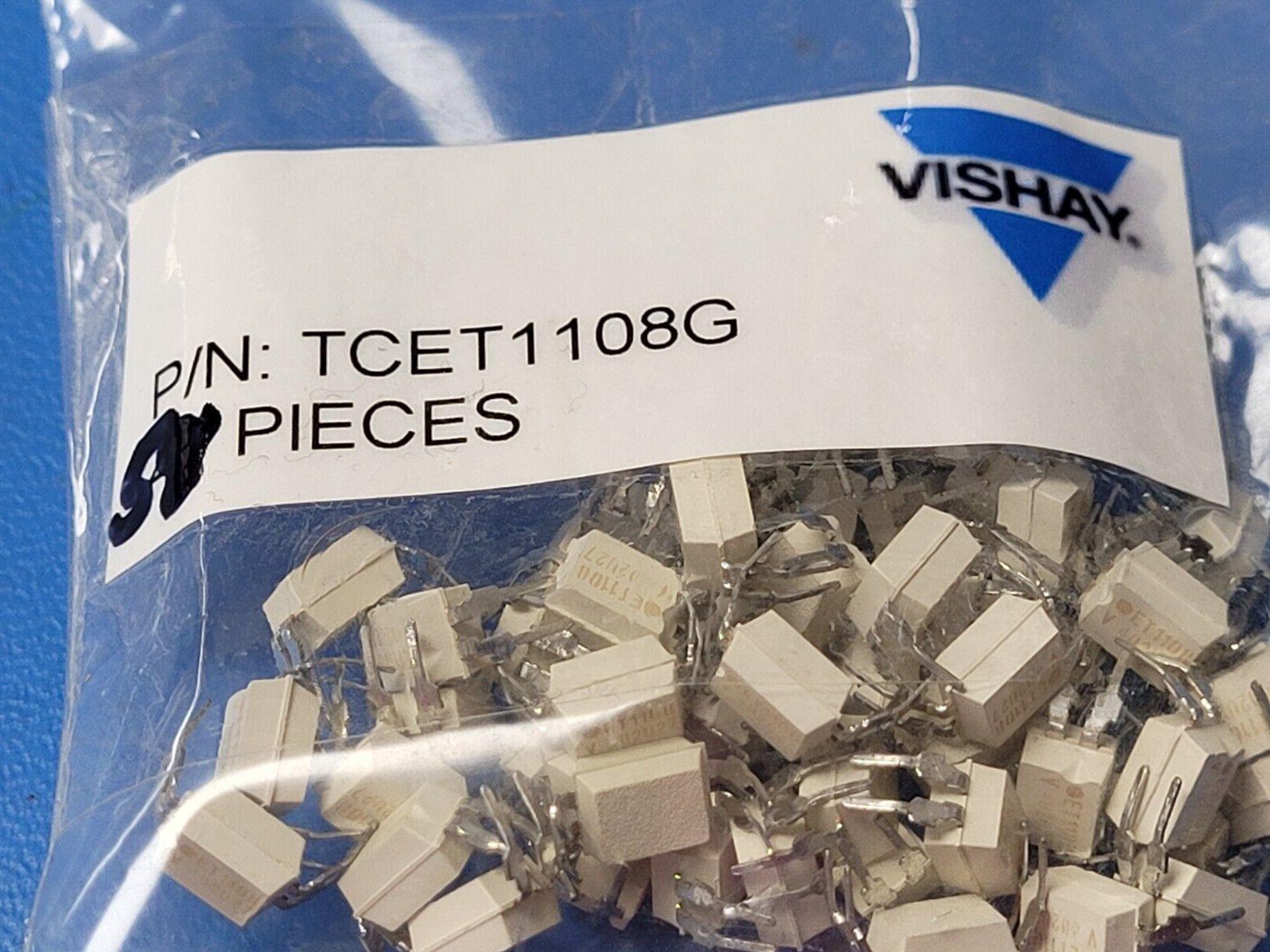

THIS IS FOR (5 PCS) OF TCET1108G BY VISHAY
Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP ROHS
Manufacturer: Vishay
Product Category: Transistor Output Optocouplers
RoHS: YES
Mounting Style: Through Hole
Package / Case: DIP-4
Number of Channels: 1 Channel
Isolation Voltage: 5000 Vrms
Output Type: NPN Phototransistor
Current Transfer Ratio - Min: 130 %
Current Transfer Ratio - Max: 260 %
If - Forward Current: 60 mA
Vf - Forward Voltage: 1.6 V
Maximum Collector Emitter Voltage: 70 V
Maximum Collector Current: 50 mA
Maximum Collector Emitter Saturation Voltage: 300 mV
Rise Time: 3 us
Fall Time: 4.7 us
Vr - Reverse Voltage: 6 V
Pd - Power Dissipation: 265 mW
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 100 C
Packaging: Tube
Brand: Vishay Semiconductors
Configuration: 1 Channel
Current Transfer Ratio: 130 %
Height: 3.6 mm
