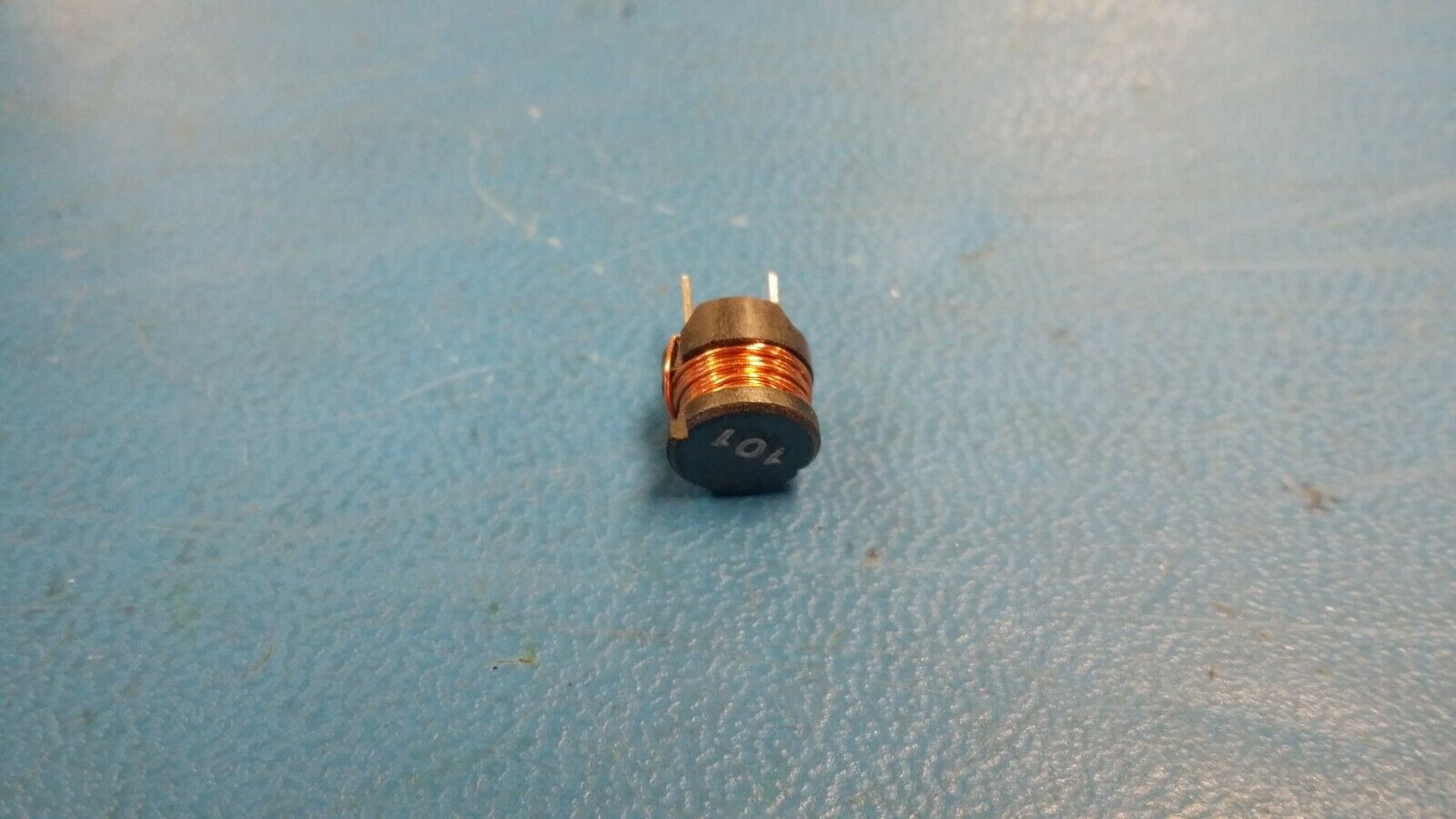

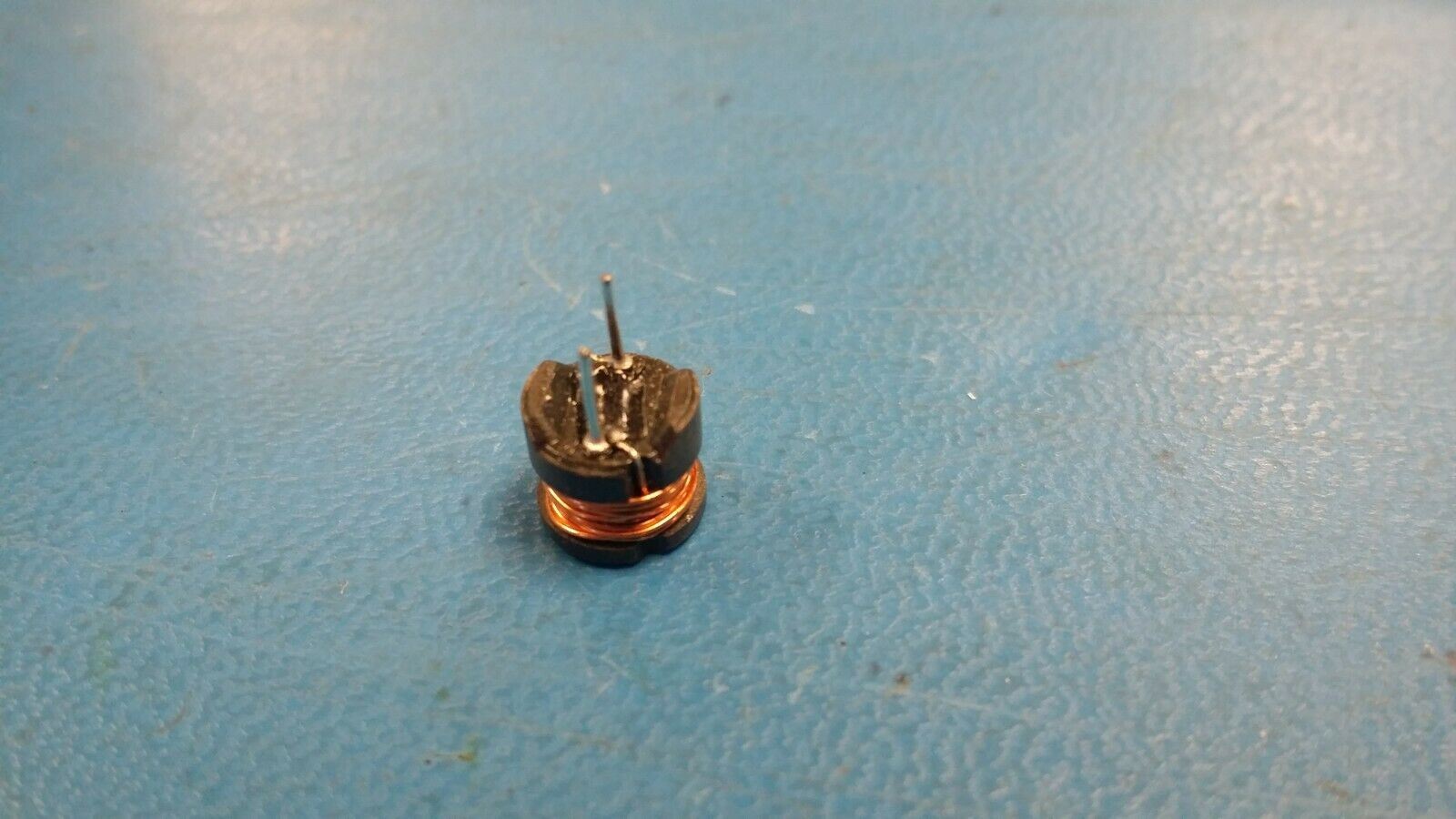

(5PC) RL875-101K JW MILLER 100µH Unshielded Wirewound Inductor 890mA 280mOhm 10%
Tax included.
THIS LISTING IS FOR (5 PCS) OF RL875-101K BY JW MILLER
100µH Unshielded Wirewound Inductor 890mA 280mOhm 10%
Manufacturer JW Miller/Bourns Inc.
Series RL875
Packaging Bulk
Part Status Obsolete
Type Wirewound
Material - Core Ferrite
Inductance 100µH
Tolerance ±10%
Current Rating (Amps) 890mA
Current - Saturation -
Shielding Unshielded
DC Resistance (DCR) 280mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Operating Temperature -30°C ~ 100°C
Inductance Frequency - Test 1kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Supplier Device Package -
Size / Dimension 0.307" Dia (7.80mm)
Height - Seated (Max) 0.217" (5.50mm)
Base Part Number RL875
