(5PC) DO1813P-472HC COILCRAFT Inductor 4.7uH 20% 1 Element Ceramic-Core SMD 3524
Tax included.

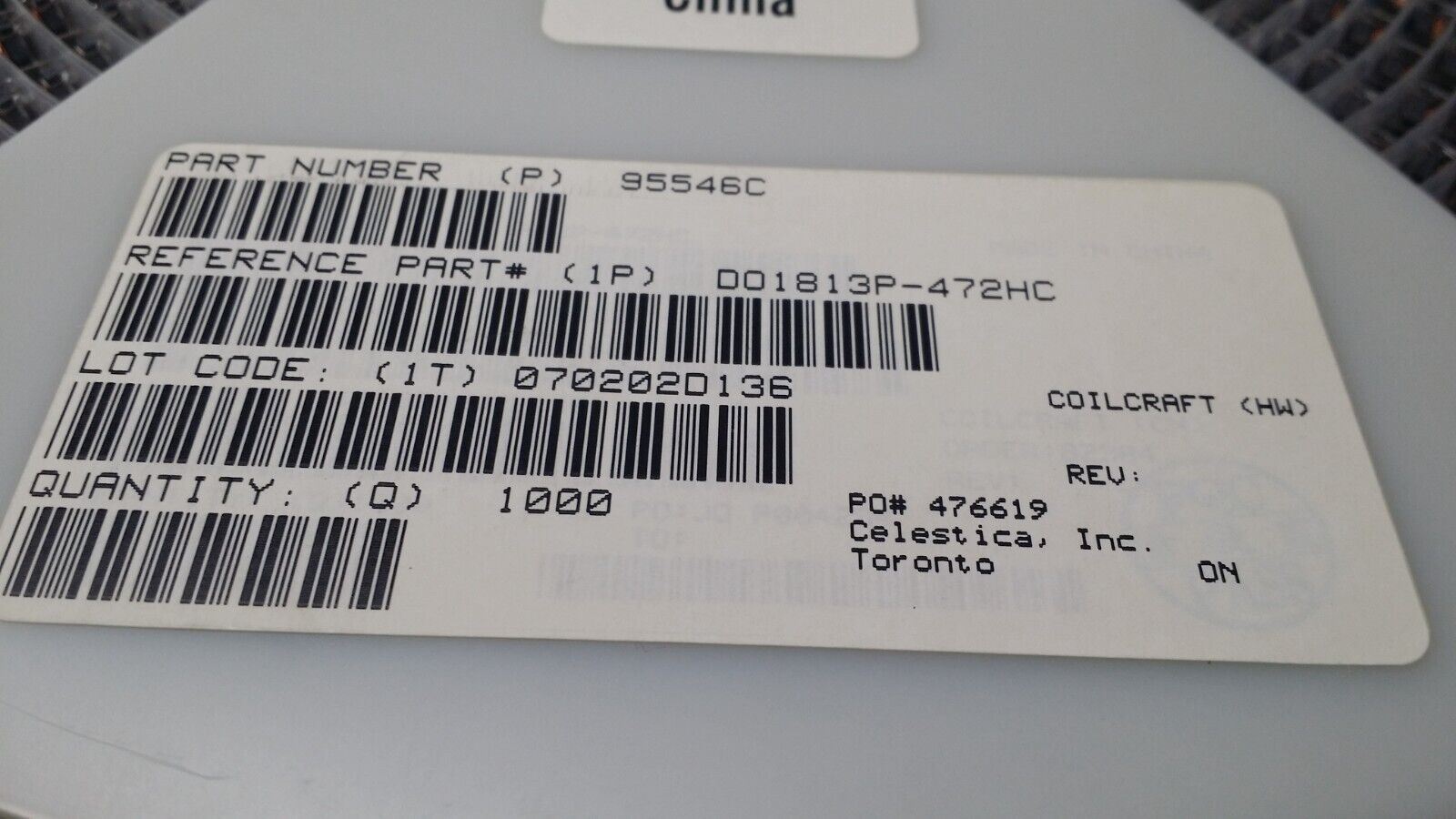

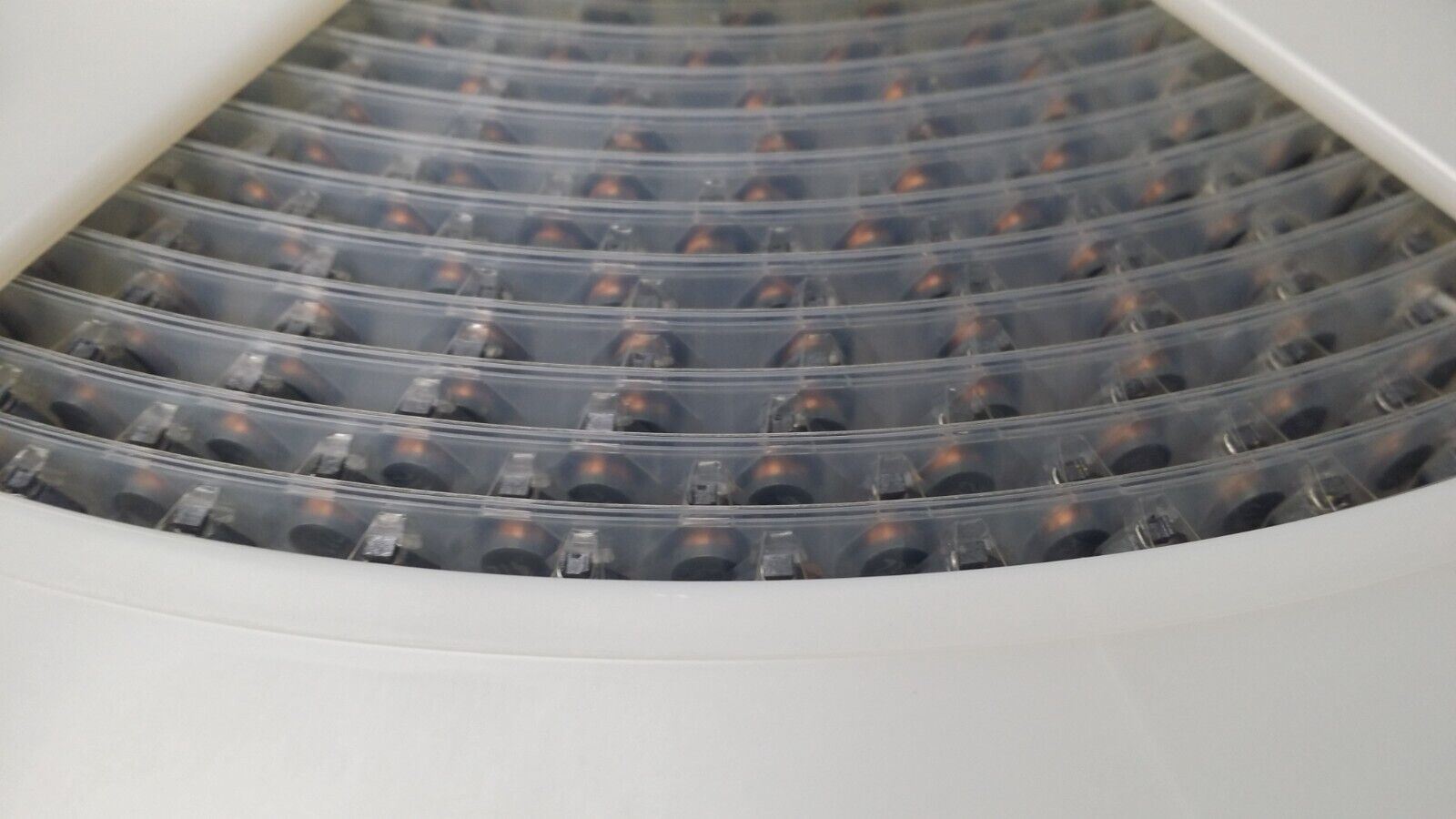

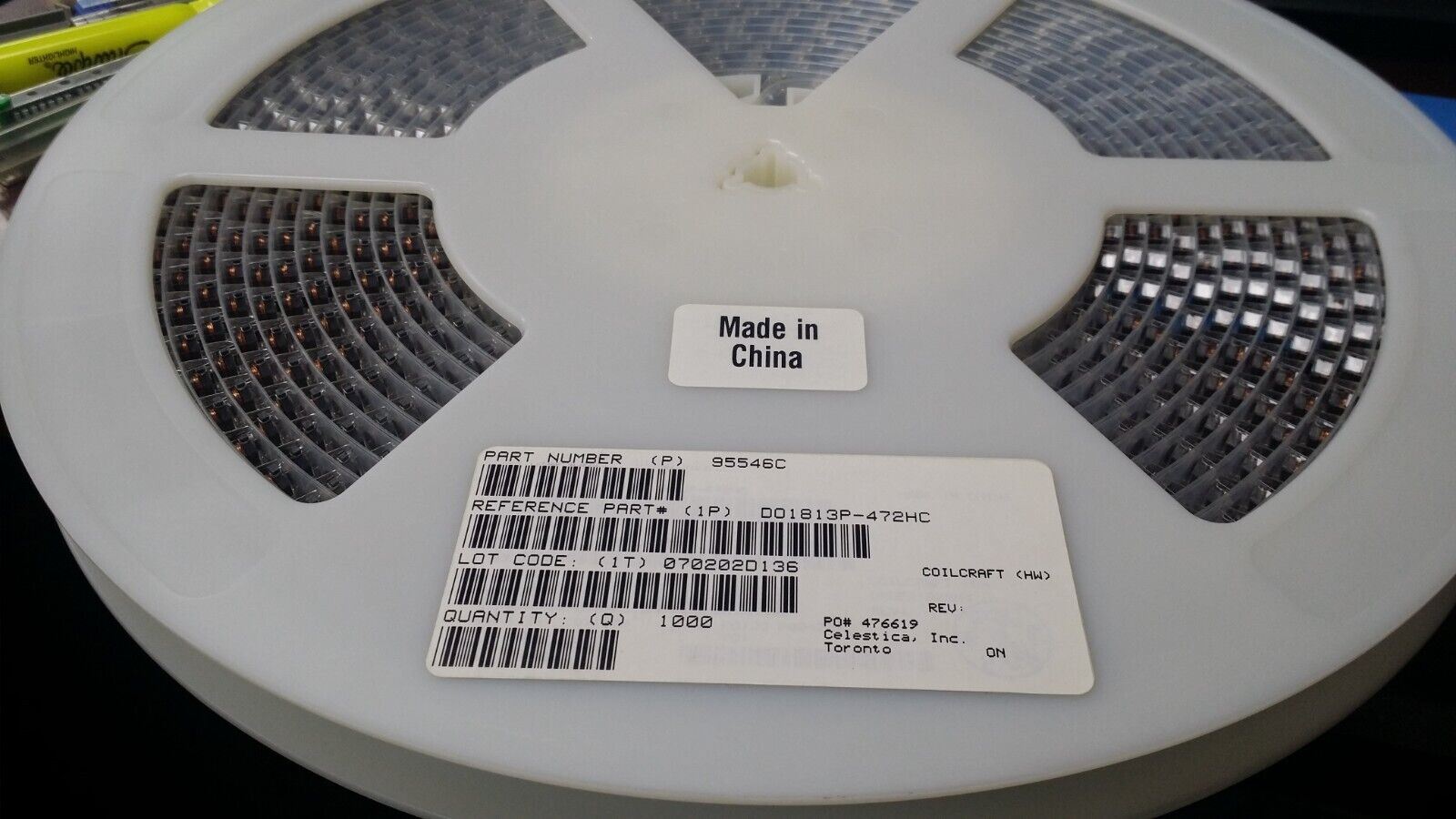

THIS IS FOR (5PC) OF DO1813P-472HC BY COILCRAFT
Inductor 4.7uH 20% 1 Element Ceramic-Core SMD 3524
Part #: DO1813P-472HC
Part Category: Inductors
Manufacturer: Coilcraft, Inc.
Description: General Purpose Inductor, 4.7uH, 20%, 1 Element, Ceramic-Core, SMD, 3524
Status Discontinued
Inductor Type GENERAL PURPOSE INDUCTOR
Case/Size Code 3524
Construction Self-Leaded
Core Material CERAMIC
DC Resistance 0.054 ohm
Inductance-Nom (L) 4.7 µH
Inductor Application POWER INDUCTOR
JESD-609 Code e0
Number of Functions 1
Number of Terminals 2
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Package Height 5.0 mm
Package Length 8.89 mm
Package Width 6.1 mm
Packing Method TR
Self Resonance Frequency 50.0 MHz
Series DO1813
Shape/Size Description RECTANGULAR PACKAGE
Shielded NO
Surface Mount YES
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Placement DUAL ENDED
Terminal Shape ONE SURFACE
Test Frequency 0.1 MHz
Tolerance 20.0 %
