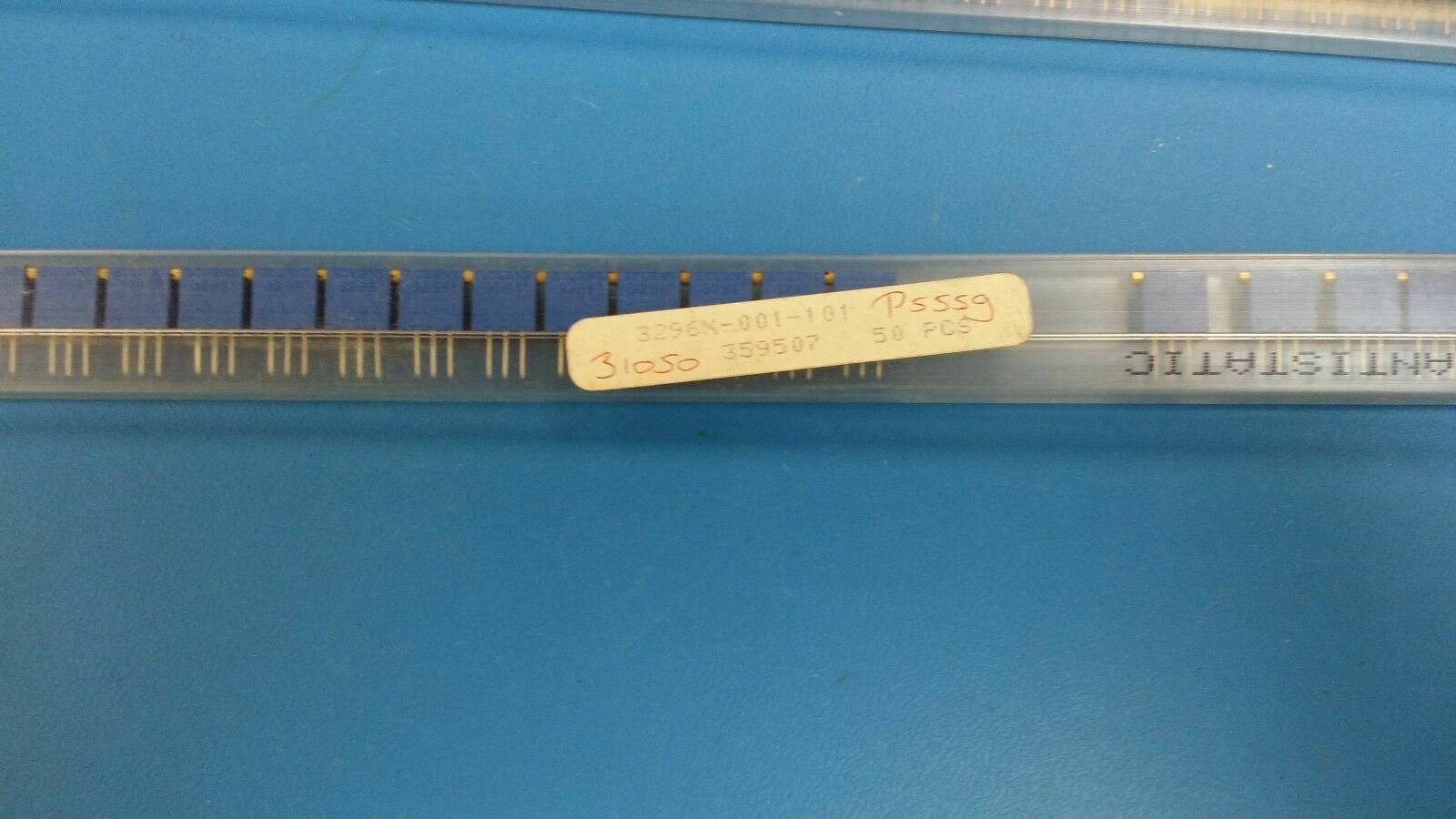

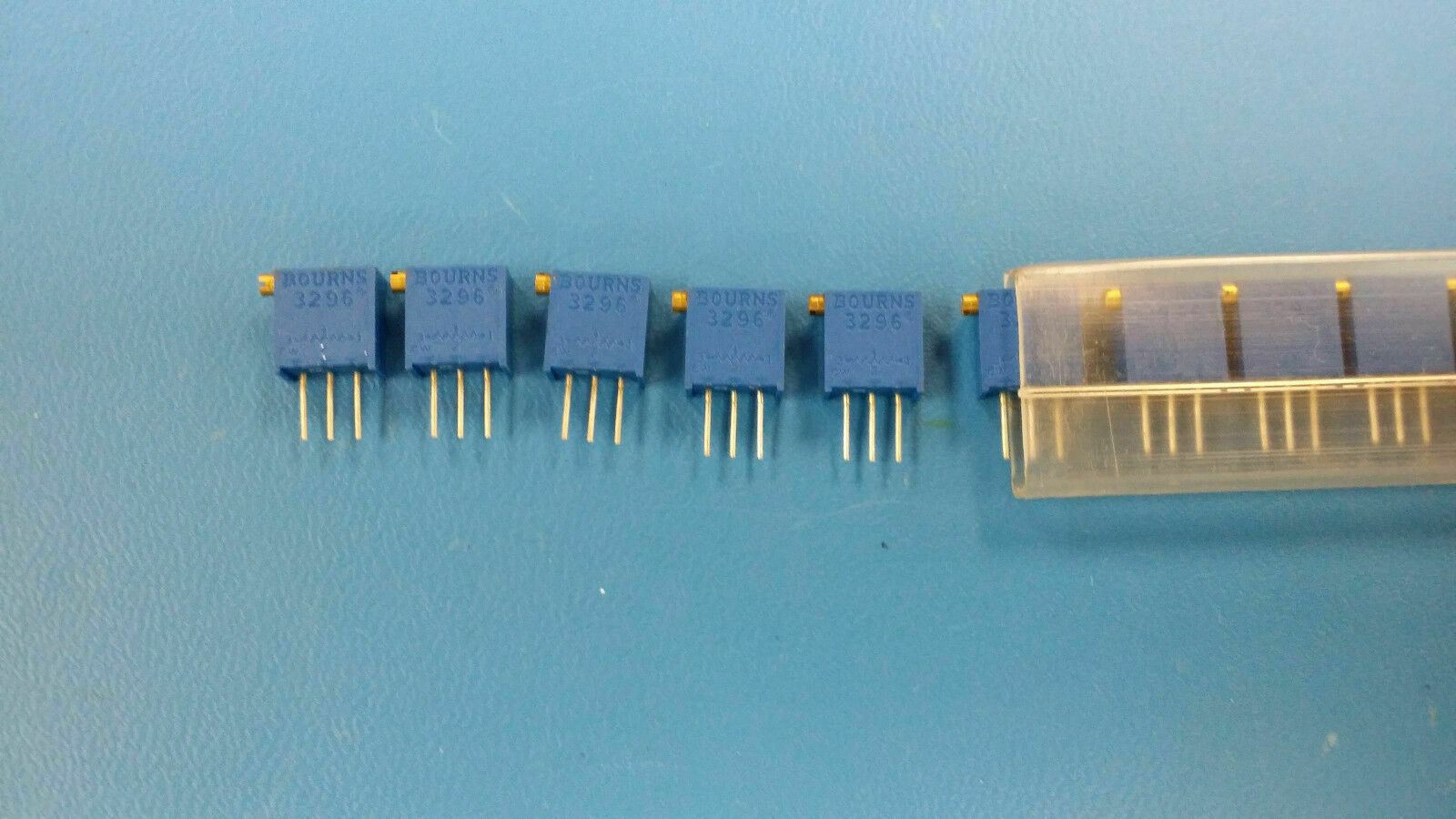

(5PC) 3296X-1-101 BOURNS Trimmer Res - Thru Hole 3/8" 100ohms Sealed Side Adjust

Tax included.

THIS LISTING IS FOR (5 PCS) OF 3296X-1-101 BY BOURNS
Trimmer Resistors - Through Hole 3/8" 100ohms Sealed Horizontal Adjust

Manufacturer: Bourns

Product Category: Trimmer Resistors - Through Hole

RoHS: N

Series: 3296

Termination Style: Pin

Product: Multiturn

Number of Turns: 25

Resistance: 100 Ohms

Adjustment: Side Slot

Power Rating: 500 mW (1/2 W)

Tolerance: 10 %

Temperature Coefficient: 100 PPM / C

Orientation: Horizontal Adjustment

Minimum Operating Temperature: - 55 C

Maximum Operating Temperature: + 150 C

Packaging: Tube

Height: 10.03 mm

Length: 9.53 mm

Mounting: Through Hole

Mounting Type: PCB Mount

Operating Temperature Range: - 55 C to + 150 C

Type: 0.375 in Square Trimpot Trimmer Resistor

Width: 4.83 mm

Brand: Bourns

Element Type: Cermet

Product Type: Trimmer Resistors

Factory Pack Quantity: 100

Subcategory: Potentiometers, Trimmers & Rheostats

Tradename: Trimpot

Unit Weight: 0.030000 oz
