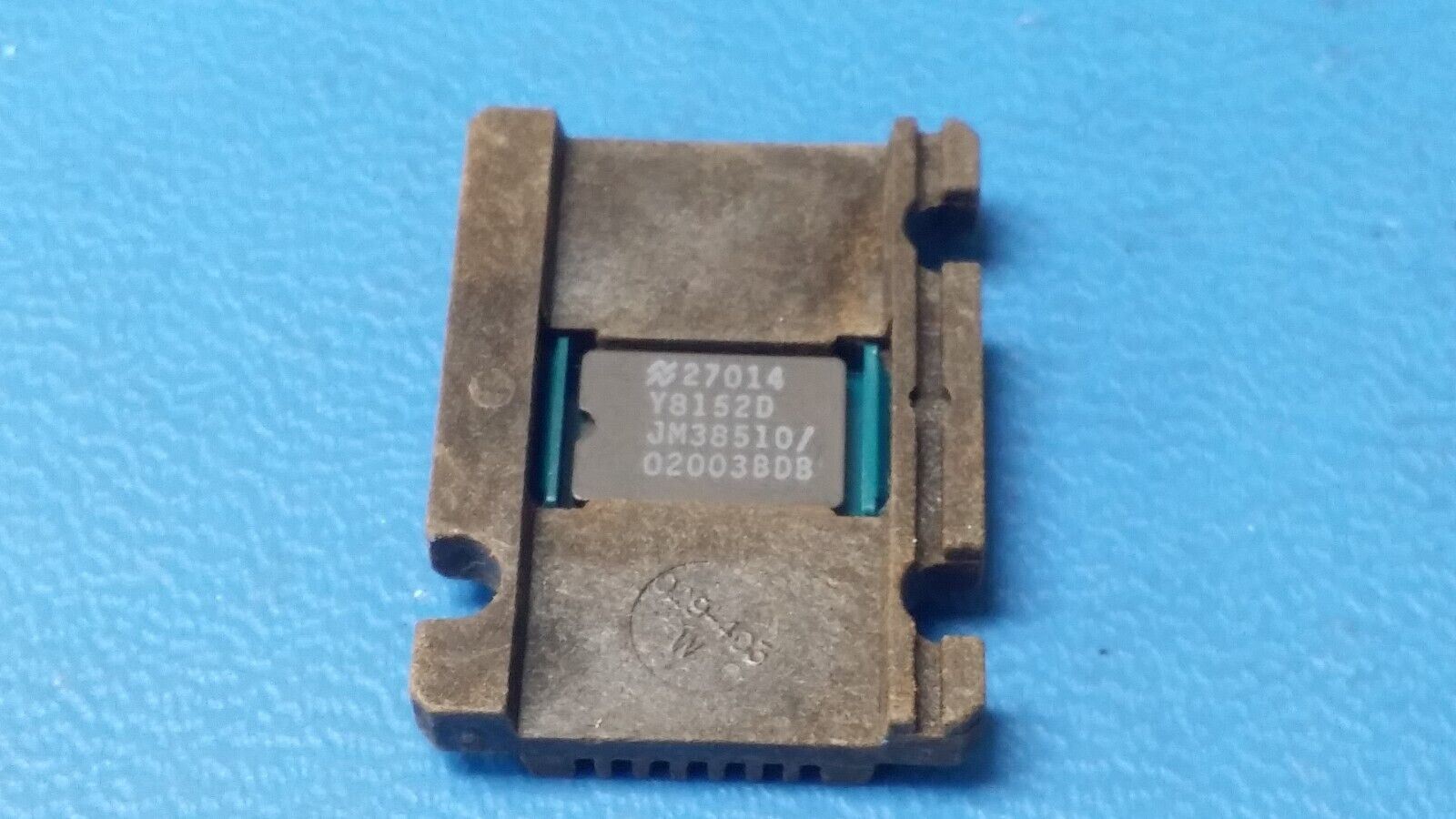

5962-01-106-7291, JM38510/02003BDB, SNC54L10W, SNJ54L10W, NAND Gate, TTL, CDFP14

Texas Instruments High-Performance Analog Description: NAND Gate, TTL, CDFP14

Criteria Characteristic

BODY LENGTH 0.390 INCHES MAXIMUM

BODY WIDTH 0.235 INCHES MINIMUM AND 0.260 INCHES MAXIMUM

BODY HEIGHT 0.045 INCHES MINIMUM AND 0.085 INCHES MAXIMUM

MAXIMUM POWER DISSIPATION RATING 12.0 MILLIWATTS

OPERATING TEMP RANGE -55.0/+125.0 DEG CELSIUS

STORAGE TEMP RANGE -65.0/+150.0 DEG CELSIUS

FEATURES PROVIDED HERMETICALLY SEALED AND MONOLITHIC AND POSITIVE OUTPUTS AND LOW POWER AND 3-STATE OUTPUT

INCLOSURE MATERIAL CERAMIC AND GLASS

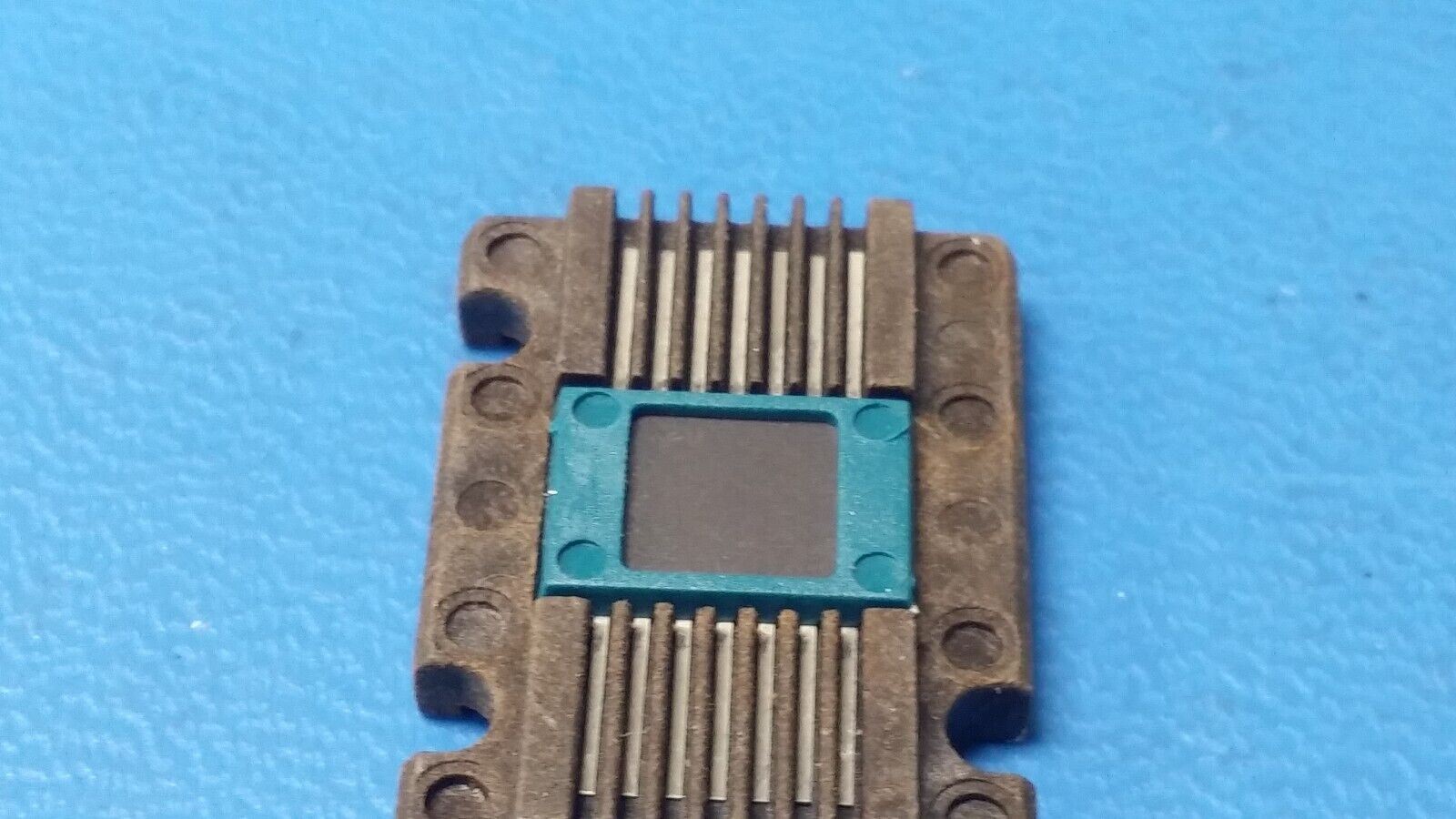

INCLOSURE CONFIGURATION FLAT PACK

OUTPUT LOGIC FORM TRANSISTOR-TRANSISTOR LOGIC

INPUT CIRCUIT PATTERN TRIPLE 3 INPUT

DESIGN FUNCTION AND QUANTITY 3 GATE, NAND

CASE OUTLINE SOURCE AND DESIGNATOR F-2 MIL-M-38510

TERMINAL SURFACE TREATMENT SOLDER

VOLTAGE RATING AND TYPE PER CHARACTERISTIC 5.5 VOLTS MAXIMUM POWER SOURCE

TEST DATA DOCUMENT 81349-MIL-M-38510 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTI

TERMINAL TYPE AND QUANTITY 14 FLAT LEADS

SPECIFICATION/STANDARD DATA 81349-MIL-M-38510/20 GOVERNMENT SPECIFICATION
