5961-00-341-5268(SCD6472160) 1N2156
Tax included.

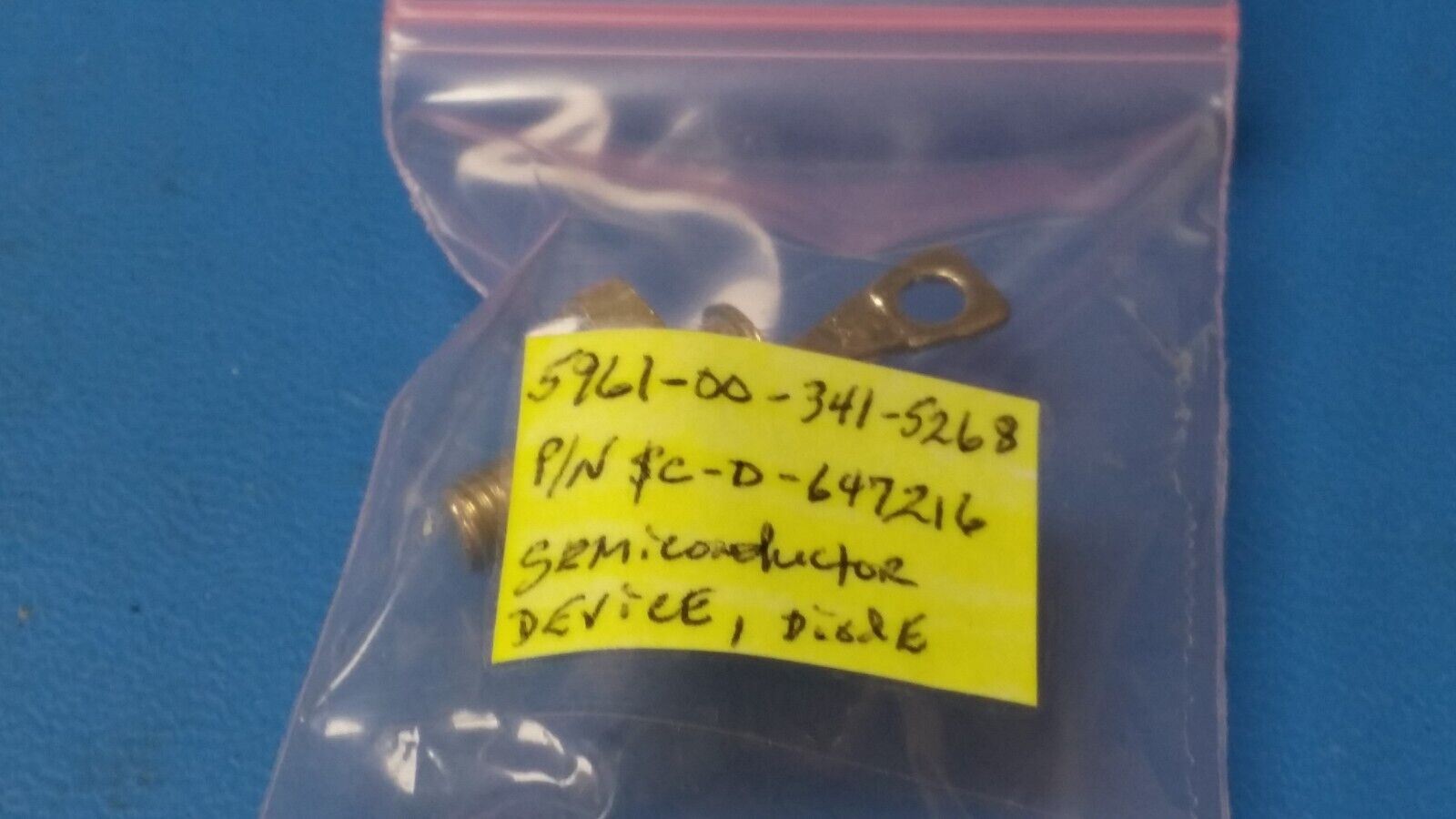

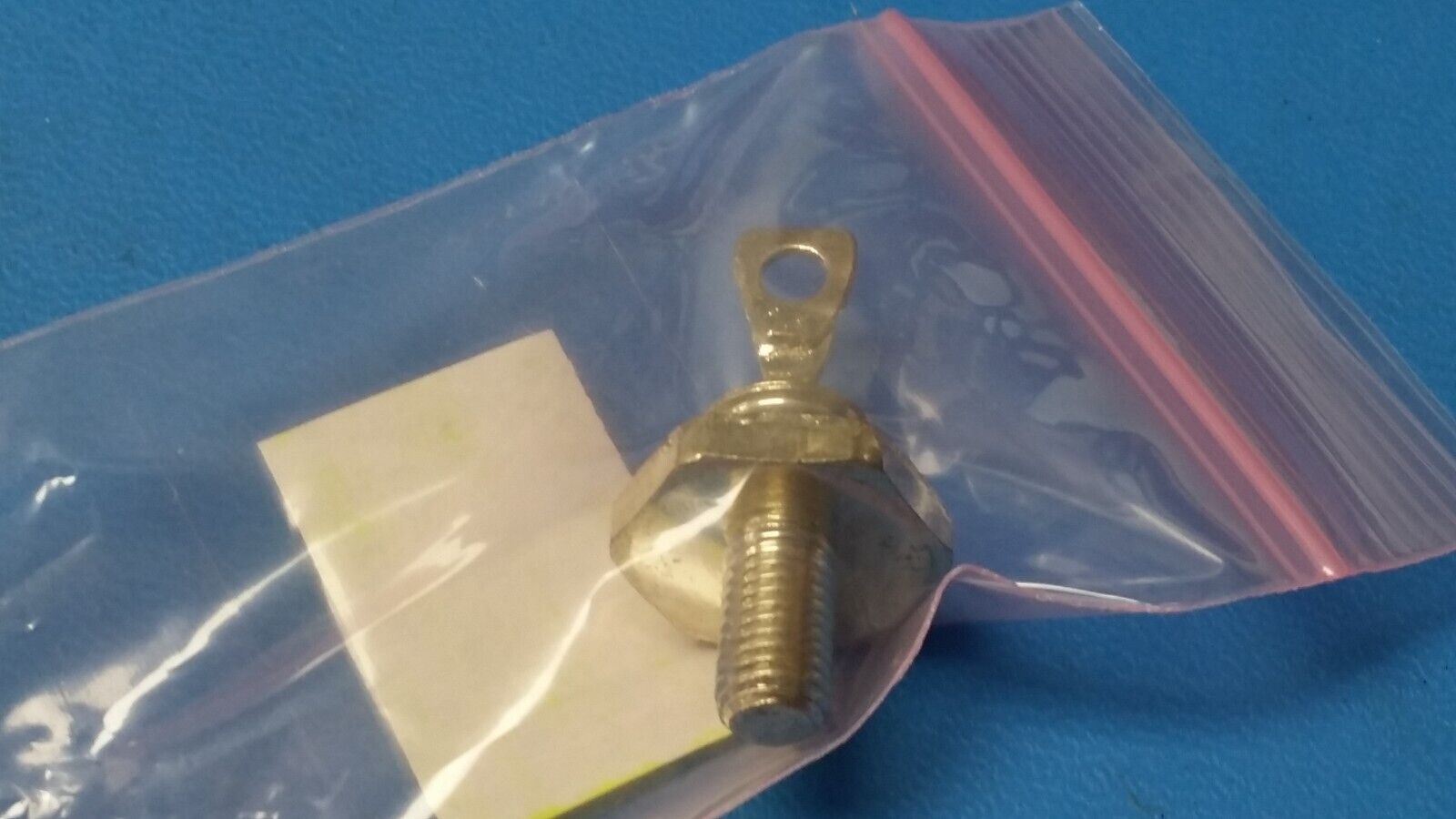

THIS IS FOR (1 PC) OF 5961-00-341-5268(SCD6472160) = 1N2156
National Stock Number 5961-00-341-5268
National Stock Number (NSN) 5961-00-341-5268, or NIIN 003415268, (semiconductor device,diode) was assigned January 15, 1974 in the Federal Logistics Information System (FLIS). This NIIN is Available for Manual Assignment. This NSN replaces 1 stock number, 5895001400917.
There are 3 manufacturer part numbers associated with this NSN. 2 of those part number(s) are considered obsolete. The manufacturer part numbers were originally supplied by 4 suppliers. Today, 3 suppliers are listed as Active suppliers for this NSN. Of the active suppliers, only one supplier is deemed design controlled or valid supply parts.
This part number has not been procured by the US Government in over 5 years.
This NSN is assigned to Item Name Code (INC) 20589. [A TWO ELECTRODE SEMICONDUCTOR DEVICE HAVING AN ASYMMETRICAL VOLTAGE - CURRENT CHARACTERISTIC. MAY OR MAY NOT INCLUDE MOUNTING HARDWARE AND/OR HEATSINK. EXCLUDES LIGHT EMITTING DIODE AND SEMICONDUCTOR DEVICE,PHOTO. FOR ITEMS CONTAINING MATERIAL SUCH AS SELENIUM AND COPPER OXIDE, SEE RECIFIER, METALLIC.]. This item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. There is no data in the HMIRS and the NSN is in an FSC not generally suspected of containing hazardous materials. NSN 5961003415268 contains an unknown precious metal.
This NSN is associated to Schedule B 8541100070: diodes, other than photosensitve or led, with a maximum current of 0.5 a or less. The Schedule B End Use is listed as semiconductors. NAICS classification category 334413: semiconductor and related device manufacturing.
This information was last updated on Apr 01, 2022.
TECHNICAL CHARACTERISTICS
JOINT ELECTRONIC DEVICE ENGINEERING COUNCIL/JEDEC/CASE OUTLINE DESIGNATION
(ALAZ) DO-5
FEATURES PROVIDED
(CBBL) HERMETICALLY SEALED CASE
OVERALL WIDTH ACROSS FLATS
(CCDG) 0.687 INCHES MAXIMUM
NOMINAL THREAD SIZE
(CQJX) 0.250 INCHES
TERMINAL TYPE AND QUANTITY
(TTQY) 1 TAB, SOLDER LUG AND 1 THREADED STUD
SEMICONDUCTOR MATERIAL
(CTMZ) SILICON
CURRENT RATING PER CHARACTERISTIC
(CTQX) 4.00 MILLIAMPERES FORWARD CURRENT, AVERAGE PEAK AND 300.00 AMPERES MAXIMUM PEAK FORWARD SURGE CURRENT
INCLOSURE MATERIAL
(ABBH) METAL
MOUNTING FACILITY QUANTITY
(AKPV) 1
MOUNTING METHOD
(AXGY) THREADED STUD
VOLTAGE RATING IN VOLTS PER CHARACTERISTIC
(CTQN) 0.6 MAXIMUM ON VOLTAGE, FORWARD VOLTAGE DROP, DC AND 200.0 MAXIMUM REVERSE VOLTAGE, PEAK AND 140.0 MAXIMUM REVERSE VOLTAGE, TOTAL RMS
OVERALL LENGTH
(ABHP) 1.000 INCHES MAXIMUM
MAXIMUM OPERATING TEMP PER MEASUREMENT POINT
(CTSG) 150.0 DEG CELSIUS AMBIENT AIR
THREAD SERIES DESIGNATOR
(THSD) UNF
MANUFACTURER PART NUMBERS
1N2156
5961001400917
SCD647216
