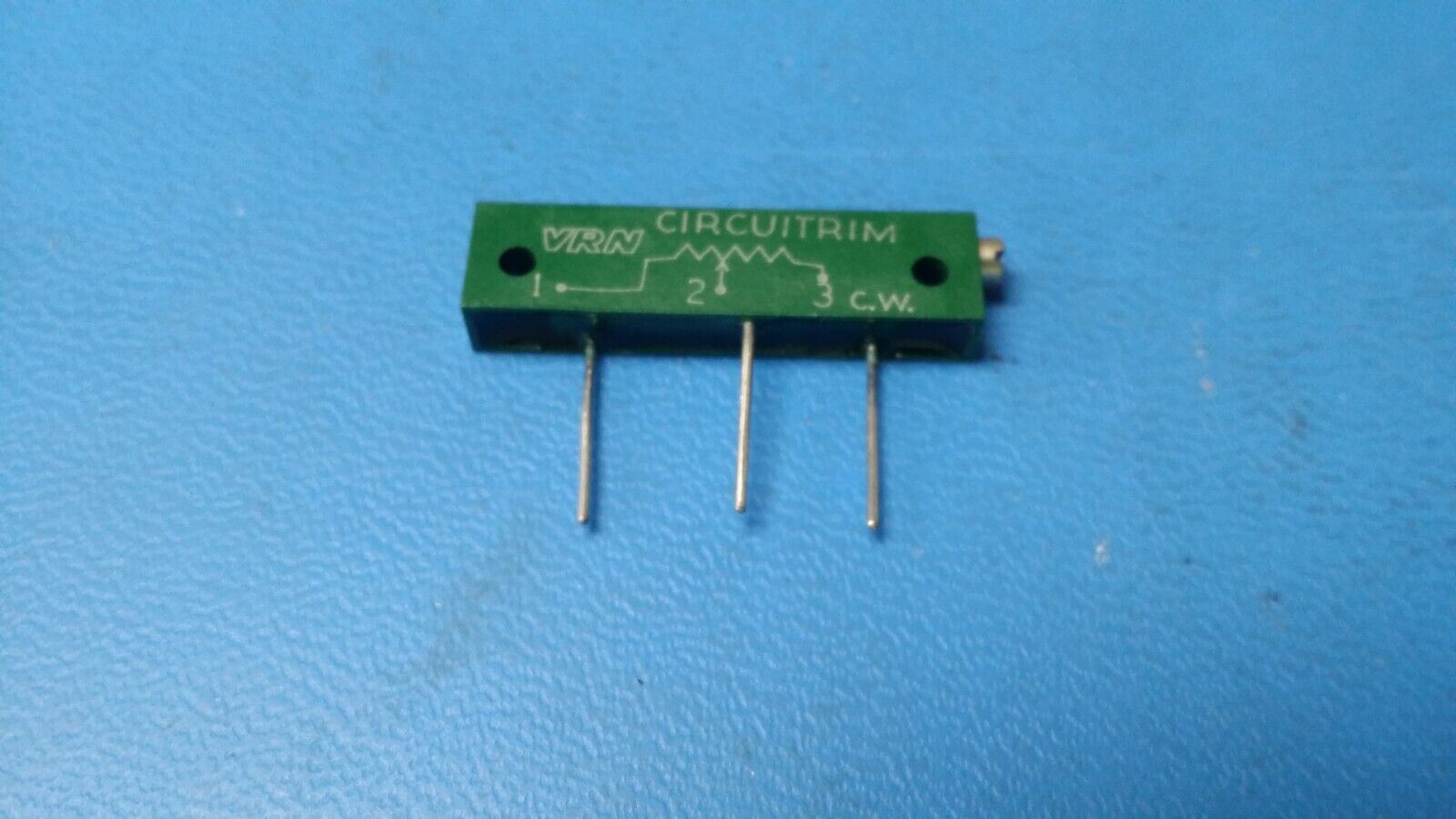

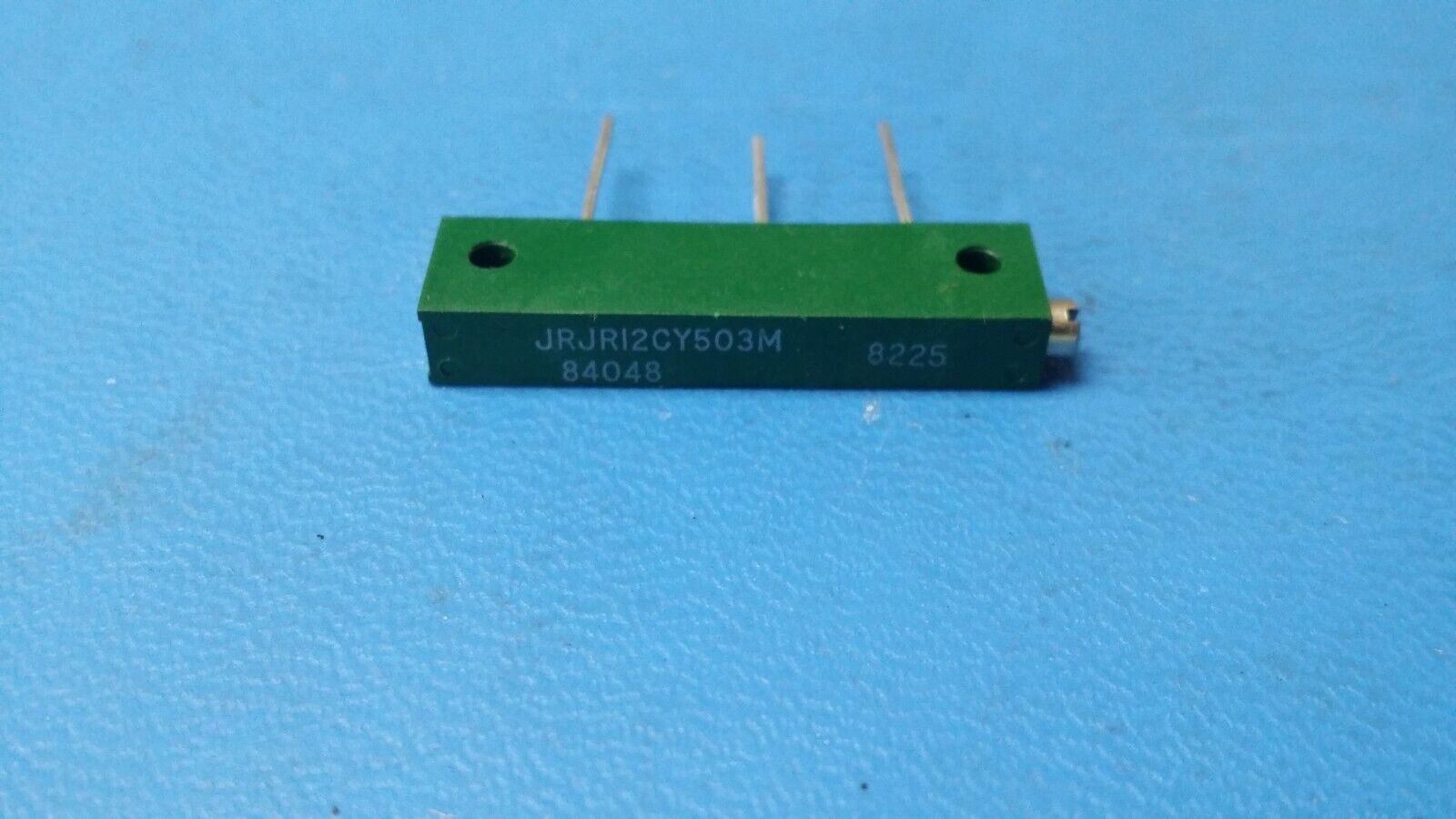

5905-01-013-5006 RJR12CY503M Resistor, Variable, Nonwire Wound, 50.0 kilohms 10%
Tax included.
THIS IS FOR (1 PC) OF 5905-01-013-5006 RJR12CY503M Resistor, Variable, Nonwire Wound, 50.0 kilohms 10%
5905-01-013-5006 (5905010135006) NSN Information
NSN FSC NIIN Item Name INC
5905-01-013-5006 5905 010135006 Resistor, Variable, Nonwire Wound, 37405
5905-01-013-5006 Features
MRC Parameter Characteristics
AAPN Section Quantity 1
AAQL Body Style Rectangular W/mounting holes/slots
AARG Reliability Indicator Established
AARH Reliability Failure Rate Level in Percent 1.000
ABHP Overall Length 1.308 inches nominal
ABJT Terminal Length 0.500 inches nominal
ABKW Overall Height 0.815 inches nominal
ABMK Overall Width 0.190 inches nominal
ABWV Shaft Diameter 0.115 inches nominal
ABXF Shaft Length 0.058 inches nominal
ADAQ Body Length 1.250 inches nominal
ADAT Body Width 0.190 inches nominal
ADAU Body Height 0.315 inches nominal
AEDX Shaft Style Round, slotted
AEFD Actuator Type Single shaft
AEHT Center to Center Distance Between Terminals 0.700 inches nominal
AGTP Lateral Distance Between Mounting Hole Centers 1.000 inches nominal
APXH Terminal Location Lower adjacent side single row
AXGY Mounting Method Terminal
AYQR Center to Center Distance Between Terminal Rows 0.100 inches nominal
CQCC Electrical Resistance per Section 50.0 kilohms single section
CQCM Center to Center Distance Between Center Terminal and Outside Terminal 0.300 inches nominal
CQGN Ambient Temp in DEG Celsius per Section at Zero Percent Rated Power 150.0 single section
CRFJ Temp Coefficient of Resistance per Section in PPM per DEG Celsius -250.0 to 250.0 single section
CRGD Power Dissipation Rating per Section in Watts 0.75 free air single section
CRSS Resistance Tolerance per Section in Percent -10.0 to 10.0 single section
CSDH Ambient Temp in DEG Celsius per Section at Full Rated Power 85.0 single section
TEST Test Data Document 81349-MIL-R-39035 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).
TTQY Terminal Type and Quantity 3 pin
ZZZK Specification/Standard Data 81349-MIL-R-39035/1 government specification
