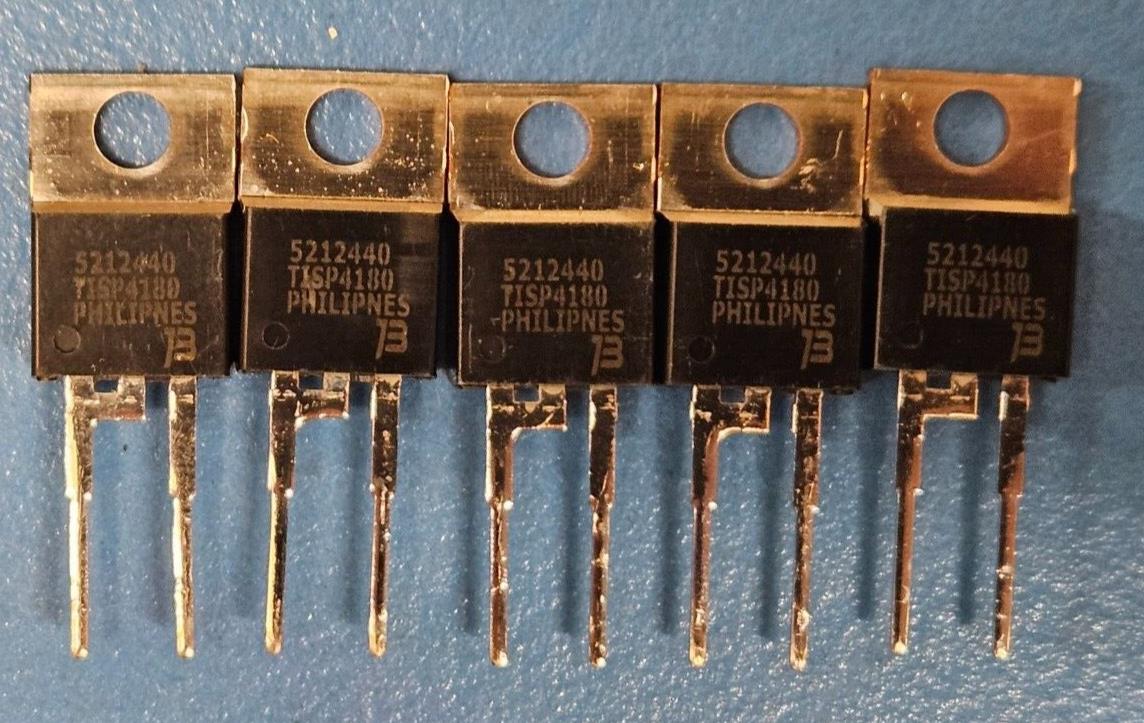

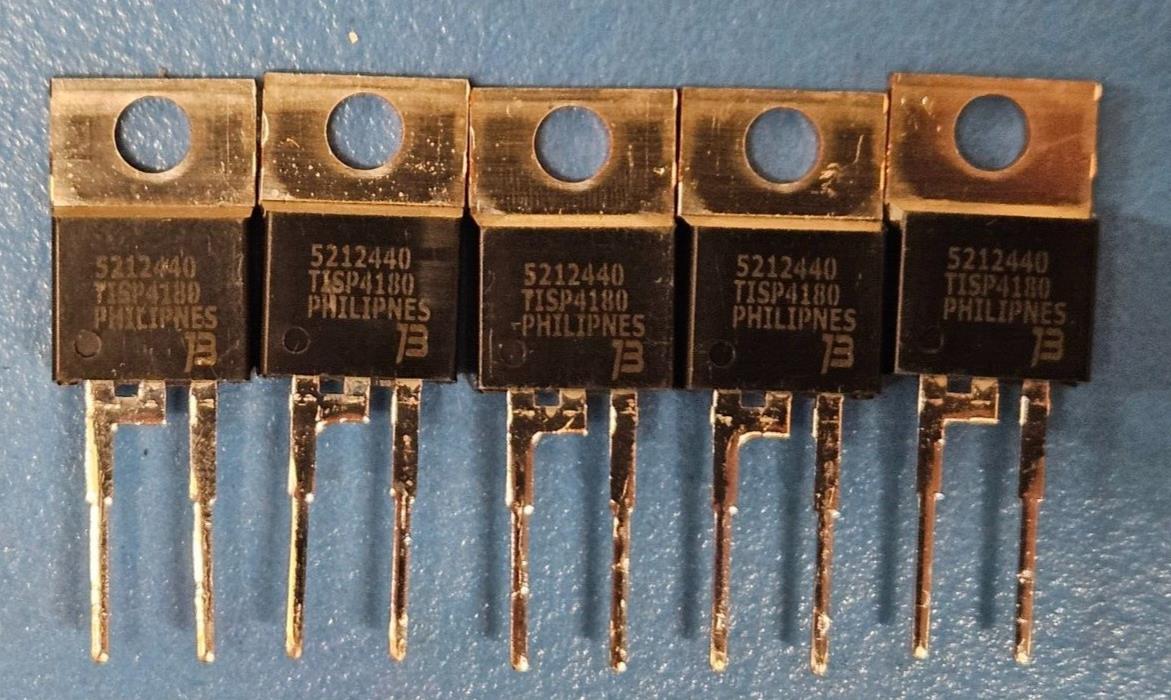

(50PCS) TISP4180 BOURNS Silicon Surge Protector, 180V, 10A, TO-220AC
Tax included.
This listing is for (50PCS) of TISP4180 by Bourns
Mfr Package Description PLASTIC, DO-220, FM-2
Status Discontinued
Trigger Device Type SILICON SURGE PROTECTOR
Breakover Voltage-Max 180.0 V
Configuration SINGLE
Holding Current-Max 150.0 mA
JEDEC-95 Code TO-220AC
JESD-30 Code R-PSFM-T2
Non-Repetitive Pk On-state Cur 10.0 A
Number of Elements 1.0
Number of Terminals 2
Operating Temperature-Max 150.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Reference Standard UL RECOGNIZED
Sub Category Silicon Surge Protectors
Surface Mount NO
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
