(50PCS) TC7SHU04FUTE85L Inverter 1-Element CMOS 5-Pin SSOP
Tax included.

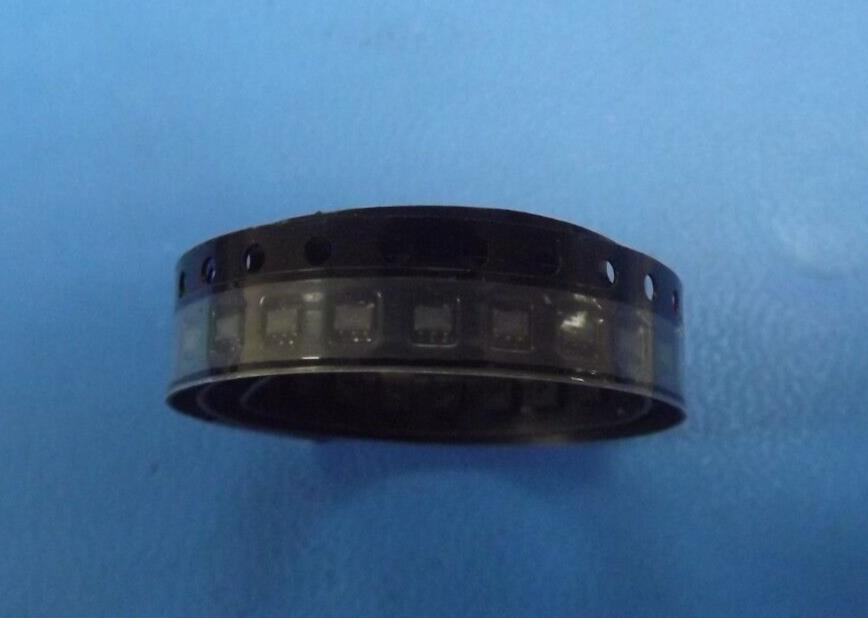

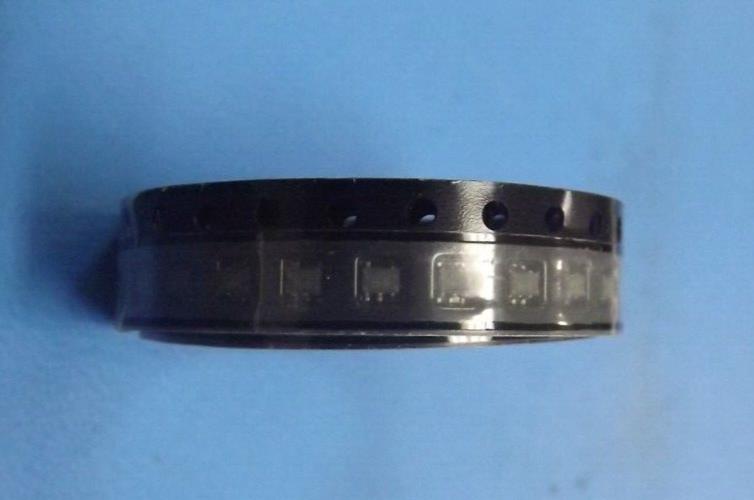

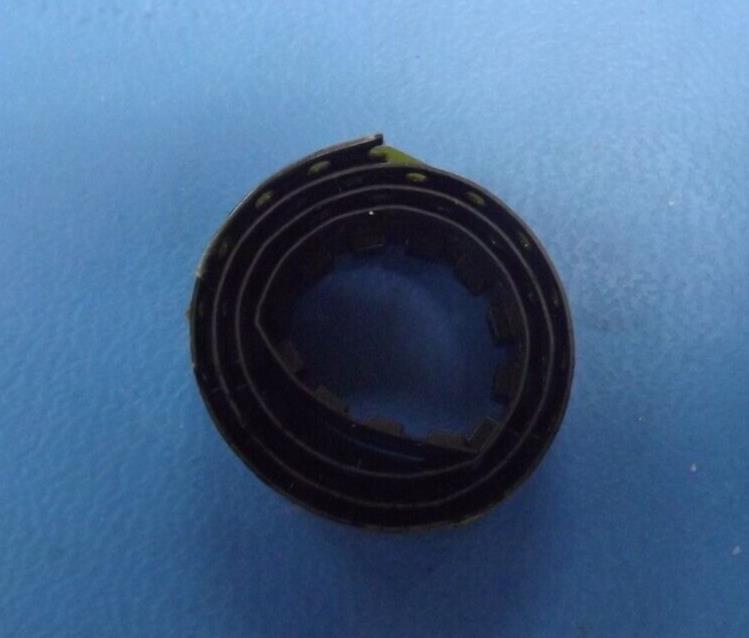

THIS LISTING IS FOR (50PC) OF TC7SHU04FUTE85L BY TOSHIBA
Mfr Package Description PLASTIC, SSOP-5
Status Discontinued
Logic IC Type INVERTER
Sub Category Gates
Family HC/UH
JESD-30 Code R-PDSO-G5
JESD-609 Code e0
Load Capacitance (CL) 50.0 pF
Max I(ol) 5.0E-5 Amp
Number of Functions 1
Number of Inputs 1.0
Number of Terminals 5
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP6,.08
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method TR
Prop. Delay@Nom-Sup 12.0 ns
Propagation Delay (tpd) 8.0 ns
Qualification Status Not Qualified
Schmitt Trigger NO
Seated Height-Max 1.1 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 2.0 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Length 2.0 mm
Width 1.25 mm
