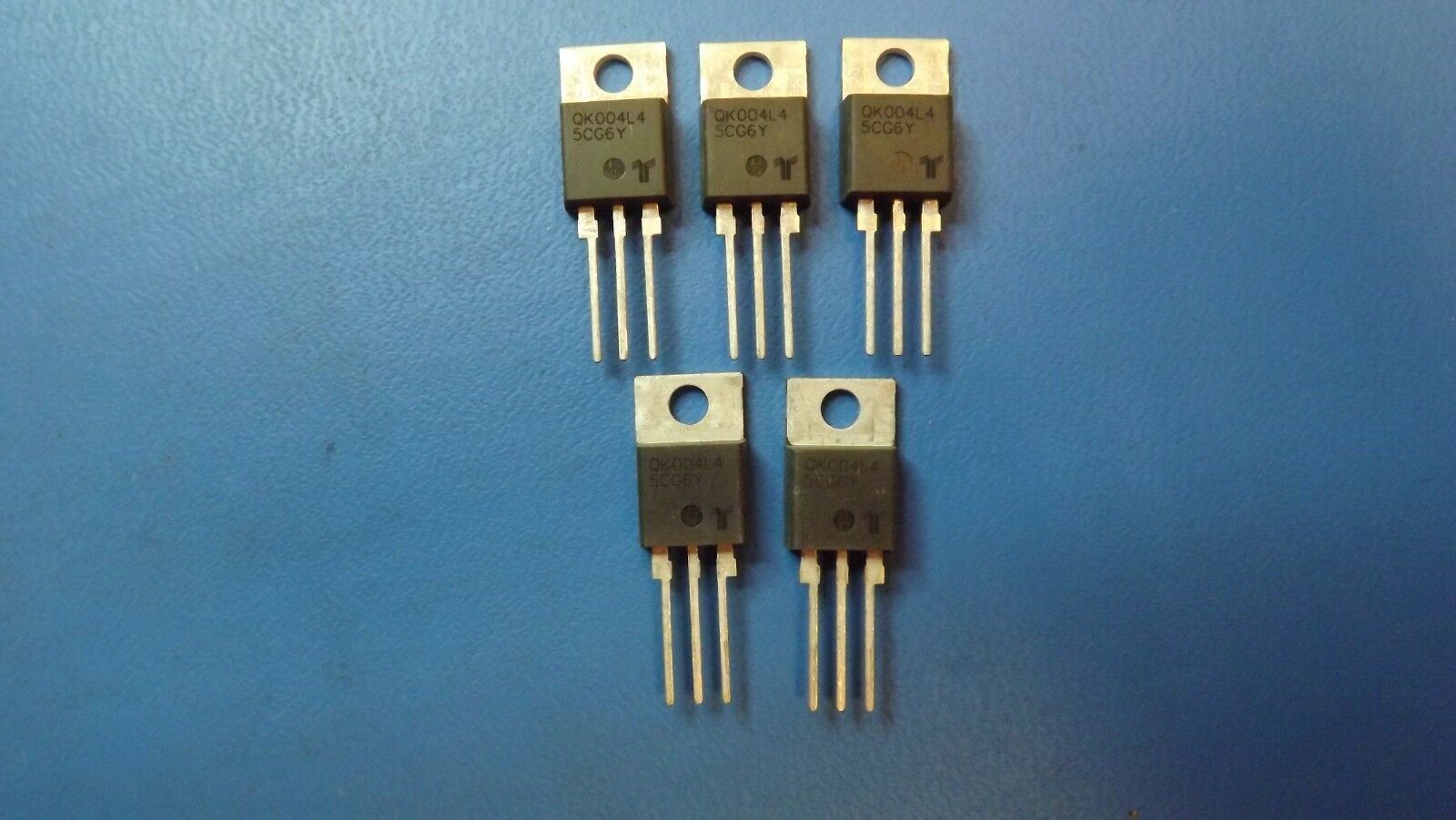

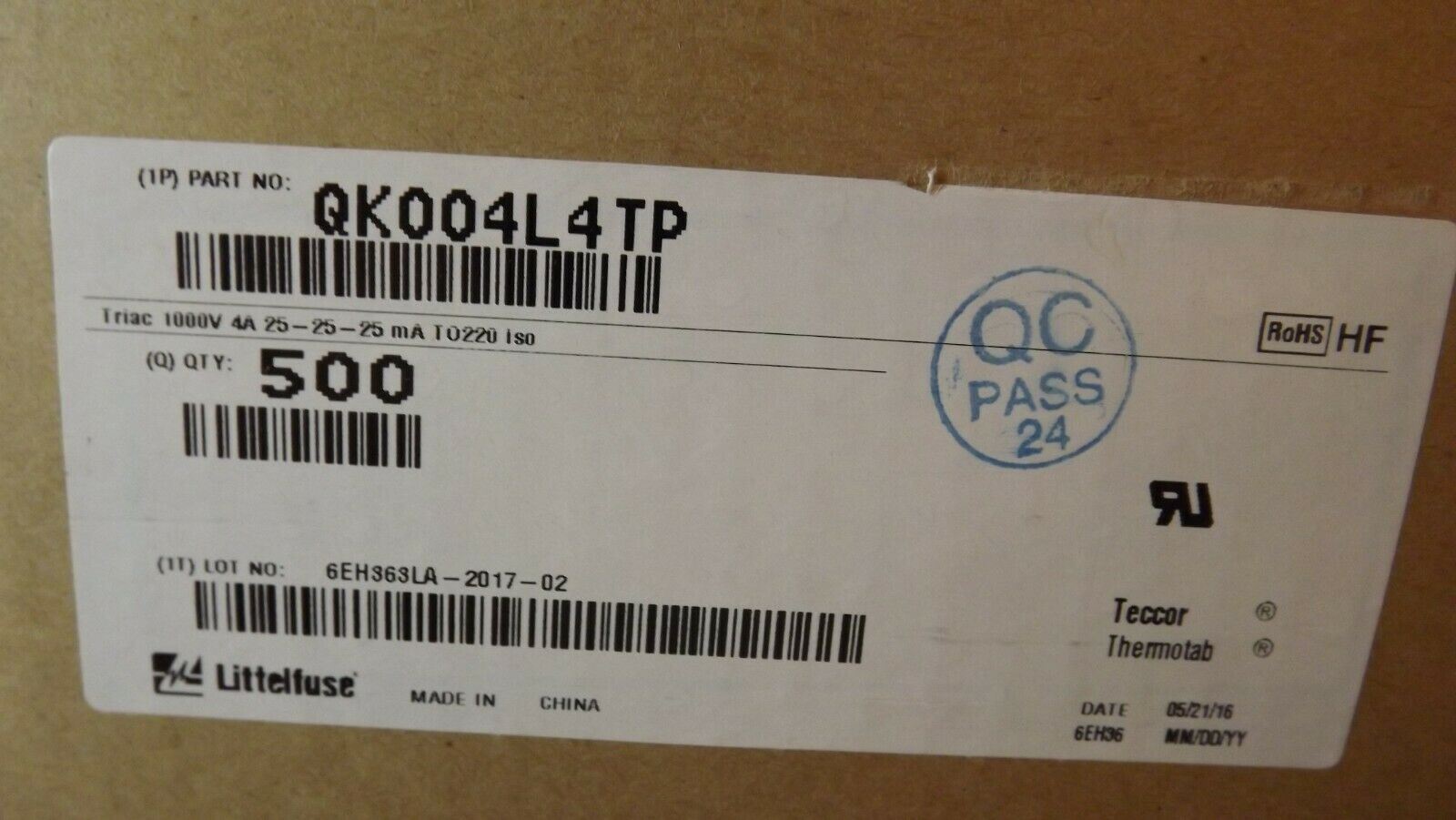

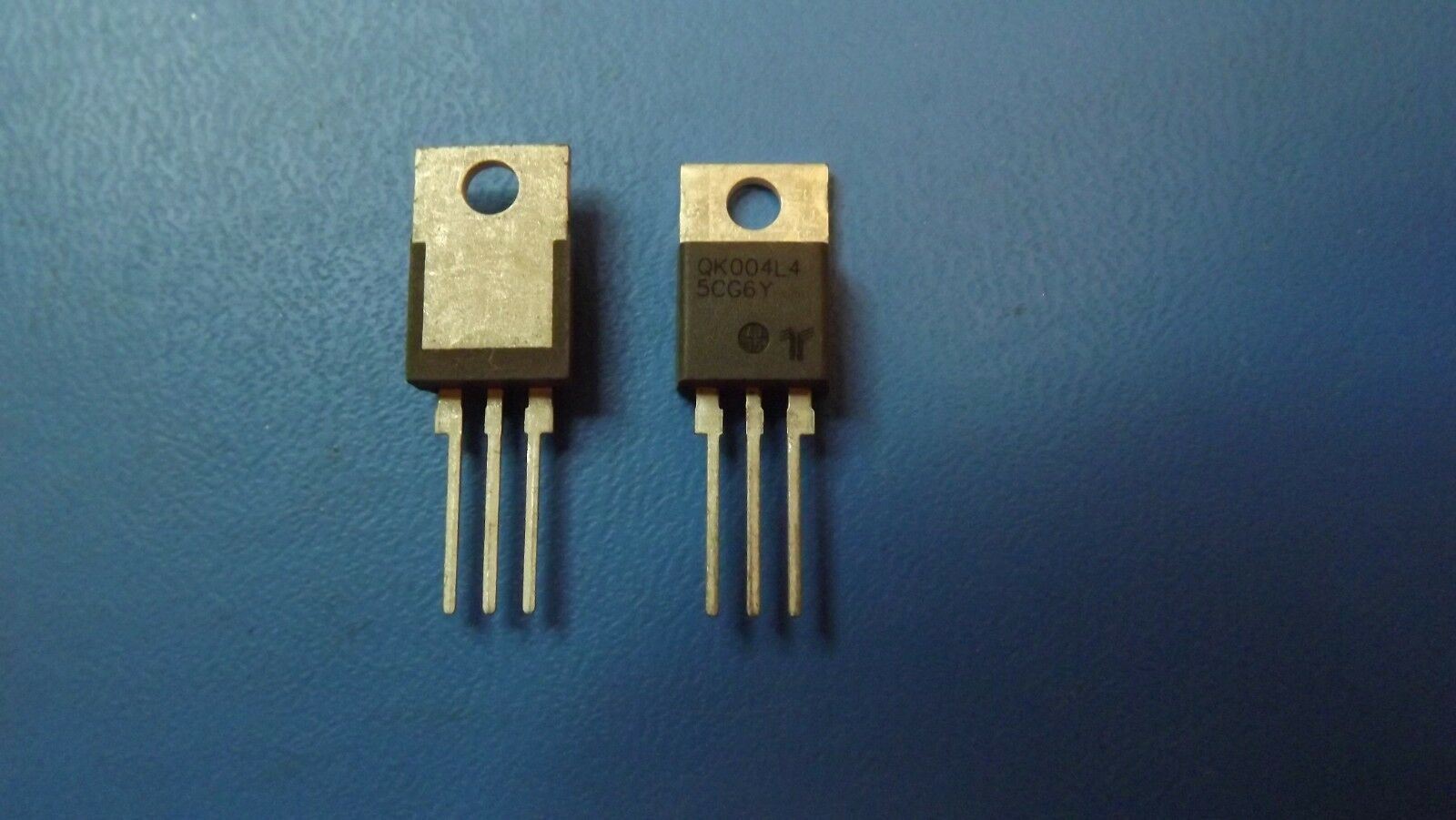

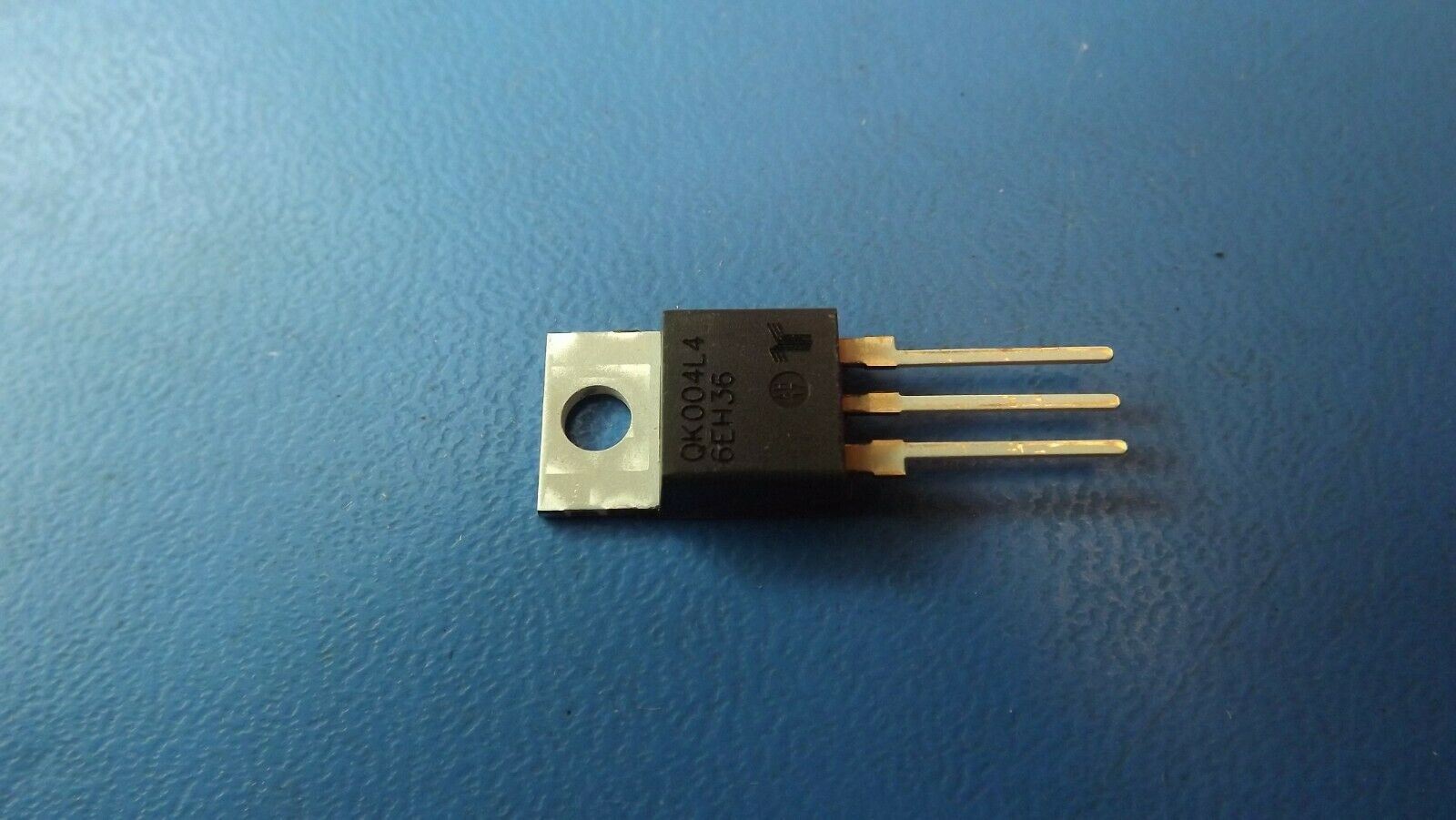

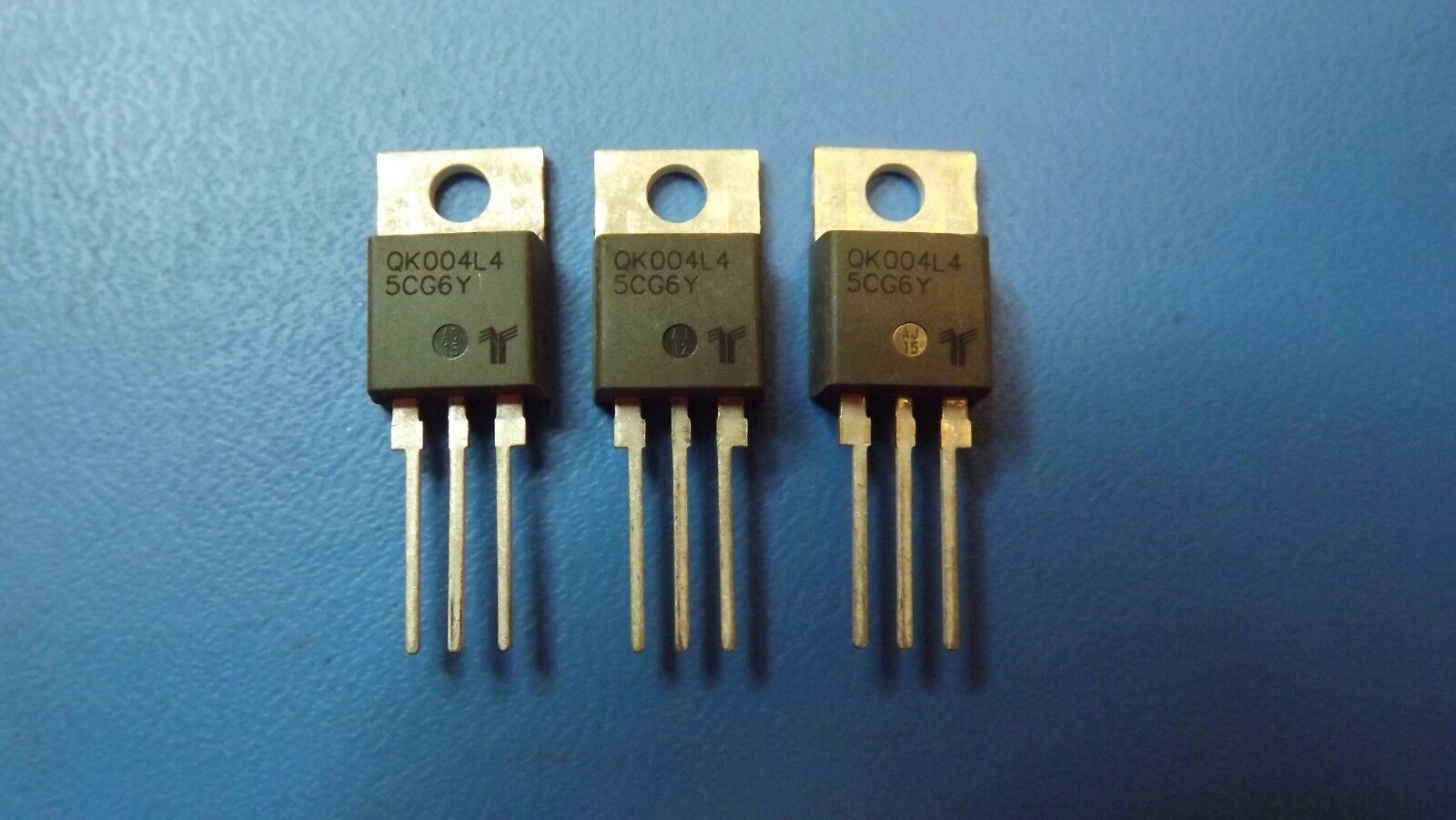

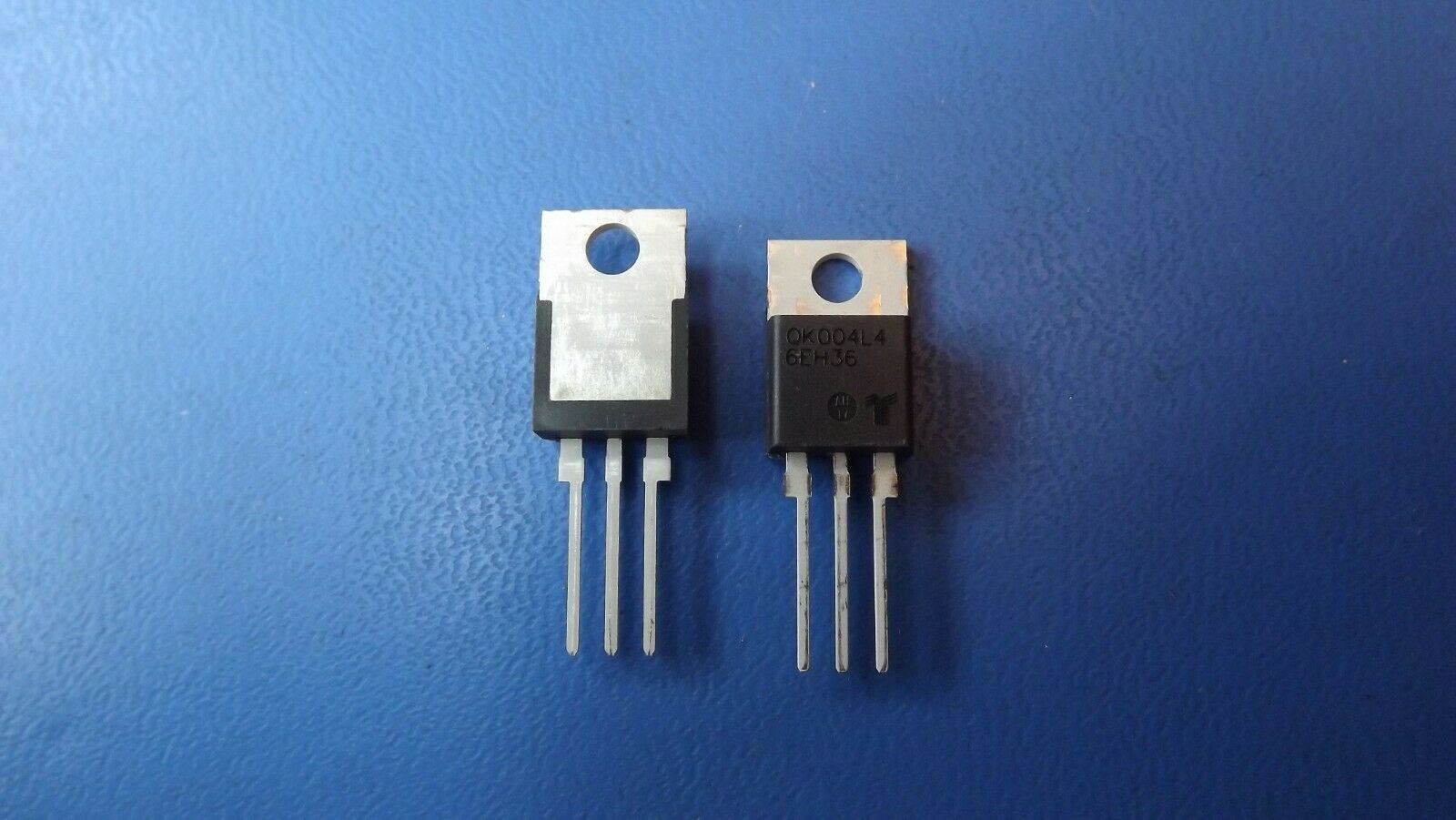

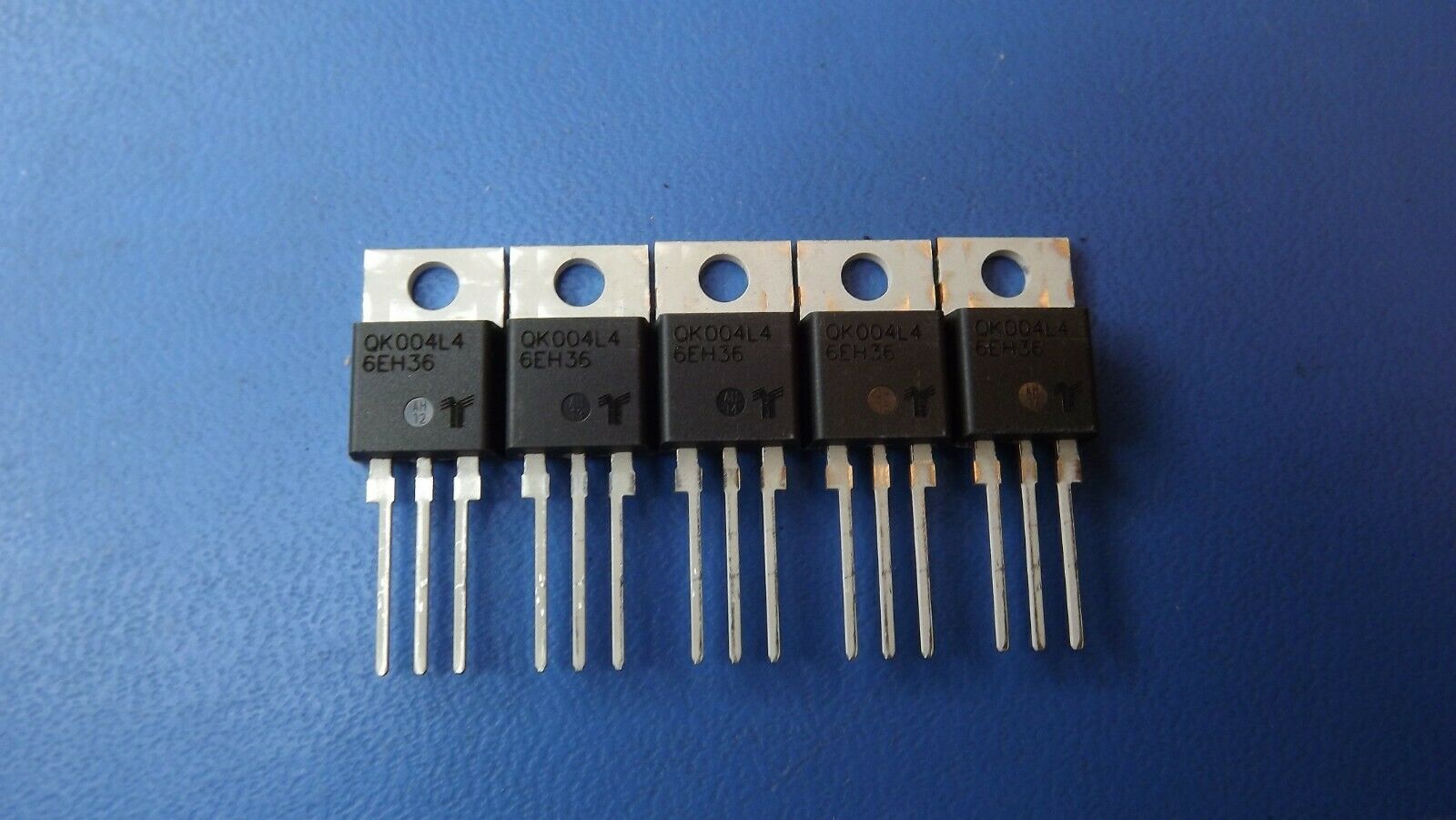

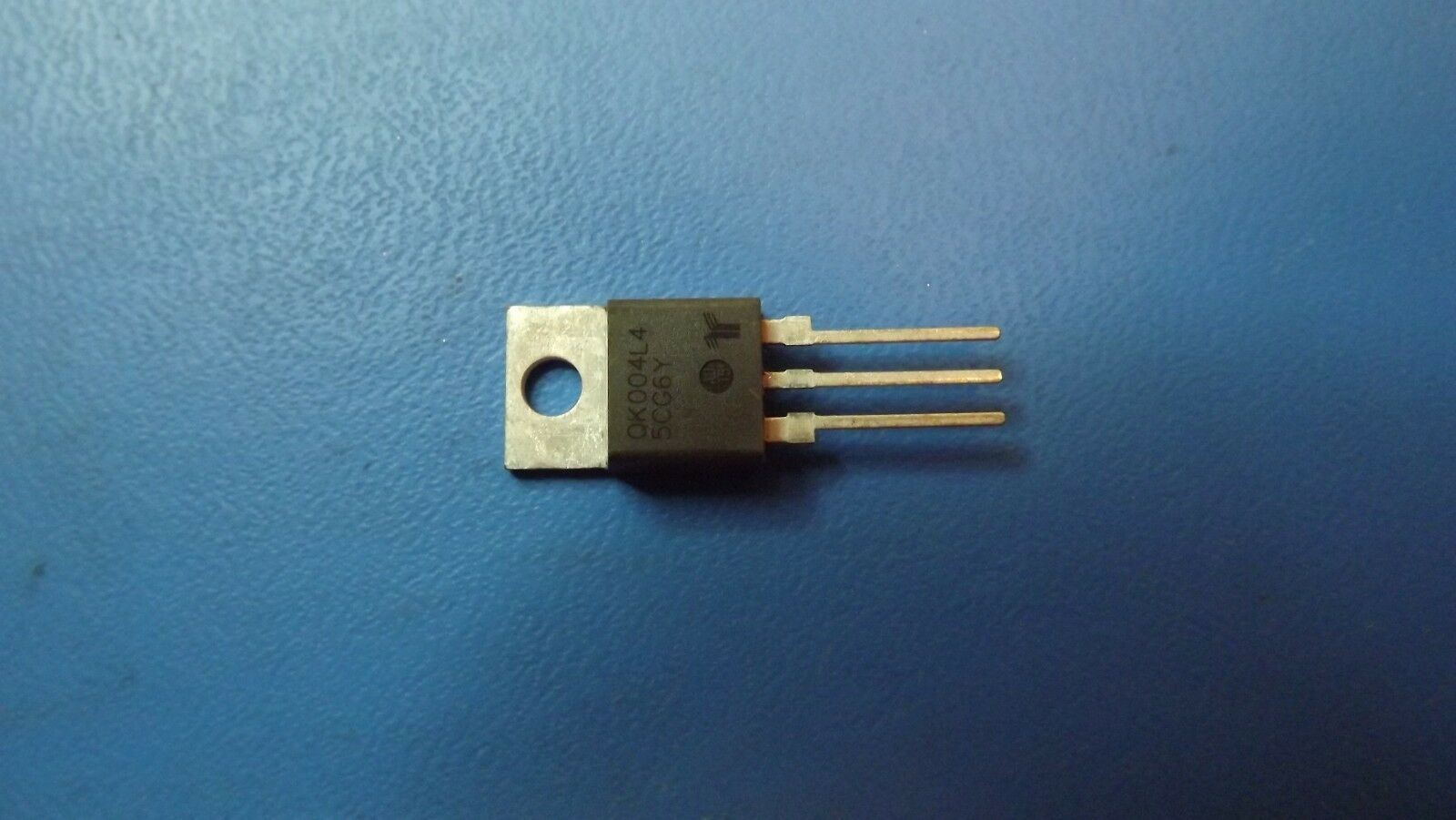

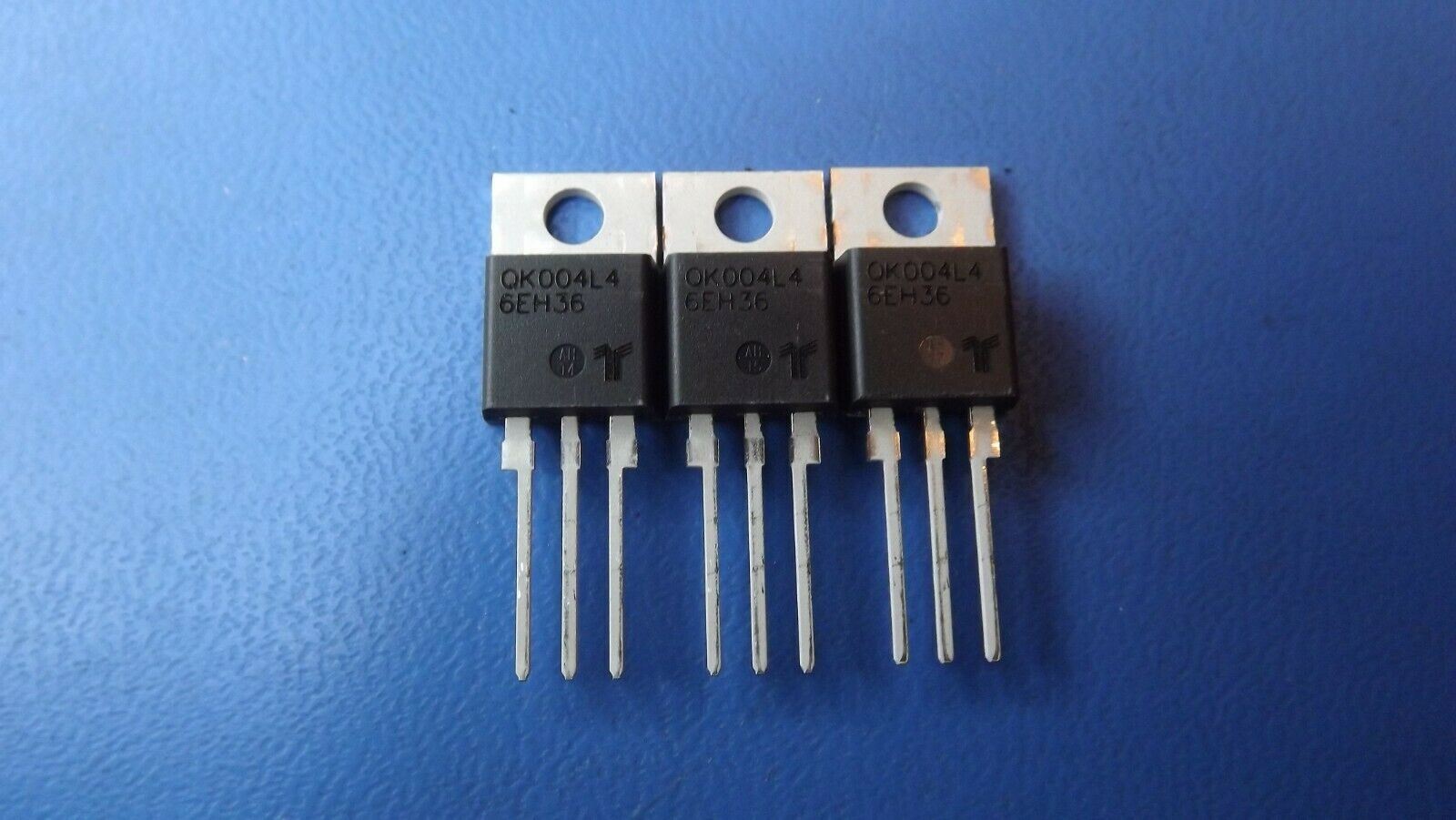

(50PCS) QK004L4TP LITTELFUSE/TECCOR TRIAC 1000V 4A 25-25-25 MA TO220

  • $69.95
    Unit price per
Tax included.

Only 10 left!

THIS LISTING IS FOR (50PCS) OF QK004L4TP BY LITTELFUSE/TECCOR

SPECIFICATIONS

Mfr Package Description ROHS COMPLIANT, PLASTIC PACKAGE-3
EU RoHS Compliant Yes
Status Active
Trigger Device Type 4 QUADRANT LOGIC LEVEL TRIAC
Case Connection ISOLATED
Configuration SINGLE
Critical Rate of Rise of Off-state Voltage-Min 50.0  V/us
DC Gate Trigger Current-Max 25.0  mA
DC Gate Trigger Voltage-Max 1.3  V
Holding Current-Max 30.0  mA
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
JESD-609 Code e3
Leakage Current-Max 3.0  mA
Moisture Sensitivity Level 2
Number of Elements 1.0
Number of Terminals 3
Operating Temperature-Min -40.0  Cel
Operating Temperature-Max 110.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Repetitive Peak Off-state Voltage 1000.0  V
RMS On-state Current-Max 4.0  A
Sub Category TRIACs
Surface Mount NO
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 10
Additional Feature UL RECOGNIZED
