(50PCS) PI29FCT52ATS PERICOM Registered Bus Transceiver 2-Func 8-Bit CMOS SOIC24

$59.95
Unit price per

Tax included.

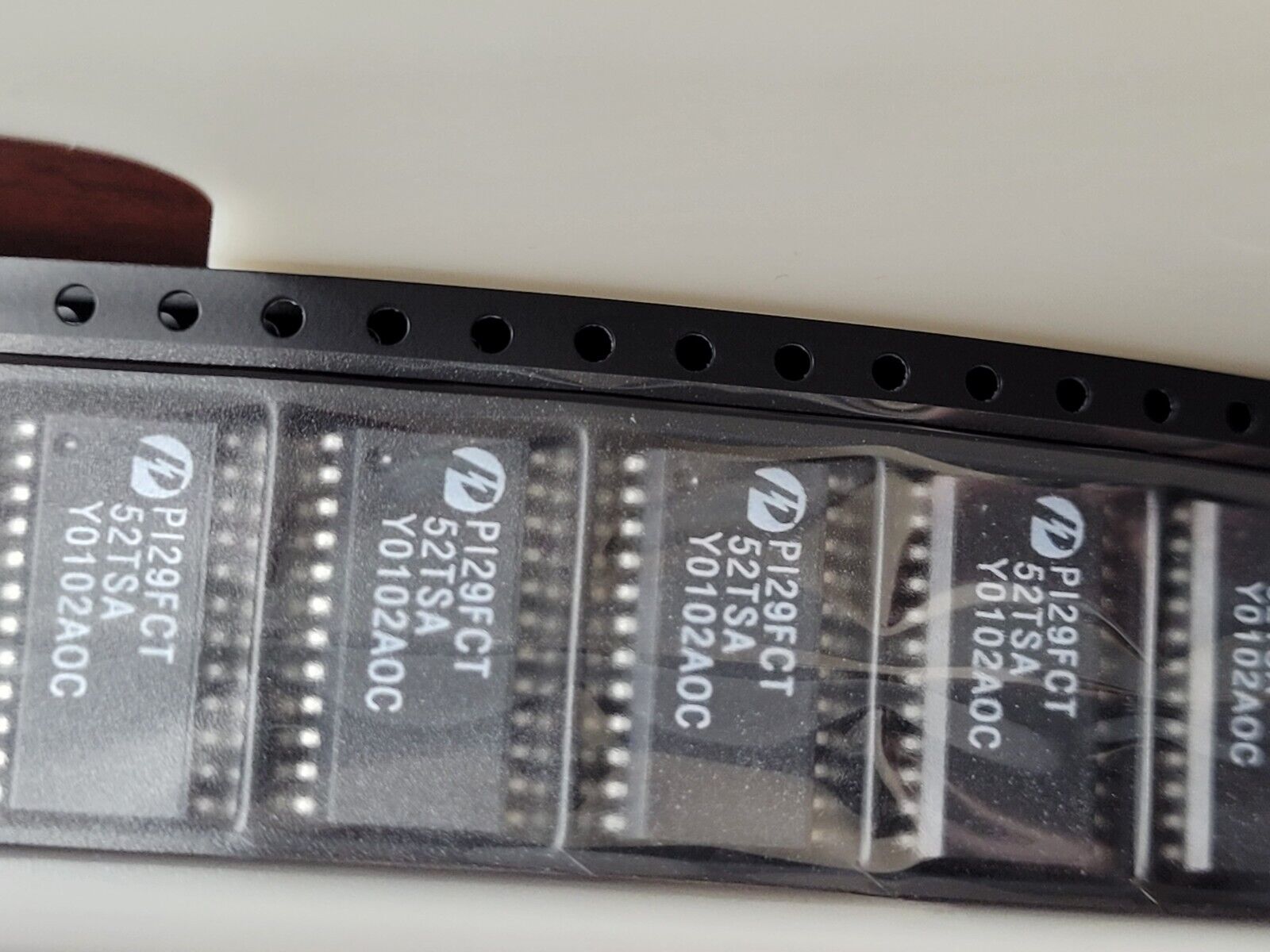

THIS IS FOR (50 PCS) OF PI29FCT52ATS BY PERICOM

Registered Bus Transceiver 2-Func 8-Bit CMOS SOIC24

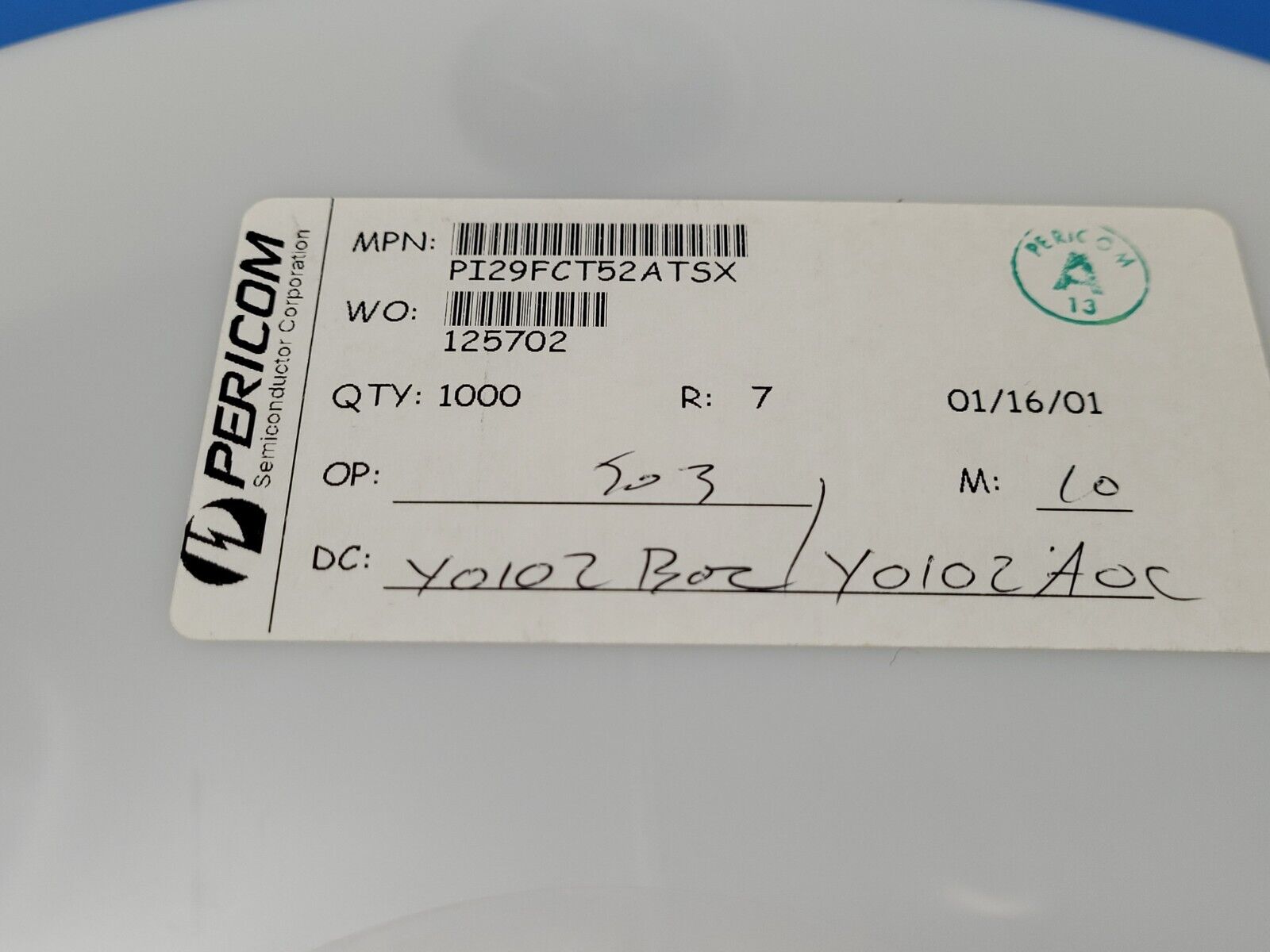

Part #: PI29FCT52ATSX

Part Category: Logic ICs

Manufacturer: Pericom Semiconductor Corp.

Description: Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO24

Mfr Package Description 0.300 INCH, PLASTIC, SOIC-24

Status Discontinued

Logic IC Type REGISTERED BUS TRANSCEIVER

Family FCT

JESD-30 Code R-PDSO-G24

JESD-609 Code e0

Load Capacitance (CL) 50.0 pF

Number of Bits 8

Number of Functions 2

Number of Ports 2

Number of Terminals 24

Operating Temperature-Min -40.0 Cel

Operating Temperature-Max 85.0 Cel

Output Characteristics 3-STATE

Output Polarity TRUE

Package Body Material PLASTIC/EPOXY

Package Code SOP

Package Shape RECTANGULAR

Package Style SMALL OUTLINE

Propagation Delay (tpd) 10.0 ns

Qualification Status Not Qualified

Seated Height-Max 2.65 mm

Supply Voltage-Nom (Vsup) 5

Supply Voltage-Min (Vsup) 4.75 V

Supply Voltage-Max (Vsup) 5.25 V

Surface Mount YES

Technology CMOS

Temperature Grade INDUSTRIAL

Terminal Finish TIN LEAD

Terminal Form GULL WING

Terminal Pitch 1.27 mm

Terminal Position DUAL

Length 15.4 mm

Width 7.5 mm

Additional Feature WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; WITH CLOCK ENABLE
