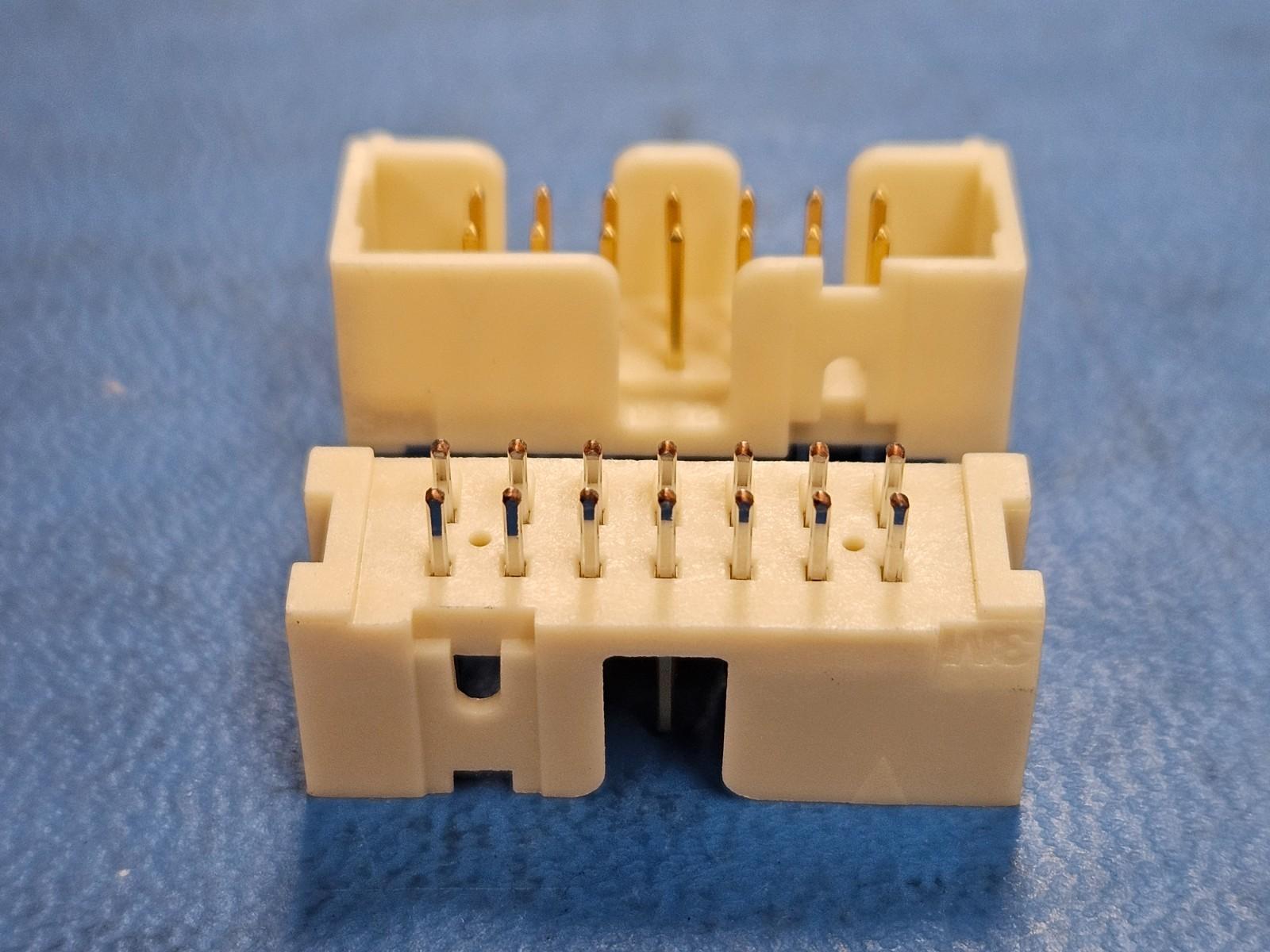

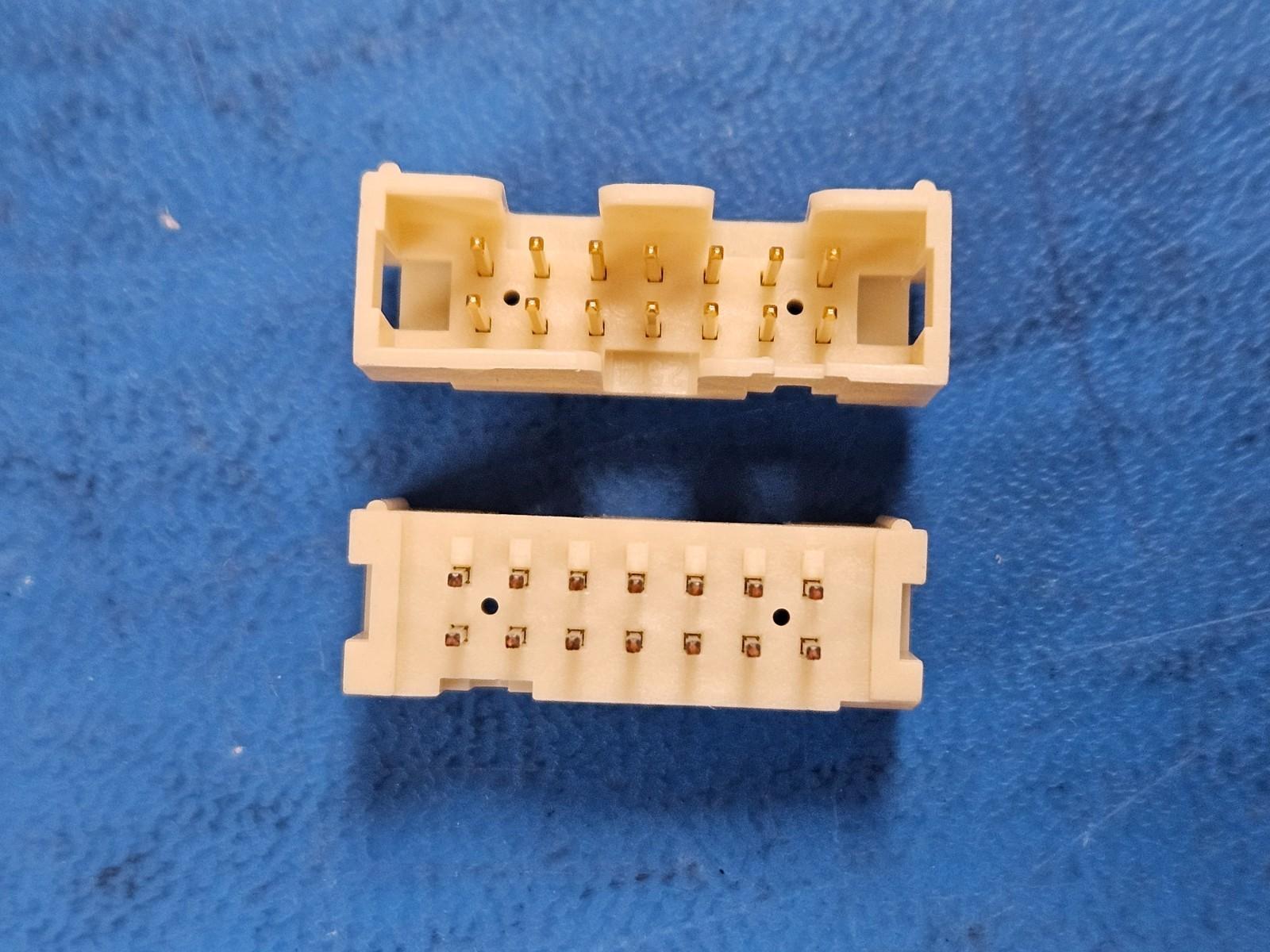

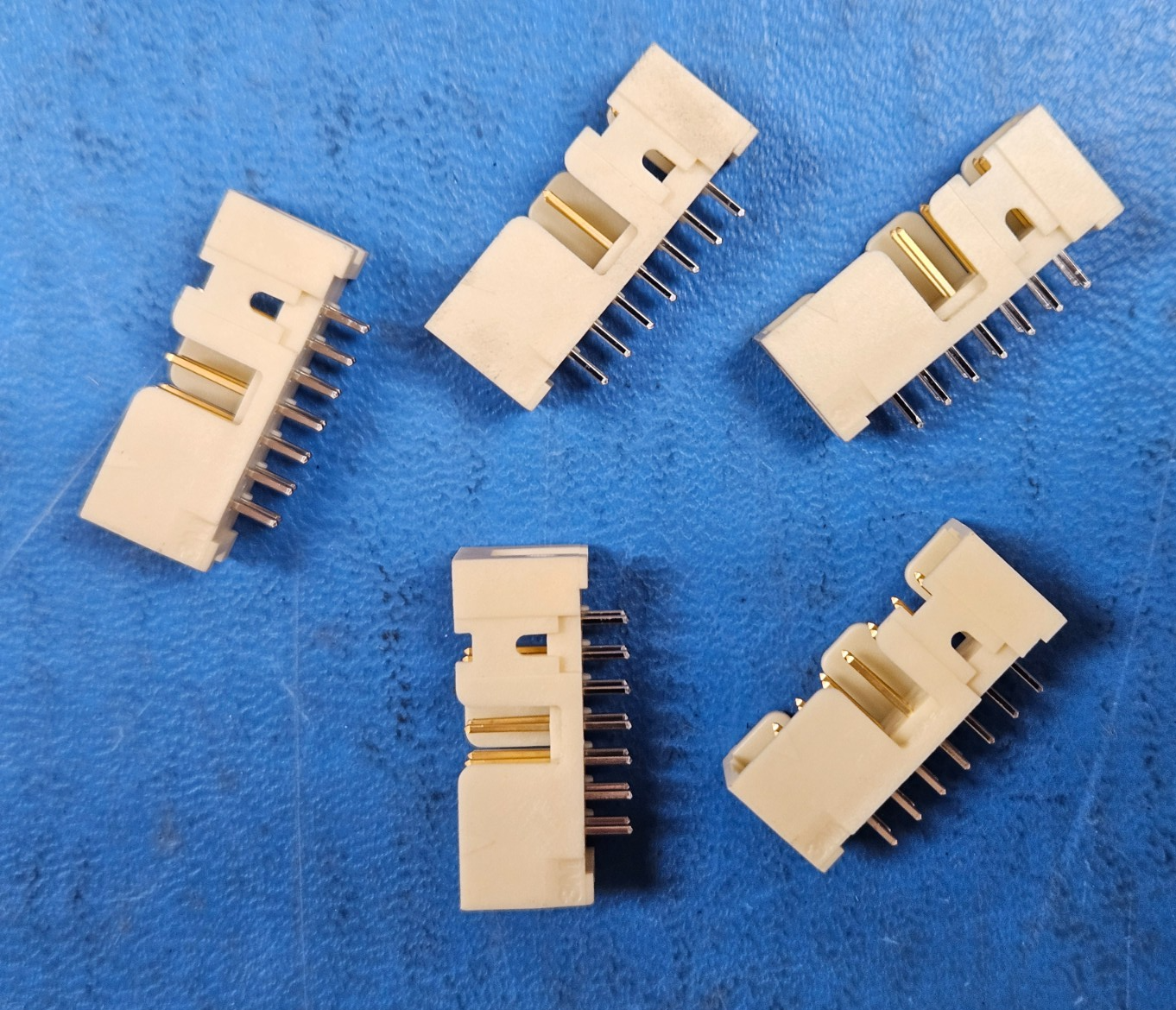

(50PCS) N2514-6002-UB 3M Connector Header Through Hole 14 position
Tax included.

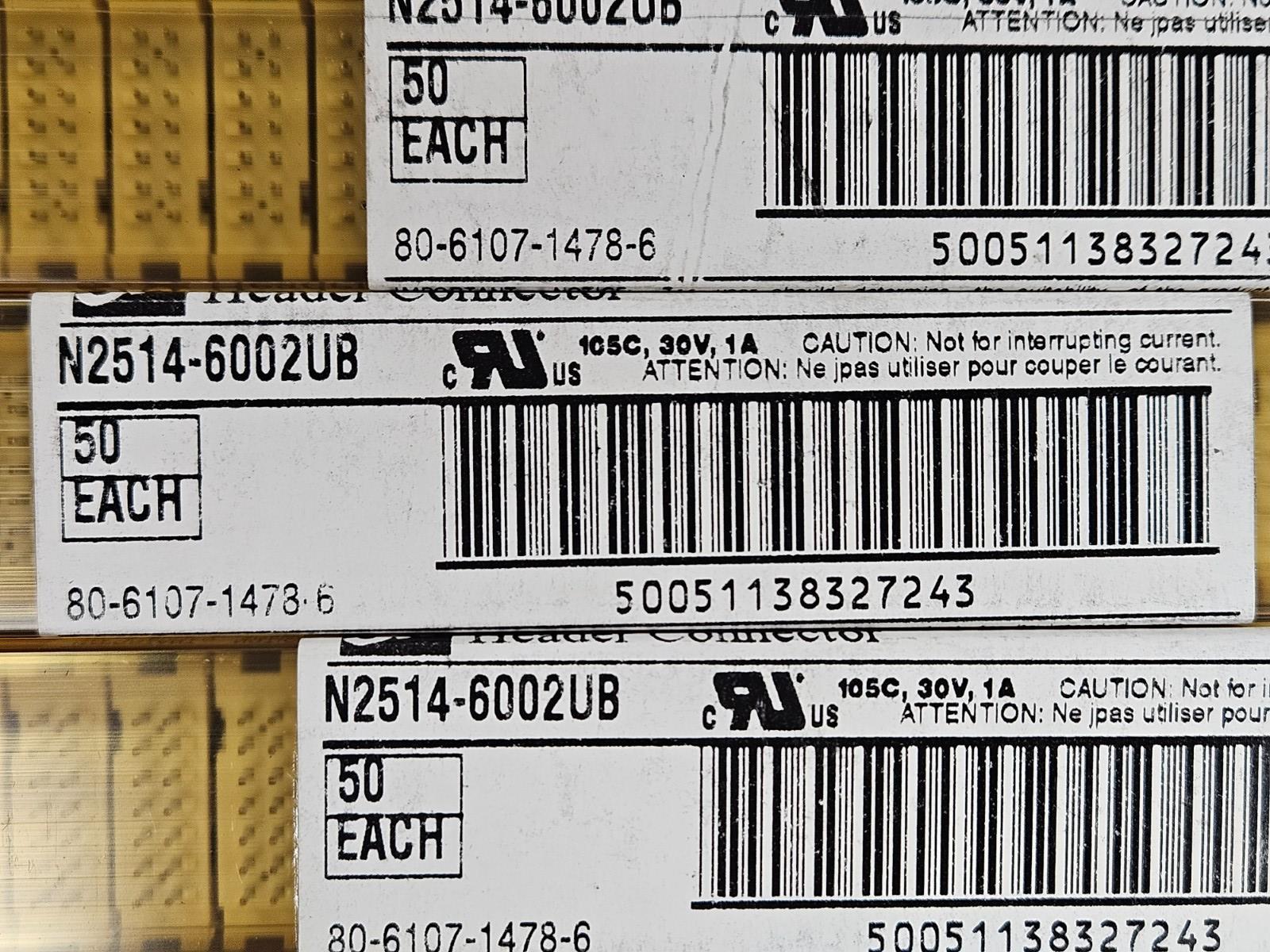

This listing is for (50PCS) of N2514-6002UB by 3M
Product: Headers
Type: Four Wall Header
Number of Positions: 14 Position
Pitch: 2.54 mm (0.1 in)
Number of Rows: 2 Row
Row Spacing: 5.79 mm (0.228 in)
Mounting Style: PCB Mount
Termination Style: Solder Pin
Mounting Angle: Straight
Contact Gender: Pin (Male)
Contact Plating: Gold
Mating Post Length: 6.17 mm (0.243 in)
Termination Post Length: 2.84 mm (0.112 in)
Series: 2500
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 105 C
Brand: 3M Electronic Solutions Division
Compliance: UL
Contact Material: Copper
Current Rating: 1.75 A
Flammability Rating: UL 94 V-0
Housing Color: Black
Housing Material: Polyester
Insulation Resistance: 1 GOhms
Latching Type: Unlatched
Product Type: Headers & Wire Housings
