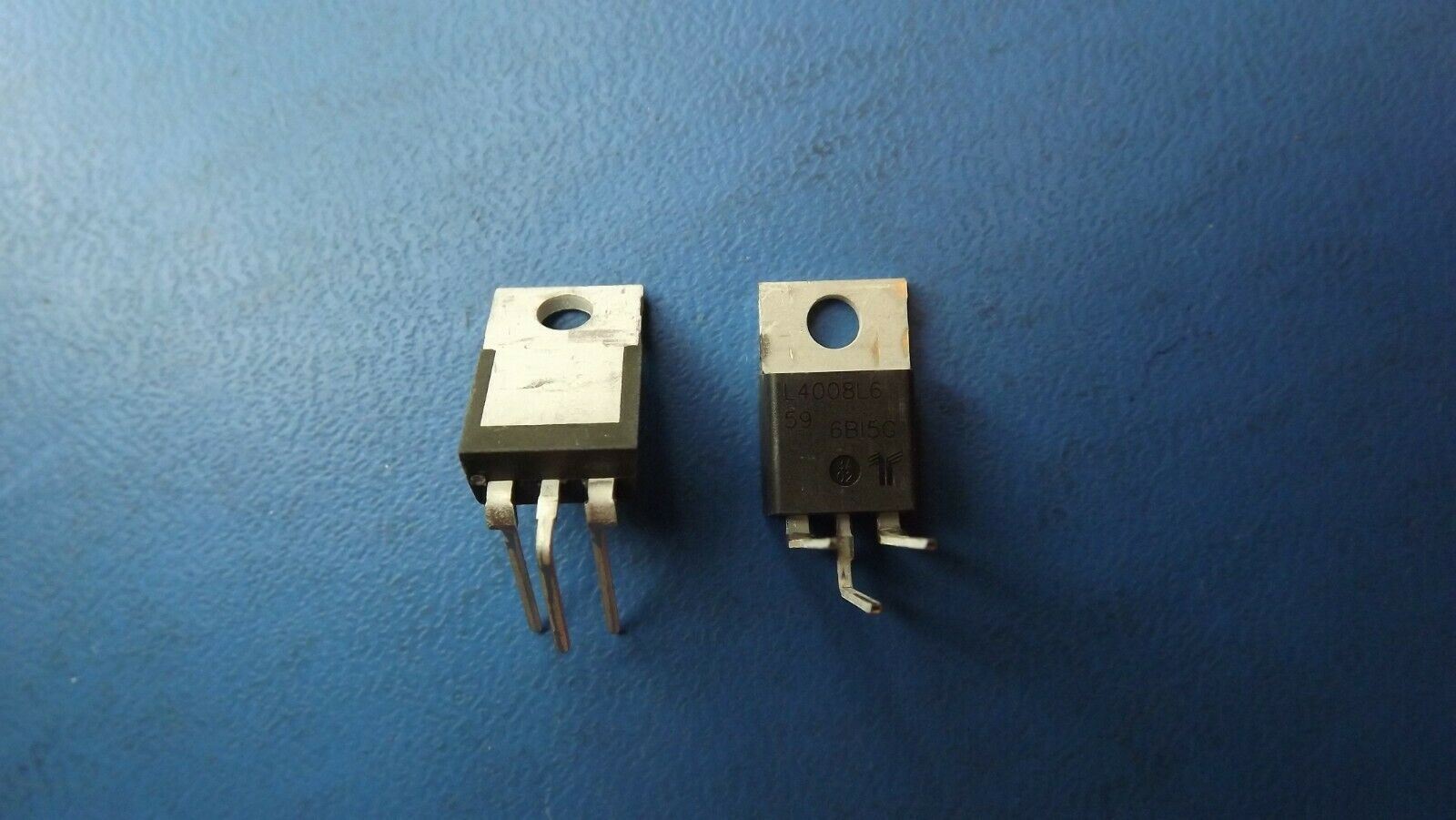

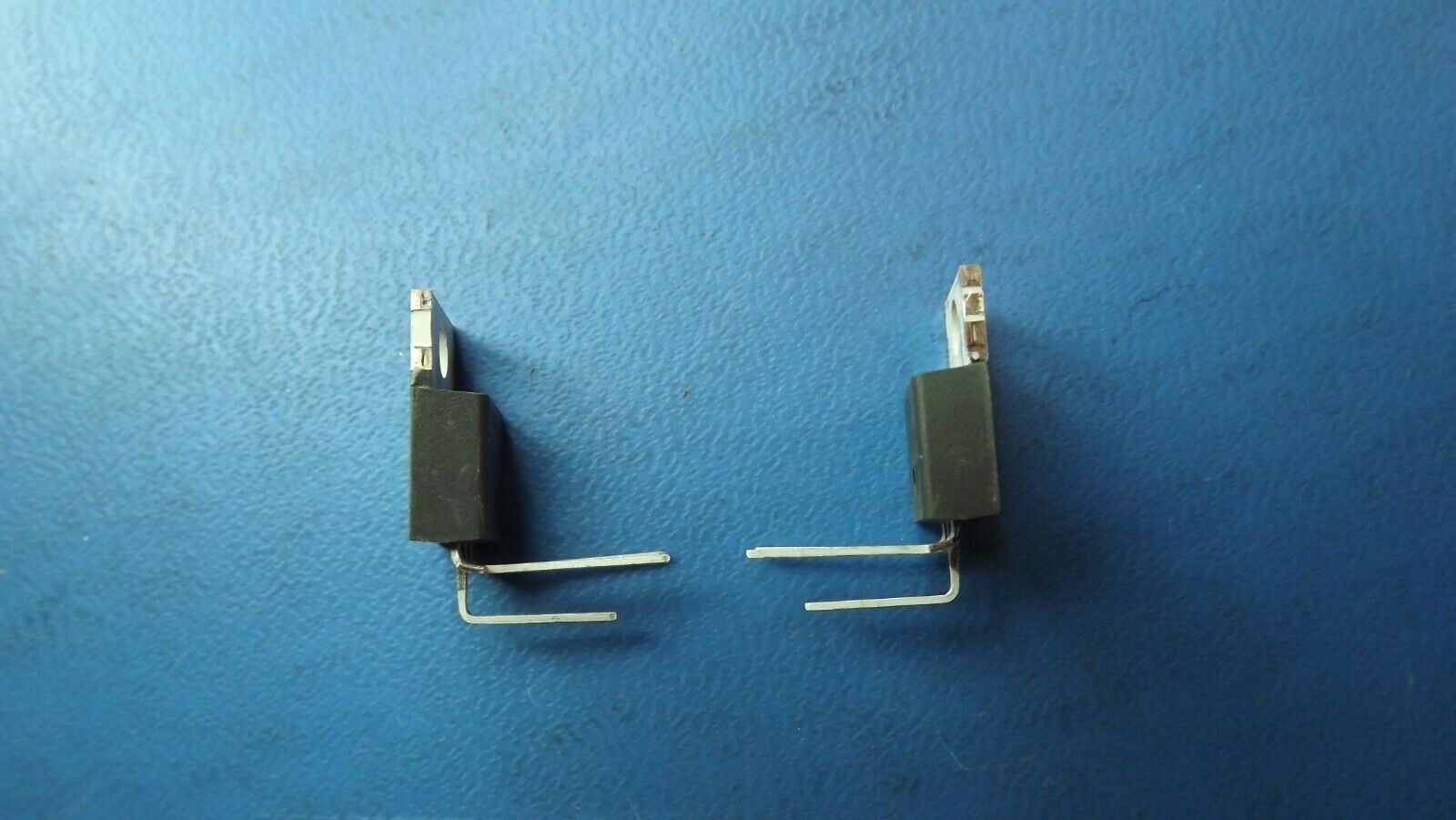

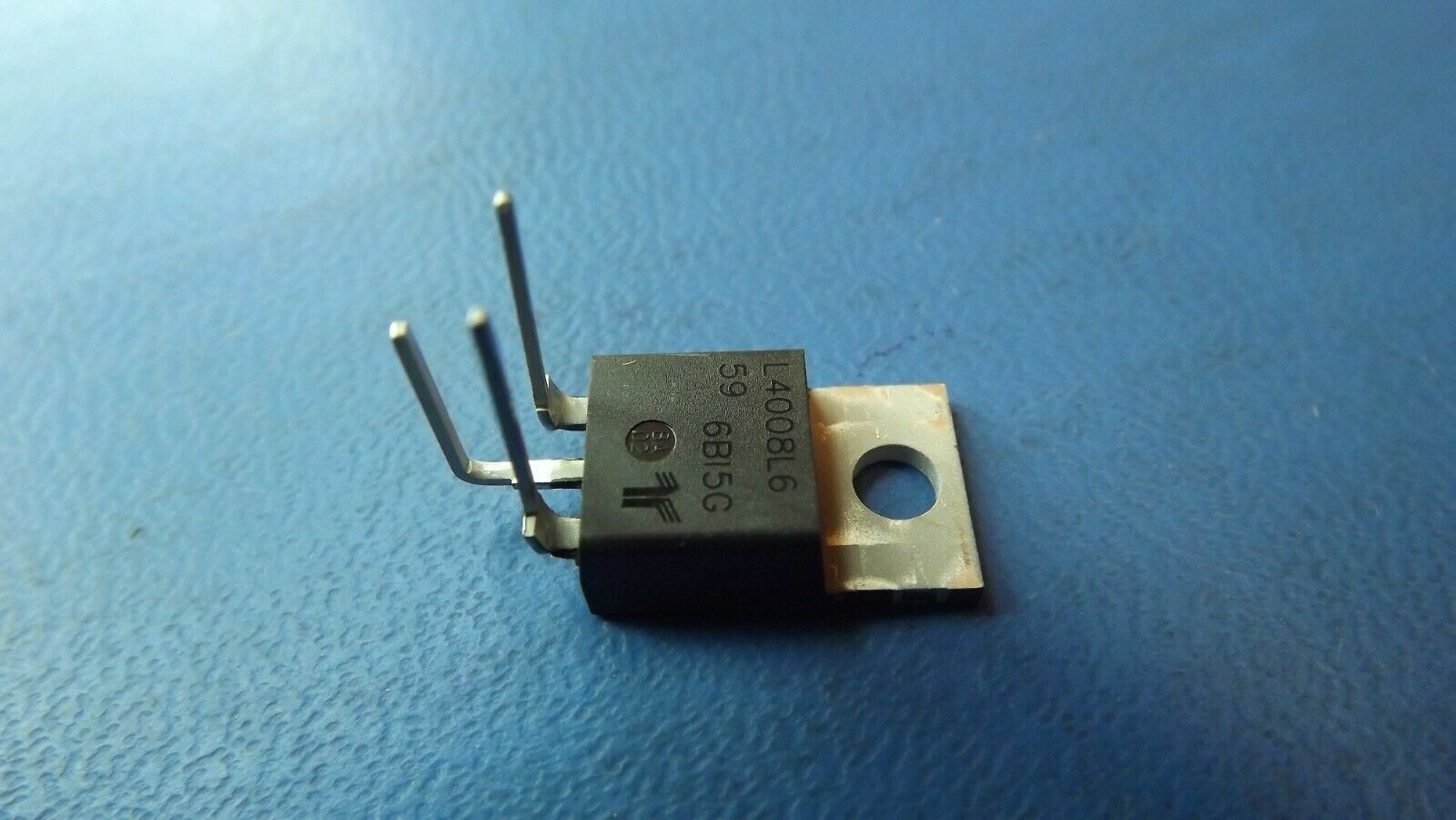

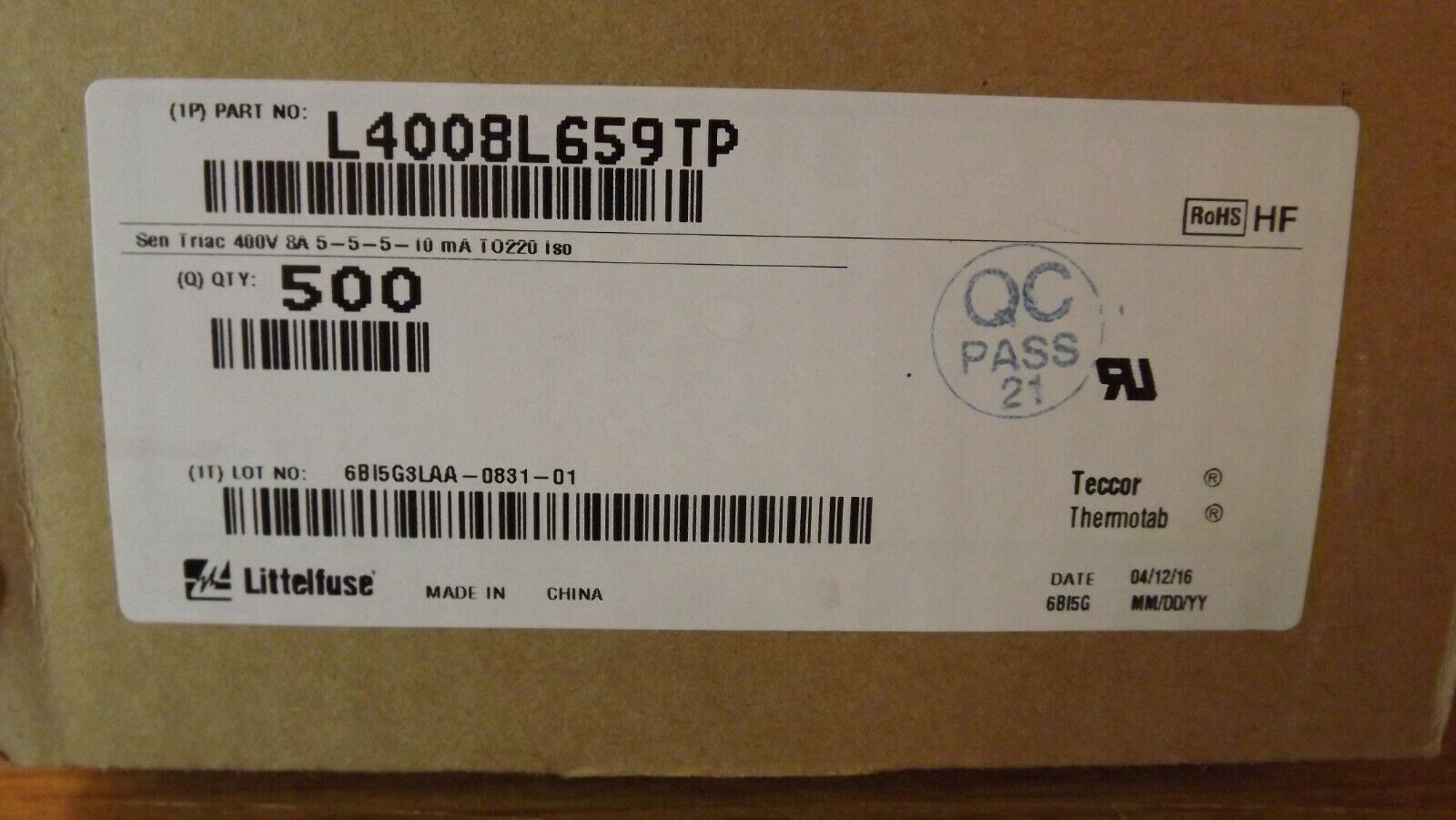

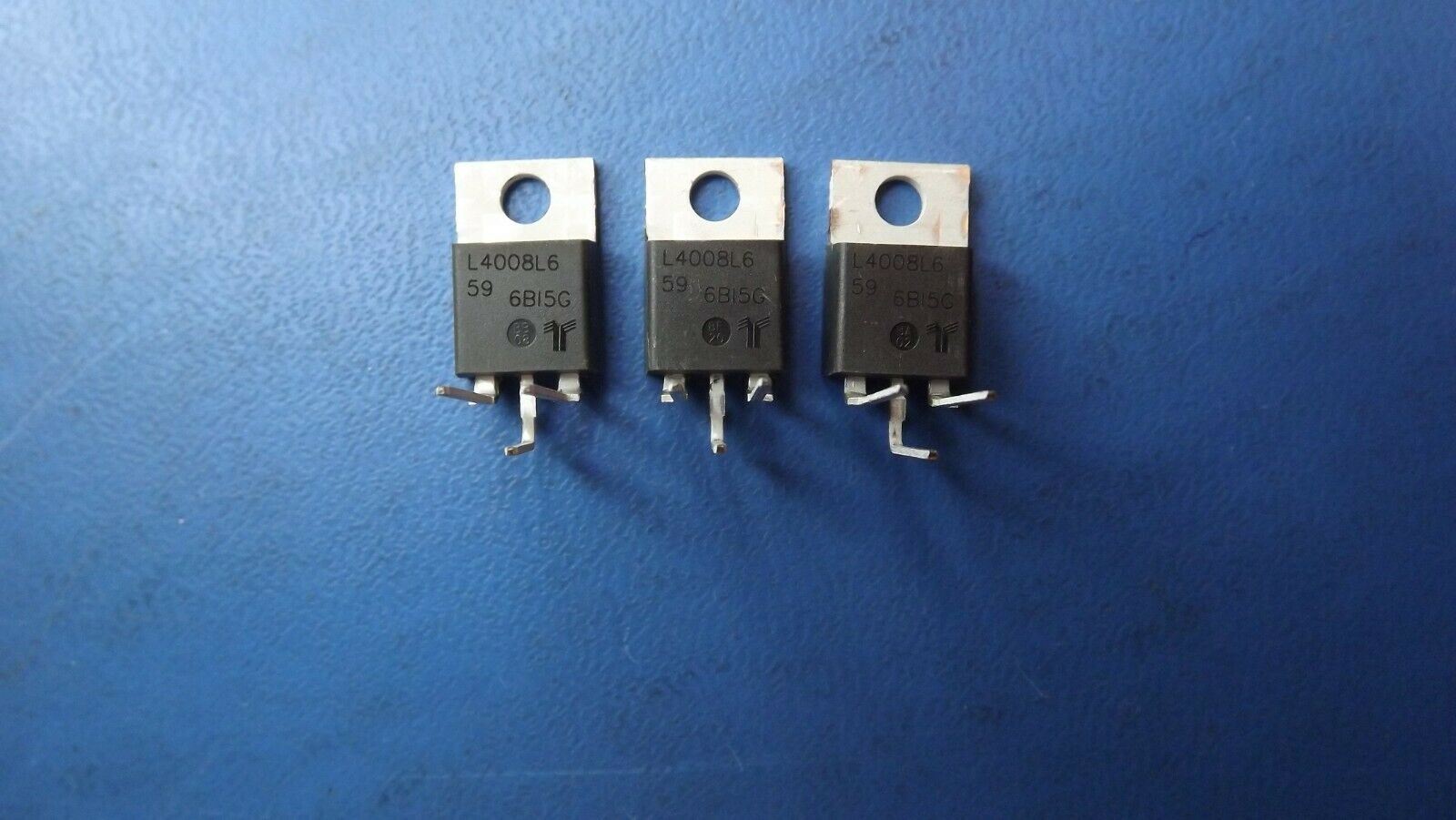

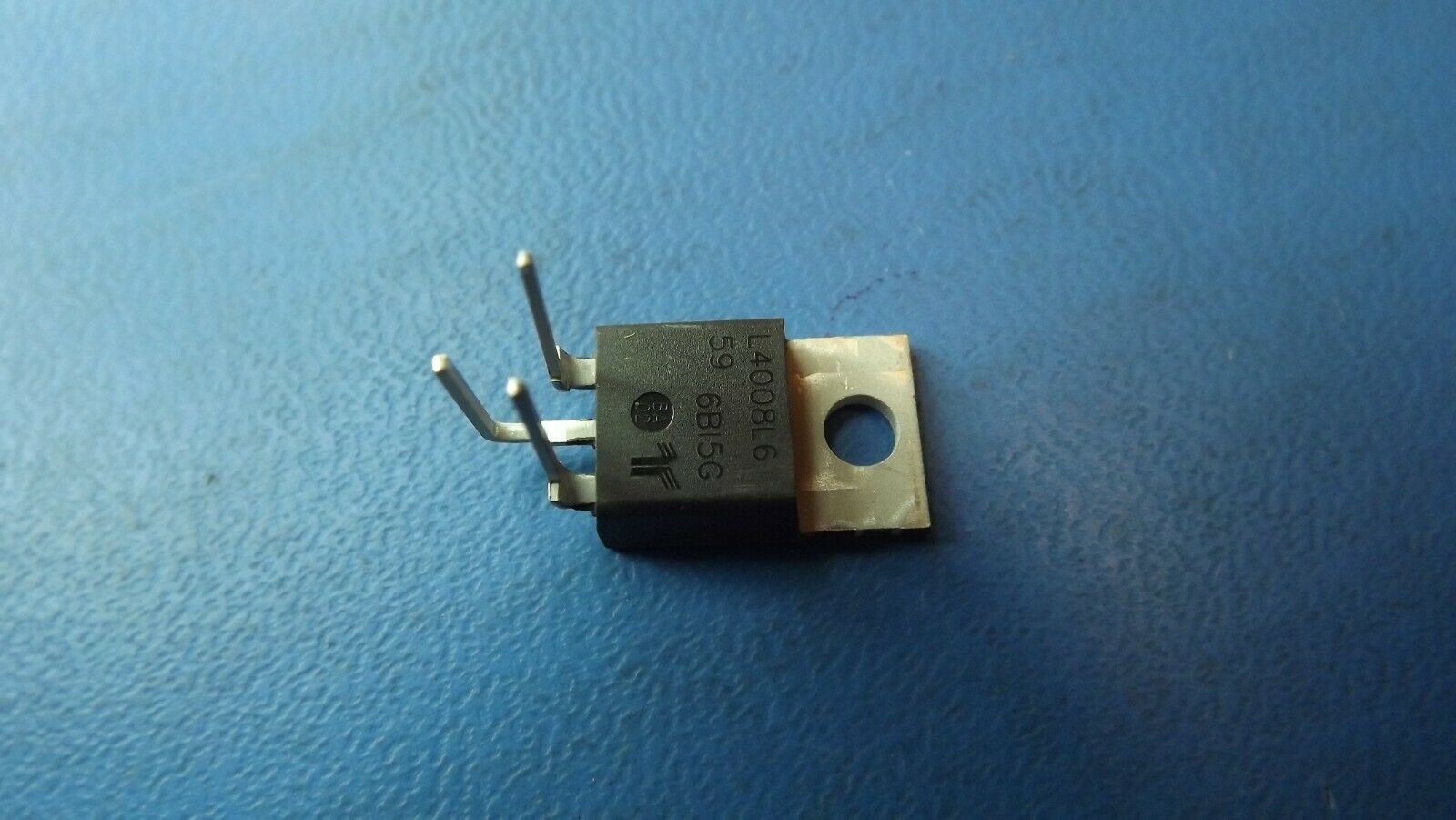

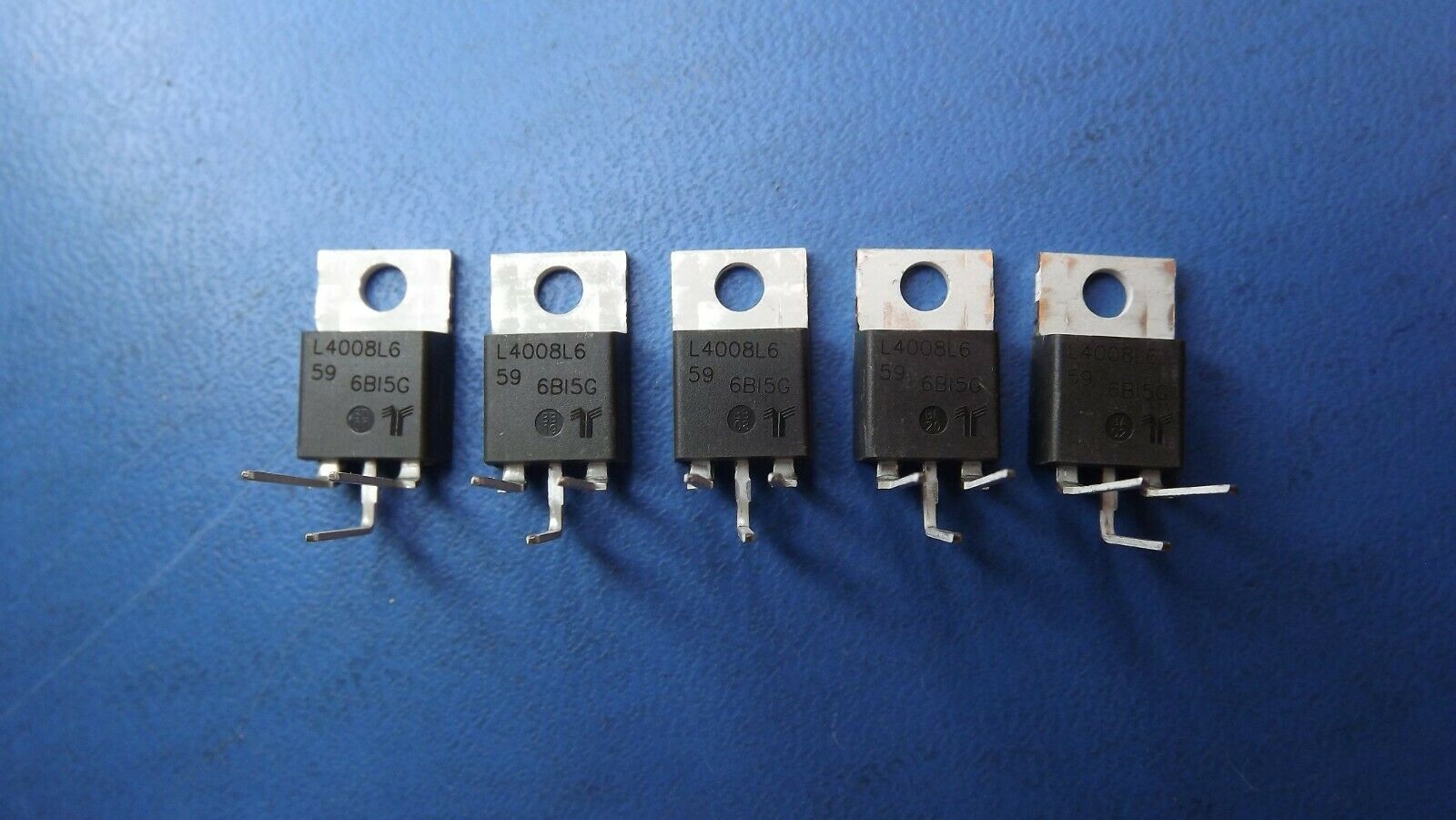

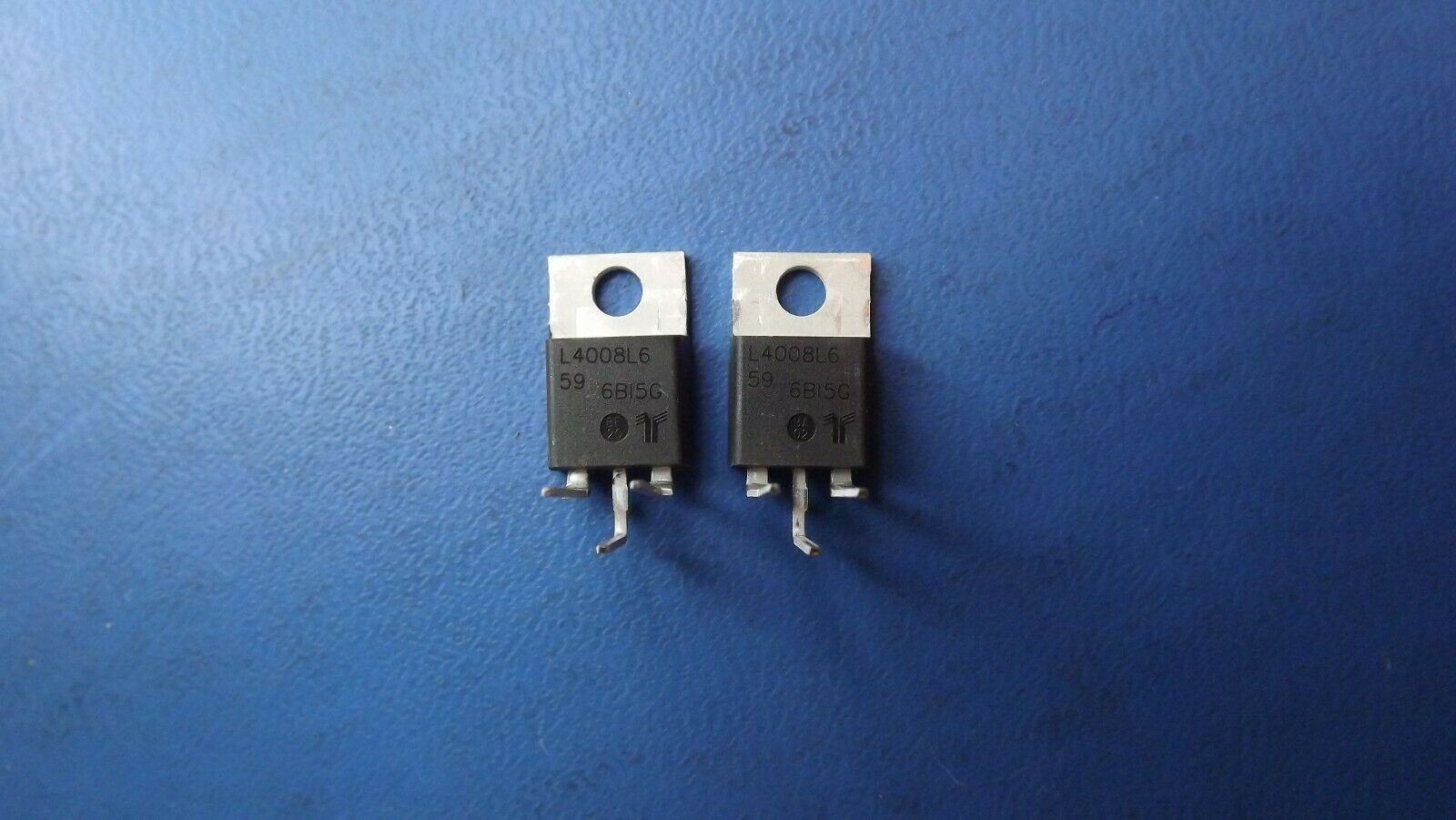

(50PCS) L4008L659TP LITTELFUSE TRIAC SENS GATE 400V 8A TO220

  • $99.95
    Unit price per
Tax included.

Only 8 left!

THIS LISTING IS FOR (50PCS) OF L4008L659TP BY LITTELFUSE

SPECIFICATIONS

Status Discontinued
Trigger Device Type 4 QUADRANT LOGIC LEVEL TRIAC
Case Connection ISOLATED
Configuration SINGLE
DC Gate Trigger Current-Max 5.0  mA
DC Gate Trigger Voltage-Max 2.0  V
Holding Current-Max 10.0  mA
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
Number of Elements 1.0
Number of Terminals 3
Operating Temperature-Min -40.0  Cel
Operating Temperature-Max 110.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Qualification Status Not Qualified
Repetitive Peak Off-state Leakage Current-Max 20.0  µA
Repetitive Peak Off-state Voltage 400.0  V
RMS On-state Current-Max 8.0  A
Surface Mount NO
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
