(50PCS) ESD9B3.3ST5G ESD Protection Device, Suppressor, 300 Mw, 3.3 V, Sod-923
Tax included.

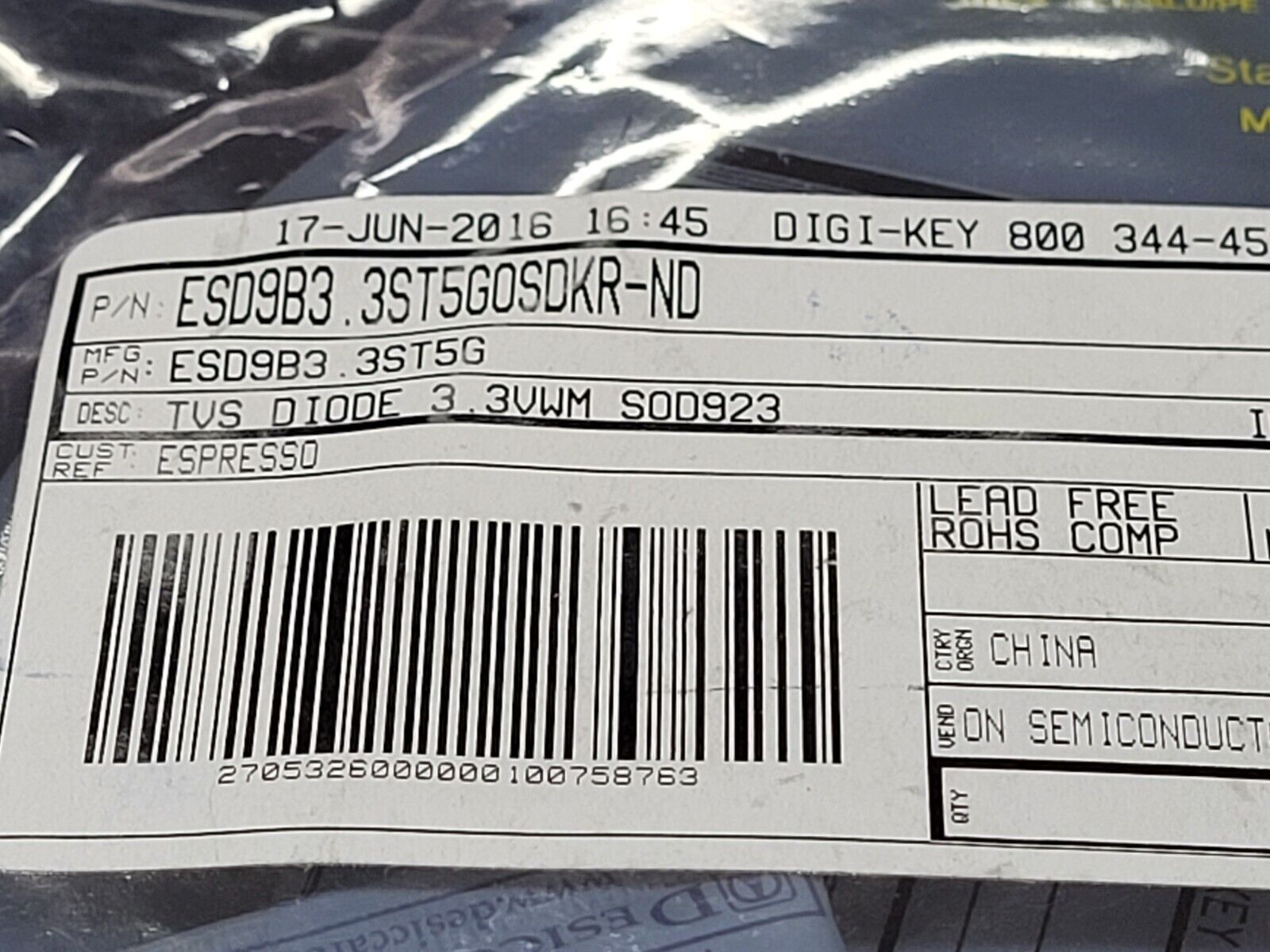

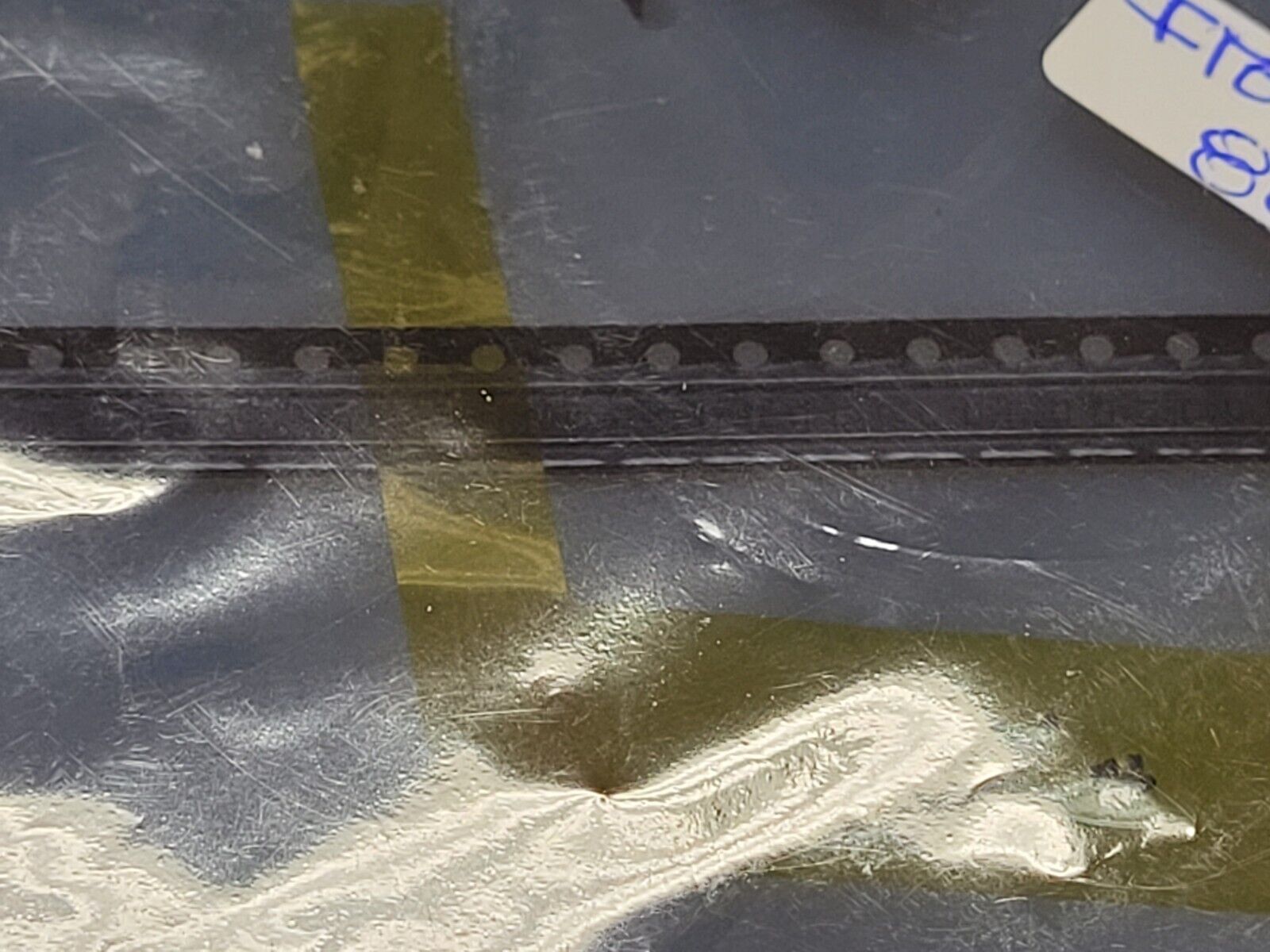

THIS LISTING IS FOR (50PCS) OF ESD9B3.3ST5G BY ON SEMICONDUCTOR
Mfr Package Description LEAD FREE, PLASTIC, CASE 514AB-01, 2 PIN
REACH Compliant Yes
EU RoHS Compliant Yes
China RoHS Compliant Yes
Status Active
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Breakdown Voltage-Nom 6.0 V
Breakdown Voltage-Min 5.0 V
Breakdown Voltage-Max 7.0 V
Clamping Voltage-Max 10.5 V
Configuration SINGLE
Diode Element Material SILICON
JESD-30 Code R-PDSO-F2
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1.0
Number of Terminals 2
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 150.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 0.3 W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 3.3 V
Sub Category Transient Suppressors
Surface Mount YES
Technology AVALANCHE
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form FLAT
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Additional Feature LOW CAPACITANCE, EXCELLENT CLAMPING CAPABILITY
