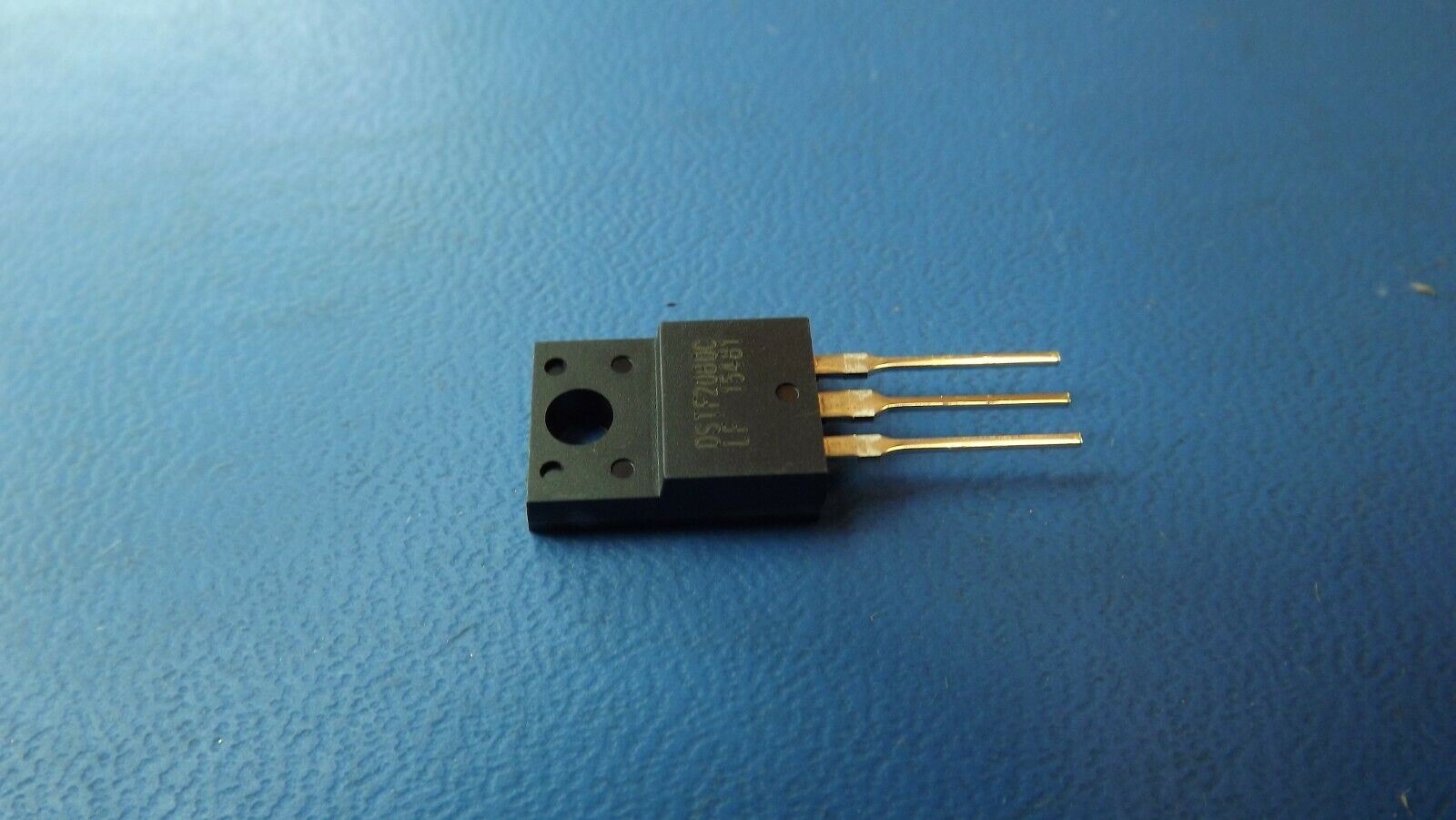

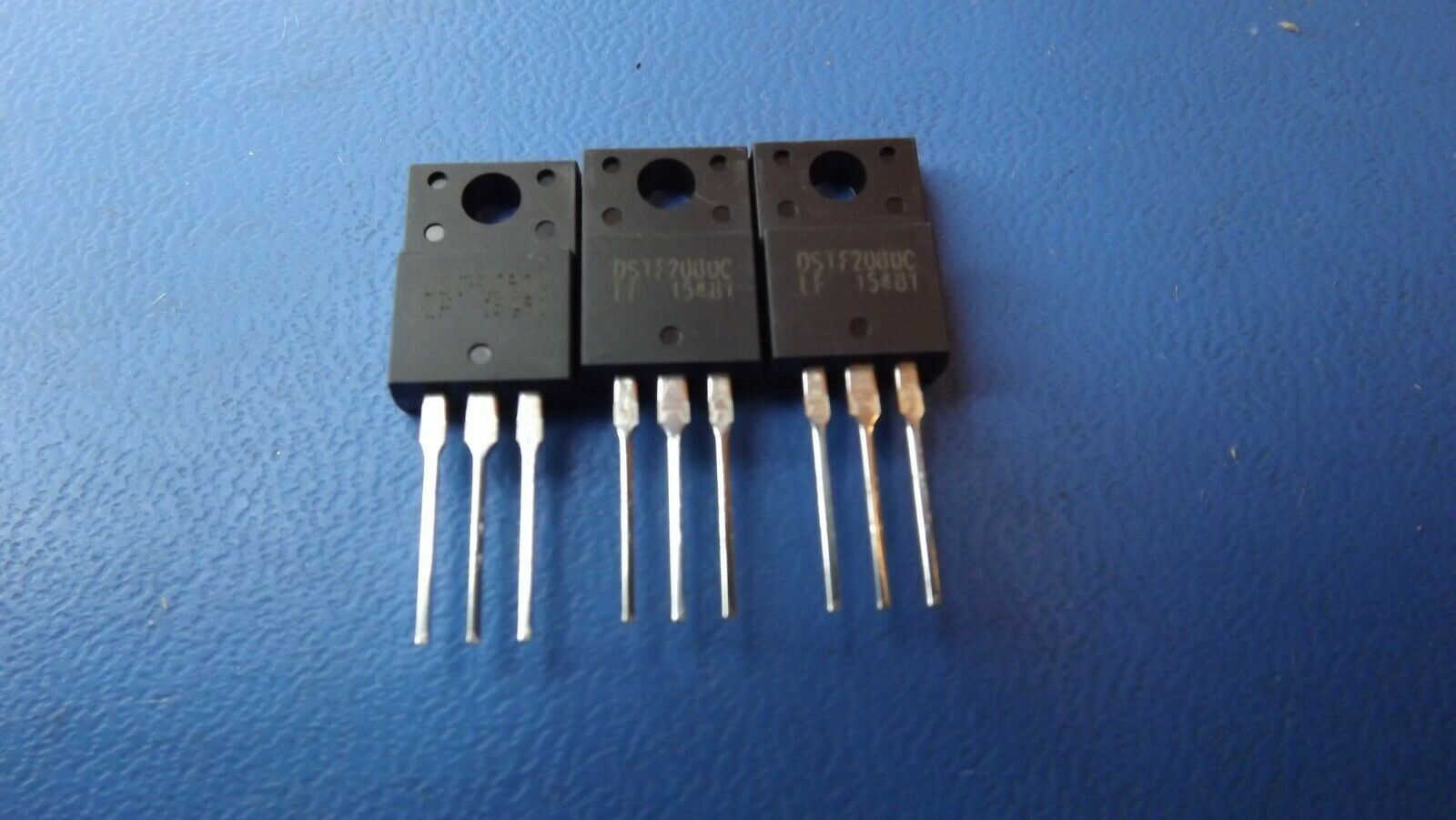

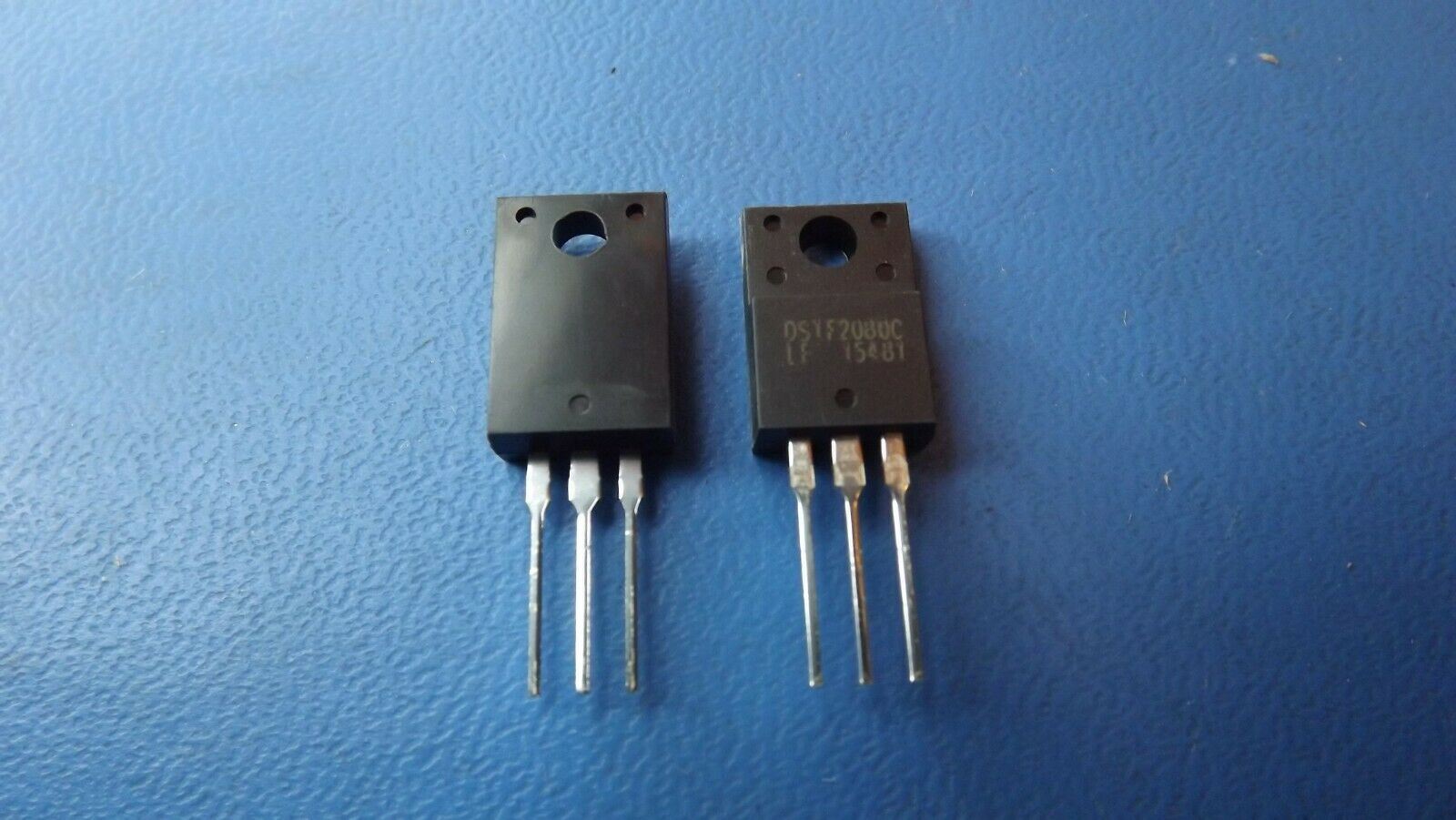

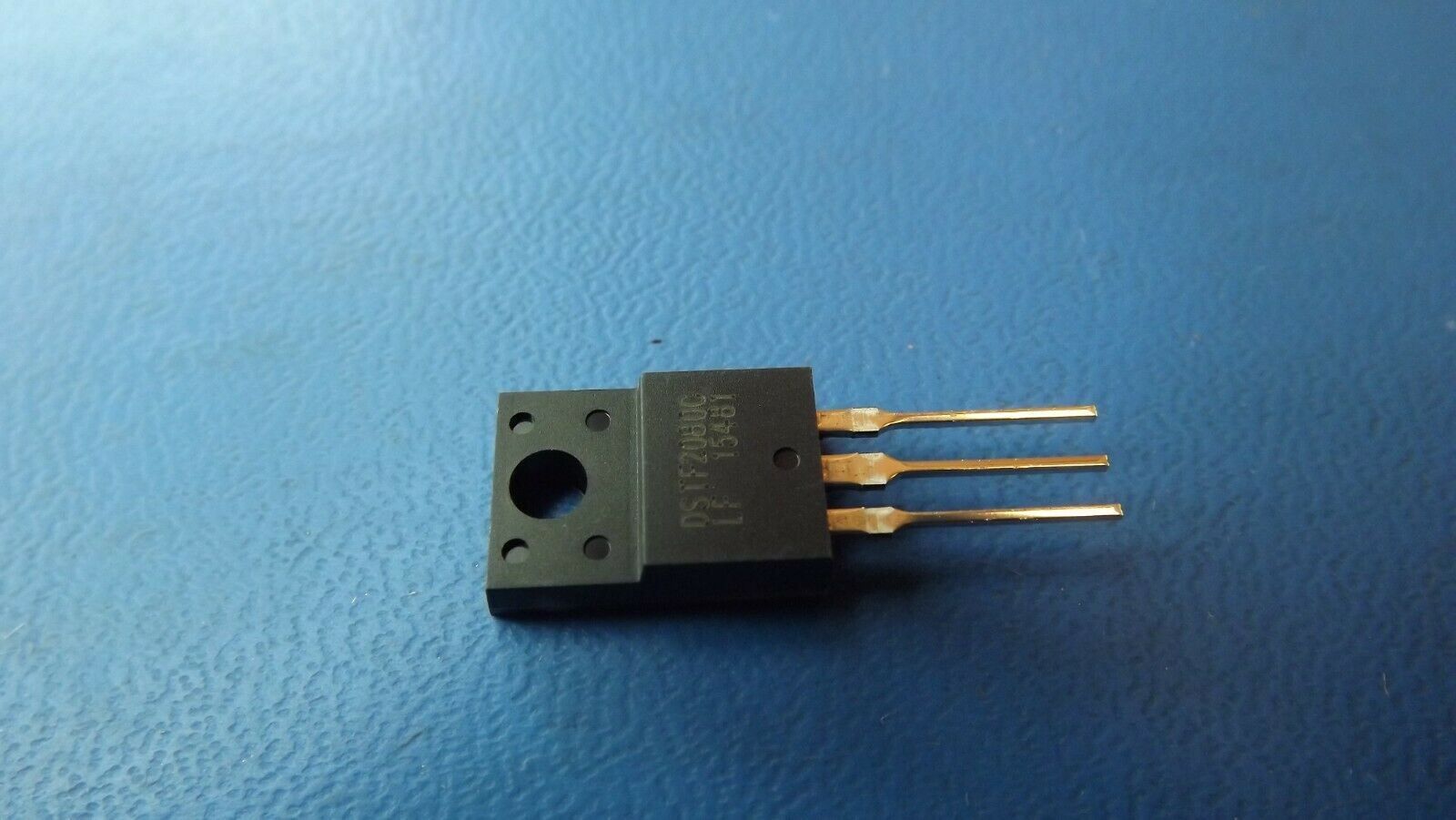

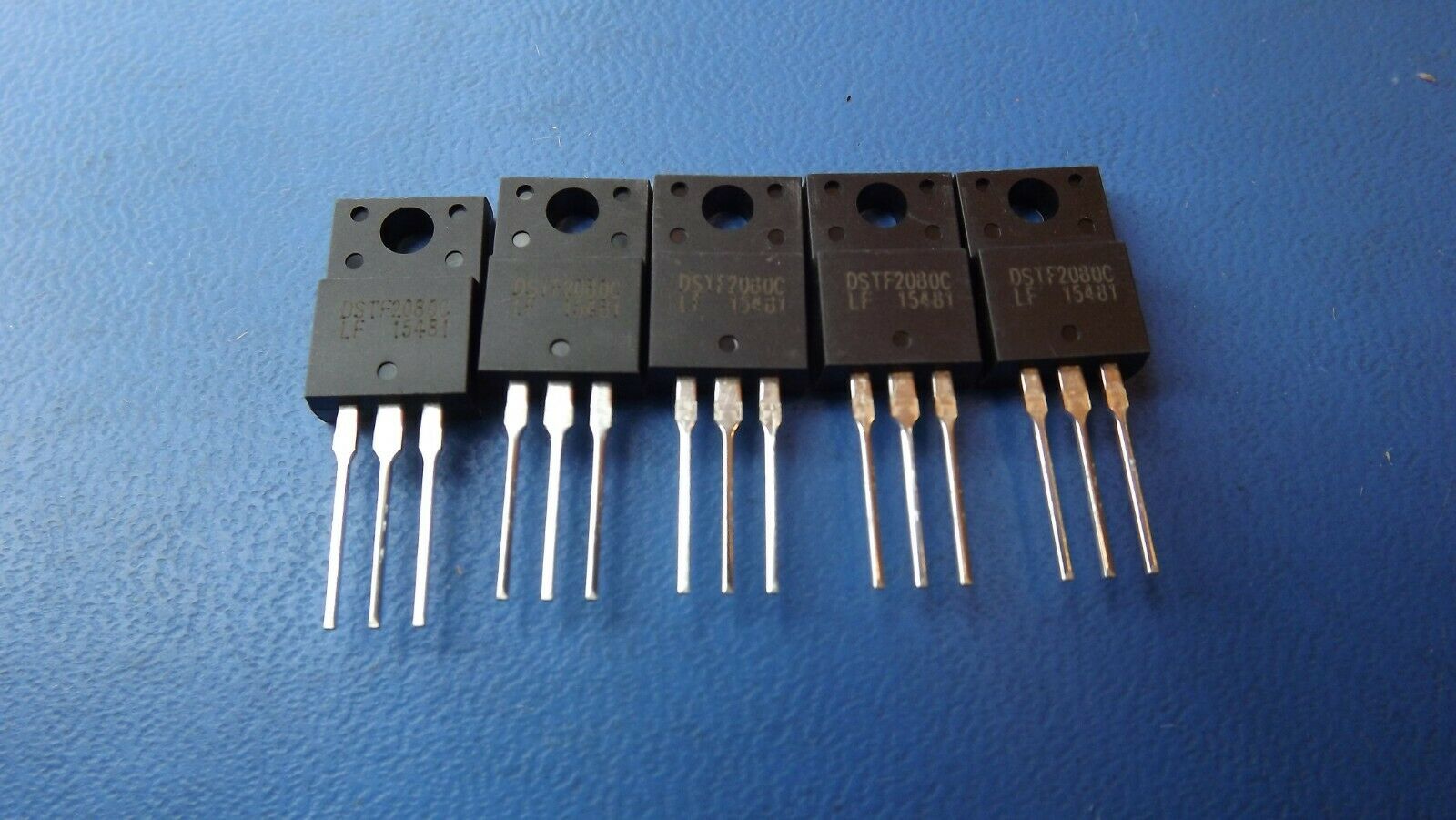

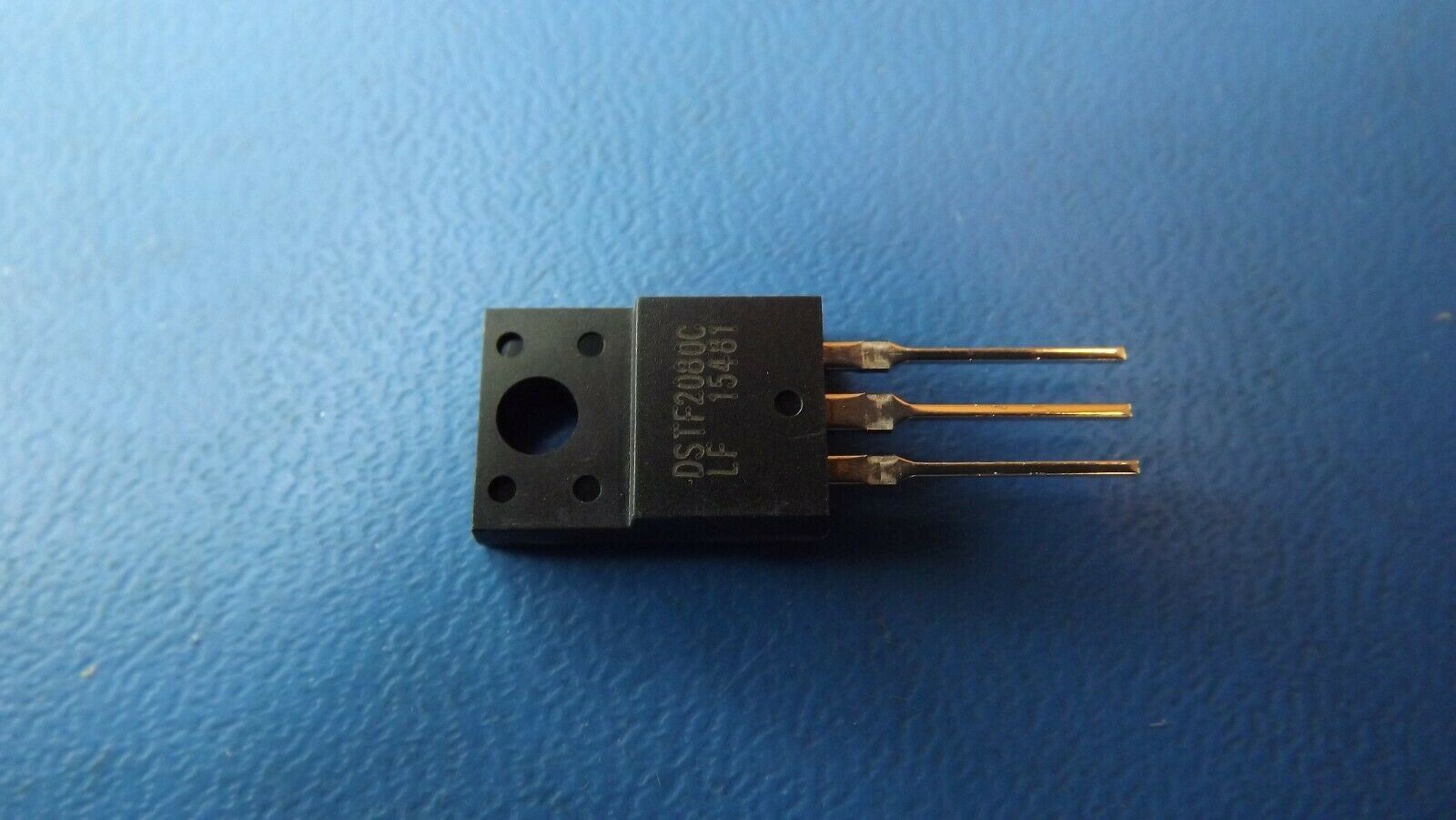

(50PCS) DSTF2080C LITTELFUSE DIODE ARRAY SCHOTTKY 80V TO220AB

  • $44.95
    Unit price per
Tax included.

Only 14 left!

THIS LISTING IS FOR (50PCS) OF DSTF2080C BY LITTELFUSE

SPECIFICATIONS

Mfr Package Description ITO-220AB, 3 PIN
EU RoHS Compliant Yes
Status Active
Diode Type RECTIFIER DIODE
Application GENERAL PURPOSE
Case Connection ISOLATED
Configuration COMMON CATHODE, 2 ELEMENTS
Diode Element Material SILICON
Forward Voltage-Max (VF) 0.81  V
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
Non-rep Pk Forward Current-Max 100.0  A
Number of Elements 2.0
Number of Phases 1.0
Number of Terminals 3
Operating Temperature-Min -55.0  Cel
Operating Temperature-Max 150.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Rep Pk Reverse Voltage-Max 80.0  V
Reverse Current-Max 600.0  µA
Surface Mount NO
Technology SCHOTTKY
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Additional Feature FREE WHEELING DIODE
