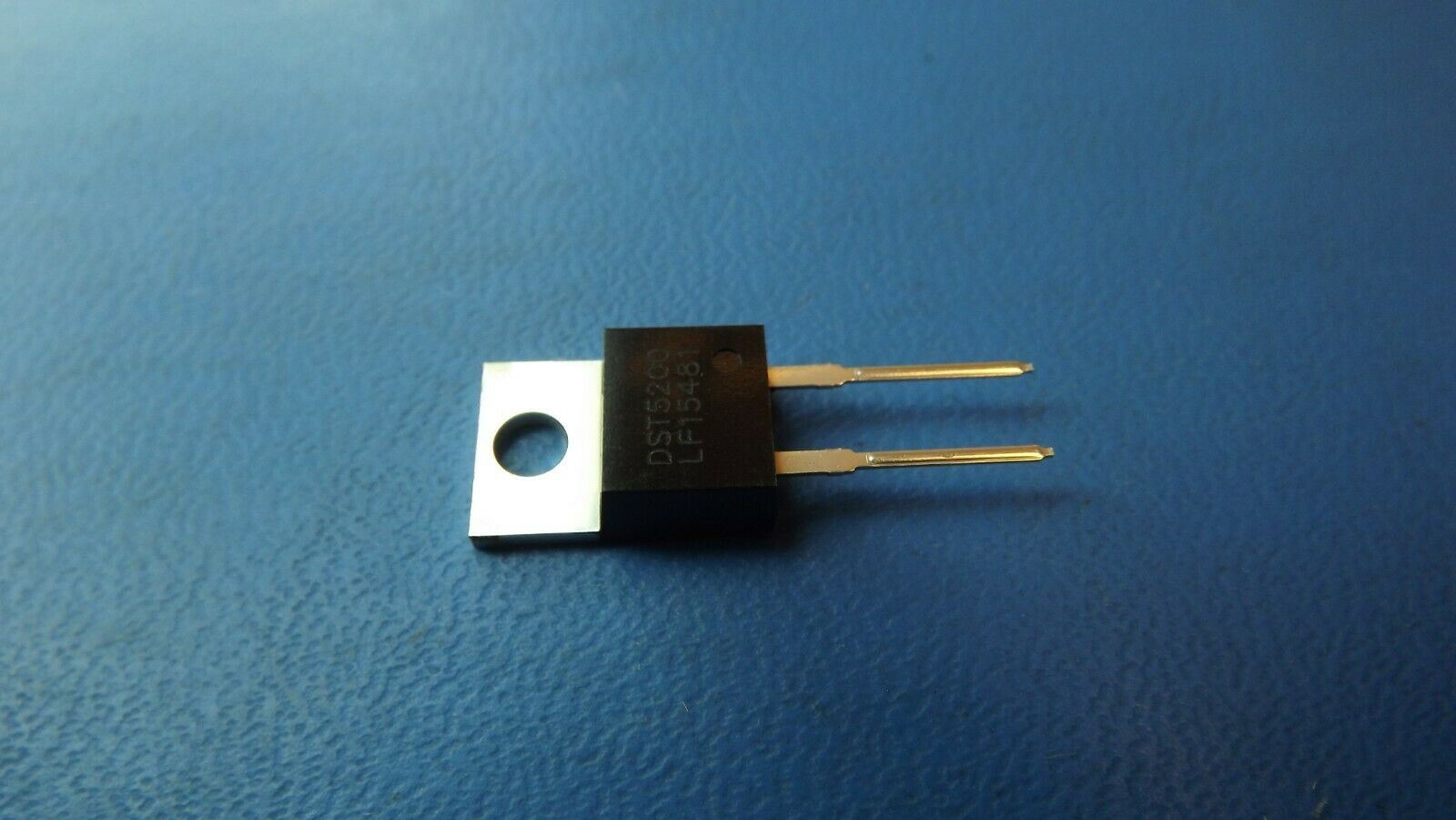

(50PCS) DST5200 LITTELFUSE DIODE SCHOTTKY 5A 200V TO-220AC

  • $34.95
    Unit price per
Tax included.

Only 14 left!

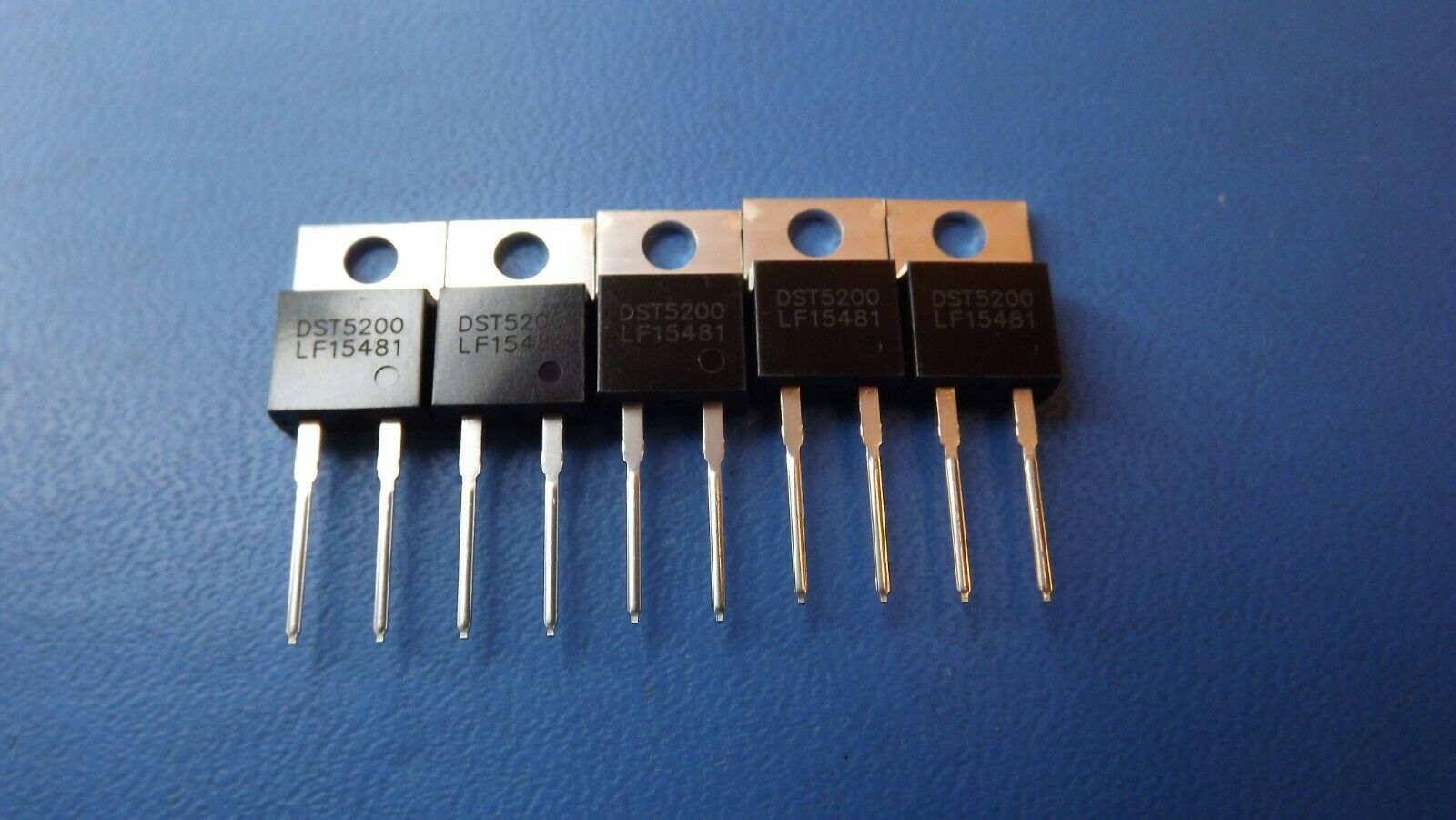

 THIS LISTING IS FOR (50PCS) OF DST5200 BY LITTELFUSE

SPECIFICATIONS

EU RoHS Compliant Yes
Status Active
Diode Type RECTIFIER DIODE
Application GENERAL PURPOSE
Configuration SINGLE
Diode Element Material SILICON
Forward Voltage-Max (VF) 0.9  V
JEDEC-95 Code TO-220AC
JESD-30 Code R-PSFM-T2
Non-rep Pk Forward Current-Max 120.0  A
Number of Elements 1.0
Number of Phases 1.0
Number of Terminals 2
Operating Temperature-Min -55.0  Cel
Operating Temperature-Max 150.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Rep Pk Reverse Voltage-Max 200.0  V
Reverse Current-Max 150.0  µA
Surface Mount NO
Technology SCHOTTKY
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Additional Feature FREE WHEELING DIODE
