(100PCS) BAV99WE6327 Diode Switching 85V 0.2A 3-Pin SOT-323
Tax included.
THIS LISTING IS FOR (100 PCS) OF BAV99WE6327 BY INFINEON
Diode Switching 85V 0.2A 3-Pin SOT-323
BAV99WE6327T Part Details & Parametric
|
|
|
| Minimum Operating Temperature (°C) | -65 |
| Maximum Operating Temperature (°C) | 150 |
| Type | Switching Diode |
| Peak Reverse Current (uA) | 0.15@70V |
| Maximum Power Dissipation (mW) | 250 |
| Configuration | Dual Series |

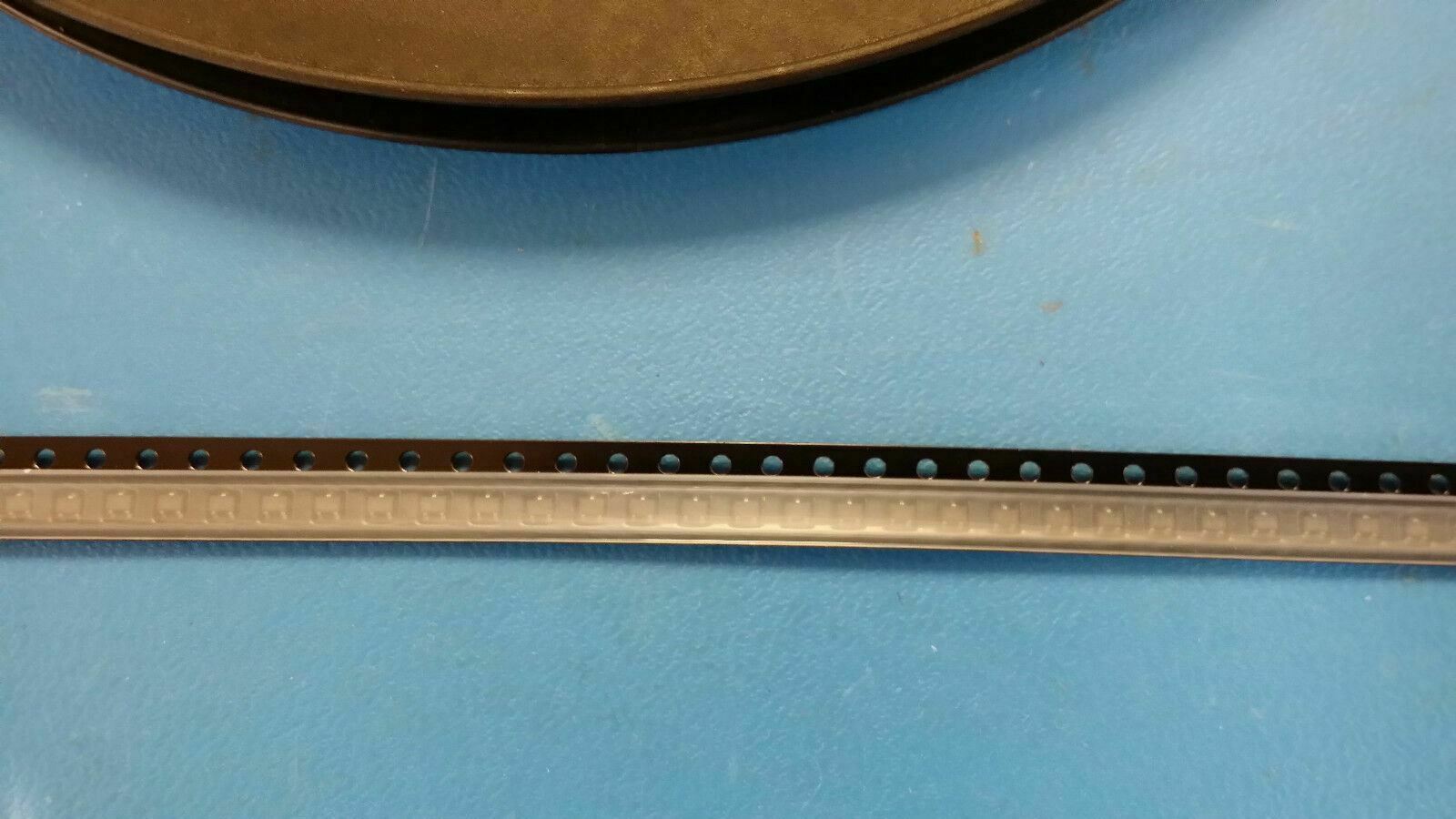

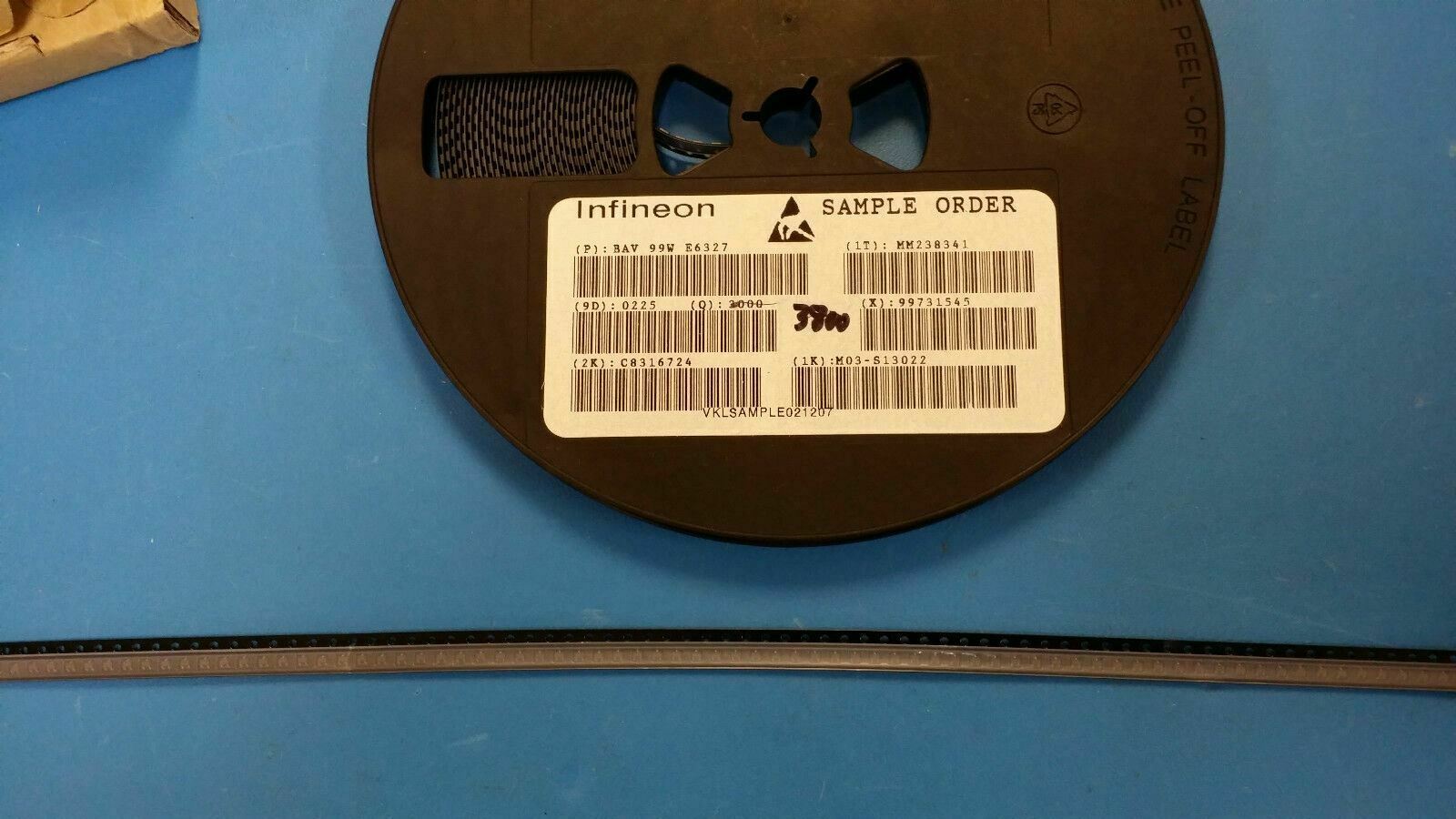

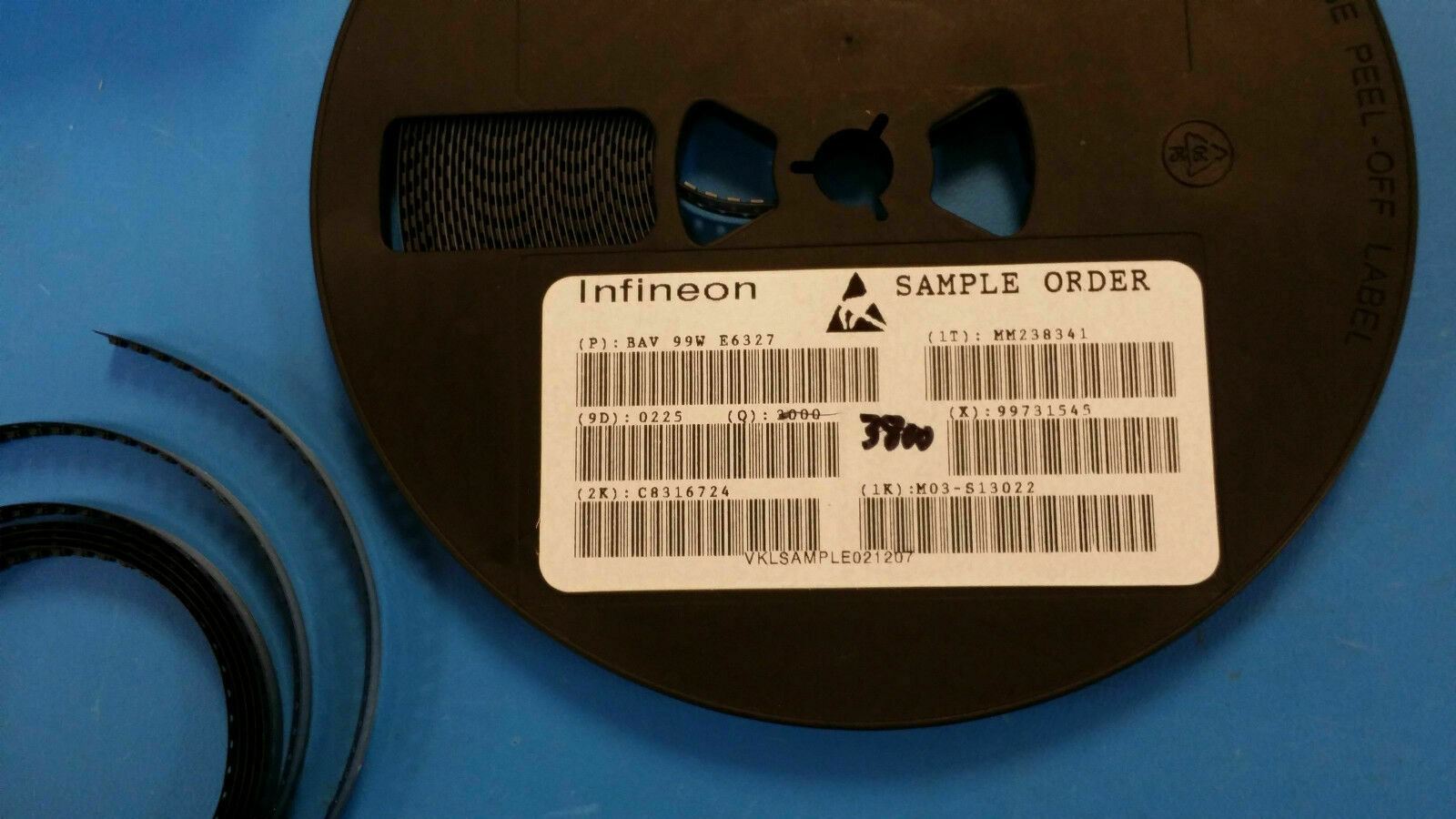

| Packaging | Tape and Reel |
| Peak Reverse Repetitive Voltage (V) | 85 |
| Maximum Continuous Forward Current (A) | 0.2 |
| Peak Reverse Recovery Time (ns) | 4 |
| Peak Forward Voltage (V) | 1.25@0.15A |
| Peak Non-Repetitive Surge Current (A) | 4.5 |
| Operating Junction Temperature (°C) | 150 |
| Mounting | Surface Mount |
| Package Height (mm) | 0.9(Max) |
| Package Length (mm) | 2 |
| Package Width (mm) | 1.25 |
| PCB | 3 |
| Standard Package Name | SC-70 |
| Supplier Package | SOT-323 |
| Pin Count | 3 |
| Lead Shape | Gull-wing |
