(50PCS) 1N5408 Diode Switching 1KV 3A 2-Pin DO-201AD
Tax included.
THIS LISTING IS FOR (50PCS) OF 1N5408 BY DIODES INC.
Diode Switching 1KV 3A 2-Pin DO-201AD
| | |
| Minimum Operating Temperature (°C) | -65 |
| Maximum Operating Temperature (°C) | 150 |
| Type | Switching Diode |
| Peak Reverse Current (uA) | 10 |
| Configuration | Single |

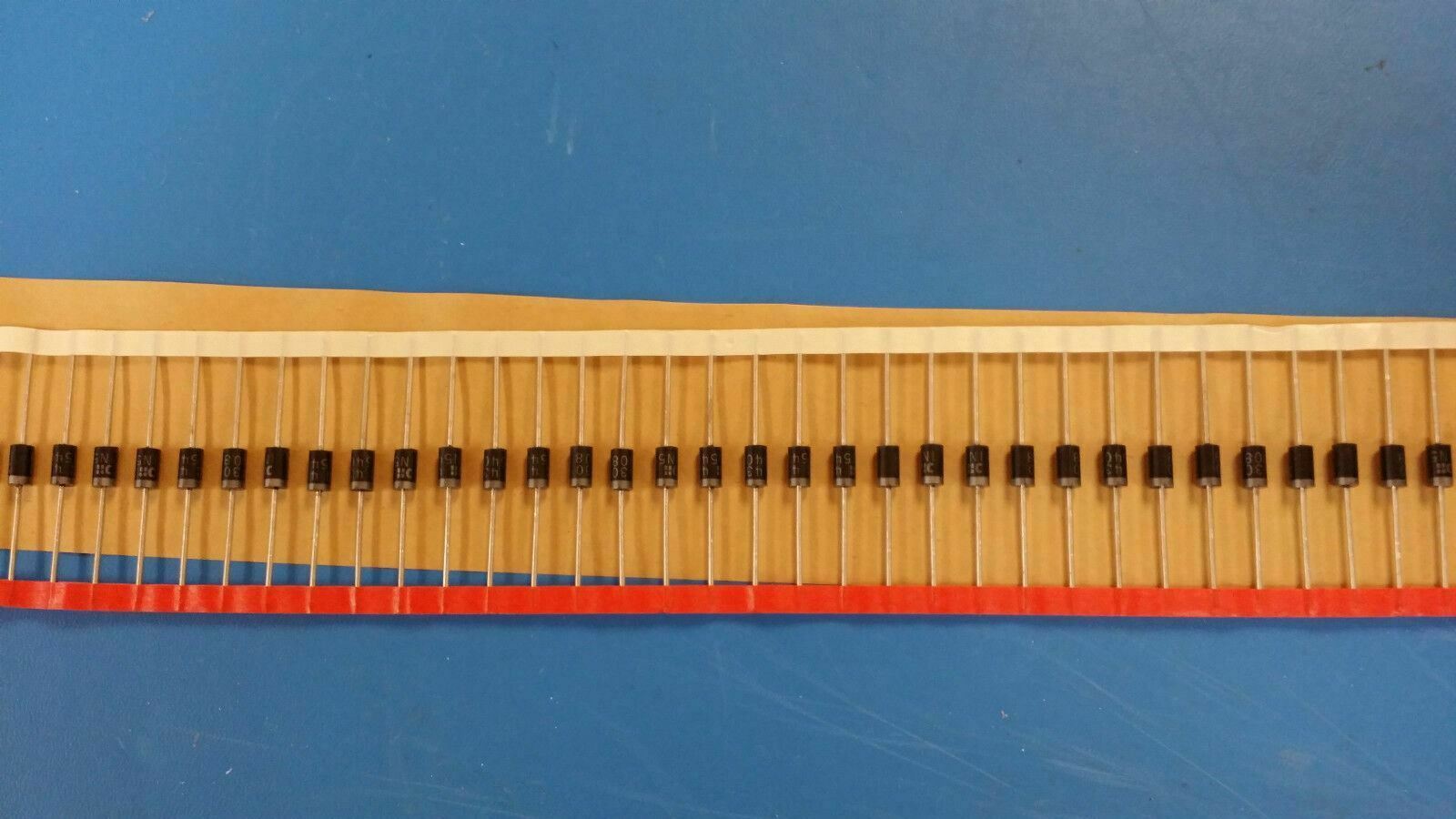

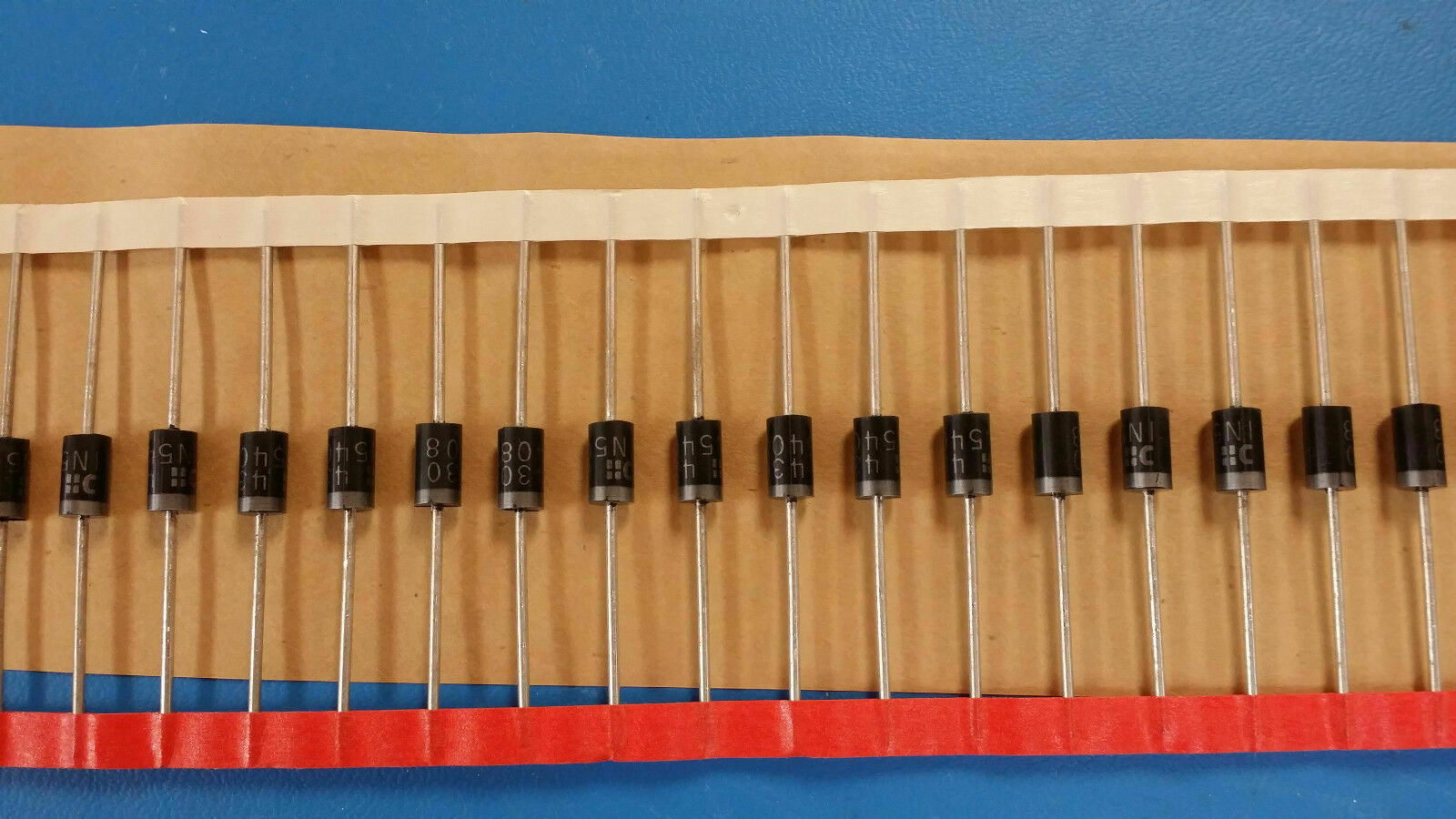

| Packaging | Tape and Reel |
| Peak Reverse Repetitive Voltage (V) | 1000 |
| Maximum Continuous Forward Current (A) | 3@Ta=105C |
| Peak Forward Voltage (V) | 1 |
| Peak Non-Repetitive Surge Current (A) | 200 |
| Operating Junction Temperature (°C) | -65 to 150 |
| Package Diameter (mm) | 5.3(Max) |
| Mounting | Through Hole |
| Package Length (mm) | 9.5(Max) |
| PCB | 2 |
| Standard Package Name | DO-201-AD |
| Supplier Package | DO-201AD |
| Pin Count | 2 |
| Lead Shape | Through Hole |
