(50PC) TMPT3904LO SPRAGUE Small Signal Bipolar Trans. 40V 1-Element NPN TO-236AB
Tax included.

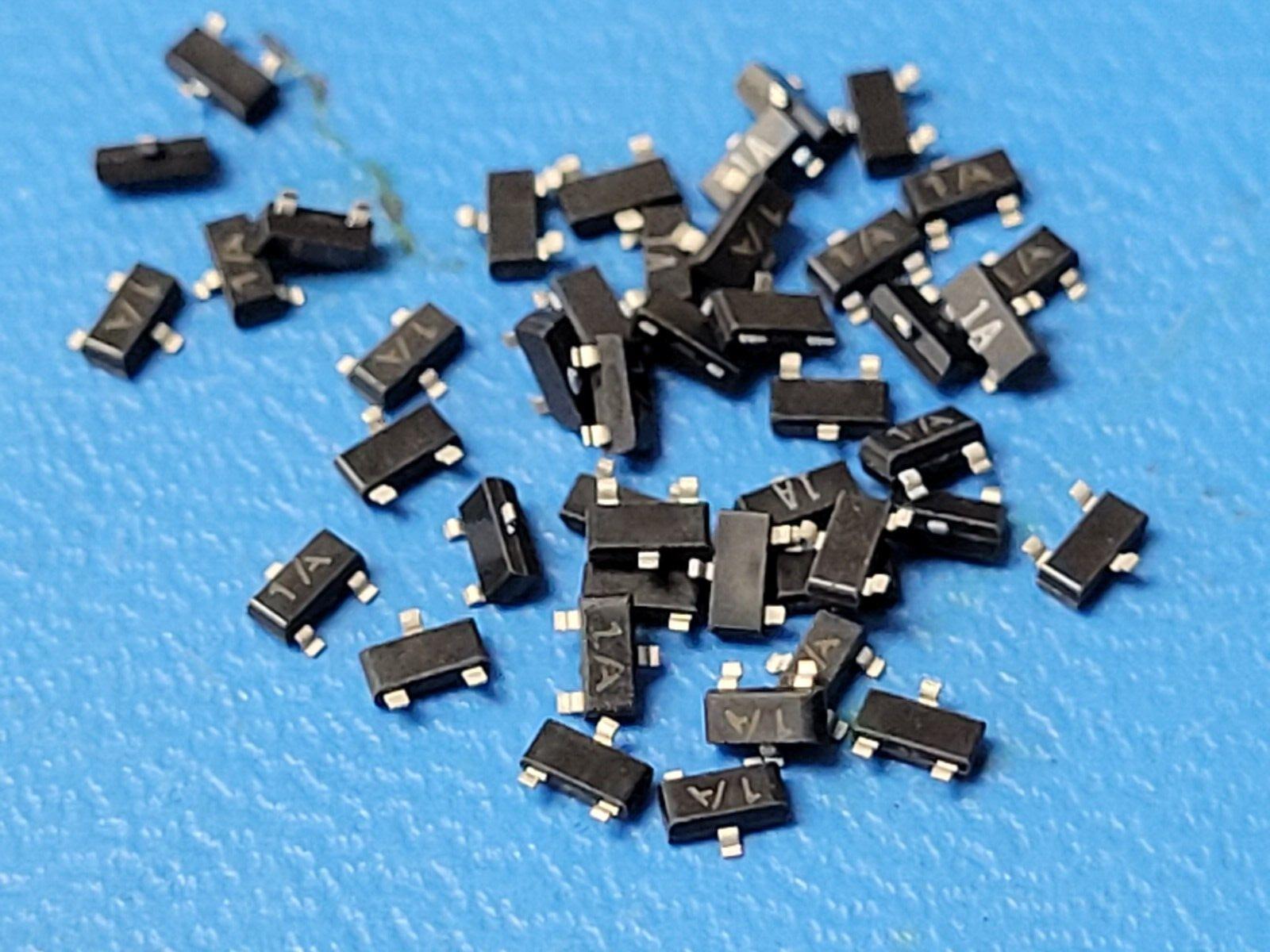

THIS IS FOR (50 PCS) OF TMPT3904LO BY SPRAGUE
Small Signal Bipolar Trans. 40V 1-Element NPN TO-236AB
Part #: TMPT3904LO
Part Category: Transistors
Manufacturer: (Sprague) Allegro MicroSystems Europe Ltd.
Description: Small Signal Bipolar Transistor, 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-236AB
Status Discontinued
Collector-base Capacitance-Max 4.0 pF
Collector-emitter Voltage-Max 40.0 V
Configuration SINGLE
DC Current Gain-Min (hFE) 100.0
JEDEC-95 Code TO-236AB
JESD-30 Code R-PDSO-G3
Number of Elements 1.0
Number of Terminals 3
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Polarity/Channel Type NPN
Qualification Status Not Qualified
Surface Mount YES
Terminal Form GULL WING
Terminal Position DUAL
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 300.0 MHz
VCEsat-Max 0.2 V
