50FY13-1 Micro Switch Transducer Sensor
Tax included.

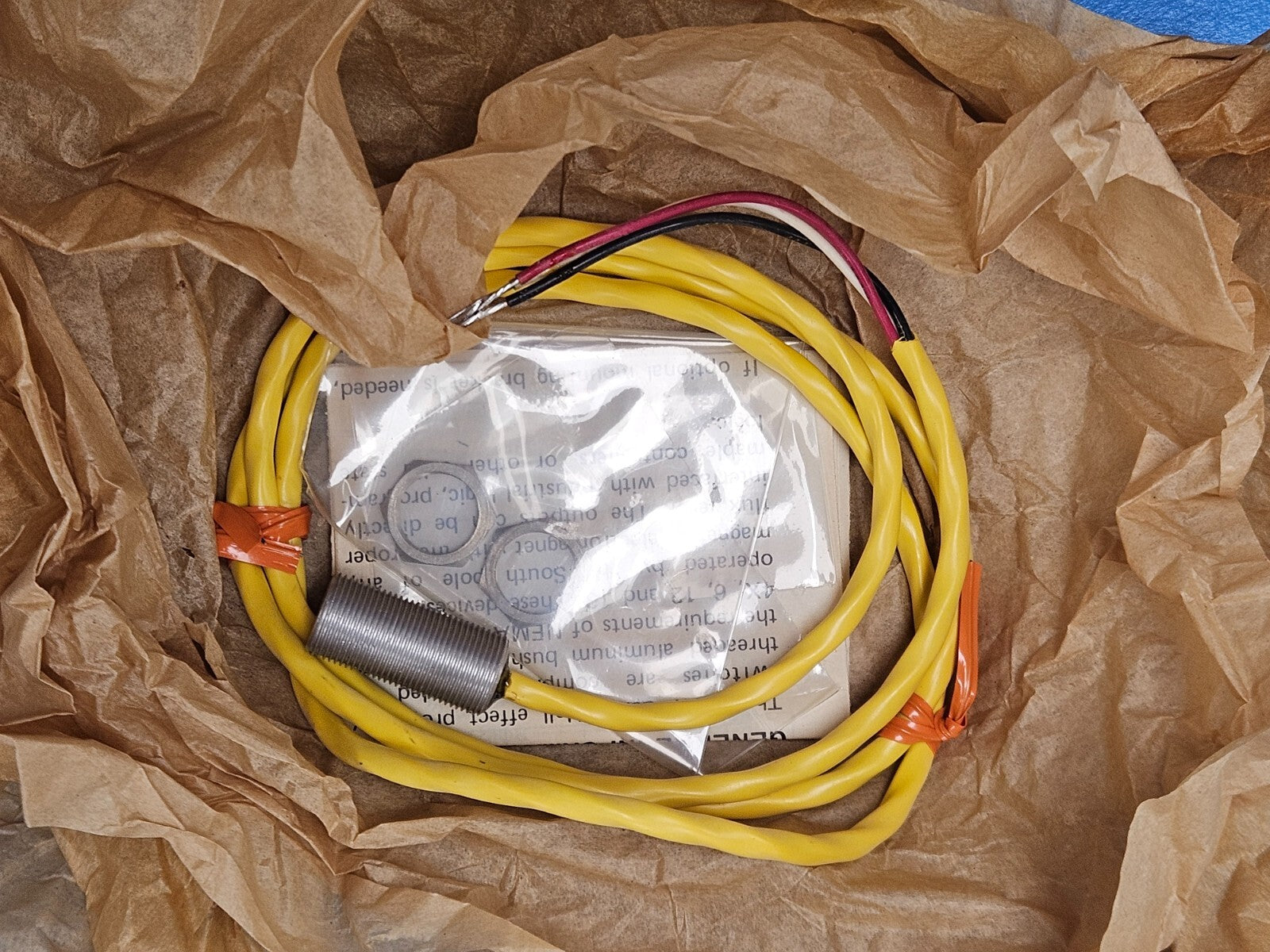

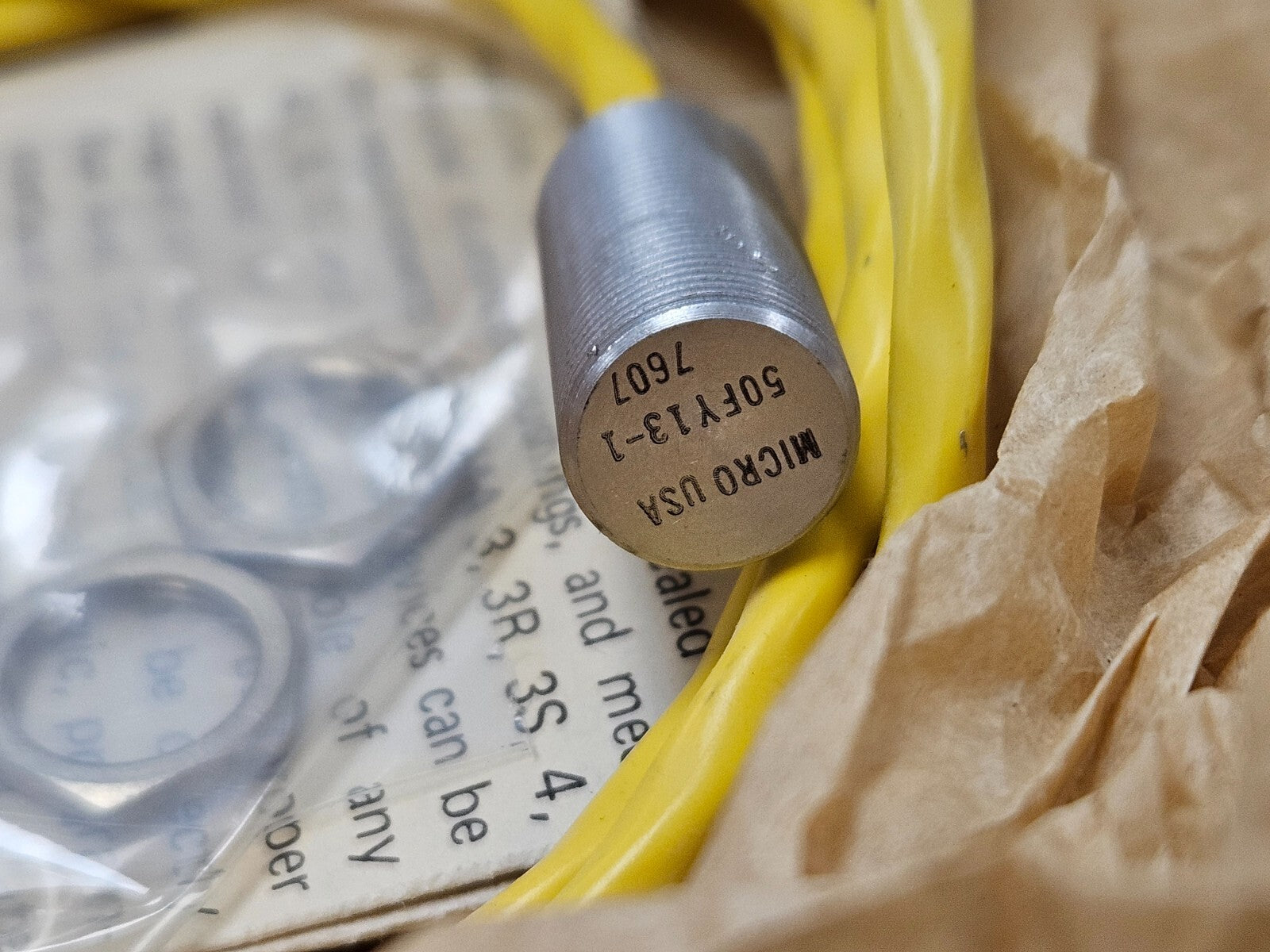

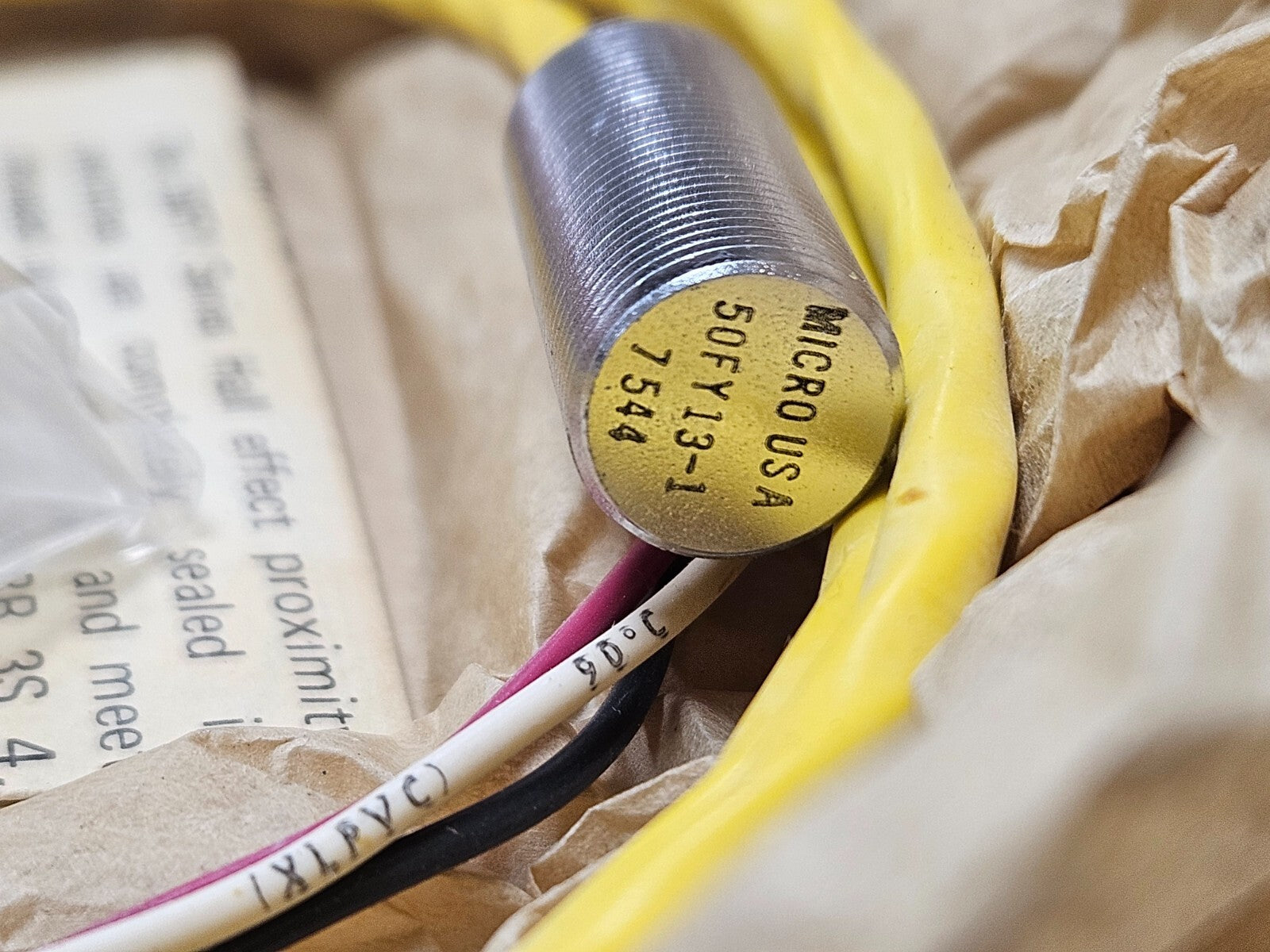

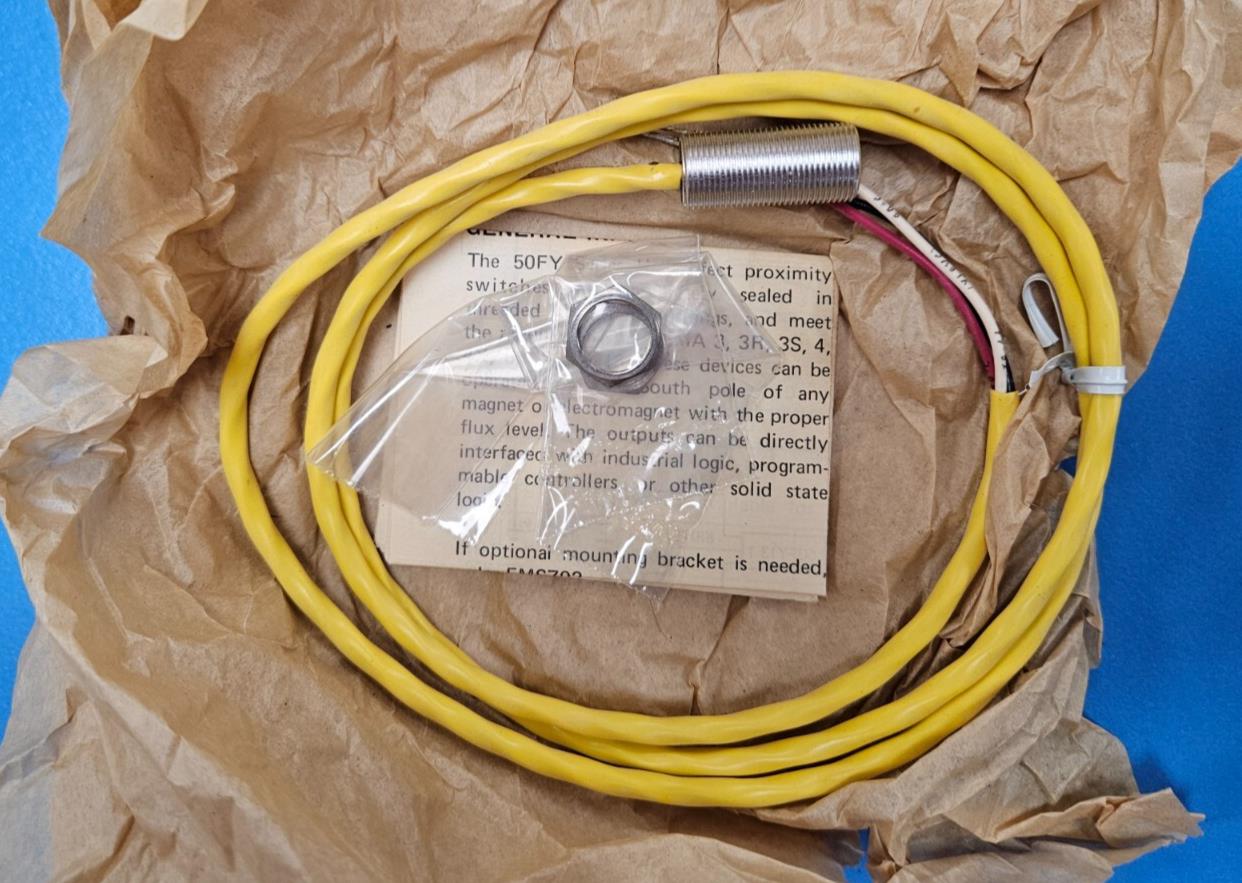

This listing is for (1) 50FY13-1 by Micro Switch
Technical Data
General specifications
Switching element function PNP, NO
Rated operating distance sn 2.03 ... 3.81 mm
Installation embeddable
Output polarity DC
Nominal ratings
Operating voltage UB 7 ... 16 V
Switching frequency f 25 kHz
Reverse polarity protected yes
Short-circuit protection no
Voltage drop Ud ≤ 1.5 V
Repeat accuracy +/- 1 %
Operating current IL ≤ 20 mA
Off-state current Ir 10 µA
No-load supply current I0 ≤ 10 mA
Release point 3.5 - 7 mm
Ambient conditions
Ambient temperature -40 ... 105 °C (-40 ... 221 °F)
Mechanical specifications
Connection type cable PVC , 1 m
Core cross-section 0.34 mm2
Housing material aluminium
Sensing face aluminium
Protection degree IP67
