(500PCS) 2EZ18 18V 2W SILICON UNIDIRECTIONAL VOLTAGE REGULATOR DIODE DO-15
Tax included.

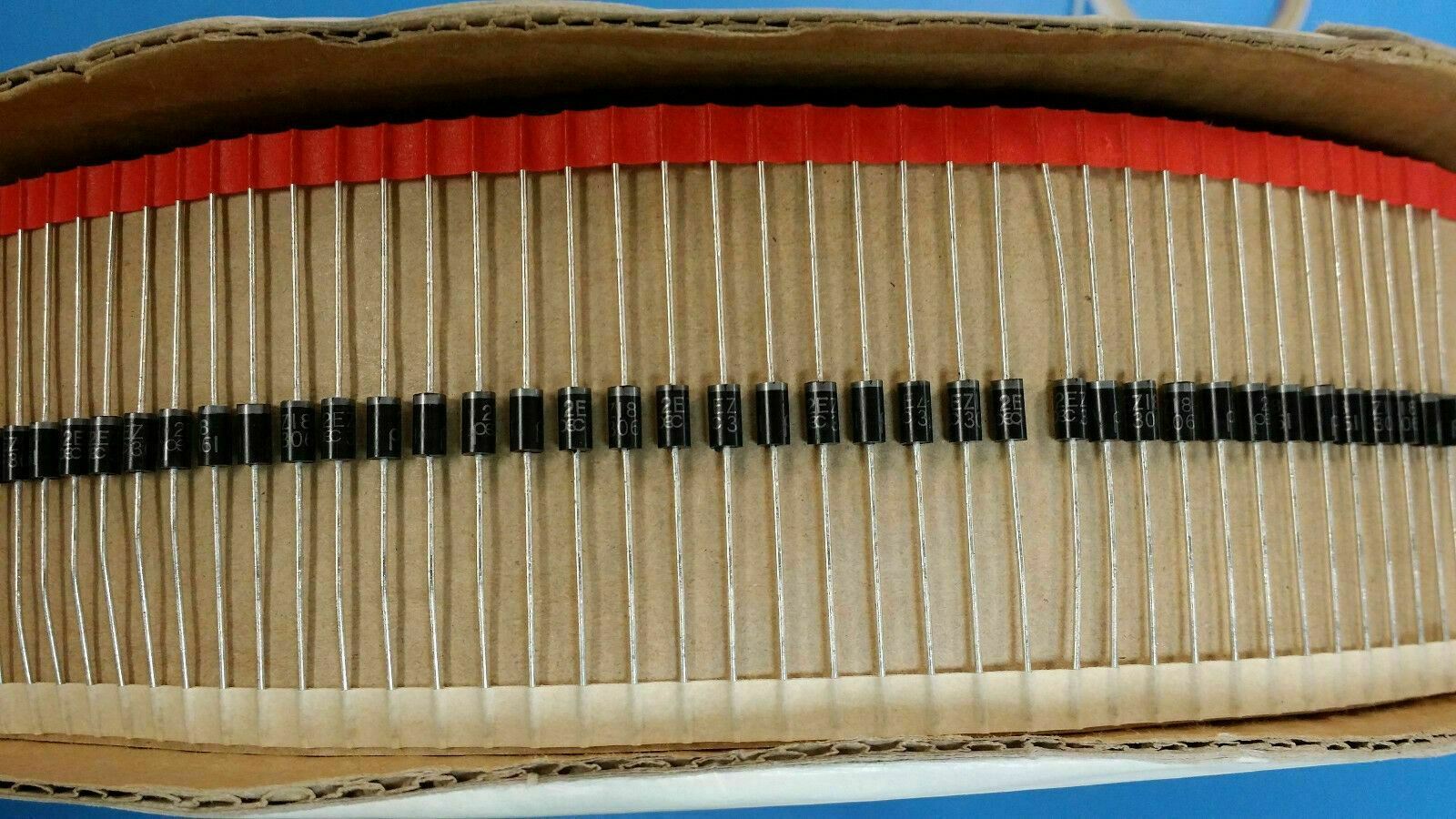

THIS LISTING IS FOR (500 PCS) OF 2EZ18 BY PANJIT
18V 2W SILICON UNIDIRECTIONAL VOLTAGE REGULATOR DIODE DO-15
Manufacturer: PANJIT SemiConductor
Description: 18V, 2W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-15
18V 2W SILICON UNIDIRECTIONAL VOLTAGE REGULATOR DIODE DO-15
Part #: 2EZ18
Part Category: DiodesManufacturer: PANJIT SemiConductor
Description: 18V, 2W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-15
| Mfr Package Description | ROHS COMPLIANT, PLASTIC PACKAGE-2 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Active |
| Diode Type | ZENER DIODE |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Dynamic Impedance-Max | 10 ohm |
| JEDEC-95 Code | DO-15 |
| JESD-30 Code | O-PALF-W2 |
| Moisture Sensitivity Level | NOT SPECIFIED |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -55 Cel |
| Operating Temperature-Max | 150 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | ROUND |
| Package Style | LONG FORM |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Polarity | UNIDIRECTIONAL |
| Power Dissipation-Max | 2 W |
| Reference Voltage-Nom | 18 V |
| Sub Category | Voltage Reference Diodes |
| Surface Mount | NO |
| Technology | ZENER |
| Terminal Form | WIRE |
| Terminal Position | AXIAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Voltage Tol-Max | 5 % |
| Working Test Current | 27.8 mA |
