(500 PCS) P6KE350A ST MICRO 600W UNIDIRECTIONAL SILICON TVS DIODE DO-204AC
Tax included.

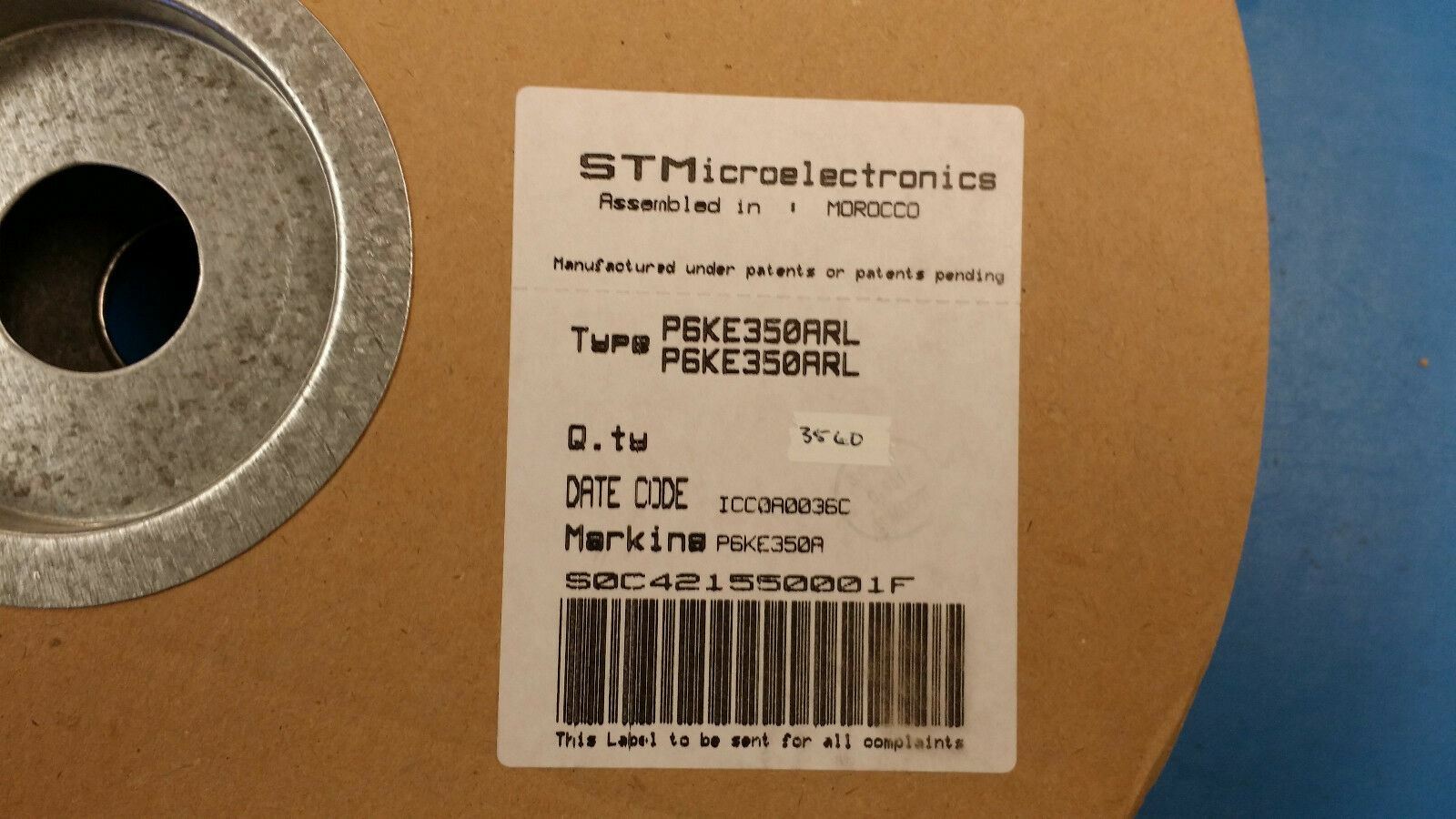

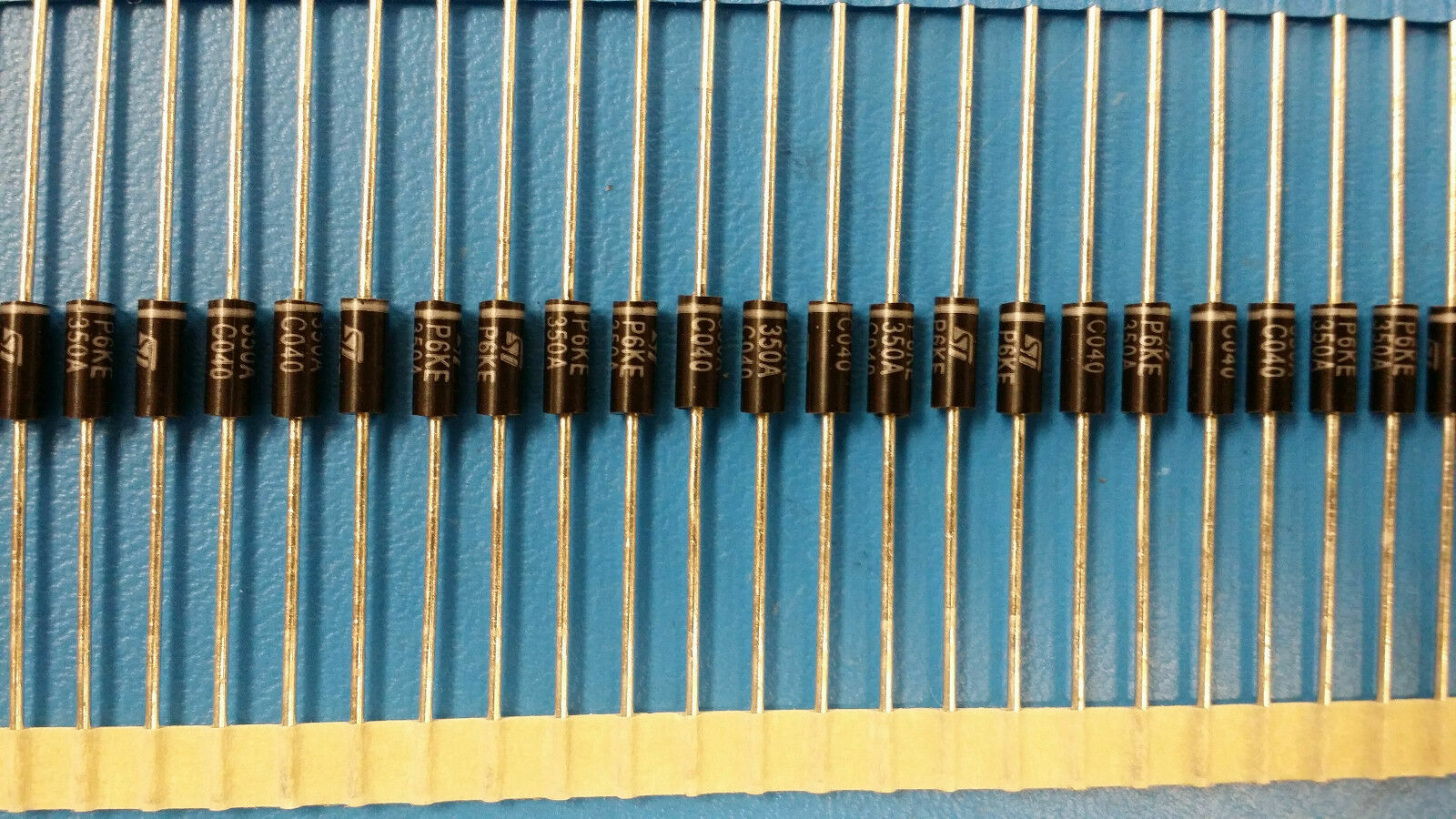

THIS LISTING IS FOR (500 PCS) OF P6KE350A BY ST MICRO
600W UNIDIRECTIONAL SILICON TVS DIODE DO-204AC
Manufacturer: STMicroelectronics, Inc.
Description: 600W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-204AC
Mfr Package Description
600W UNIDIRECTIONAL SILICON TVS DIODE DO-204AC
Part #: P6KE350ARL
Part Category: DiodesManufacturer: STMicroelectronics, Inc.
Description: 600W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-204AC
Mfr Package Description
| PLASTIC, DO-15, 2 PIN | |
| Status | Discontinued |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| Breakdown Voltage-Nom | 350.0 V |
| Breakdown Voltage-Min | 332.0 V |
| Breakdown Voltage-Max | 368.0 V |
| Case Connection | ISOLATED |
| Clamping Voltage-Max | 618.0 V |
| Configuration | SINGLE |
| Diode Capacitance-Min | 270.0 pF |
| Diode Element Material | SILICON |
| JEDEC-95 Code | DO-204AC |
| JESD-30 Code | O-PALF-W2 |
| Non-rep Peak Rev Power Dis-Max | 600.0 W |
| Number of Elements | 1.0 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 175.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | ROUND |
| Package Style | LONG FORM |
| Polarity | UNIDIRECTIONAL |
| Power Dissipation-Max | 5.0 W |
| Qualification Status | Not Qualified |
| Reverse Current-Max | 5.0 µA |
| Sub Category | Transient Suppressors |
| Surface Mount | NO |
| Technology | AVALANCHE |
| Terminal Form | WIRE |
| Terminal Position | AXIAL |
| Additional Feature | UL RECOGNIZED |
