(500 PCS) MTP75N03HDL ON SEMI Trans MOSFET N-CH 25V 75A 3-Pin(3+Tab) TO-220
Tax included.

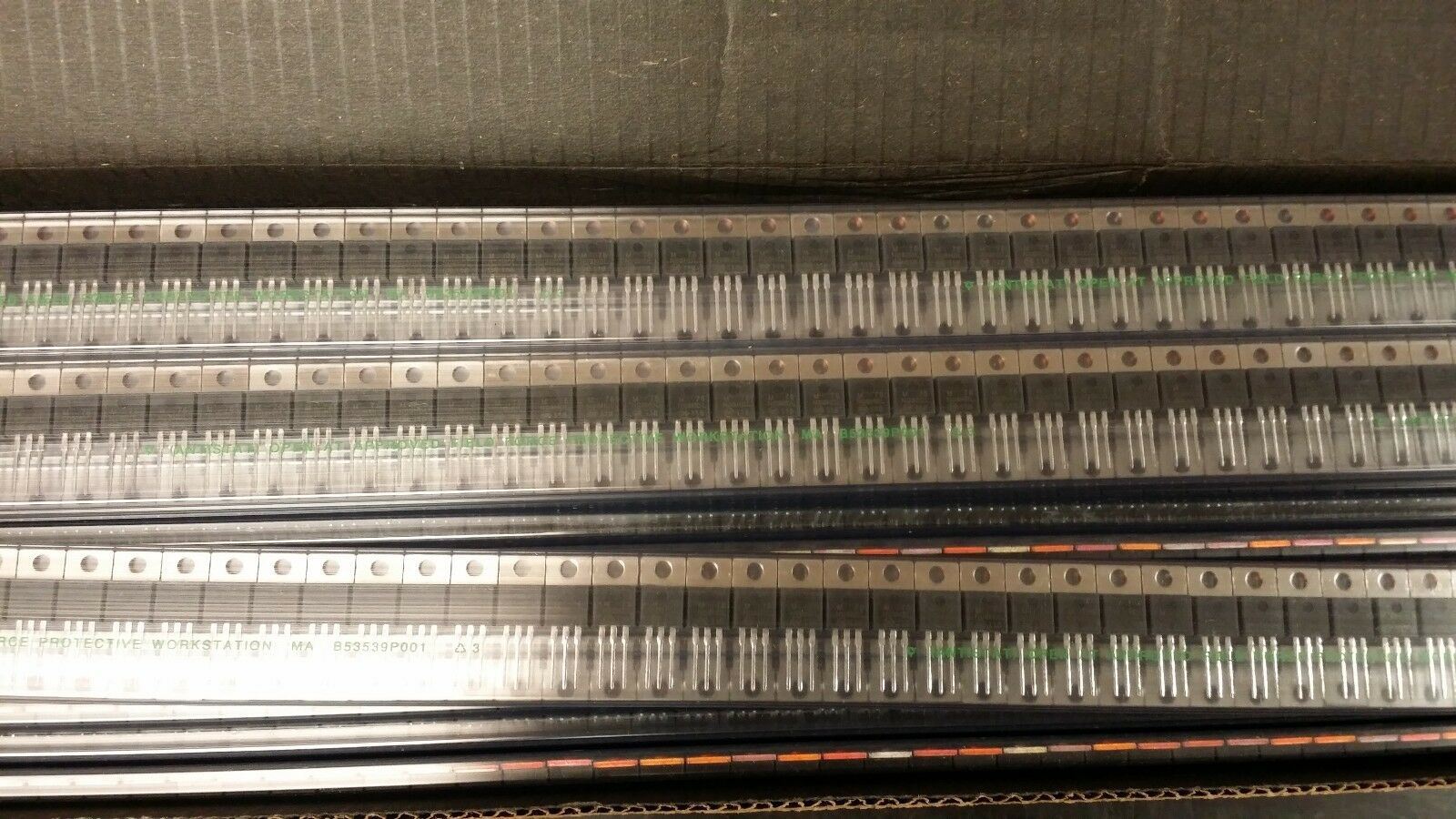

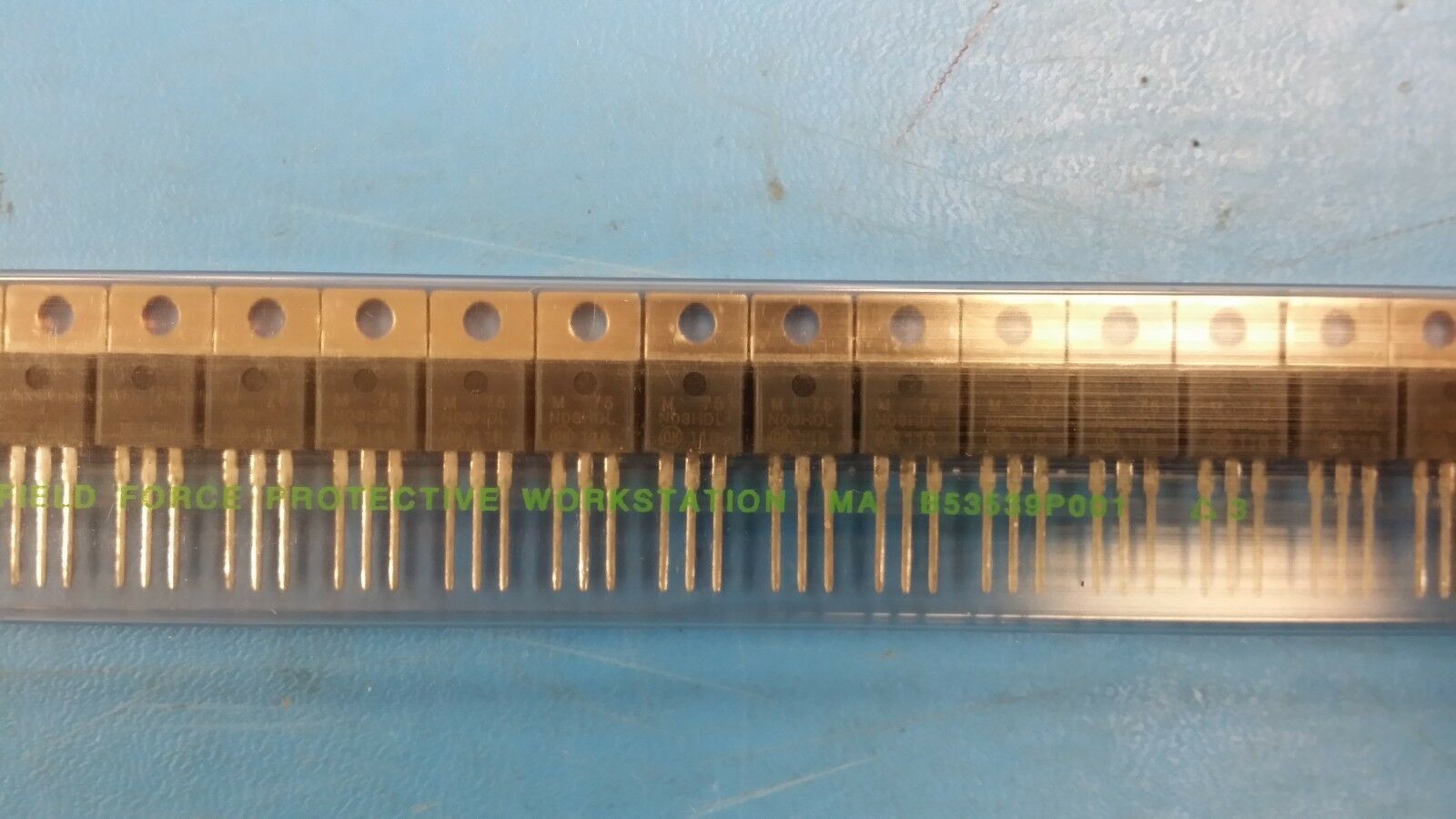

THIS LISTING IS FOR (500 PCS) OF MTP75N03HDL BY ON SEMI
Trans MOSFET N-CH 25V 75A 3-Pin(3+Tab) TO-220
Part #: MTP75N03HDL
Part Category: Transistors
Manufacturer: ON Semiconductor L.L.C.
Description: Power Field-Effect Transistor, 75A I(D), 25V, 0.009ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB
Mfr Package Description CASE 221A-09, 3 PIN
Status Discontinued
Avalanche Energy Rating (Eas) 280.0 mJ
Case Connection DRAIN
Configuration SINGLE WITH BUILT-IN DIODE
Drain Current-Max (Abs) (ID) 75.0 A
Drain Current-Max (ID) 75.0 A
Drain-source On Resistance-Max 0.009 ohm
DS Breakdown Voltage-Min 25.0 V
FET Technology METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
JESD-609 Code e0
Number of Elements 1.0
Number of Terminals 3
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 150.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (Abs) 125.0 W
Pulsed Drain Current-Max (IDM) 225.0 A
Qualification Status Not Qualified
Sub Category FET General Purpose Power
Surface Mount NO
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application SWITCHING
Transistor Element Material SILICON
Additional Feature LOGIC LEVEL COMPATIBLE, AVALANCHE RATED
