(500 PCS) HD74LVC00TELL HITACHI LOGIC QUAD 2-INPUT NAND GATE, PDSO14
Tax included.

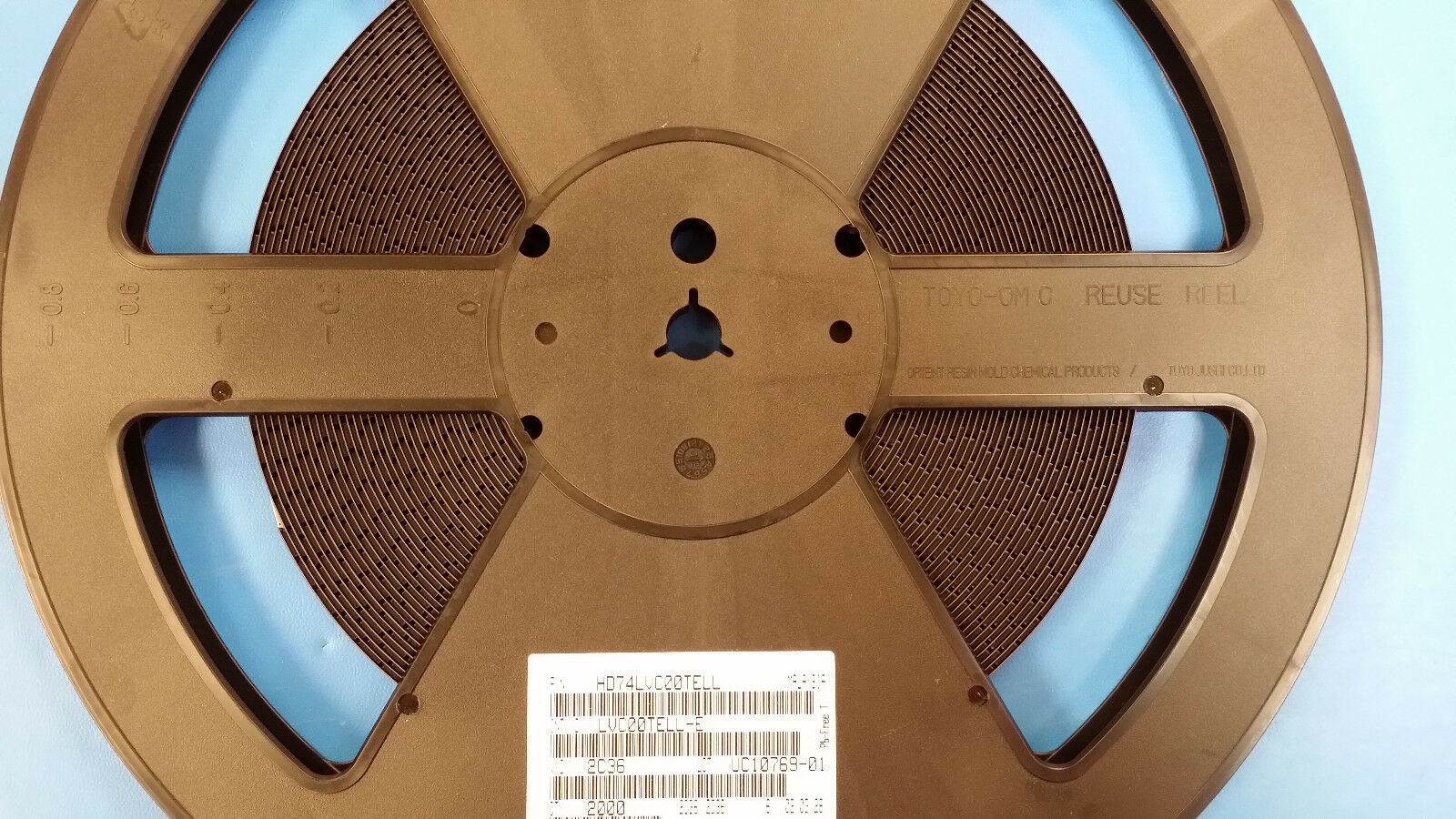

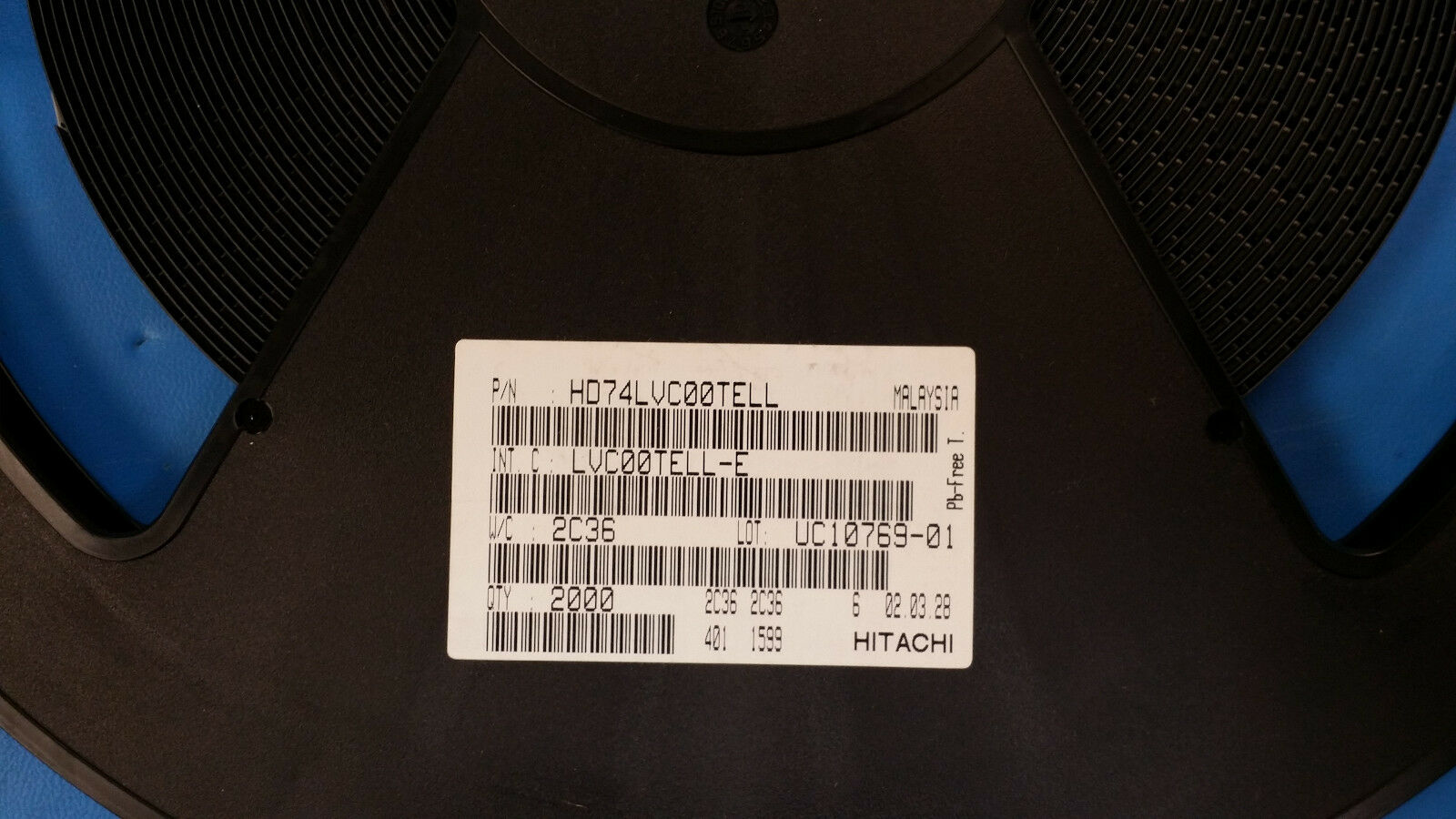

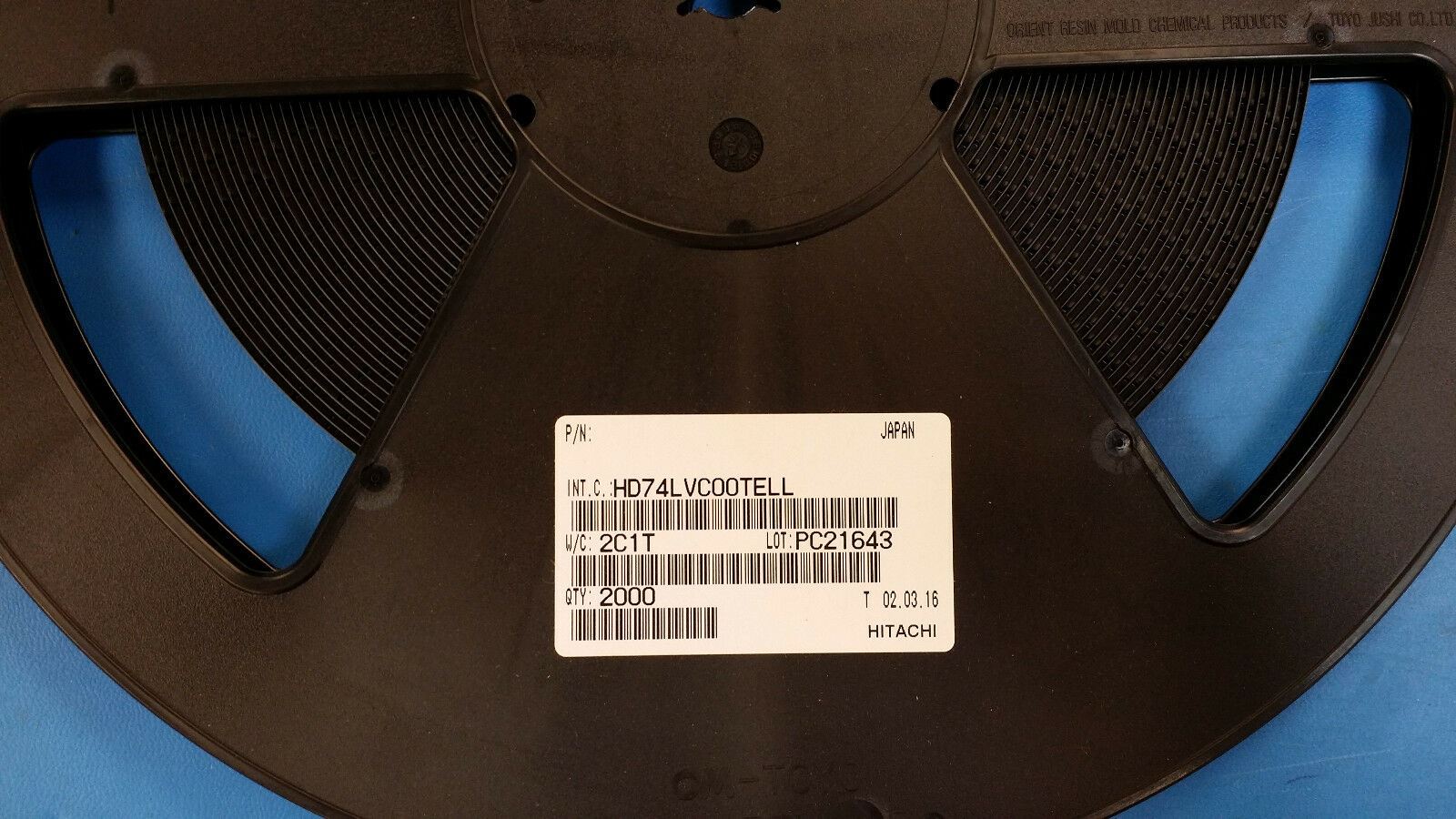

THIS LISTING IS FOR (500 PCS) OF HD74LVC00TELL BY HITACHI
LOGIC QUAD 2-INPUT NAND GATE, PDSO14
Manufacturer: Hitachi, Ltd.
Description: LVC/LCX/Z SERIES, QUAD 2-INPUT NAND GATE, PDSO14
LOGIC QUAD 2-INPUT NAND GATE, PDSO14
Part #: HD74LVC00TELL
Part Category: Logic ICsManufacturer: Hitachi, Ltd.
Description: LVC/LCX/Z SERIES, QUAD 2-INPUT NAND GATE, PDSO14
| Mfr Package Description | TSSOP-14 |
| Status | Transferred |
| Logic IC Type | NAND GATE |
| Sub Category | Gates |
| Family | LVC/LCX/Z |
| JESD-30 Code | R-PDSO-G14 |
| JESD-609 Code | e0 |
| Load Capacitance (CL) | 50 pF |
| Max I(ol) | 0.0240 Amp |
| Number of Functions | 4 |
| Number of Inputs | 2 |
| Number of Terminals | 14 |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 85 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TSSOP |
| Package Equivalence Code | TSSOP14,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies (V) | 3.3 |
| Prop. Delay@Nom-Sup | 6 ns |
| Propagation Delay (tpd) | 7 ns |
| Qualification Status | Not Qualified |
| Schmitt Trigger | NO |
| Seated Height-Max | 1.2 mm |
| Supply Voltage-Nom (Vsup) | 2.7 |
| Supply Voltage-Min (Vsup) | 2 V |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.6500 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 5 mm |
| Width | 4.4 mm |
|
|
|
