(500 PCS) 1N4148 FSC Diode Small Signal Switching 100V 0.3A 2-Pin DO-35
Tax included.

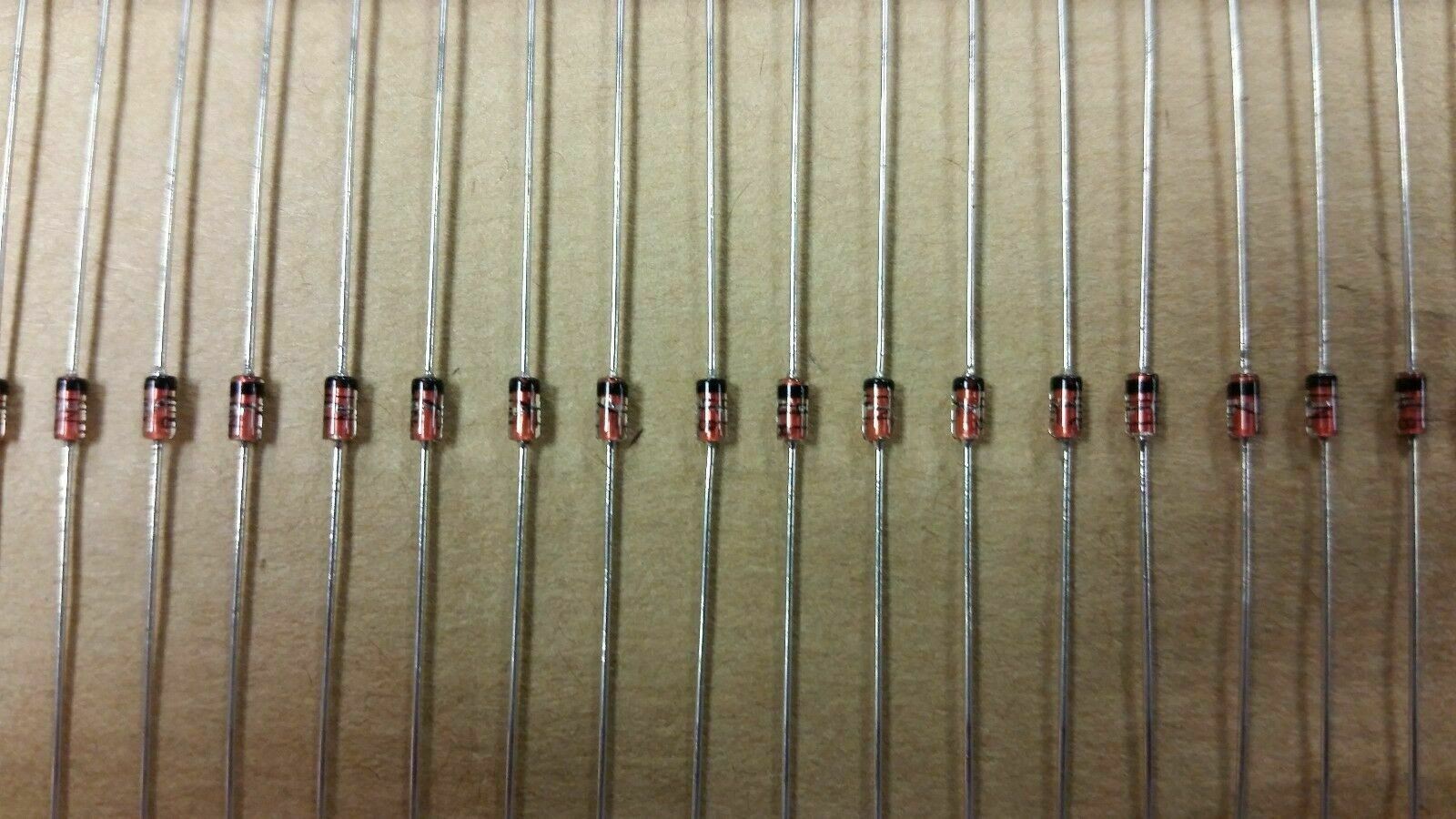

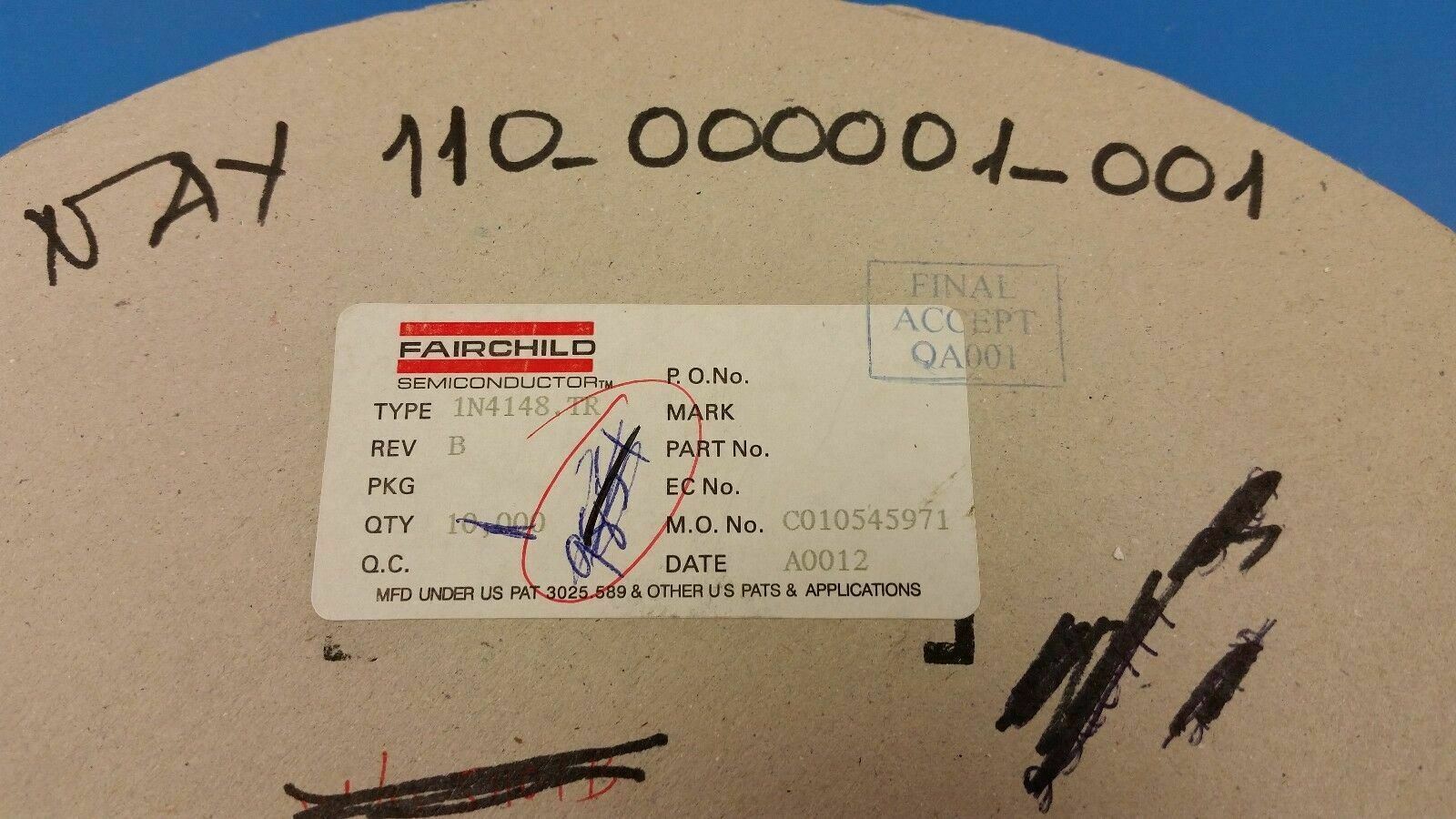

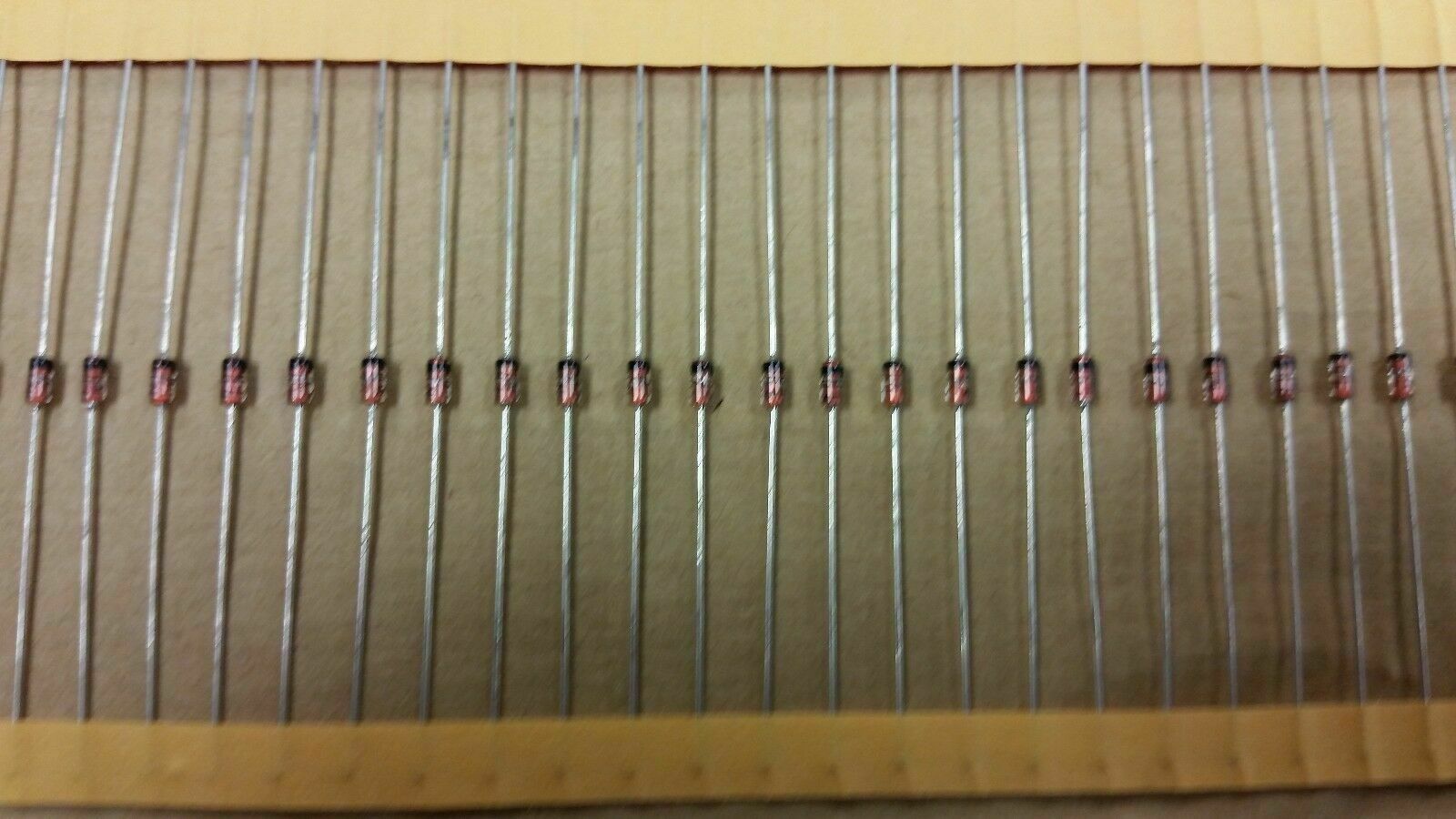

THIS LISTING IS FOR (500 PCS) OF 1N4148 BY FAIRCHILD SEMICONDUCTOR
Diode Small Signal Switching 100V 0.3A 2-Pin DO-35
Diode Small Signal Switching 100V 0.3A 2-Pin DO-35
1N4148 Part Details & Parametric
|
|
|
| Minimum Operating Temperature (°C) | -65 |
| Maximum Operating Temperature (°C) | 175 |
| Type | Small Signal Switching Diode |
| Peak Reverse Current (uA) | 5@75V |
| Maximum Power Dissipation (mW) | 500 |
| Configuration | Single |
| Packaging | Bulk |
| Peak Reverse Repetitive Voltage (V) | 100 |
| Maximum Continuous Forward Current (A) | 0.3 |
| Peak Reverse Recovery Time (ns) | 4 |
| Peak Forward Voltage (V) | 1@0.01A |
| Peak Non-Repetitive Surge Current (A) | 4 |
| Operating Junction Temperature (°C) | 175 |
| Package Diameter (mm) | 1.91(Max) |
| Mounting | Through Hole |
| Package Length (mm) | 4.56(Max) |
| PCB | 2 |
| Standard Package Name | DO-204-AH |
| Supplier Package | DO-35 |
| Pin Count | 2 |
| Lead Shape | Through Hole |
