(50 PCS) ZTX655STZ ZETEX Bipolar Transistors - BJT NPN Super E-Line ROHS
Tax included.

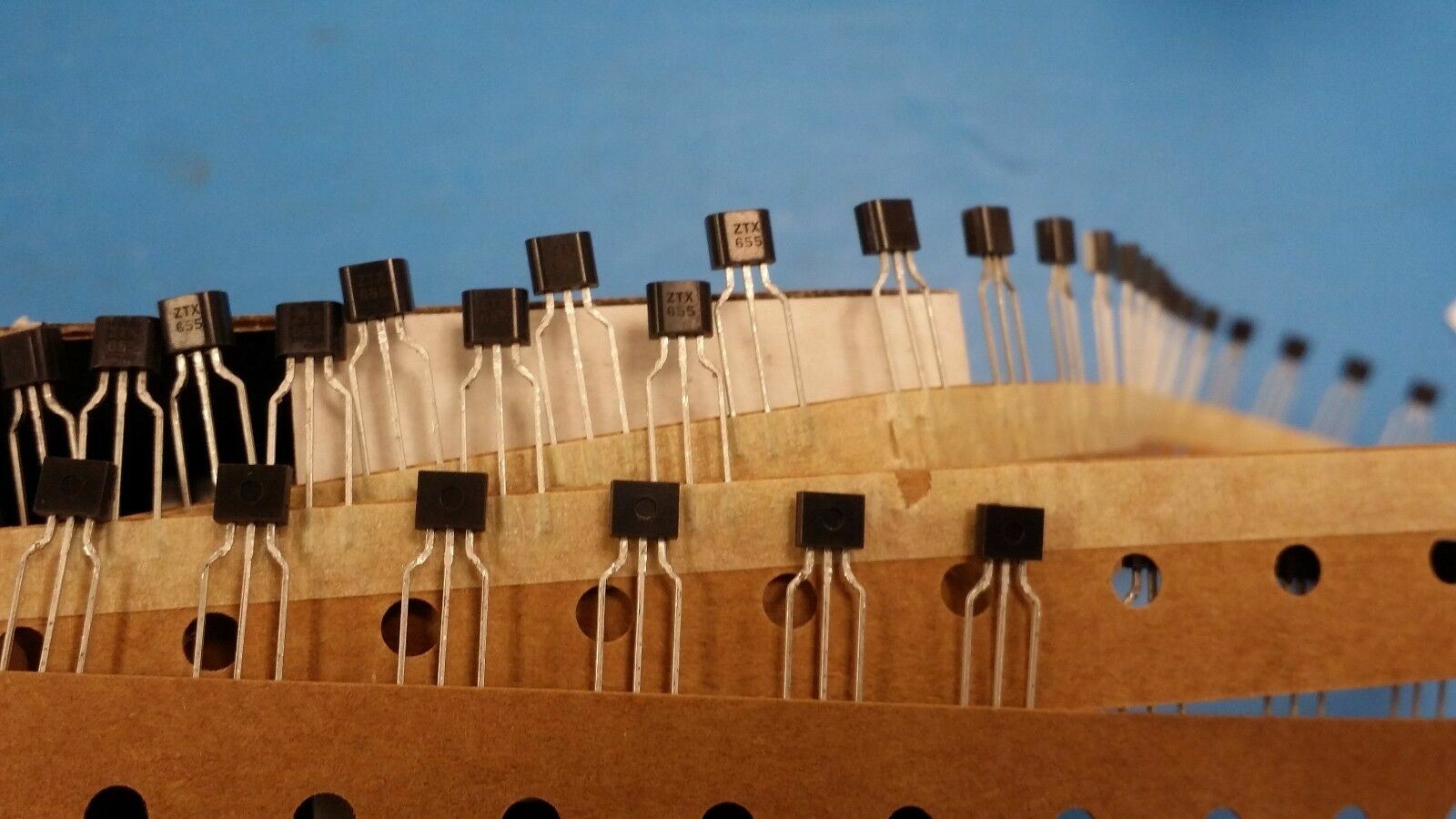

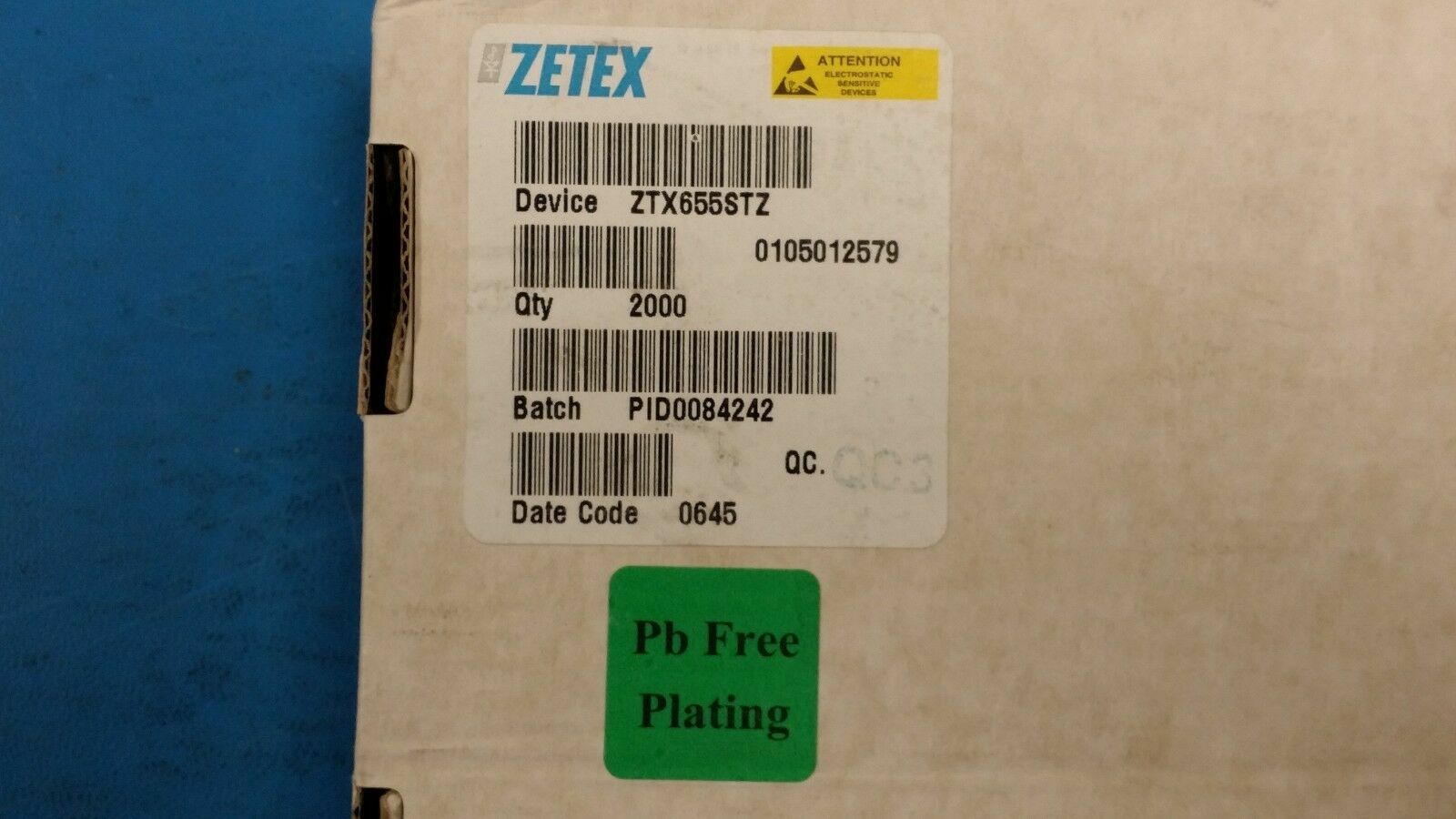

THIS LISTING IS FOR (50 PCS) OF ZTX655STZ ZETEX/DOIDES INC
Bipolar Transistors - BJT NPN Super E-Line ROHS
Part #: ZTX655STZ
Part Category: Transistors
Manufacturer: DIODES Incorporated
Description: Small Signal Bipolar Transistor, 1A I(C), 150V V(BR)CEO, 1-Element, NPN, Silicon
Manufacturer: DIODES Incorporated
Description: Small Signal Bipolar Transistor, 1A I(C), 150V V(BR)CEO, 1-Element, NPN, Silicon
| Mfr Package Description | TO-92 COMPATIBLE, E-LINE PACKAGE-3 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Transferred |
| Collector-base Capacitance-Max | 20.0 pF |
| Collector Current-Max (IC) | 1.0 A |
| Collector-emitter Voltage-Max | 150.0 V |
| Configuration | SINGLE |
| DC Current Gain-Min (hFE) | 20.0 |
| JESD-30 Code | R-PSIP-W3 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1.0 |
| Number of Terminals | 3 |
| Operating Temperature-Max | 200.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity/Channel Type | NPN |
| Qualification Status | Not Qualified |
| Surface Mount | NO |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | WIRE |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
| Transition Frequency-Nom (fT) | 30.0 MHz |
| VCEsat-Max | 0.5 V |
