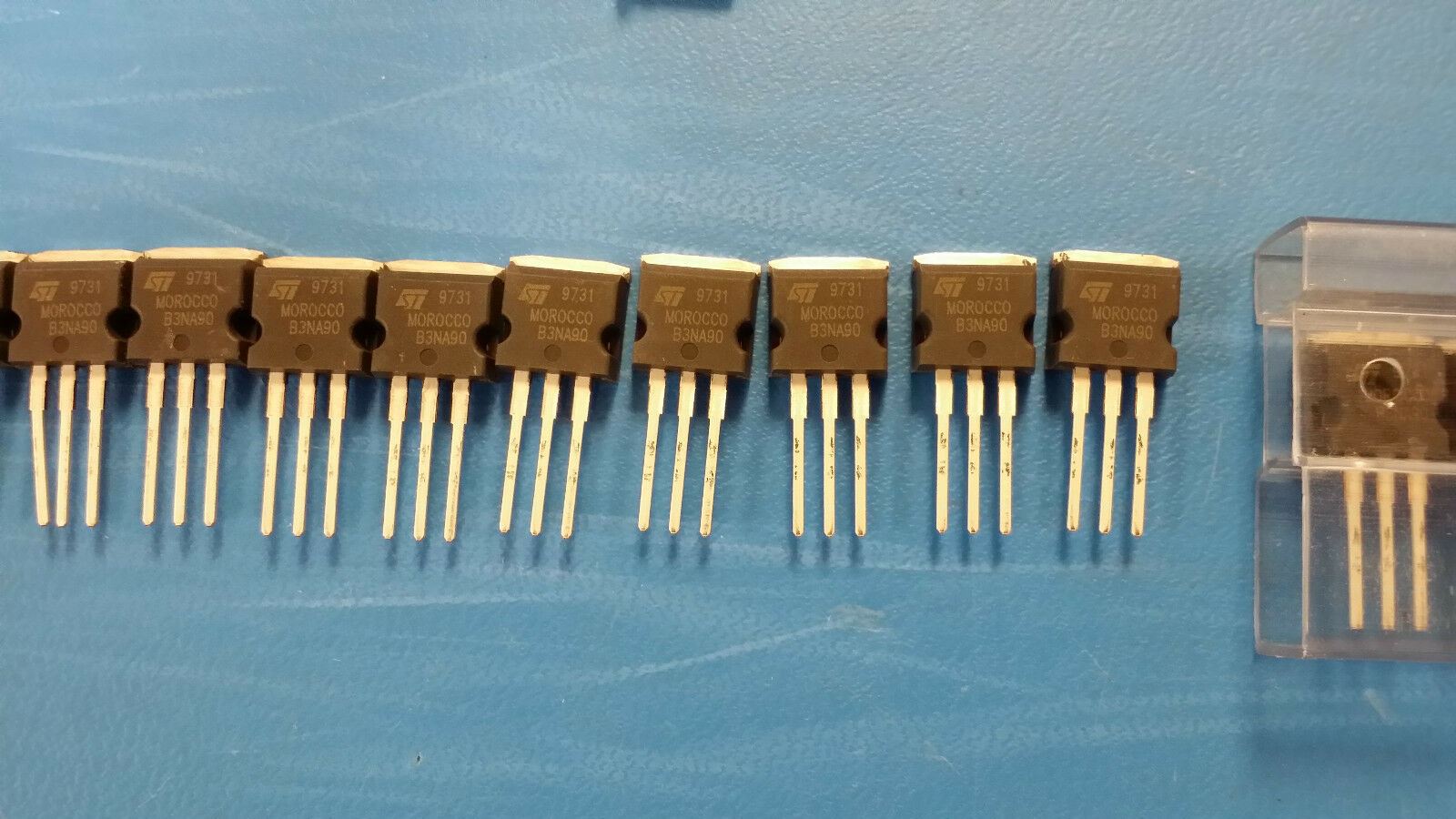

(50 PCS) STB3NA90 MOSFET TRANSISTOR, 3A, 900V, 5.3ohm,TO-220AB

$39.95
Unit price per

Tax included.

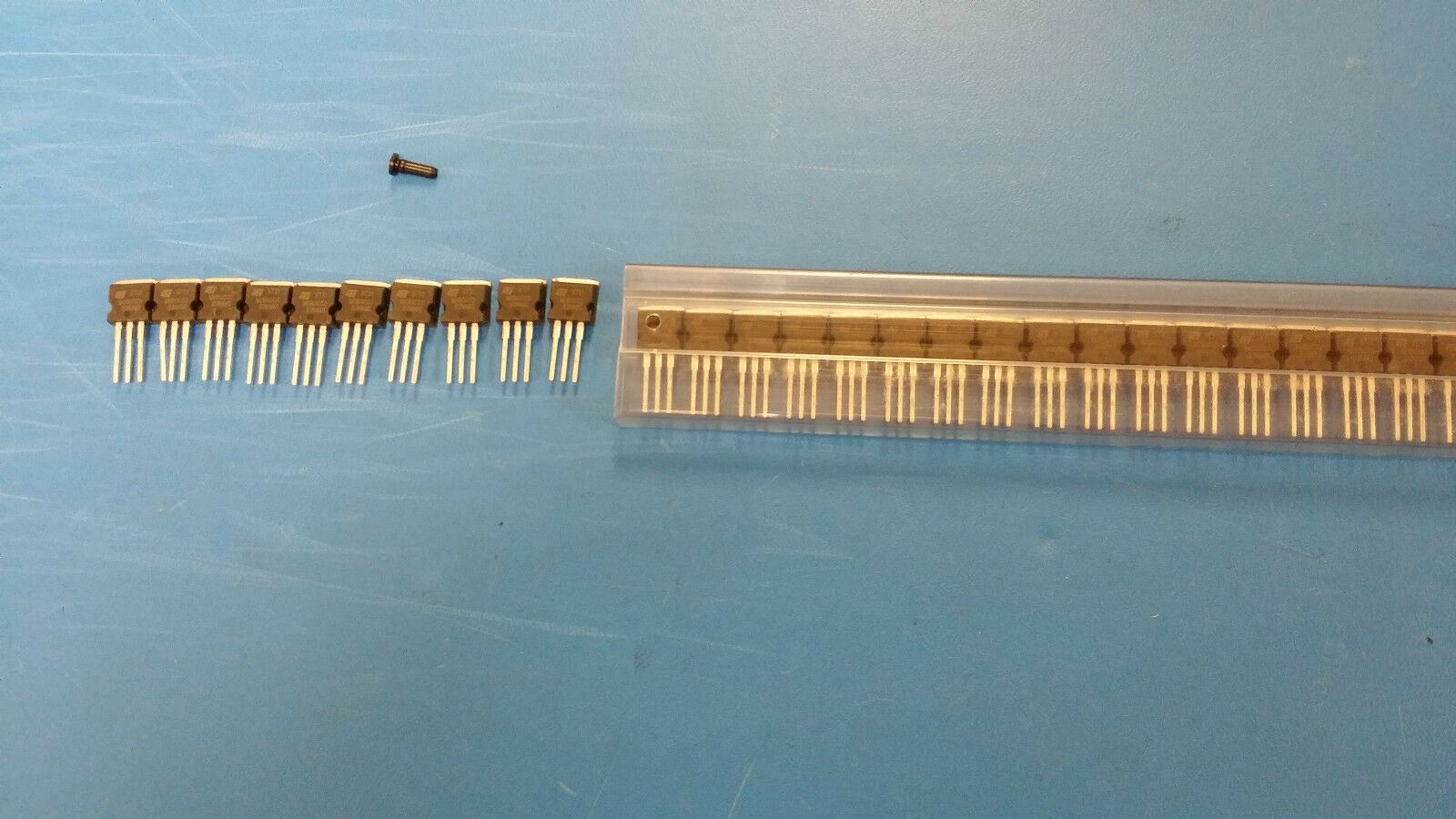

THIS LISTING IS FOR (50 PCS) OF STB3NA90 BY STMICRO

MOSFET TRANSISTOR, 3A, 900V, 5.3ohm,TO-220AB

Mfr Package Description TO-220, 3 PIN

Status Discontinued

Avalanche Energy Rating (Eas) 45.0 mJ

Configuration SINGLE WITH BUILT-IN DIODE

Drain Current-Max (Abs) (ID) 3.0 A

Drain Current-Max (ID) 3.0 A

Drain-source On Resistance-Max 5.3 ohm

DS Breakdown Voltage-Min 900.0 V

FET Technology METAL-OXIDE SEMICONDUCTOR

JEDEC-95 Code TO-220AB

JESD-30 Code R-PSFM-T3

JESD-609 Code e0

Number of Elements 1.0

Number of Terminals 3

Operating Mode ENHANCEMENT MODE

Operating Temperature-Max 150.0 Cel

Package Body Material PLASTIC/EPOXY

Package Shape RECTANGULAR

Package Style FLANGE MOUNT

Peak Reflow Temperature (Cel) NOT SPECIFIED

Polarity/Channel Type N-CHANNEL

Power Dissipation-Max (Abs) 100.0 W

Pulsed Drain Current-Max (IDM) 12.0 A

Qualification Status Not Qualified

Sub Category FET General Purpose Power

Surface Mount NO

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form THROUGH-HOLE

Terminal Position SINGLE

Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED

Transistor Application SWITCHING

Transistor Element Material SILICON

Additional Feature AVALANCHE RATED
