(50 PCS) SA120A GEN SEMI Diode TVS Single Uni-Dir 120V 500W 2-Pin DO-15 T/R
Tax included.

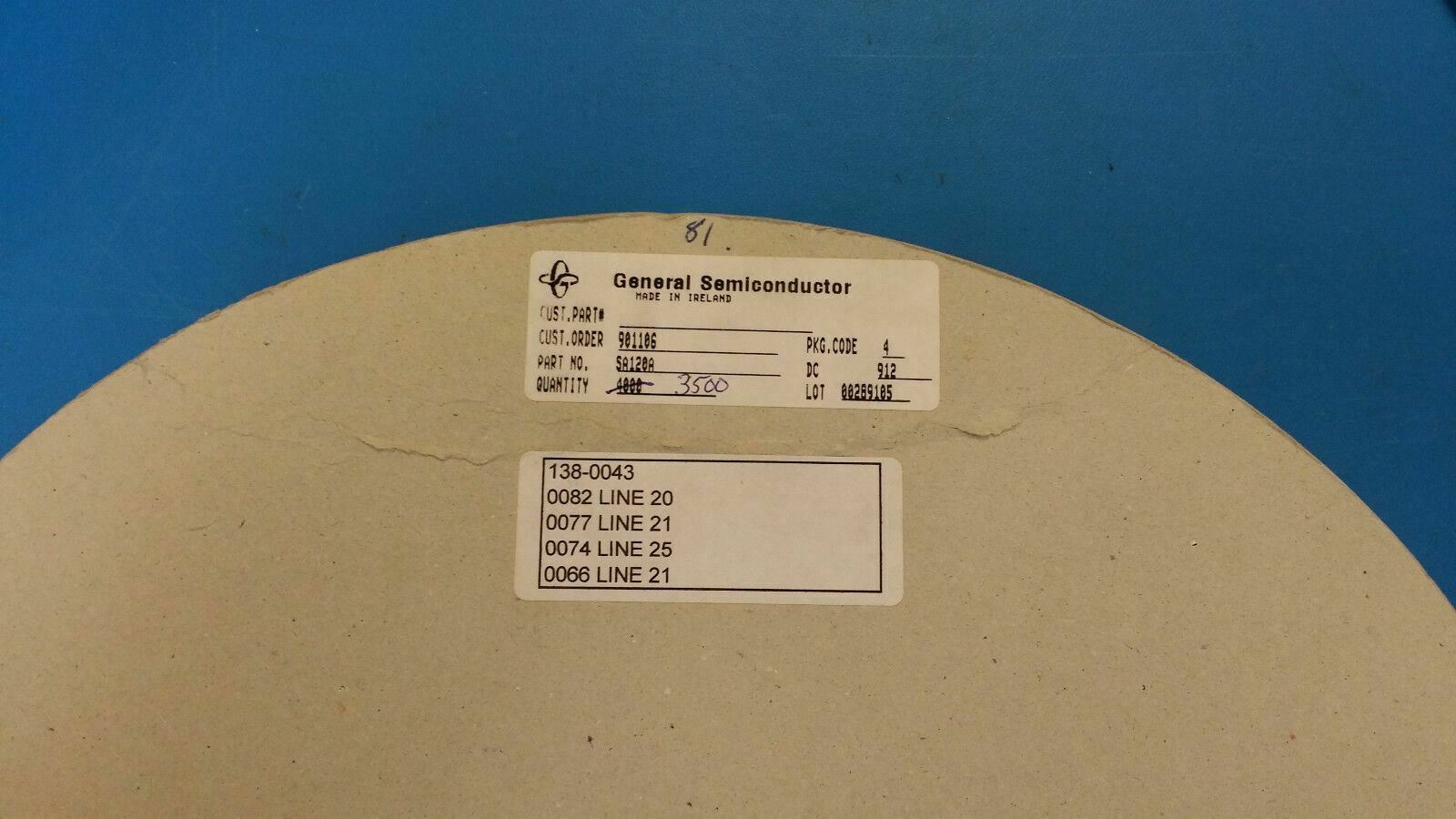

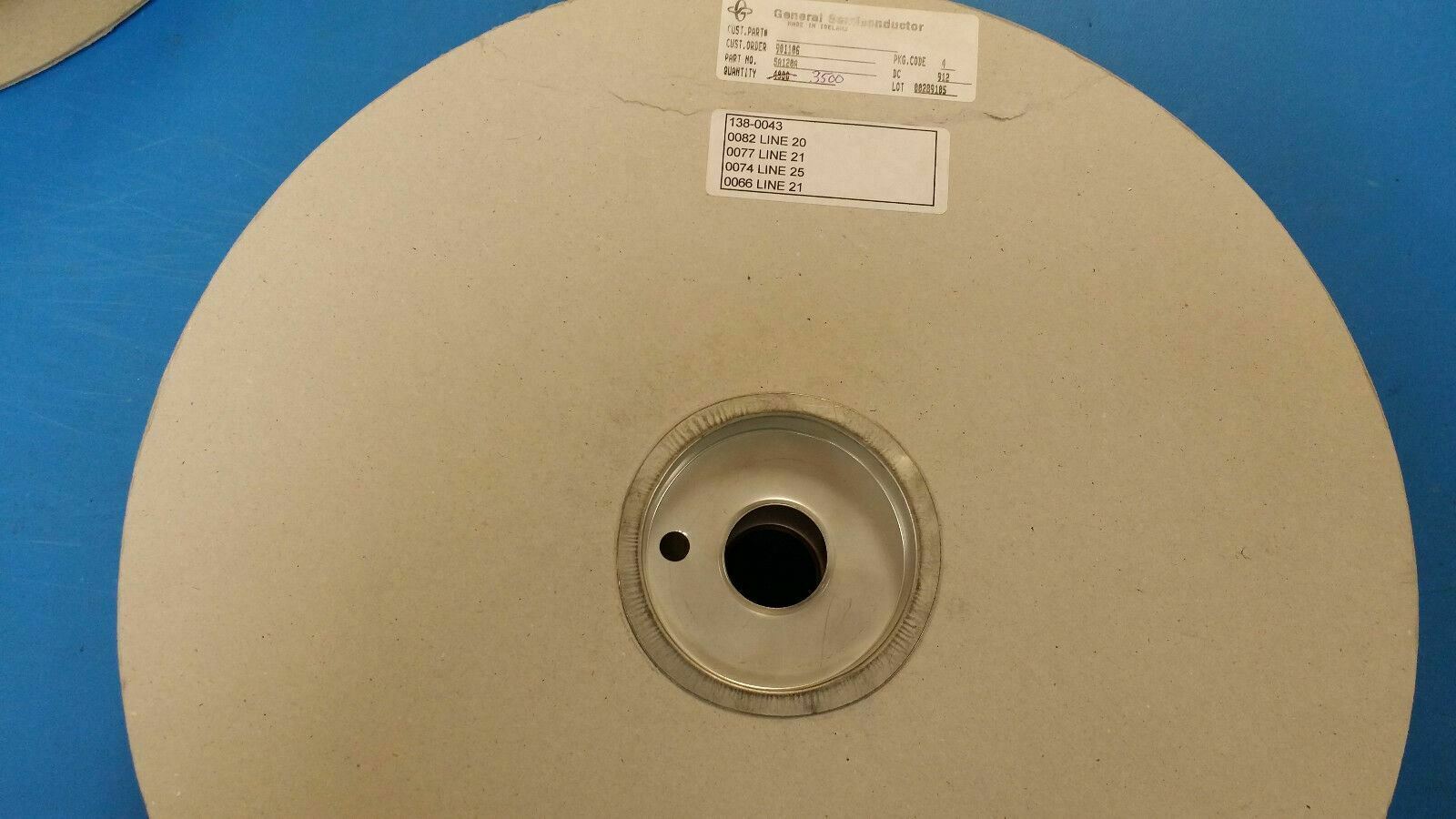

THIS LISTING IS FOR (50 PCS) OF SA120A BY GENERAL SEMICONDUCTOR

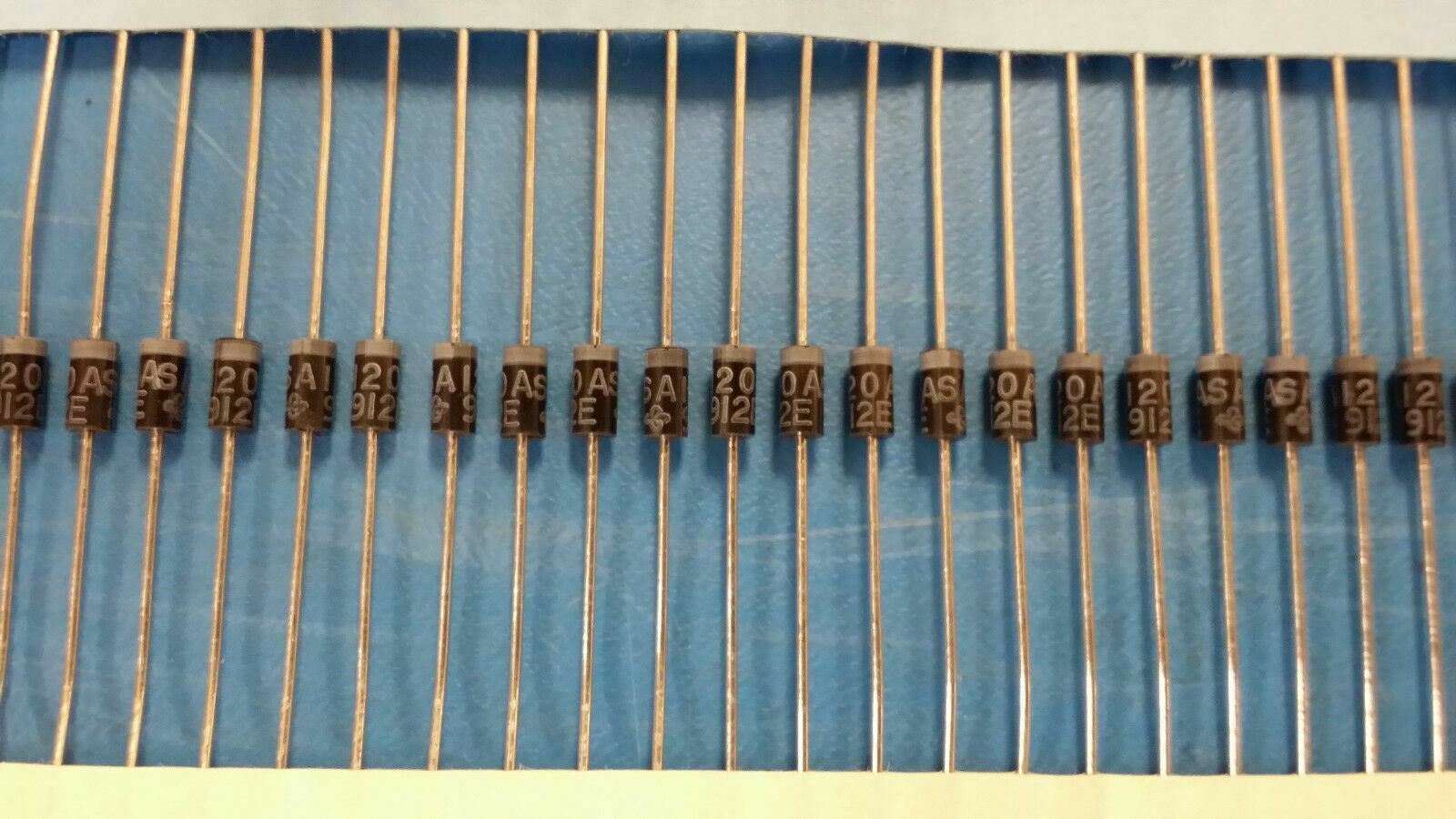

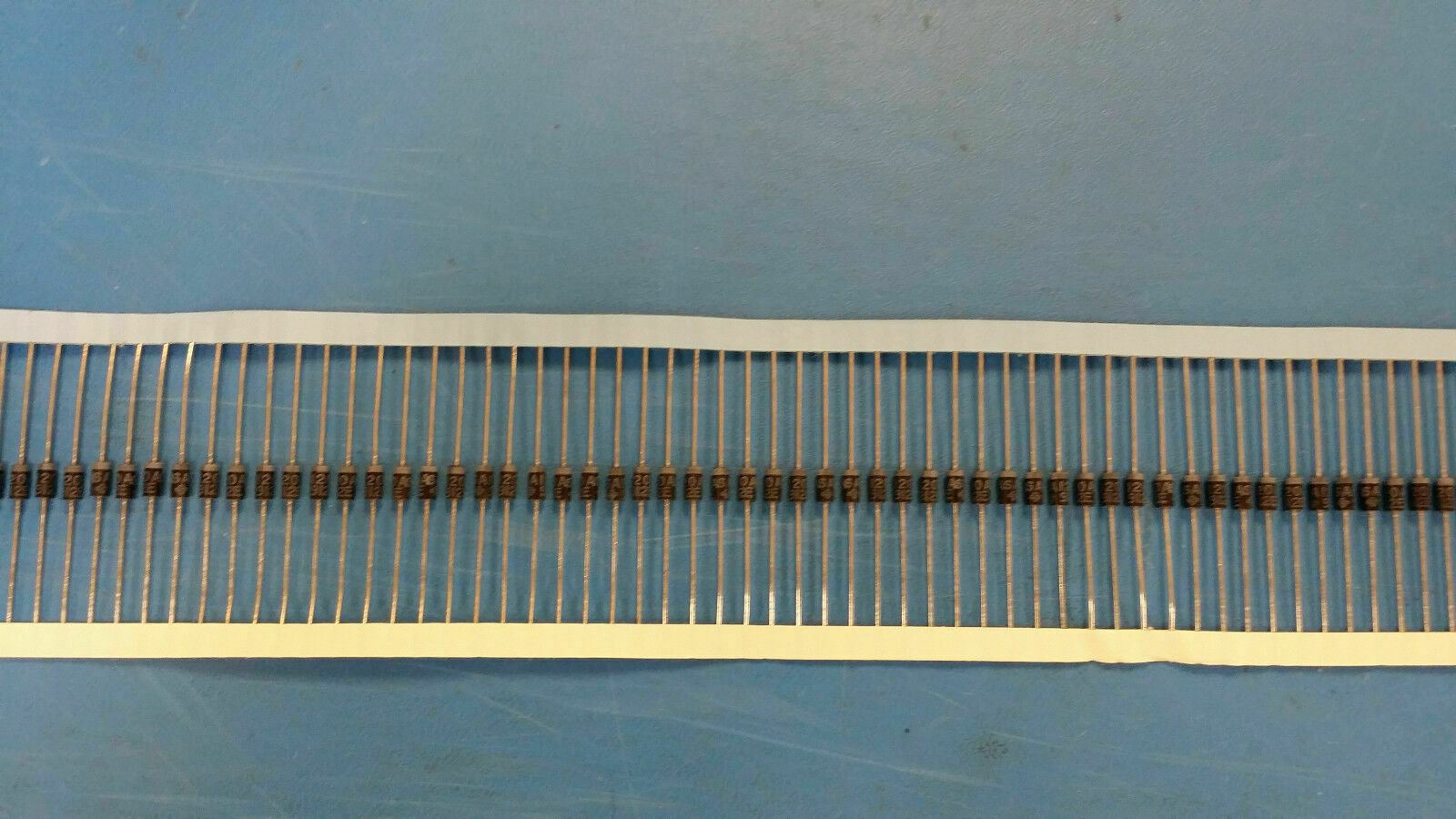

Diode TVS Single Uni-Dir 120V 500W 2-Pin DO-15 T/R
Diode TVS Single Uni-Dir 120V 500W 2-Pin DO-15 T/R
SA120A Part Details & Parametric
| Direction Type | Uni-Directional |
| Maximum Reverse Stand-Off Voltage (V) | 120 |
| Minimum Breakdown Voltage (V) | 133 |
| Maximum Clamping Voltage (V) | 193 |
| Maximum Reverse Leakage Current (uA) | 1 |
| Packaging | Tape and Reel |
| Number of Elements per Chip | 1 |
| Maximum Peak Pulse Current (A) | 2.7 |
| Test Current (mA) | 1 |
| Operating Junction Temperature (°C) | -65 to 175 |
| Peak Pulse Power Dissipation (W) | 500(Min) |
| Minimum Operating Temperature (°C) | -65 |
| Maximum Operating Temperature (°C) | 175 |
| Package Diameter (mm) | 3.56(Max) |
| Mounting | Through Hole |
| Package Length (mm) | 7.62(Max) |
| PCB | 2 |
| Standard Package Name | DO-204-AC |
| Supplier Package | DO-15 |
| Pin Count | 2 |
| Lead Shape | Through Hole |
