(50 PCS) PZT2222AT1 MOTOROLA Trans GP BJT NPN 40V 0.6A 4-Pin(3+Tab) SOT-223
Tax included.

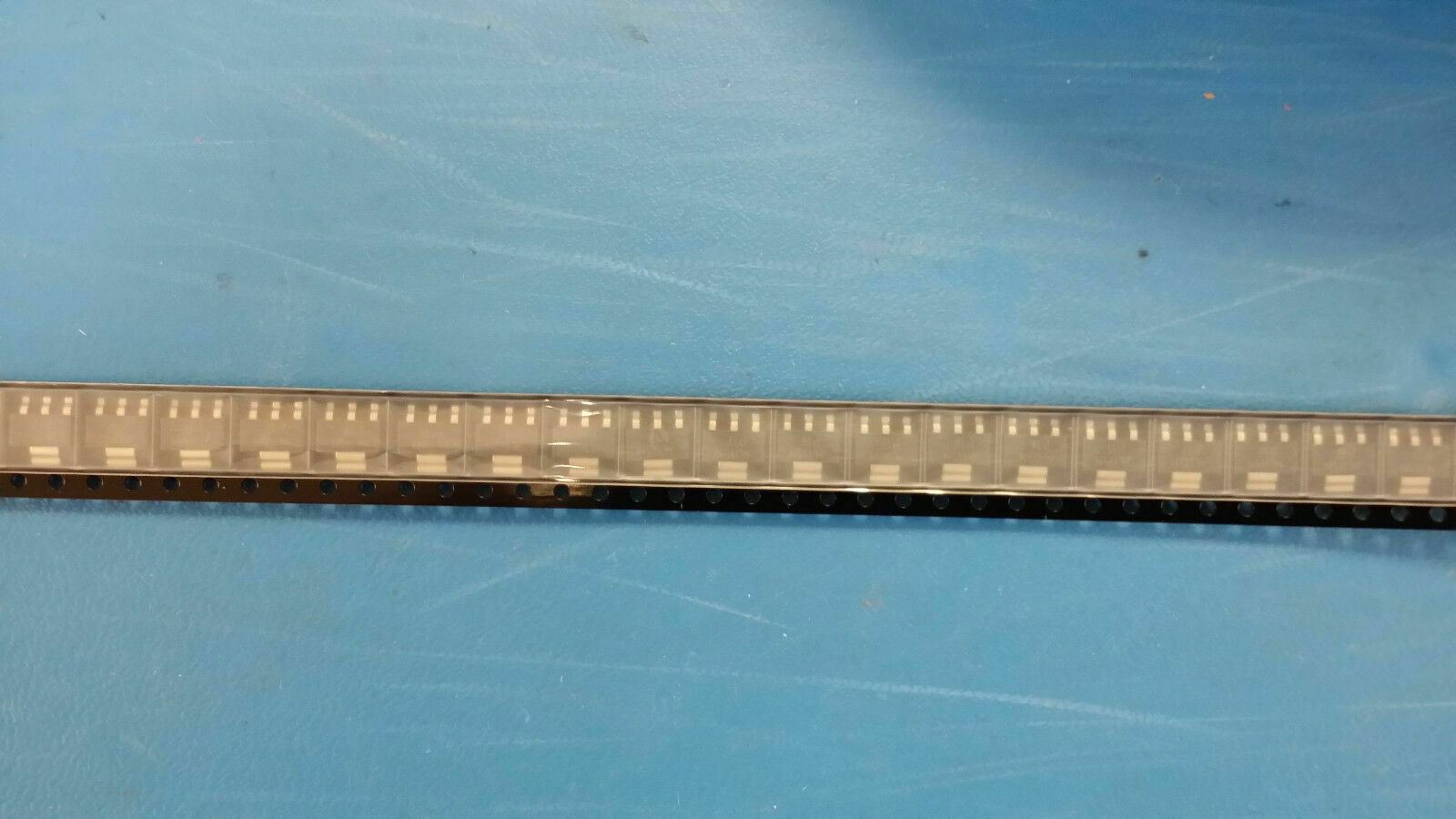

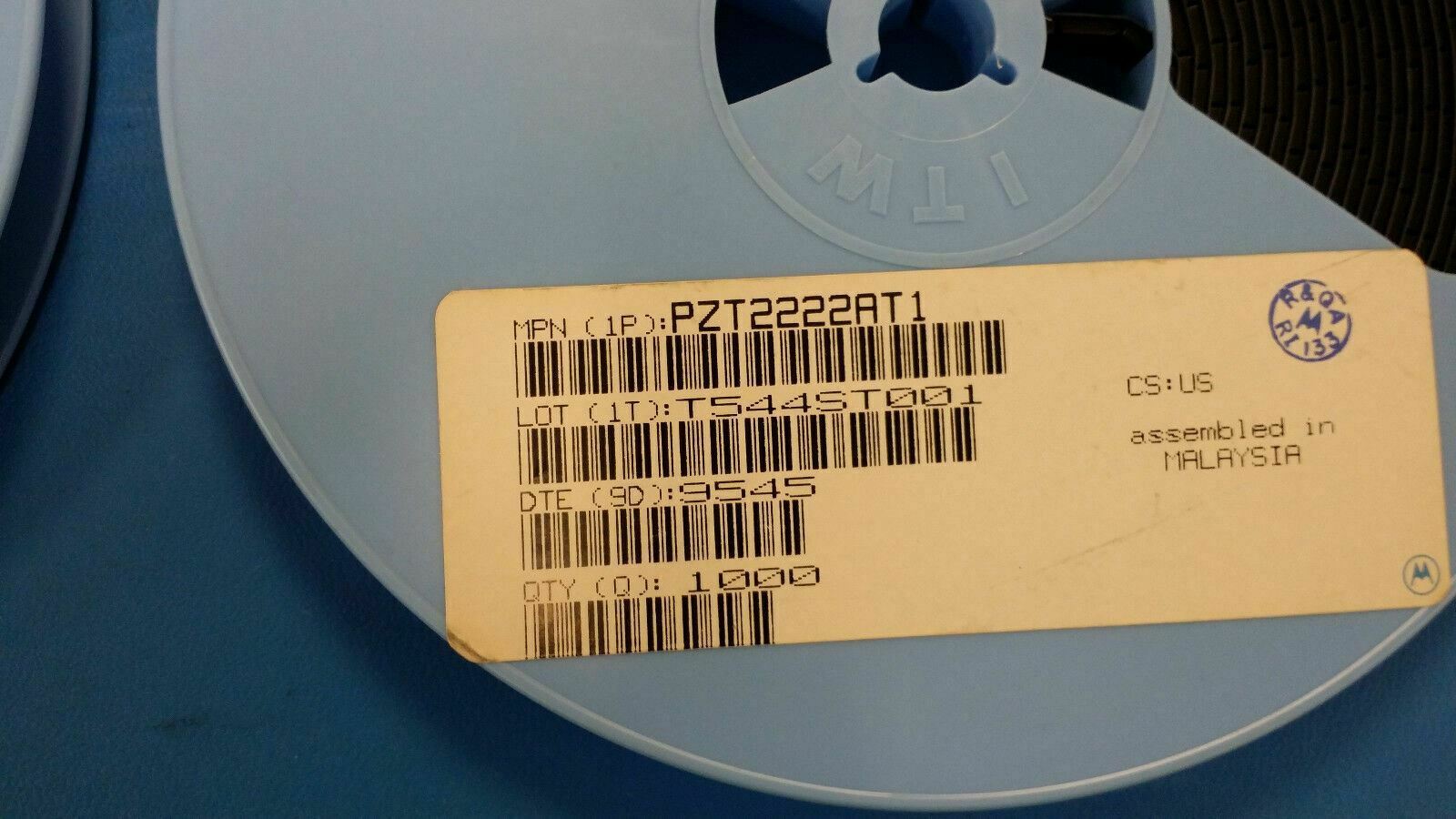

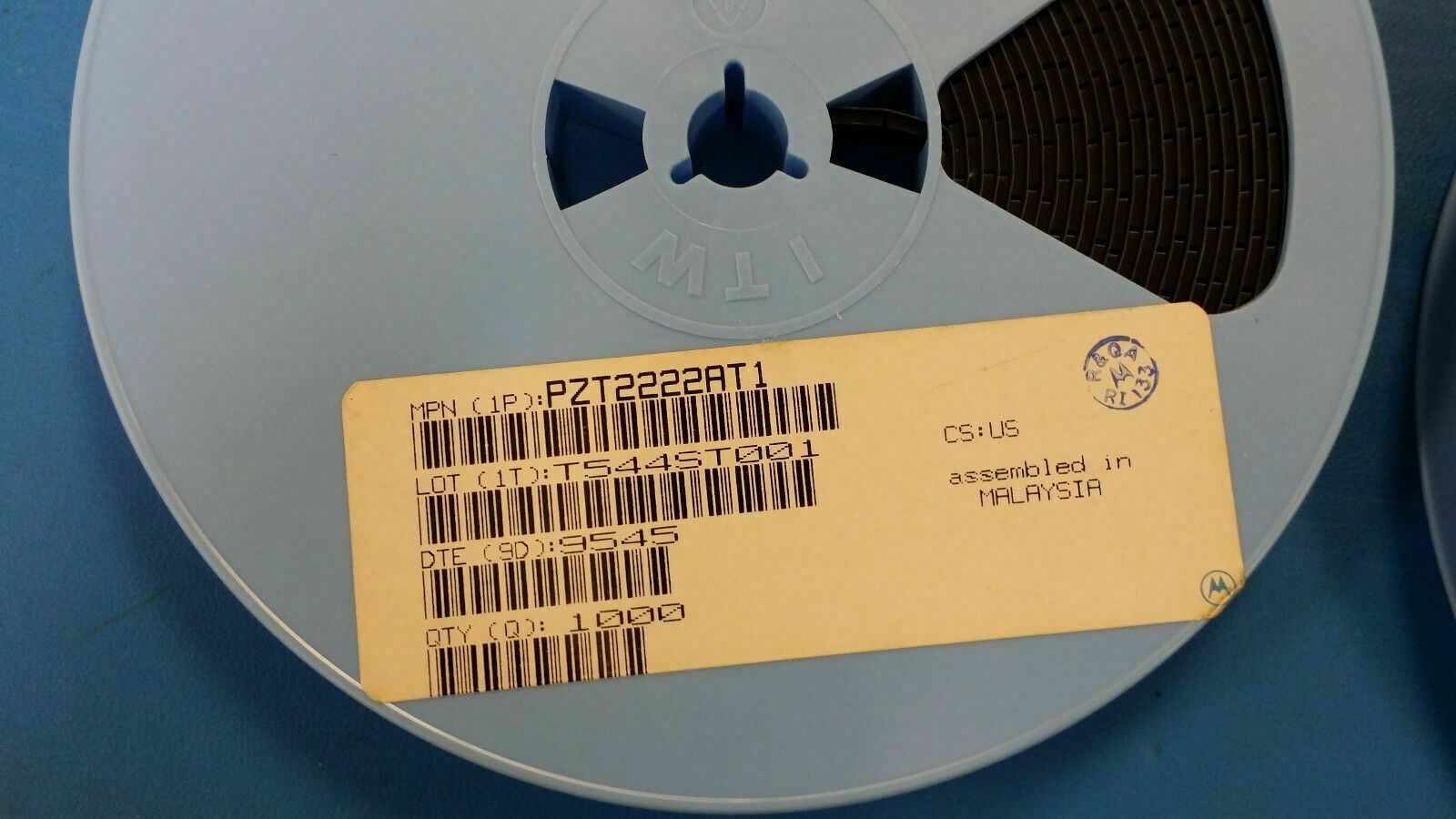

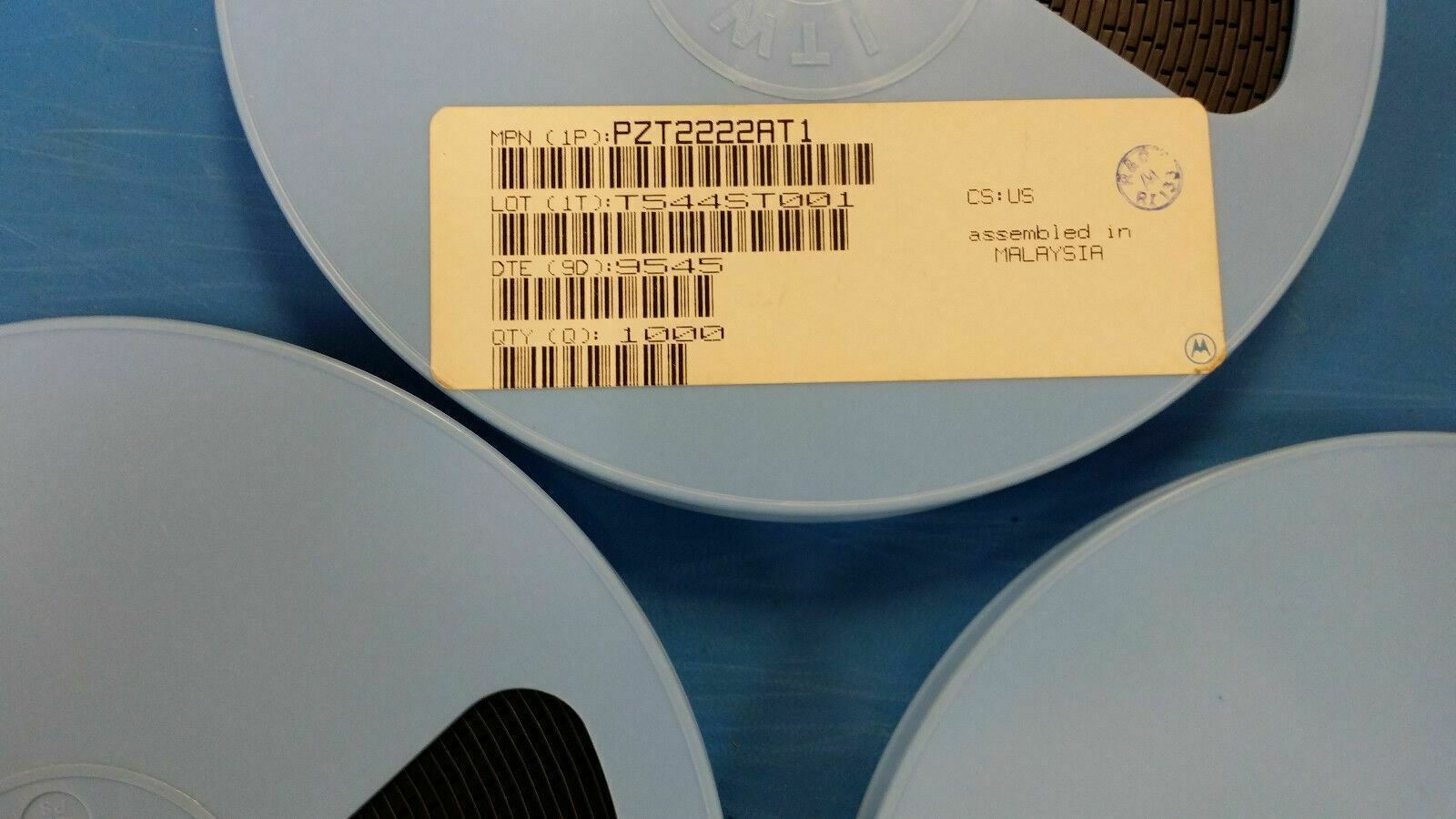

THIS LISTING IS FOR (50 PCS) OF PZT2222AT1 BY MOTOROLA
Trans GP BJT NPN 40V 0.6A 4-Pin(3+Tab) SOT-223
Trans GP BJT NPN 40V 0.6A 4-Pin(3+Tab) SOT-223
PZT2222AT1 Part Details & Parametric
| Minimum Operating Temperature (°C) | -65 |
| Maximum Operating Temperature (°C) | 150 |
| Type | NPN |
| Maximum Collector Base Voltage (V) | 75 |
| Maximum Emitter Base Voltage (V) | 6 |
| Maximum Collector Emitter Voltage (V) | 40 |
| Maximum Power Dissipation (mW) | 1500 |
| Maximum DC Collector Current (A) | 0.6 |

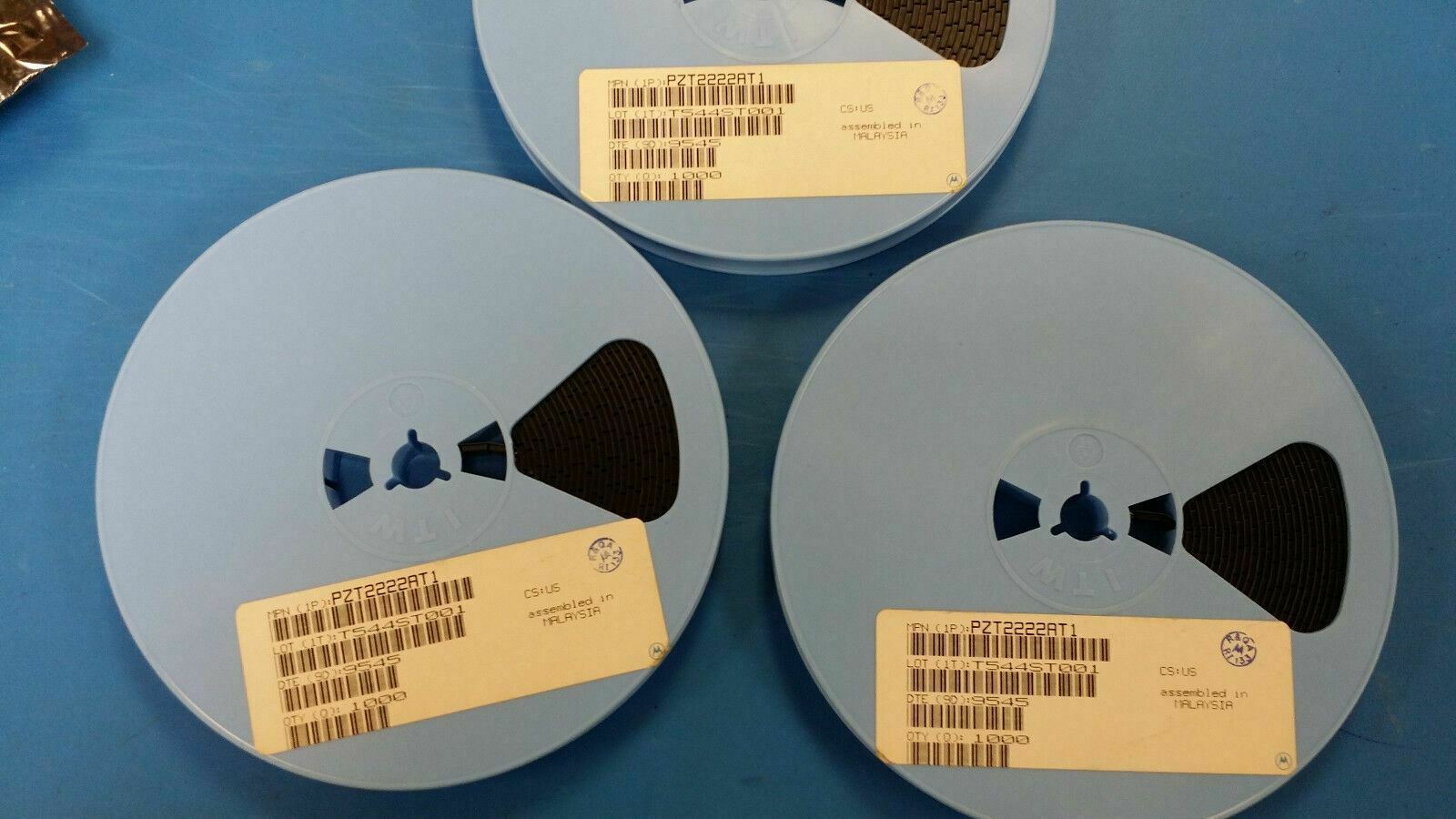

| Packaging | Tape and Reel |
| Minimum DC Current Gain | 35@0.1mA@10V|50@1mA@10V|70@10mA@10V|100@150mA@10V|50@150mA@1V|40@500mA@10V |
| Number of Elements per Chip | 1 |
| Maximum Transition Frequency (MHz) | 300(Min) |
| Category | Bipolar Power |
| Mounting | Surface Mount |
| Package Height (mm) | 1.57 |
| Package Length (mm) | 6.5 |
| Package Width (mm) | 3.5 |
| PCB | 3 |
| Tab | Tab |
| Standard Package Name | SOT-223 |
| Supplier Package | SOT-223 |
| Pin Count | 4 |
| Lead Shape | Gull-wing |
