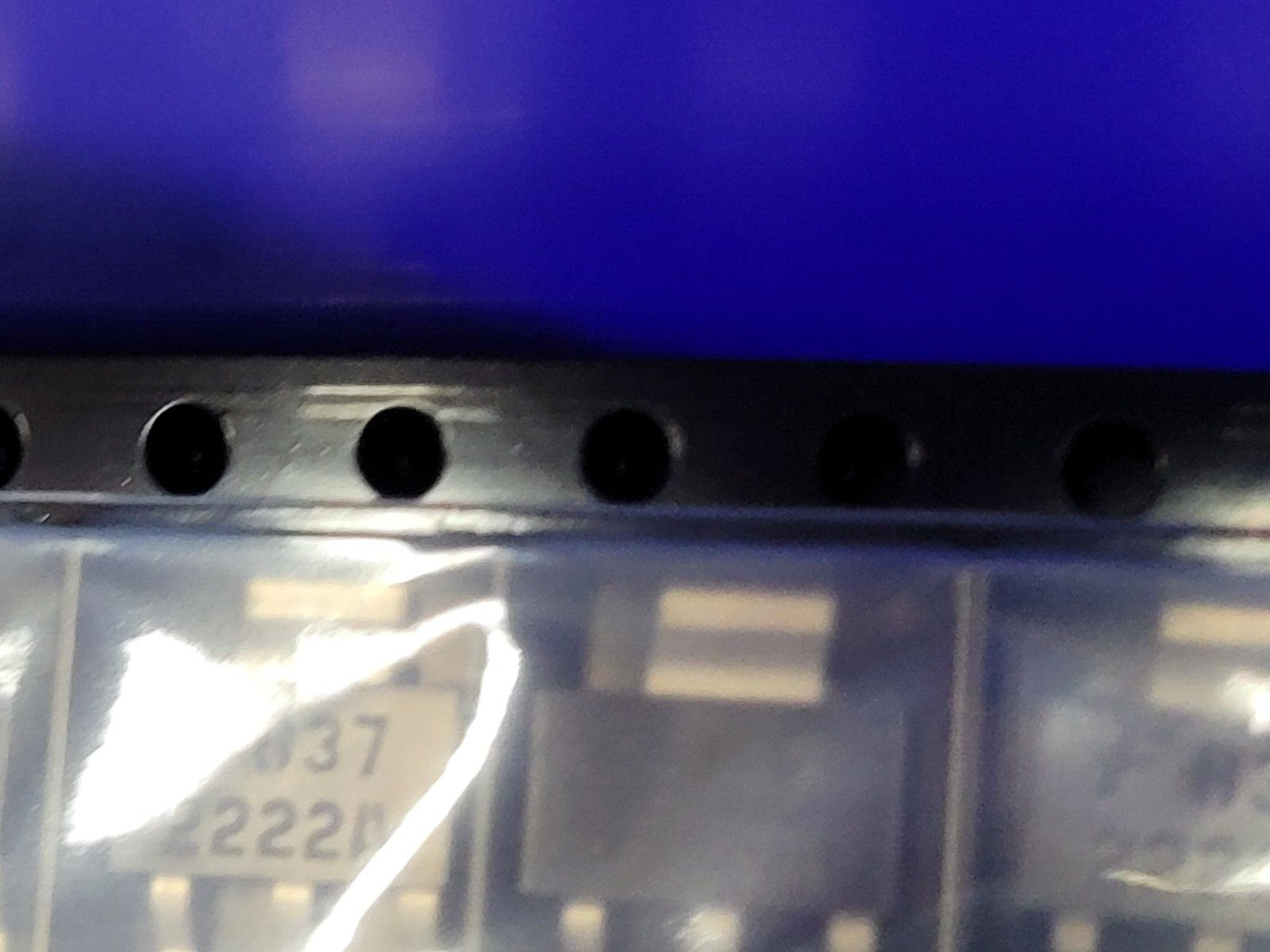

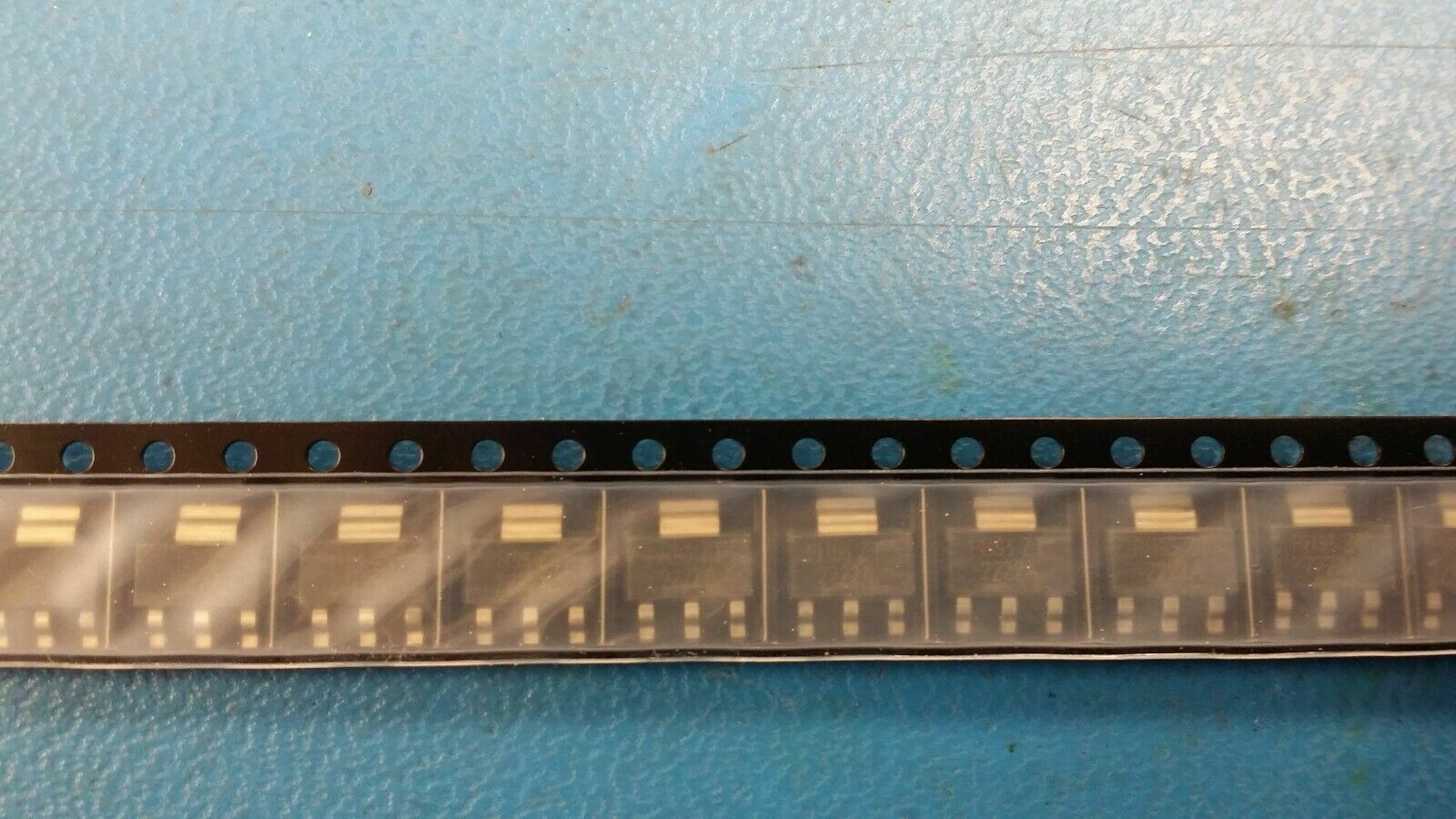

THIS LISTING IS FOR (50 PCS) OF PZT2222A BY FSC
TRANS NPN 40V 0.6A SOT223-4

Part #: PZT2222A
Part Category: Transistors
Manufacturer: Fairchild Semiconductor
Description: Small Signal Bipolar Transistor, 1A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-261AA

Mfr Package Description SOT-223, 4 PIN
REACH Compliant Yes
Status Transferred
Case Connection COLLECTOR
Collector Current-Max (IC) 1.0  A
Collector-emitter Voltage-Max 40.0  V
Configuration SINGLE
DC Current Gain-Min (hFE) 75.0
JEDEC-95 Code TO-261AA
JESD-30 Code R-PDSO-G4
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1.0
Number of Terminals 4
Operating Temperature-Max 150.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity/Channel Type NPN
Power Dissipation-Max (Abs) 1.5  W
Qualification Status Not Qualified
Sub Category Other Transistors
Surface Mount YES

Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Transistor Application SWITCHING
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 300.0  MHz
Turn-off Time-Max (toff) 285.0  ns
Turn-on Time-Max (ton) 35.0  ns
