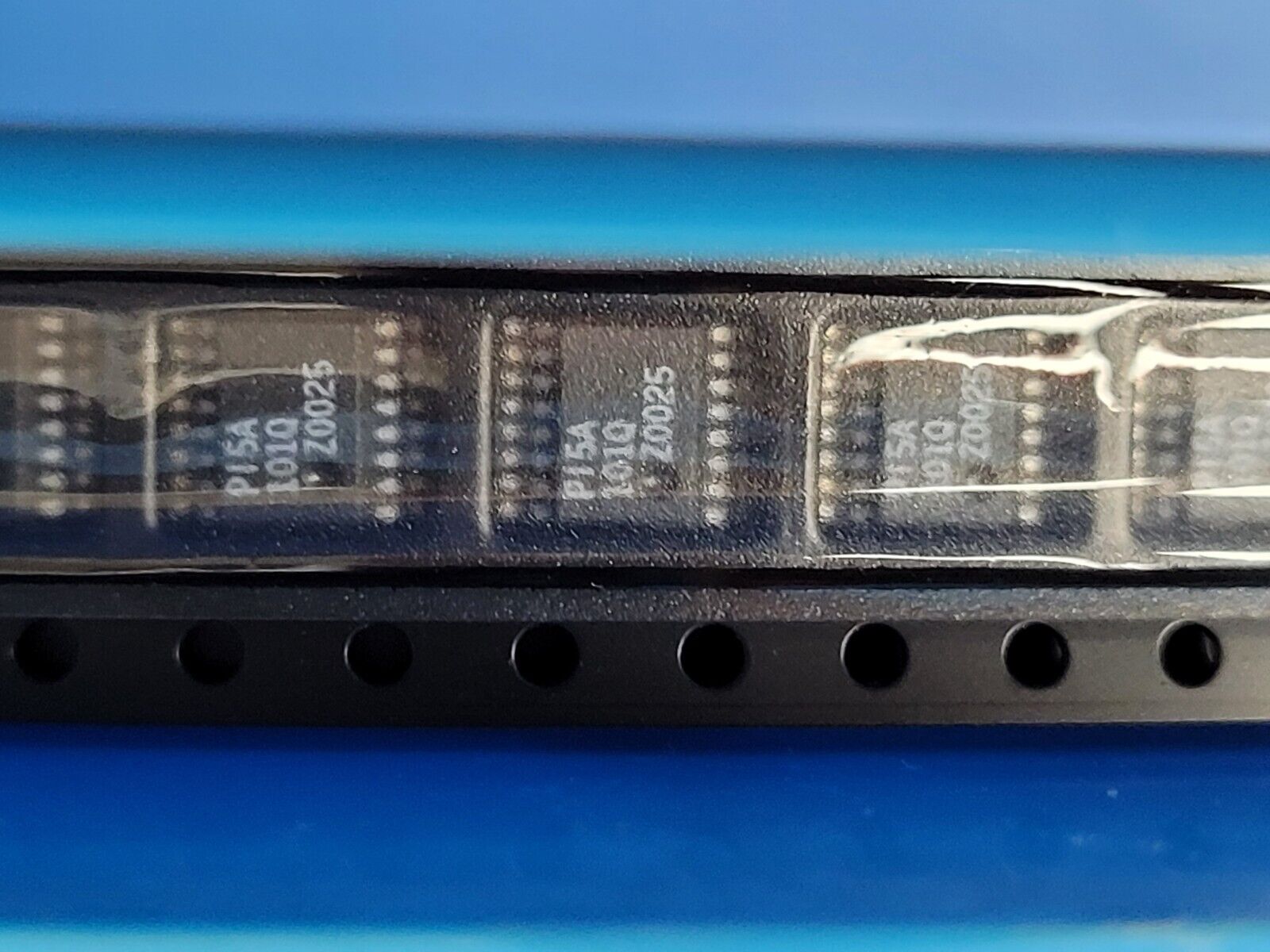

(50 PCS) PI5A101QX PERICOM SPST, 4 Func, 1 Channel, CMOS, SOIC16
Tax included.
THIS IS FOR (50 PCS) OF PI5A101QX BY PERICOM
SPST, 4 Func, 1 Channel, CMOS, SOIC16
Part #: PI5A101QX
Part Category: Other Semiconductors
Manufacturer: Pericom Semiconductor Corp.
Description: SPST, 4 Func, 1 Channel, CMOS, PDSO16
Mfr Package Description QSOP-16
REACH Compliant Yes
Status Discontinued
Analog IC - Other Type SPST
JESD-30 Code R-PDSO-G16
Number of Channels 1
Number of Functions 4
Number of Terminals 16
Off-state Isolation-Nom 55.0 dB
On-state Resistance Match-Nom 1.0 ohm
On-state Resistance-Max (Ron) 18.0 ohm
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 2.0 V
Supply Voltage-Max (Vsup) 6.0 V
Surface Mount YES
Switch-off Time-Max 12.0 ns
Switch-on Time-Max 25.0 ns
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 0.635 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 4.9 mm
Width 3.9 mm
Additional Feature CAN ALSO OPERATE WITH 5V SUPPLY
